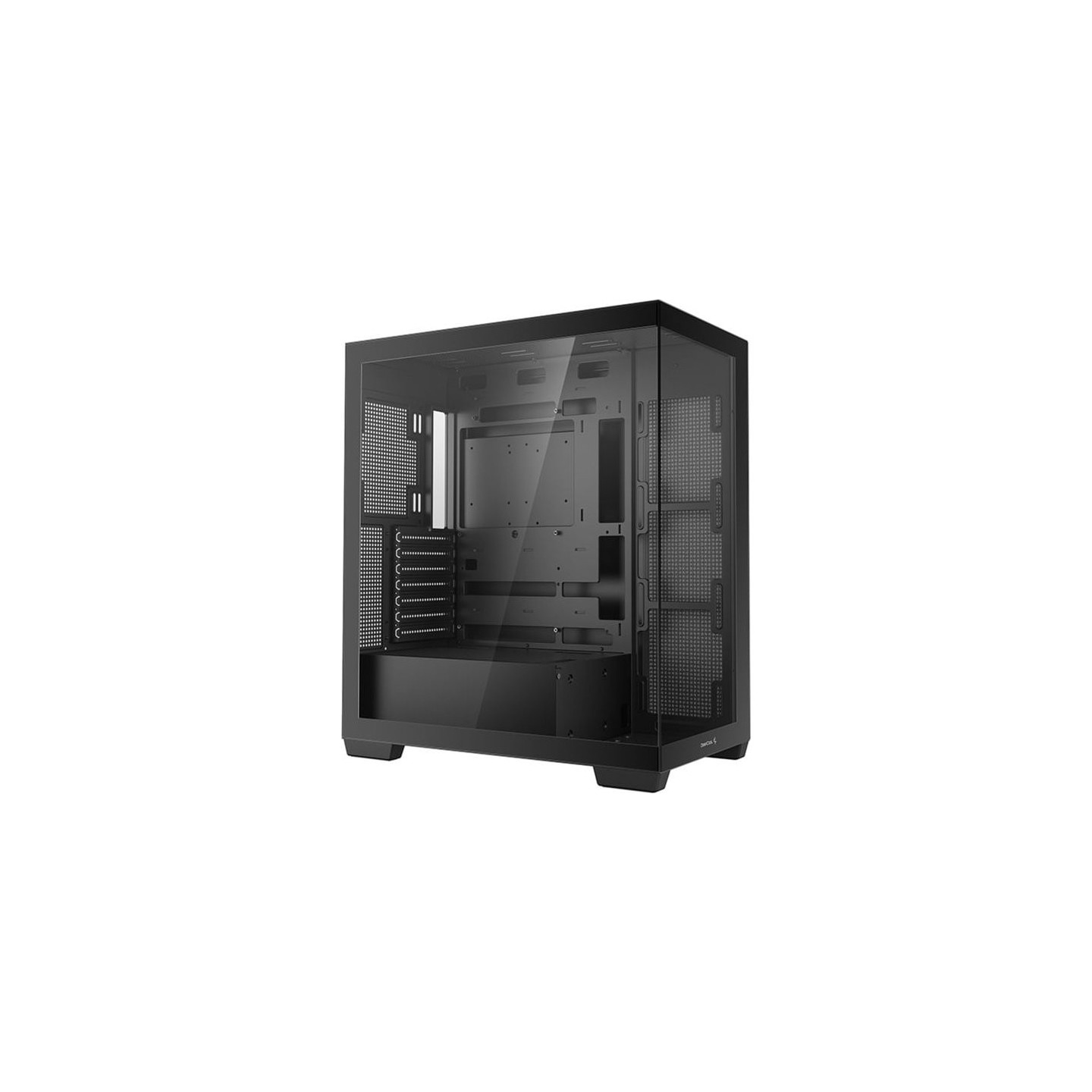

DeepCool CG580 Mid Tower ATX PC Case - Tempered Glass (Boxed)
DeepCool CG580 is a mid-tower ATX case featuring panoramic tempered glass panels, supporting up to 360mm radiators and accommodating GPUs up to 410mm. Designed for gaming builds with excellent visibility.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 280 mm 360 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Combo Jack USB A |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | Black White |
| PC Cases - CPU Cooler Clearance | 166-170 mm |
The DeepCool CG580 is a mid-tower ATX case designed for modern gaming and high-performance PC builds. It features a distinctive panoramic tempered glass design that spans from the left side to the back of the case, providing exceptional visibility of your components. The single-chamber layout maximizes internal space while maintaining a compact footprint suitable for most desk setups.
This case supports a wide range of cooling solutions and components, making it highly versatile. It accommodates ATX, Micro ATX, and Mini ITX motherboards, with maximum GPU length support of 410mm and CPU cooler clearance up to 176mm. The case supports radiators up to 360mm on the top, 240/360mm on the side, and 120/140mm on the rear, offering flexibility for both air and liquid cooling configurations. The PSU shroud keeps your power supply hidden while supporting units up to 210mm in length.
The CG580 comes with no pre-installed fans, allowing you to customize your cooling setup with your preferred fan models. It includes 1x 2.5" and 2x 3.5" drive bays for storage expansion, along with 7 full-height PCIe expansion slots. The front panel features USB 3.2 Gen 1 Type-A connectivity and audio combo jack support for convenient access.
- Panoramic tempered glass side and front panels for maximum component visibility
- Supports ATX, Micro ATX, and Mini ITX motherboards
- Maximum GPU length: 410mm; CPU cooler clearance: 176mm
- Radiator support: 360mm (top), 240/360mm (side), 120/140mm (rear)
- 1x 2.5" and 2x 3.5" internal drive bays
- 7 full-height PCIe expansion slots
- USB 3.2 Gen 1 Type-A and audio combo jack on front panel
- No fans included; fully customizable cooling configuration
| Type | ATX Mid Tower |
| Motherboard Compatibility | ATX, Micro ATX, Mini ITX |
| Dimensions (Internal) | 437 mm (L) × 235 mm (W) × 501 mm (H) |
| Volume | 51.45 L |
| Weight (Bare Case) | 8.7 kg |
| Maximum GPU Length | 410 mm |
| Maximum CPU Cooler Height | 176 mm |
| Maximum PSU Length | 210 mm |
| Side Panel | Tempered Glass |
| Front Panel | Tempered Glass |
| Power Supply Shroud | Yes |
| Front I/O | USB 3.2 Gen 1 Type-A, Audio Combo Jack |
| Drive Bays (2.5 | 1 Internal |
| Drive Bays (3.5 | 2 Internal |
| Expansion Slots | 7 Full-Height PCIe |
| Radiator Support (Top) | 120/140/240/280/360 mm |
| Radiator Support (Side) | 120/240/360 mm |
| Radiator Support (Rear) | 120/140 mm |
| Fan Locations (Top) | 3×120 mm or 2×140 mm |
| Fan Locations (Side) | 3×120 mm |
| Fan Locations (Rear) | 1×120 mm or 1×140 mm |
| Fan Locations (Bottom) | 1×120 mm (3.5 |
| Included Fans | 0 |
| Dust Filters | Top, Bottom, Side Panel |
| Cable Management | Yes |
| Material | ABS, SGCC Steel, Tempered Glass |
| Color Options | Black, White |
| Power Supply Included | No |
