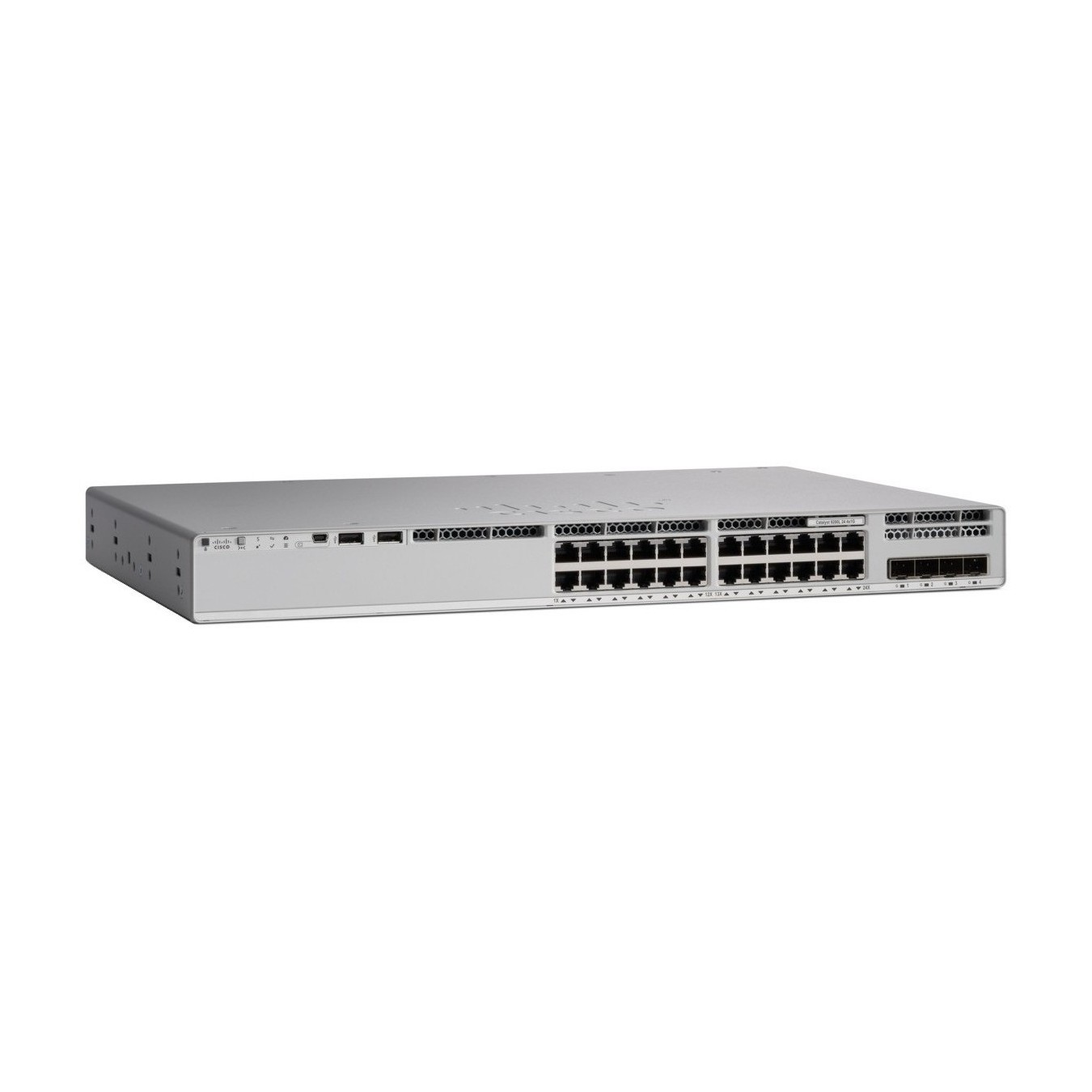

Cisco - C9200L - 24-PORT 8XMGIG 16X1G
Cisco C9200L 24-port PoE managed L3 switch.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco C9200L-24PXG-4X-A. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Fast Ethernet (copper) ports quantity | 24 |
| Power connector | AC-in jack |
| Copper ethernet cabling technology | 10BASE-T. 10GBASE-T. 100BASE-TX. 1000BASE-T |
| Routing entries | 3000 |
| Number of VLANs | 1024 |
| MAC address table | 16000 entries |
| Jumbo frames | 9198 |
| Security algorithms | 128-bit AES |
| Multicast MAC address table | 1000 entries |
| IPv4 multicast entries | 3000 |
| IPv6 multicast entries | 1500 |
| Management protocols | SNMPv1/v2c/v3 |
| Routing protocols | CDP. EIGRP. OSPF. RIP. VRRP |
| Product colour | Grey |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Width | 445 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Certification | RoHS. IEC 60950-1. UL 60950-1. CAN/CSA C22.2 No. 60950-1. EN 60950-1. AS/NZS 60950.1. Class I Equipment |
| Harmonized System (HS) code | 85176990 |
