Cisco 2.4 GHZ 5 GHZ 13 DBI PATCH

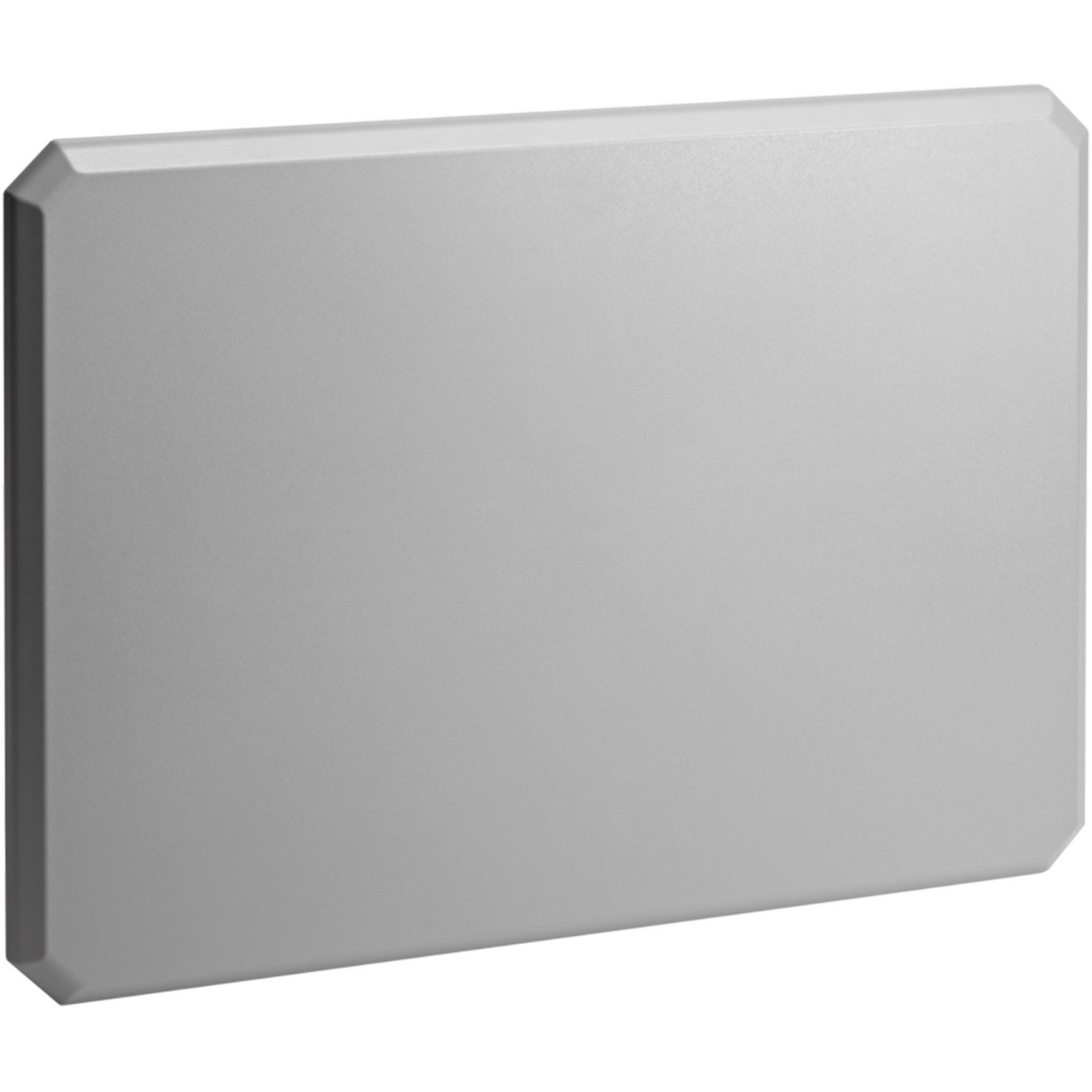

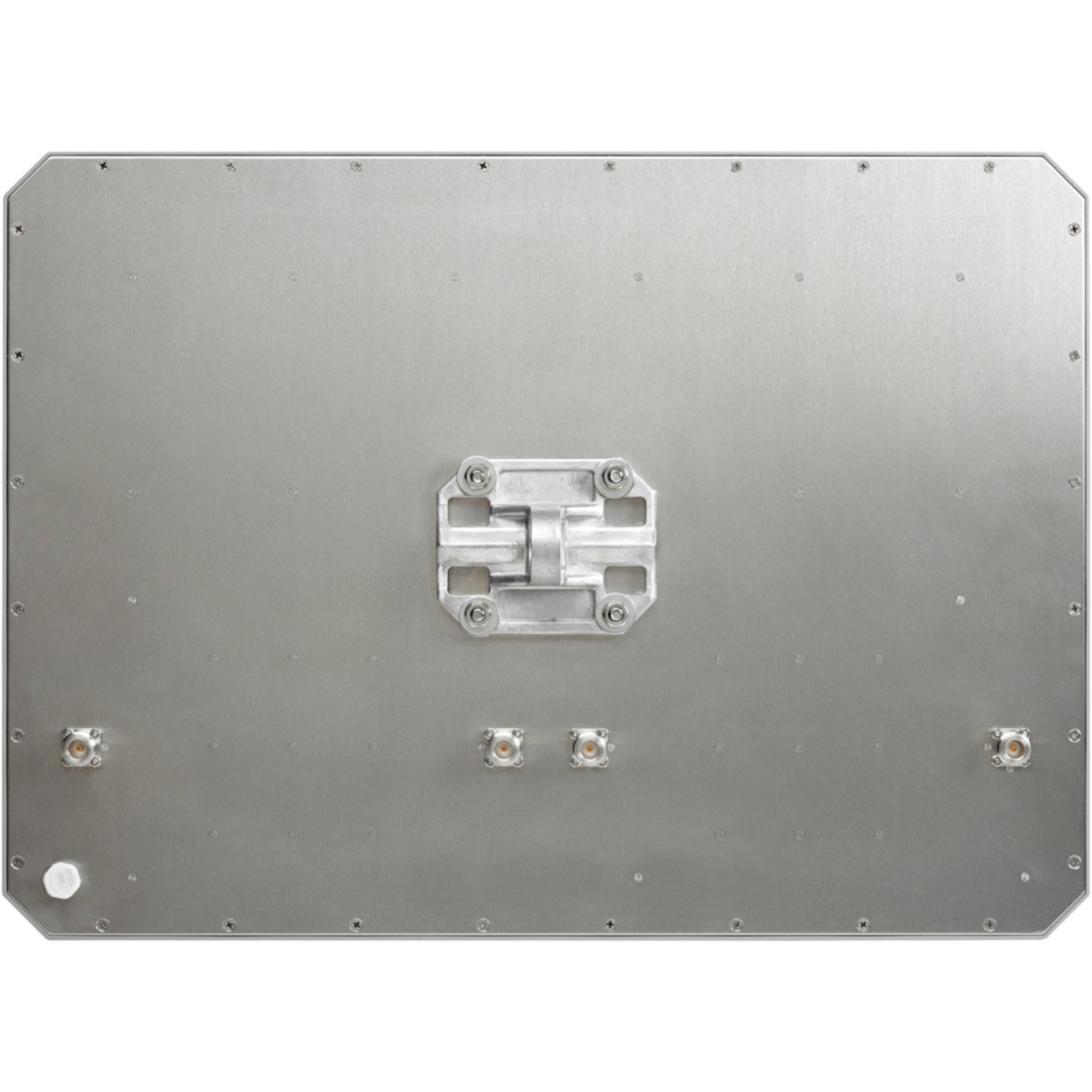

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna. 13 dBi (2.4 GHz)/13 dBi (5 GHz). 4 Ports. 4 N-Type Female Connectors. 1-Year Limited Hardware Warranty (AIR-ANT2513P4M-N=). 13 dBi. 2.4 - 2.5 / 5.15 - 5.9 GHz. 50 Ω. N-type. Female. Dual polarization
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna. 13 dBi (2.4 GHz)/13 dBi (5 GHz). 4 Ports. 4 N-Type Female Connectors. 1-Year Limited Hardware Warranty (AIR-ANT2513P4M-N=). Antenna gain level (max): 13 dBi. Frequency band: 2.4 - 2.5 / 5.15 - 5.9 GHz. Impedance: 50 Ω. Antenna connector type: N-type. Connector gender: Female. Polarization: Dual polarization. Width: 507 mm. Height: 21.1 mm. Weight: 2.3 kg. Package width: 402.1 mm. Package depth: 660.9 mm. Package height: 104.9 mm. Quantity per pack: 1 pc(s)
| Frequency band | 2.4 - 2.5 / 5.15 - 5.9 GHz |
| Impedance | 50 Ω |
| Antenna gain level (max) | 13 dBi |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Dual polarization |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Width | 507 mm |
| Height | 21.1 mm |
| Weight | 2.3 kg |
| Package width | 402.1 mm |
| Package depth | 660.9 mm |
| Package height | 104.9 mm |
| Package weight | 4.31 kg |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
| Country of origin | China |
