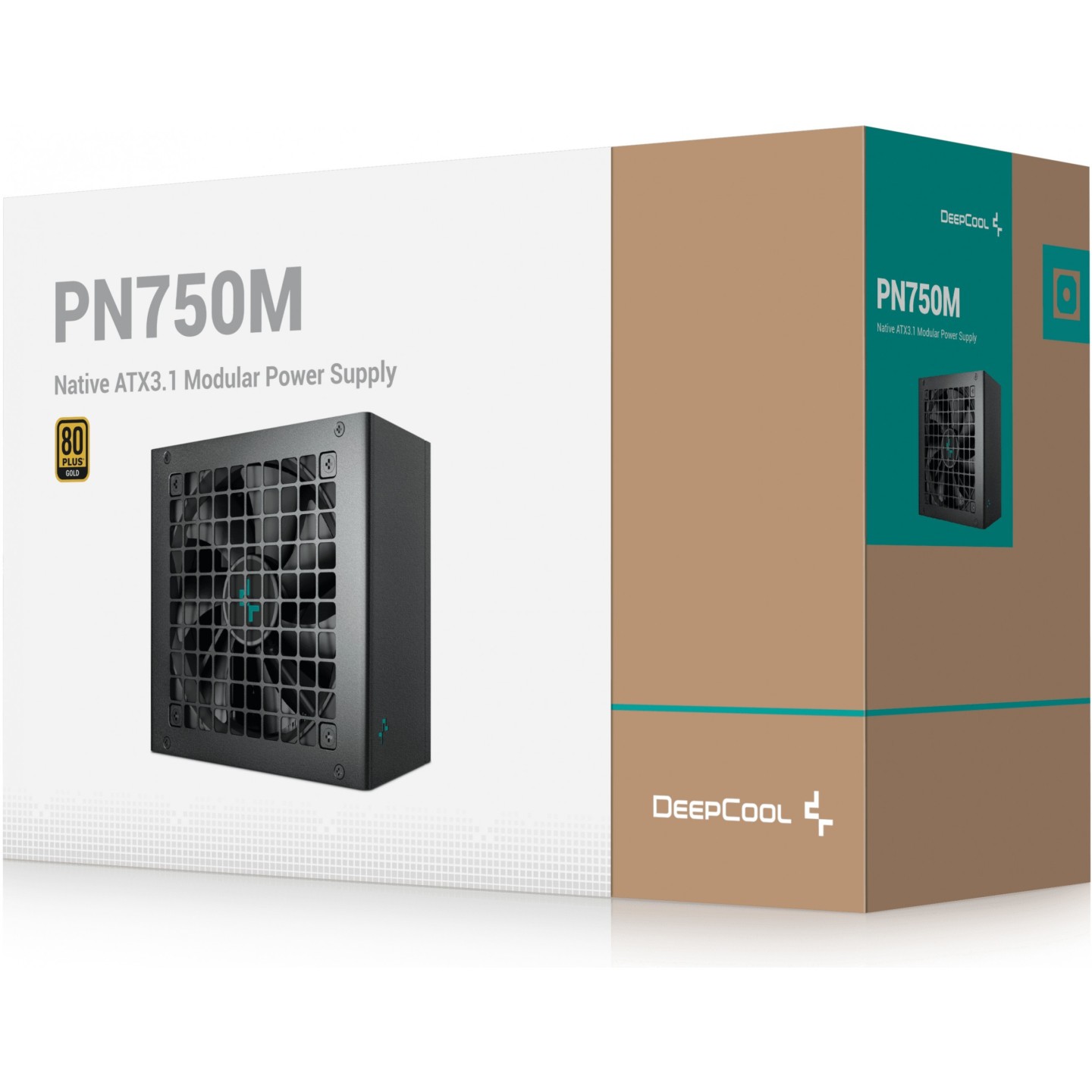

DeepCool PN750-M 750W Fully Modular ATX 3.1 PSU - 80 PLUS Gold - R-PN750M-FC0B-UK (Boxed)
DeepCool PN750-M 750W Fully Modular ATX 3.1 PSU. 80 PLUS Gold certified, Cybenetics Gold efficiency. Includes 1x PCIe 12+4pin (450W), 3x 6+2pin, 2x EPS. 12cm FDB fan, 10-year warranty, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin 3x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

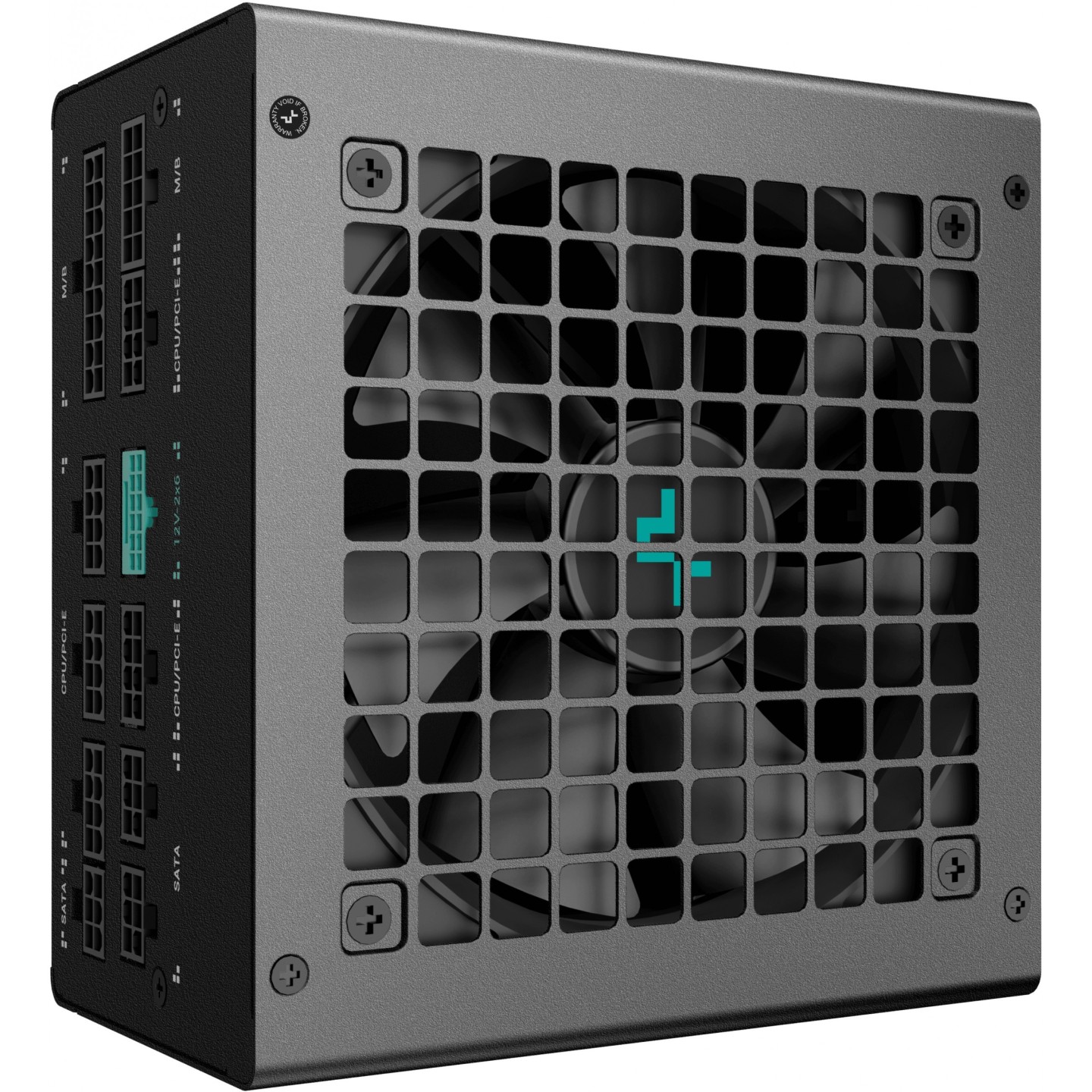

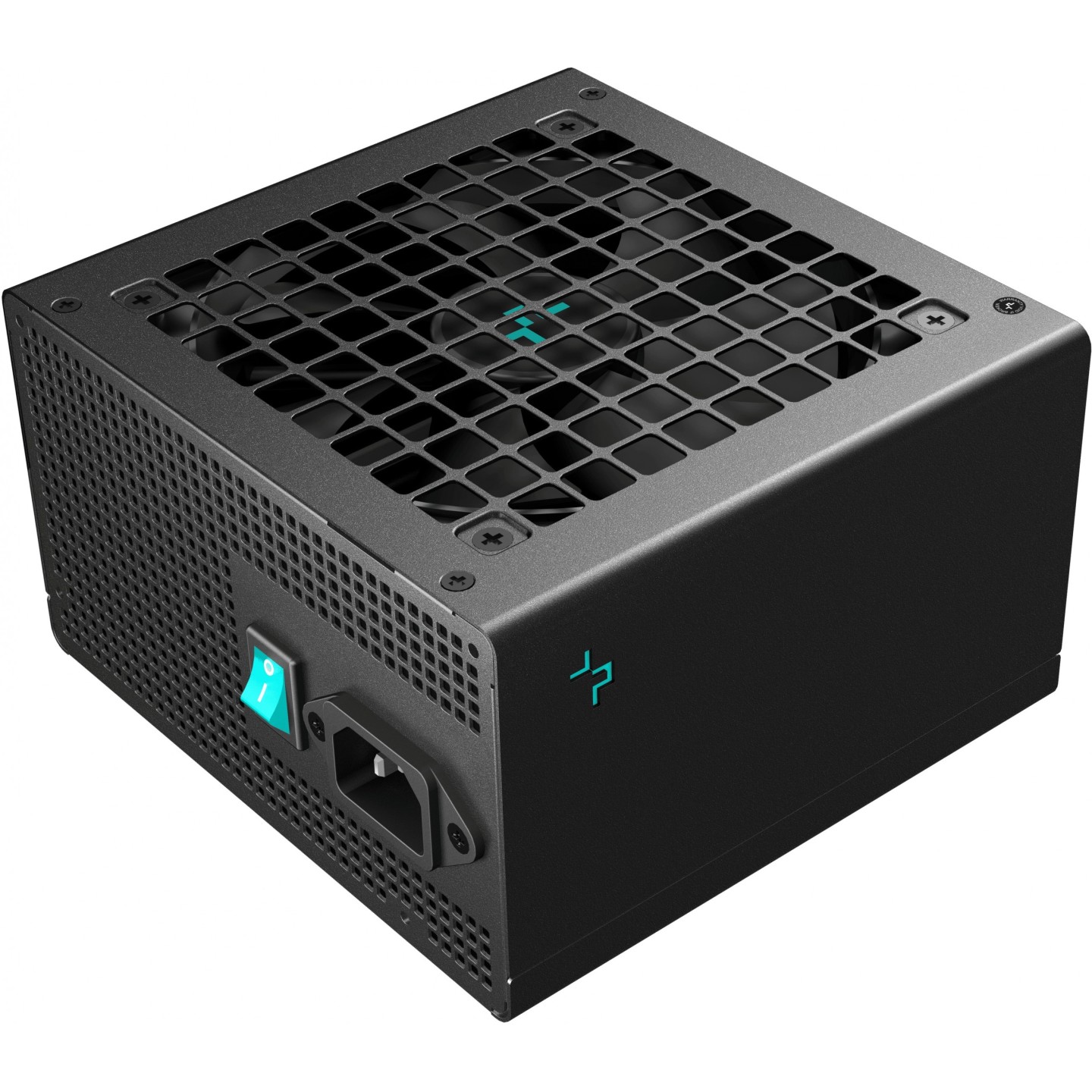

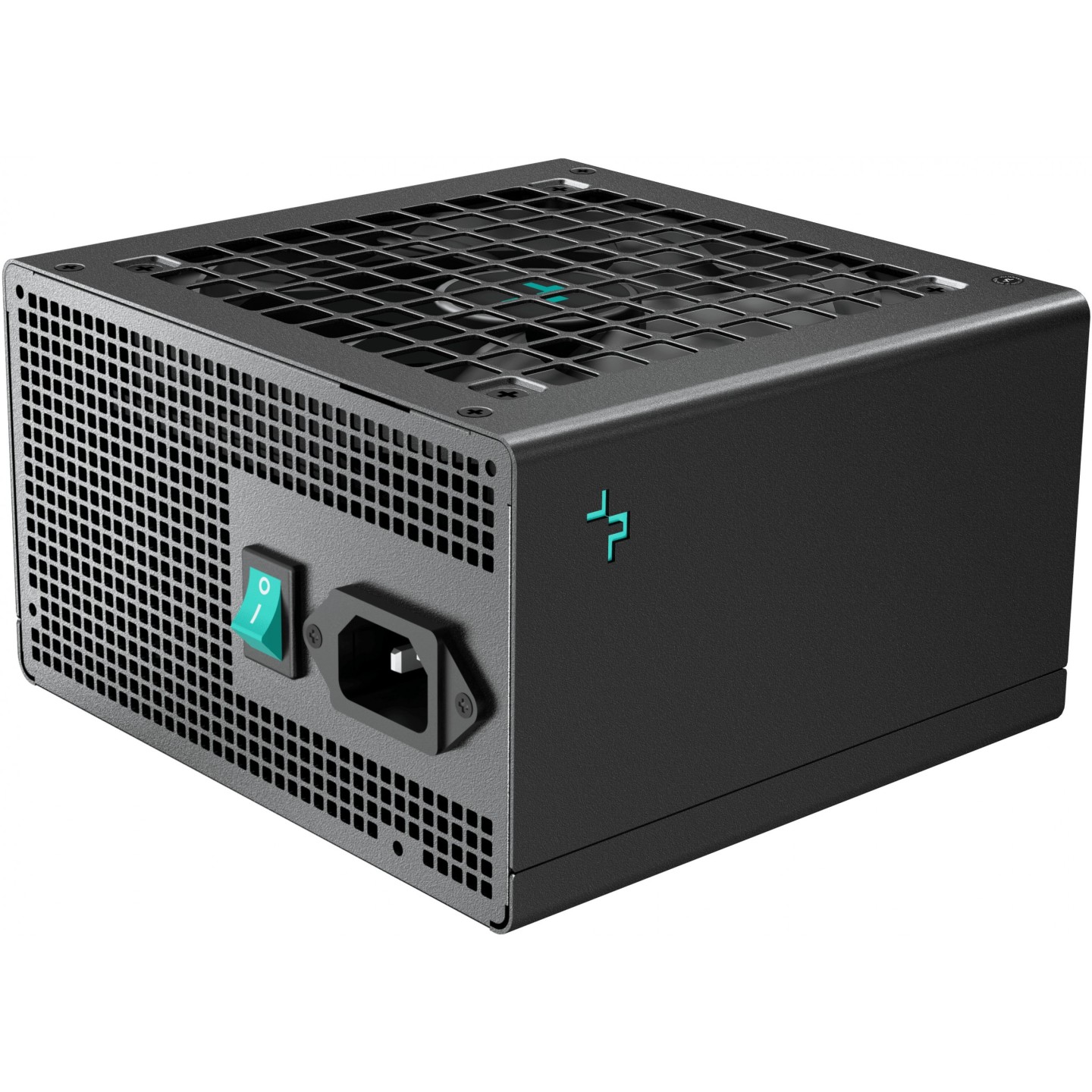

The DeepCool PN750-M is a high-performance 750W fully modular power supply compliant with the latest ATX 3.1 and PCIe 5.1 standards, making it ideal for modern gaming PCs and high-end builds with power-hungry GPUs.

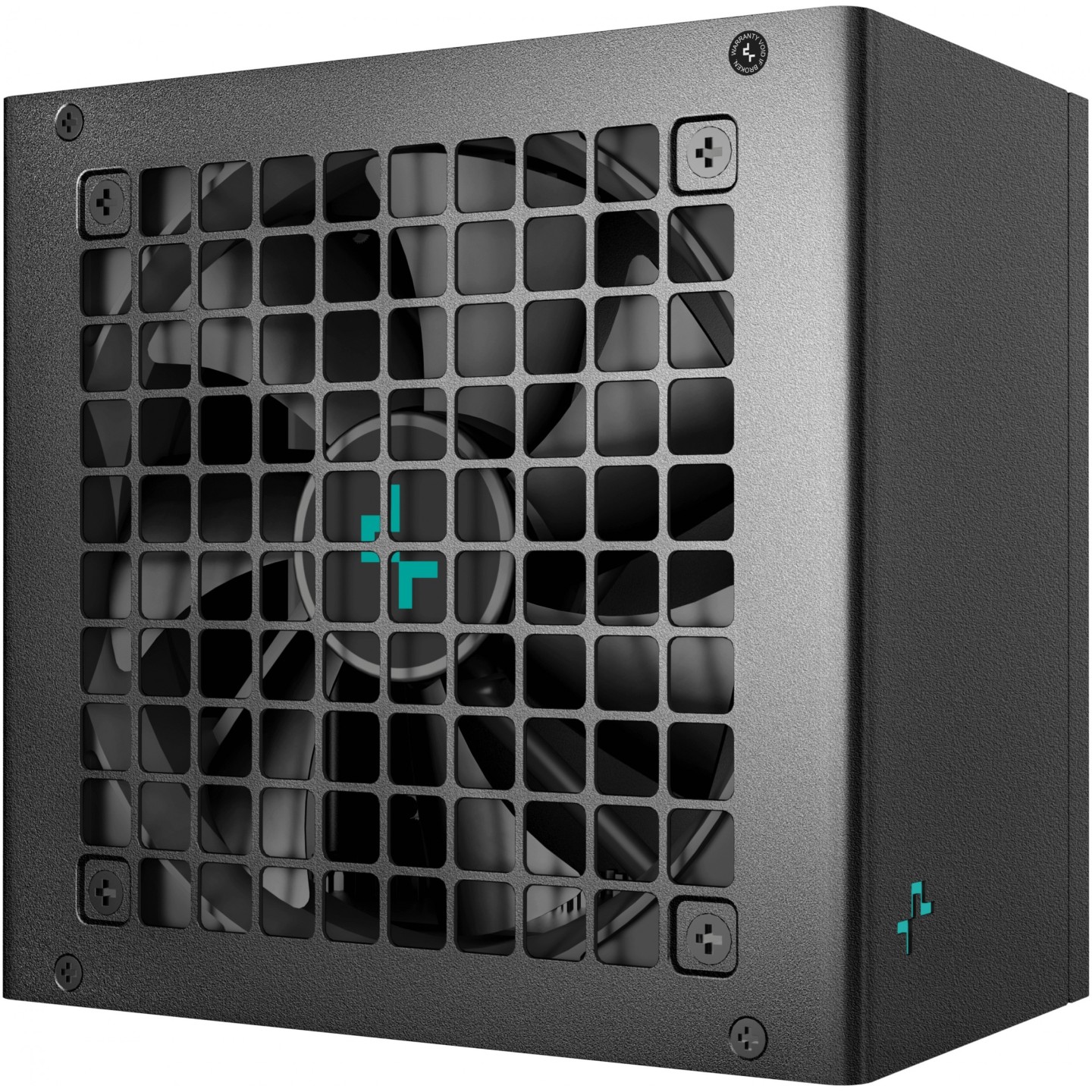

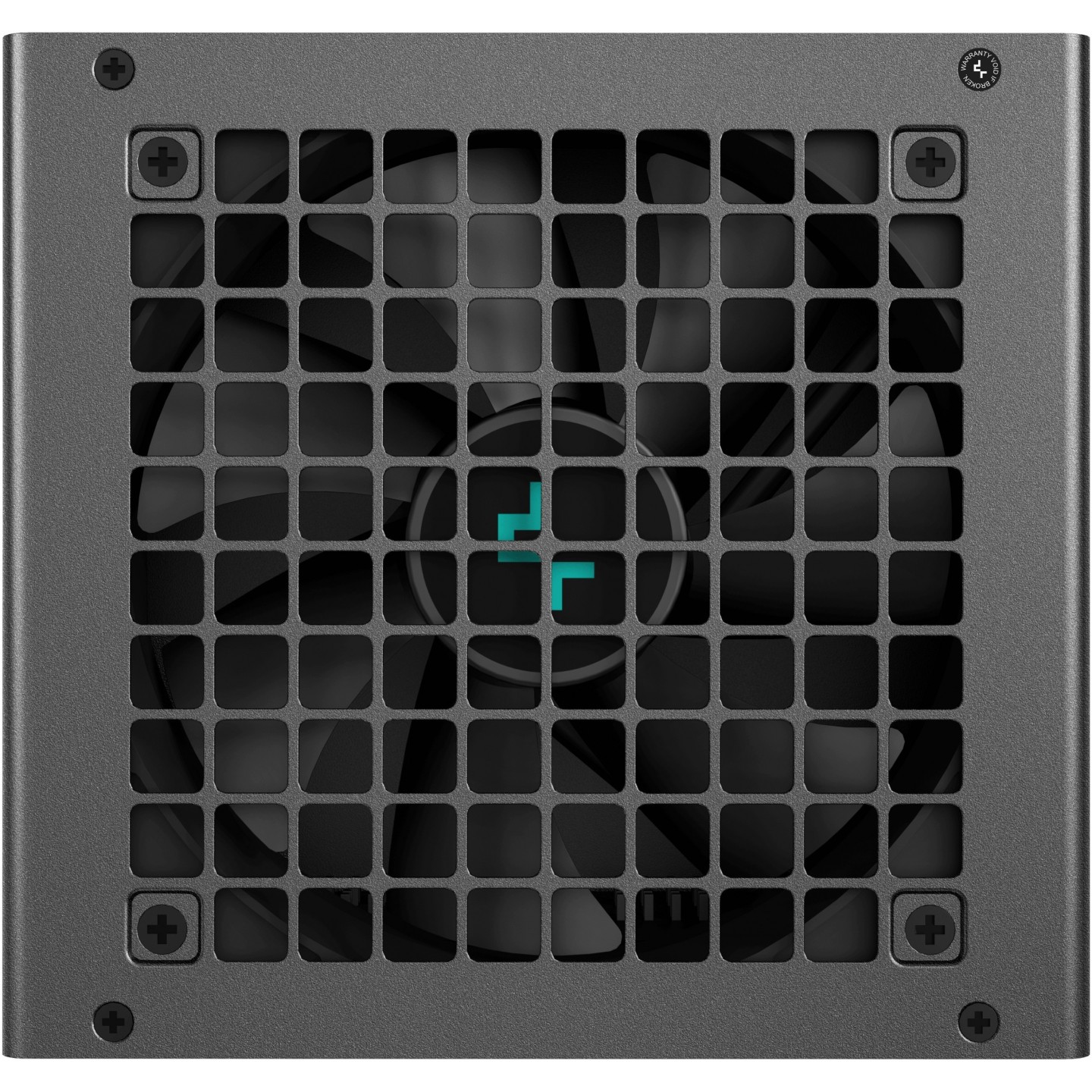

It delivers stable power across single +12V rail (62.5A/750W) with 80 PLUS Gold efficiency (up to 90%+) and Cybenetics Gold rating. Features active cooling via a quiet 120mm Fluid Dynamic Bearing (FDB) fan, full suite of protections (OPP/OVP/OTP/SCP/UVP), and 10-year warranty for long-term reliability.

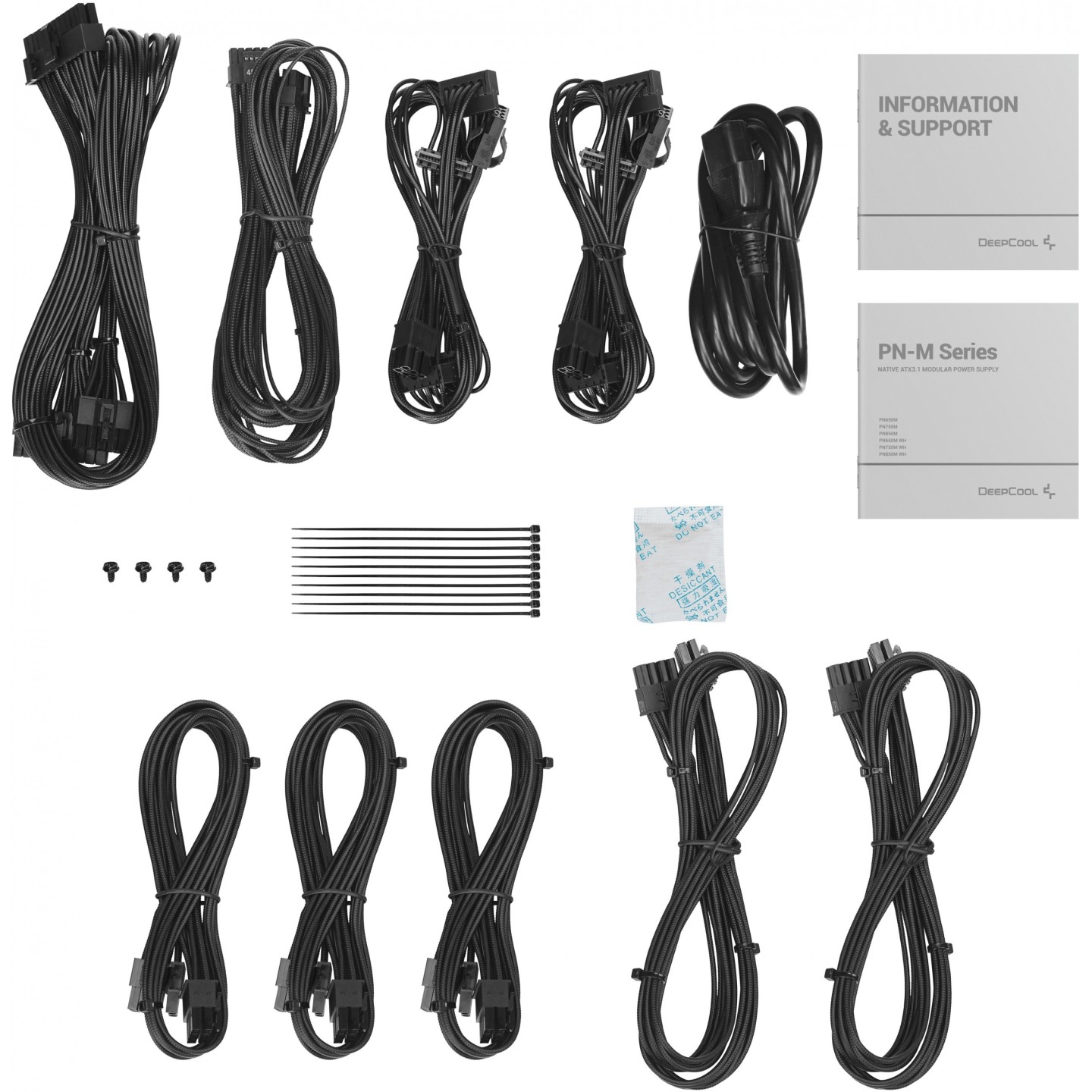

- Fully modular black cables for clean builds

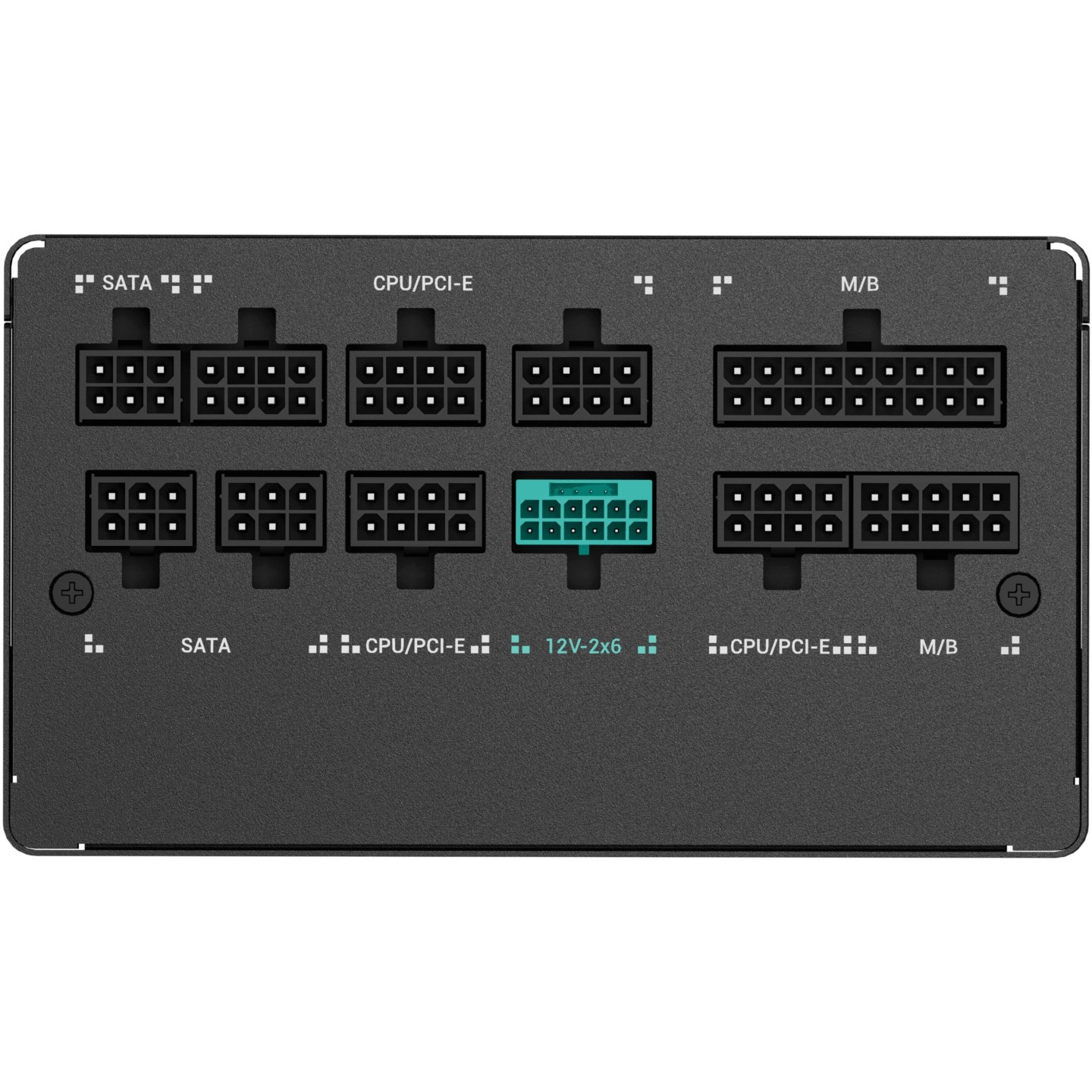

- PCIe connectors: 1x 12+4 pin (450W native for RTX 40 series), 3x 6+2 pin
- CPU: 2x 4+4 pin EPS
- 8x SATA, 2x Molex peripheral
- ATX 24-pin, compact 150x140x86mm size
- Operating temp 0-40°C, MTBF 100,000 hours
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 18.2 ms |
| Efficiency | 90% |
| 80 PLUS certification | 80 PLUS Gold |
| Cybenetics Efficiency | Gold |
| ATX version | 3.1 |
| Cabling type | Fully-Modular |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 (12+4 pin, 450W) |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS/ATX12V connectors | 2x (4+4 pin) |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Warranty period | 10 year(s) |
