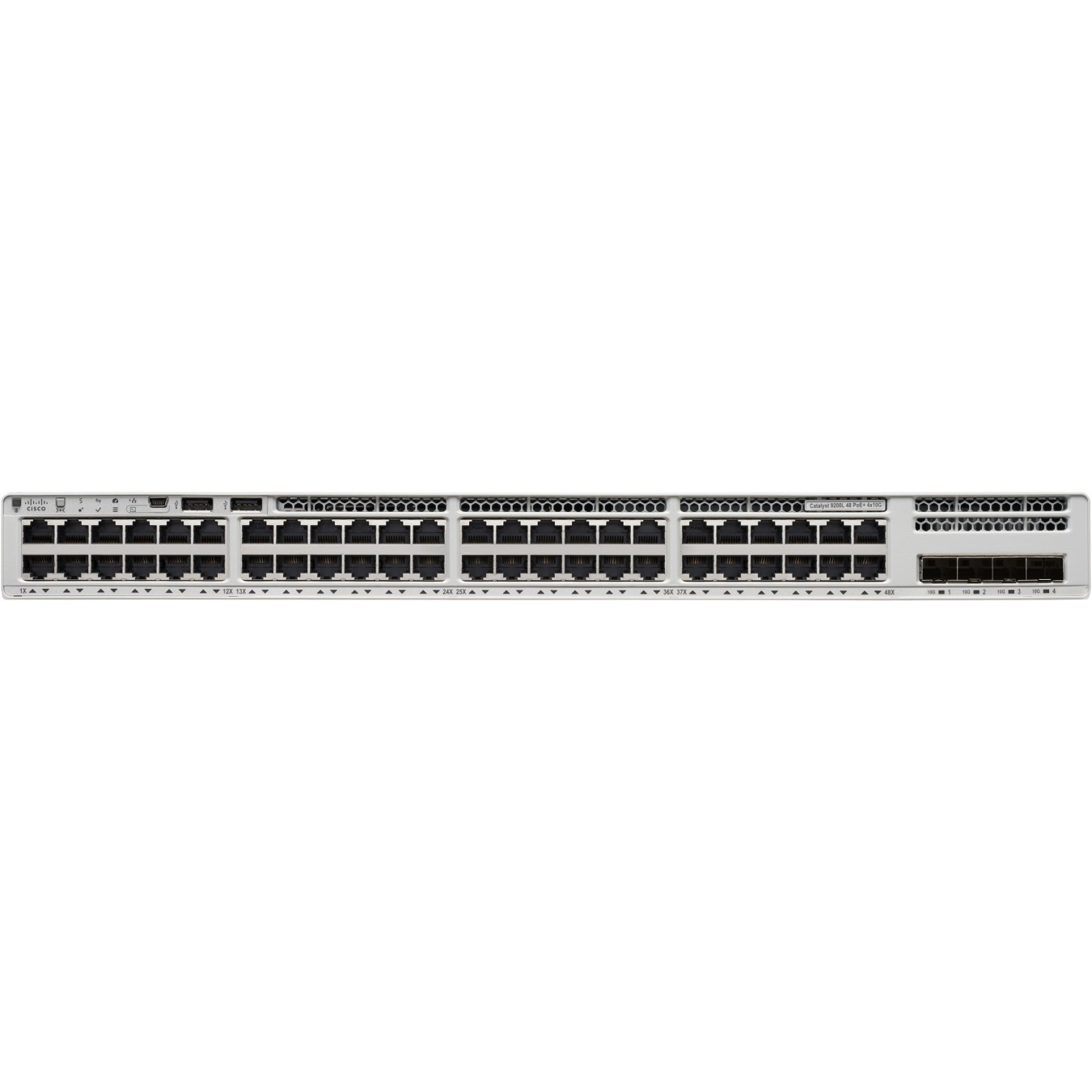

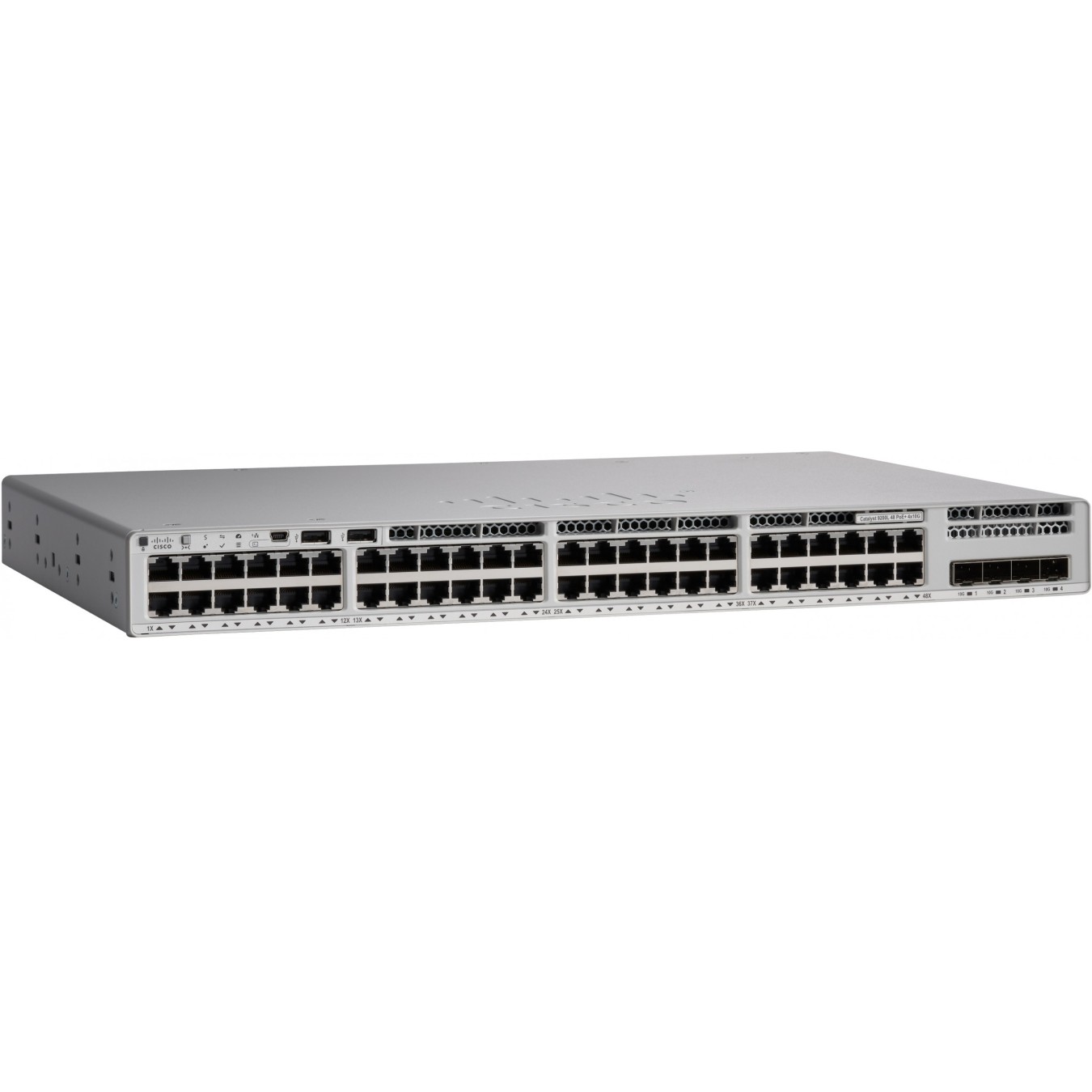

Cisco Catalyst - 9200L - 48-Port Partial
Cisco Catalyst 9200L, a managed L3 switch with PoE, 48 Gigabit Ethernet ports (10/100/1000).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | No |
|---|
Cisco Catalyst 9200L. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. USB 2.0 ports quantity: 3. MAC address table: 16000 entries. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE.... Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 3 |
| Copper ethernet cabling technology | 100BASE-FX. 1000BASE-LX. 1000BASE-SX. 1000BASE-T |
| Routing entries | 3000 |
| Network virtualization technologies | Virtual Extensible LAN (VXLAN) |
| IPv4 routes | 3000 |
| IPv6 routes | 1500 |
| Number of VLANs | 1024 |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.95 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 9198 |
| Packet buffer memory | 6 MB |
| Security algorithms | 128-bit AES |
| Management protocols | SNMPv1/v2c/v3 |
| Routing protocols | CDP. EIGRP. OSPF. RIP. VRRP |
| Product colour | Grey |
| Safety | IEC 60950-1. UL 60950-1. CAN/CSA C22.2 No. 60950-1. EN 60950-1. AS/NZS 60950.1. Class I Equipment |
| Memory type | DRAM |
| Internal memory | 2048 MB |
| Flash memory | 4096 MB |
| Noise level | 42 dB |
| Mean time between failures (MTBF) | 346270 h |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 - 12 A |
| Power consumption (max) | 600 W |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 3412 BTU/h |
| Width | 445 mm |
| Depth | 329 mm |
| Height | 44 mm |
| Weight | 4.8 kg |
| Harmonized System (HS) code | 85176990 |
