Cudy M3600 BE3600 Wi-Fi 7 Mesh System - Dual-Band 3.6Gbps 3xGigabit (Boxed)
Cudy BE3600 M3600 Wi-Fi 7 dual-band mesh system (1-pack). Delivers 2882+688 Mbps speeds, covers ~1000 sq ft, supports 100+ devices. Features 3 Gigabit LAN ports, Cudy Mesh, VPN, QoS, WPA3 security, app/cloud control.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Mesh System |
|---|---|
| Routers - Special Features | App Control Beamforming Cloud Managed Guest Network MU-MIMO OFDMA Parental Control QoS VPN Support WPA3 Security |
| Routers - LAN Ports | 3 |
| Routers - Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Routers - Bands | Dual-band (2.4+5 GHz) |

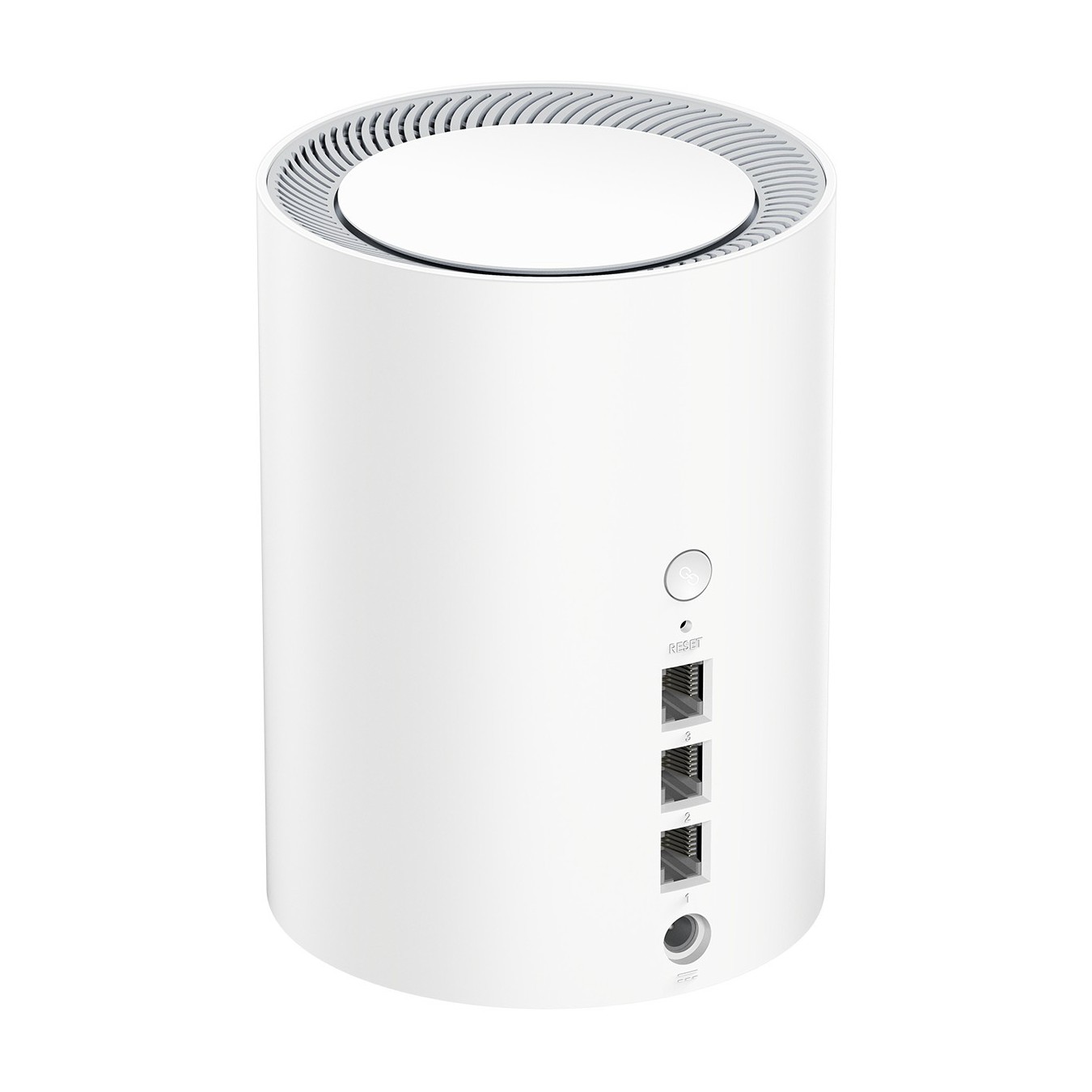

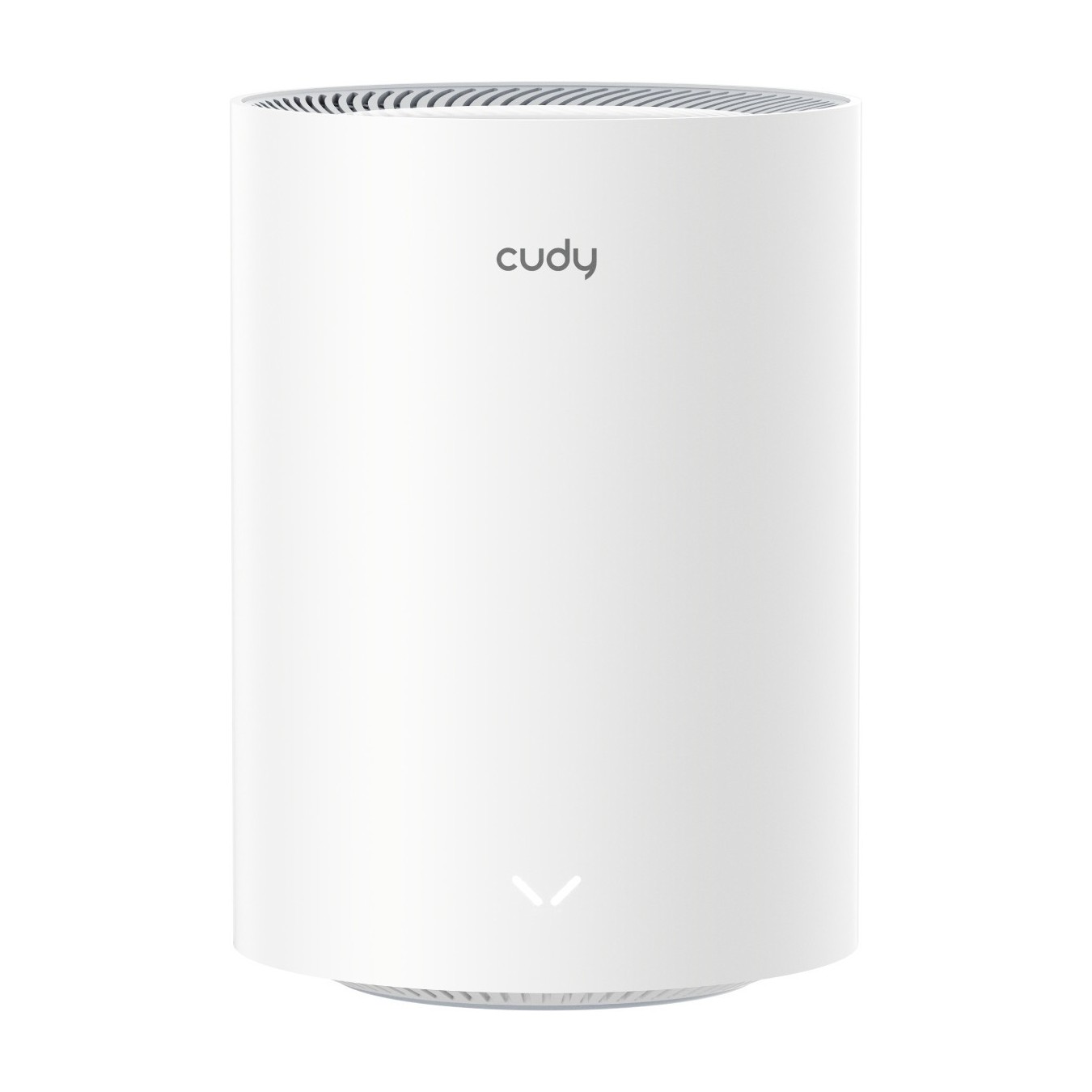

The Cudy M3600 BE3600 is a single-unit Wi-Fi 7 mesh system designed for seamless whole-home coverage in medium-sized spaces. Supercharged with dual-band Wi-Fi 7 technology (802.11be), it provides aggregate speeds up to 3.6 Gbps (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz) using 2x2 MIMO streams on both bands. The elegant white cylindrical design fits any home decor, with 4 internal antennas ensuring strong signal propagation.
Equipped with 3 Gigabit Ethernet LAN ports, it supports wired backhaul and connects multiple devices effortlessly. Cudy Mesh technology enables easy expansion by adding more units for larger coverage (3-pack covers up to 2900 sq ft). Advanced features include Multi-Link Operation (MLO), 160 MHz channels, 4K-QAM modulation, and support for up to 200 devices when expanded. Manage your network via the intuitive Cudy app or cloud portal.
- ✅ Wi-Fi 7 dual-band: 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
- ✅ 3x Gigabit Ethernet ports + Cudy Mesh support
- ✅ VPN Server/Client, QoS, Guest Networks (2.4/5 GHz), WPA3 security
- ✅ App control, cloud management, WPS one-touch setup
- ✅ Compact: 110 x 154.5 mm, works with 100-240V power
| Product type | Mesh system |
| Product colour | White |
| LED indicators | Status, System |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 3570 Mbit/s |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Max Wi-Fi Channel Width | 160 MHz |
| Wi-Fi Security | WPA/WPA2/WPA3 |
| Guest Network | 2.4 GHz, 5 GHz |
| WPS | True |
| Processor cores | 4 |
| Processor frequency | 2 GHz |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 110 mm |
| Height | 154.5 mm |
| Depth | 110 mm |
| Number of products included | 1 pc(s) |
| QoS | Per-User Rate Limiting |
| VPN Server/Client | Supported |
| Max Capacity | 512 |
| Recommended Client Upper Limit | 200 |
| Mesh | Cudy Mesh |
| Multi-Band Backhaul | True |
