Cisco Mini-GBIC SFP - MGBLH1 - GB LH

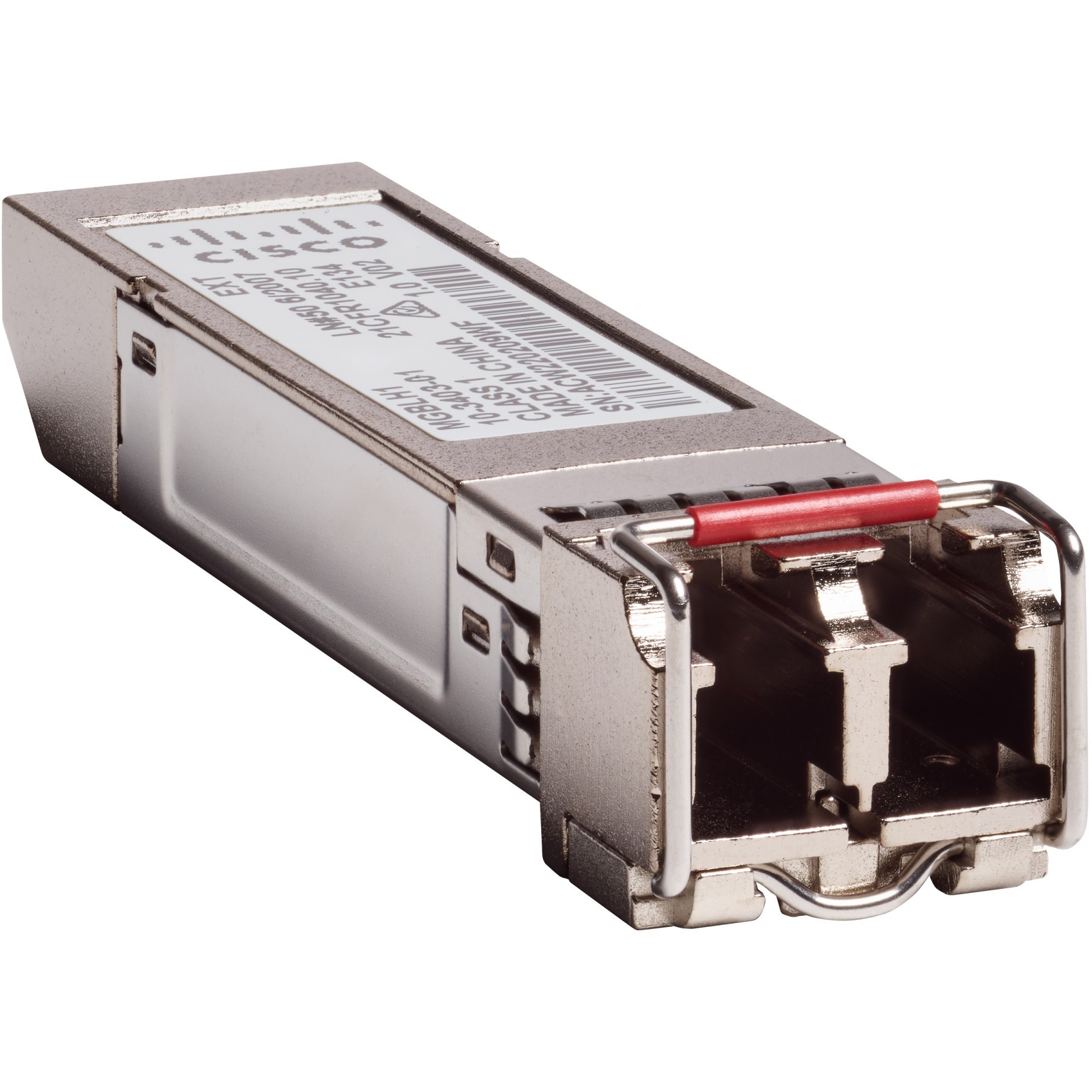

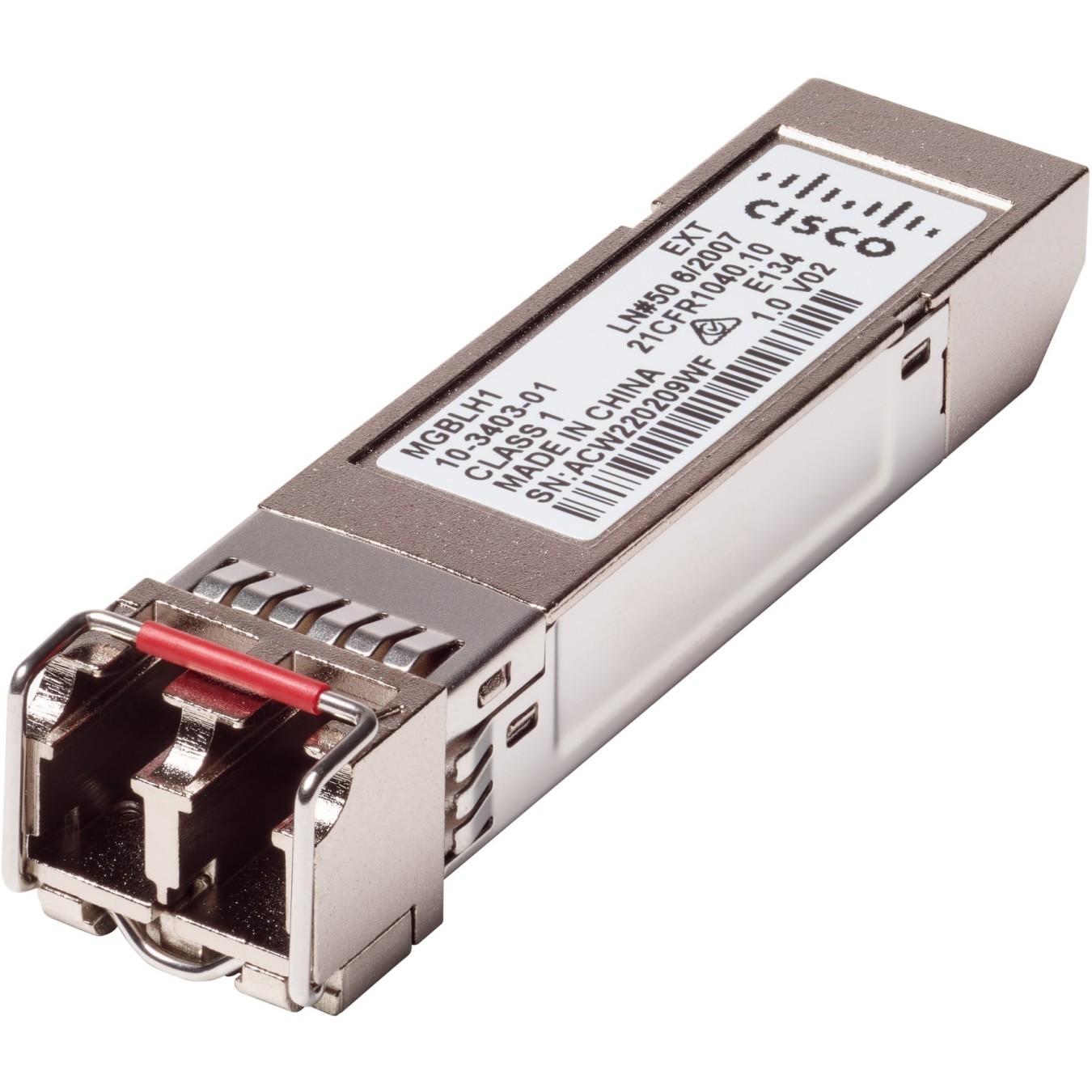

Cisco MGBLH1 SFP transceiver, 1000BASE-LH, fiber optic mini-GBIC with LC connector.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| SFP/SFP+ Modules - Coding/Brand | Cisco-coded |
|---|
Cisco MGBLH1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LH Mini-GBIC (MGBLH1). SFP transceiver type: Fiber optic. Maximum data transfer rate: 1000 Mbit/s. Interface type: mini-GBIC. Brand compatibility: Cisco. Power consumption (typical): 1 W. Safety: FDA 21 CFR 1040.10. 1040.11. EN60950. EN (IEC) 60825-1. 2. Certification: FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B. Width: 56.5 mm. Depth: 13.4 mm. Height: 8.5 mm
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | mini-GBIC |
| Feature | Hot-swap |
| Fiber optic connector | LC |
| SFP transceiver standard | LH |
| Maximum transfer distance | 40000 m |
| Wavelength | 1300 nm |
| Brand compatibility | Cisco |
| Power consumption (typical) | 1 W |
| Safety | FDA 21 CFR 1040.10. 1040.11. EN60950. EN (IEC) 60825-1. 2 |
| Certification | FCC Part 15 Class BEN55022 Class B (CISPR 22B)VCCI Class B |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 56.5 mm |
| Depth | 13.4 mm |
| Height | 8.5 mm |
| Weight | 20 g |
| Quantity per pack | 1 pc(s) |
| Package width | 81.3 mm |
| Package depth | 127 mm |
| Package height | 25.4 mm |
| Package weight | 50 g |
| Dimensions (WxDxH) | 85 x 134 x 56 mm |
| Harmonized System (HS) code | 85369010 |
| Country of origin | China |
