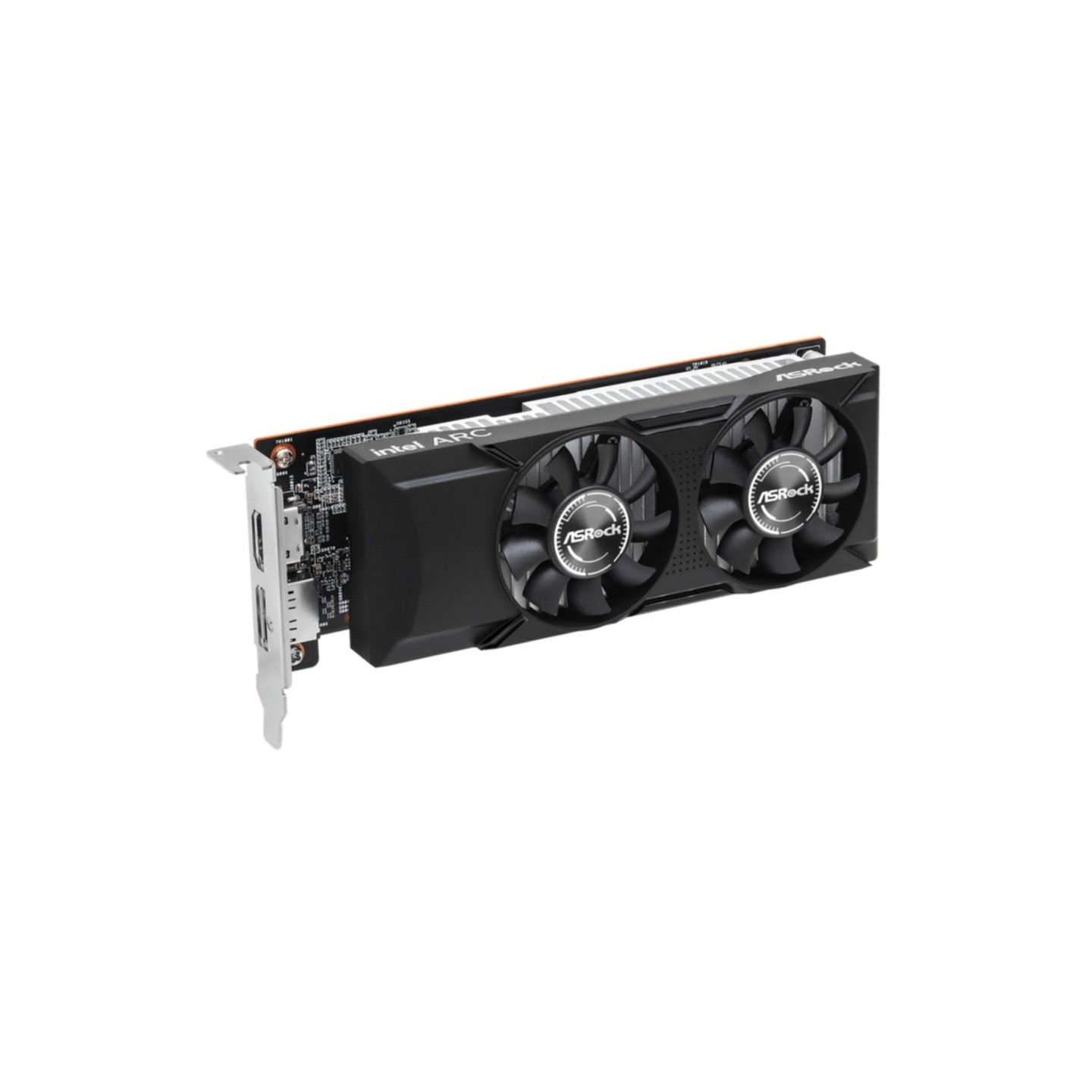

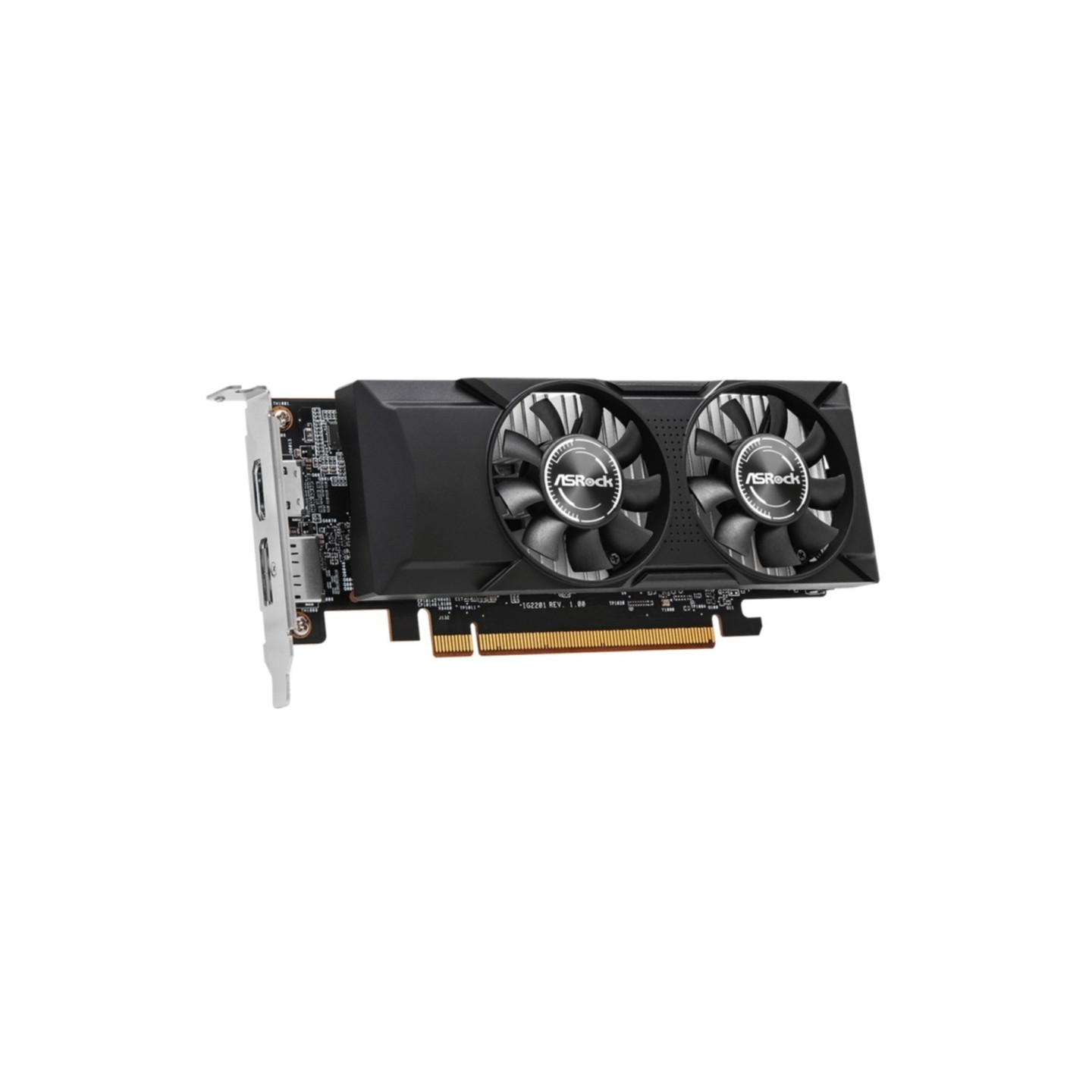

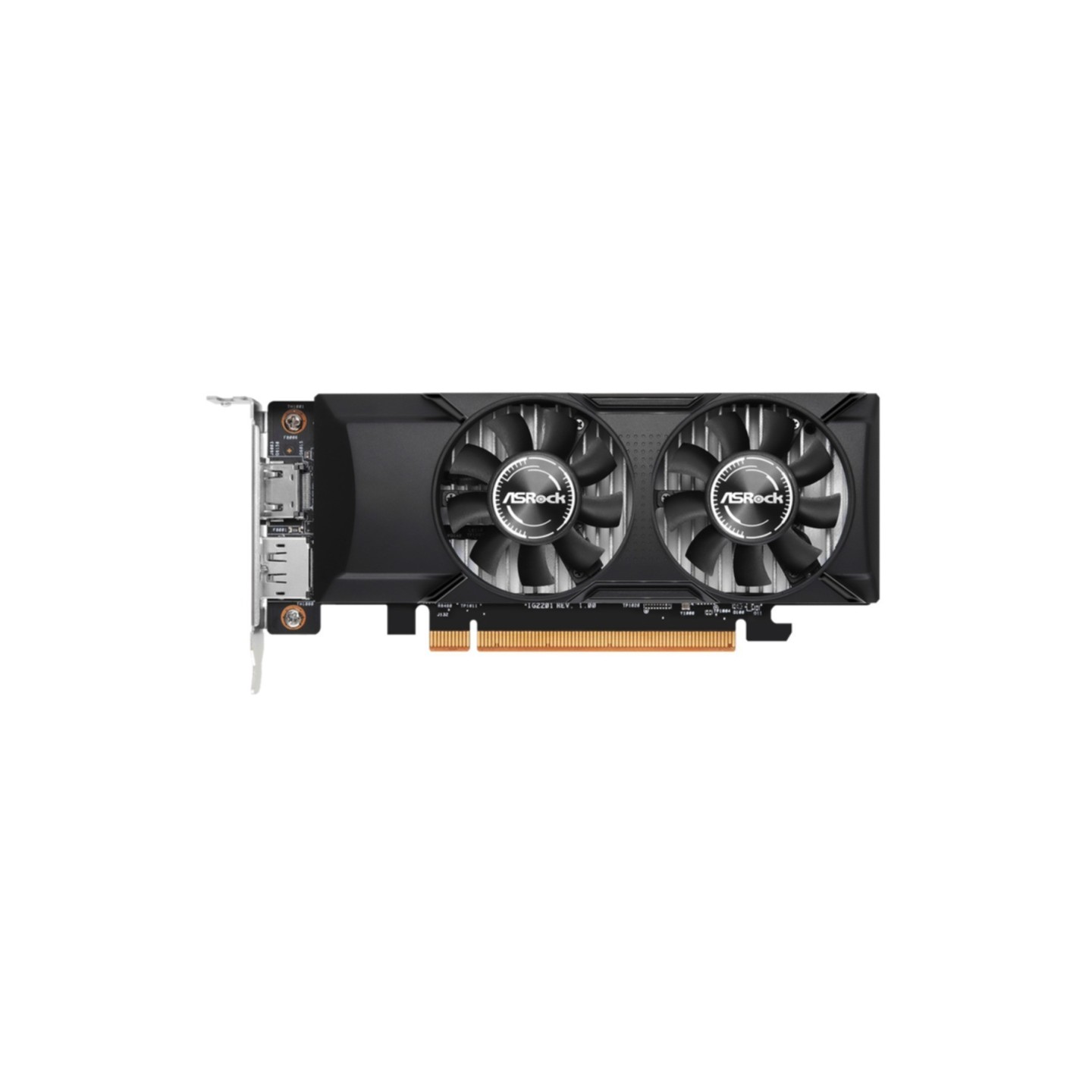

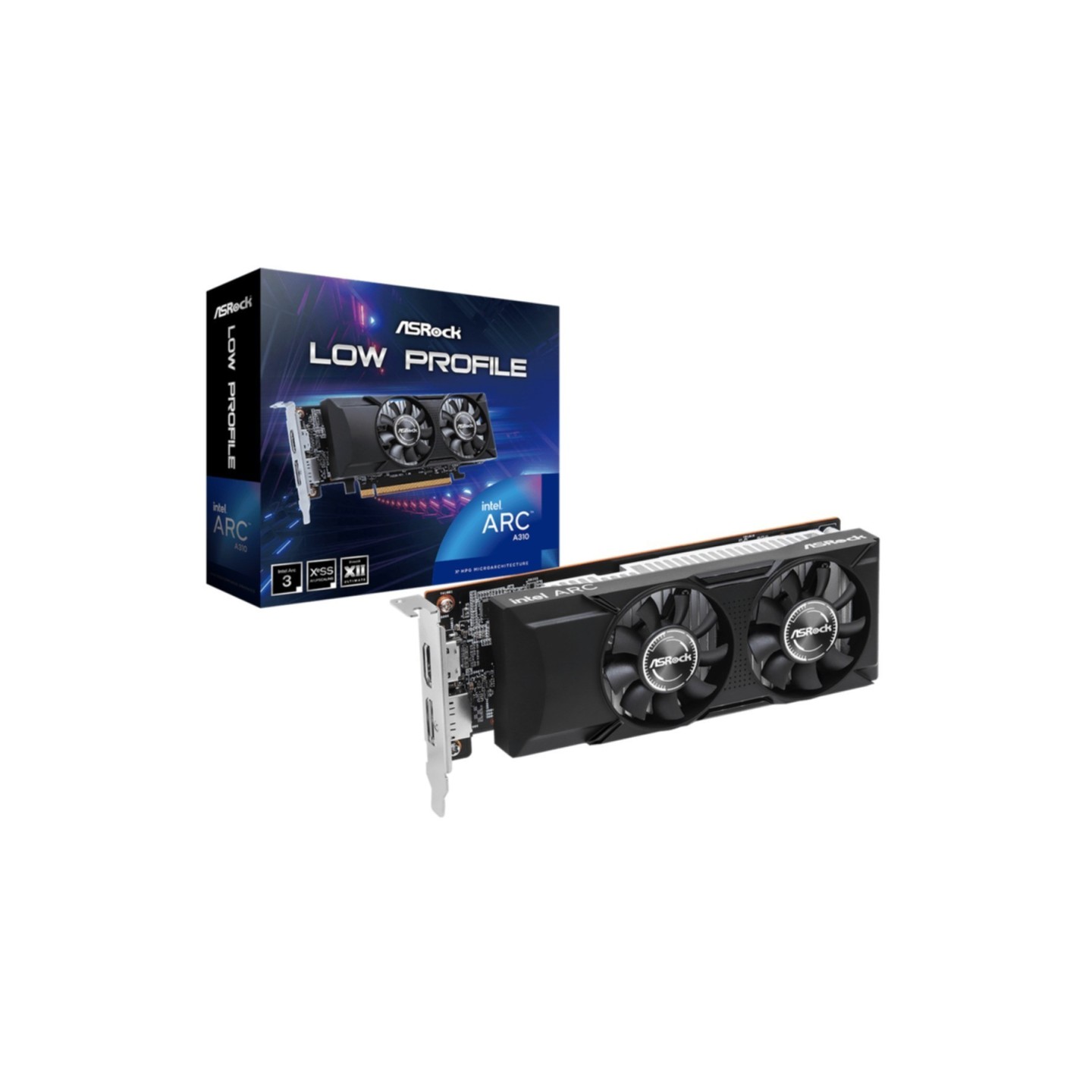

ASRock Intel Arc A310 4GB LP Challenger GDDR6 (Boxed)
ASRock Intel Arc A310 LP is a low-profile 4GB GDDR6 GPU for SFF PCs. Features PCIe 4.0 x8, dual-fan cooling, HDMI+DP outputs. Ideal for office, HTPC, light gaming and AV1 decoding at 75W TDP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x8 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 4 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |

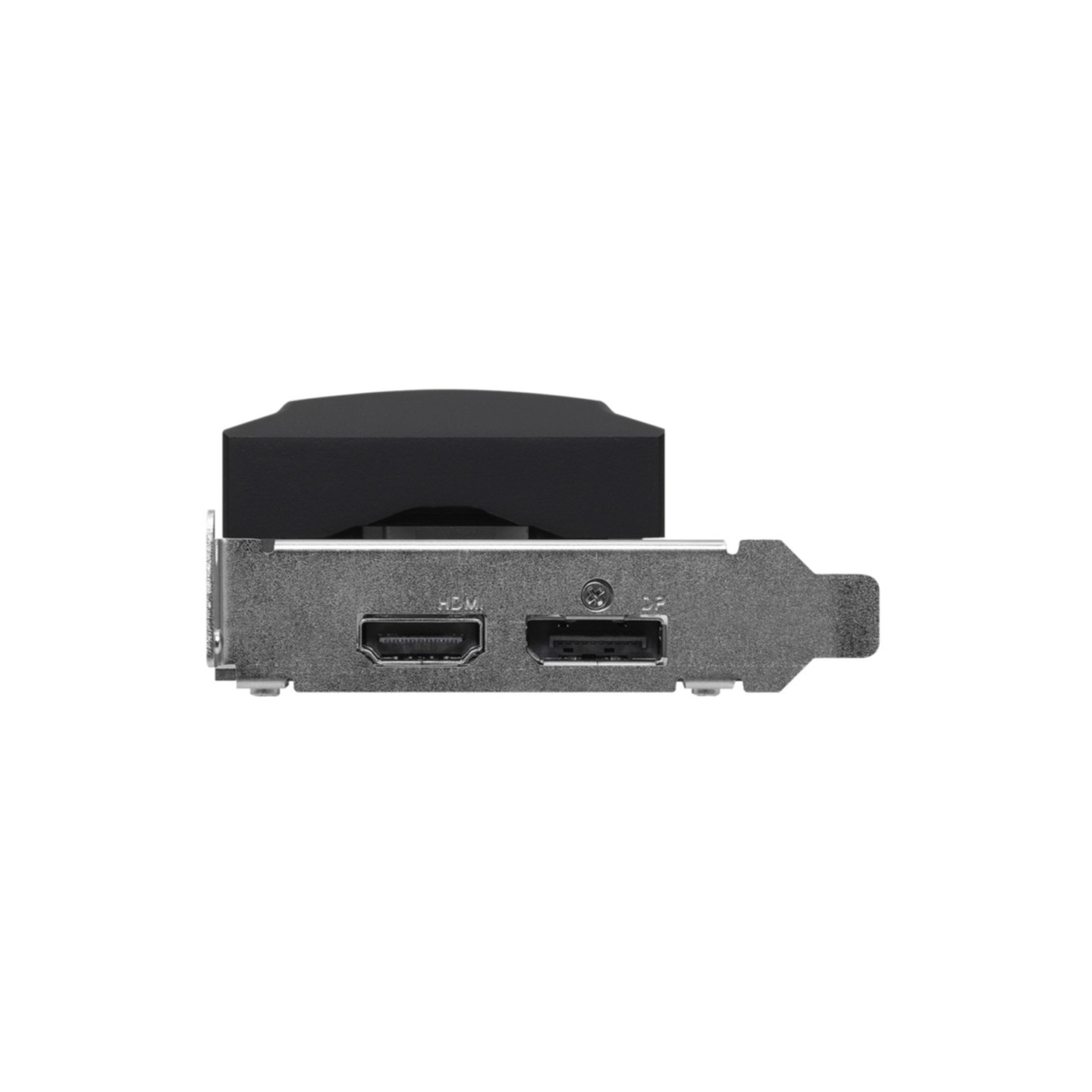

| GPU (Graphics Cards) - Outputs | DisplayPort HDMI |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Low Profile (Under 170 mm) |
The ASRock Intel Arc A310 4GB LP is a compact, low-profile graphics card designed for small form factor (SFF) systems, office desktops, and home theater PCs. Powered by Intel's ACM-G11 GPU with 6 Xe-cores (768 shaders), it delivers entry-level gaming performance alongside excellent media capabilities including AV1, H.264, H.265, and VP9 hardware decoding/encoding.
With 4GB GDDR6 memory on a 64-bit bus at 15.5 Gbps, dual-fan active cooling, and a 75W TDP (1x 8-pin connector), this card fits 2-slot designs measuring just 69x39x39mm. It supports max resolutions up to 7680x4320 via HDMI and DisplayPort, making it perfect for multi-monitor setups without needing extra PSU power.
- PCIe 4.0 x8 interface for broad compatibility
- Core clock 2000 MHz, boost up to 2340 MHz
- Low-profile bracket included for slim cases
- DirectX 12 Ultimate and OpenGL 4.6 support
- Ideal for light 1080p gaming and 4K video playback
| Bus Type | PCI Express x8 4.0 |
| Bus Version | 4.0 |
| Bus Speed | x8 |
| Manufacturer | Intel / ASRock |
| Series | Intel Arc |
| Graphics Chip Type | Arc A310 |
| Core Clock | 2000 MHz |
| Boost Clock | 2340 MHz (Boost) / 2105 MHz (Gaming) |
| Number of GPUs | 1 |
| Shaders | 5120 |
| DirectX Version | 12 Ultimate |
| VRAM Size | 4 GB |
| Type | GDDR6 |
| Memory Clock | 15.5 Gbit/s |
| Memory Bus | 64 Bit |
| HDMI | 1 |
| DisplayPort | 1 |
| Dual-Link DVI | No |
| Power Connector | 1x 8-pin |
| Width | 69 mm |
| Height | 39 mm |
| Length | 39 mm |
| Weight | 263 g |
| Slot Size | 2 |
| Cooling | Active (Dual Fan) |
| TDP | 75 W |
| Max Resolution | 7680 x 4320 |
