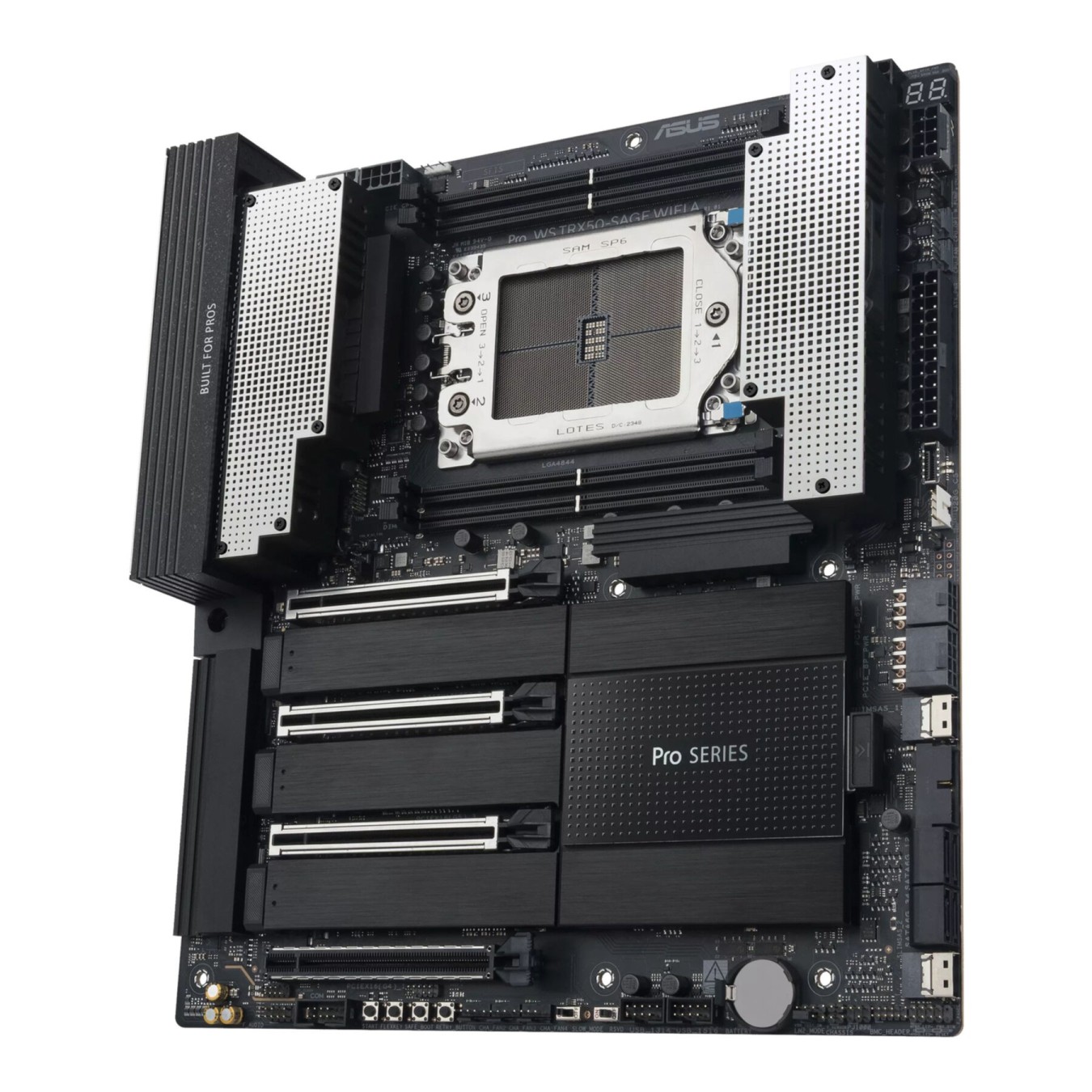

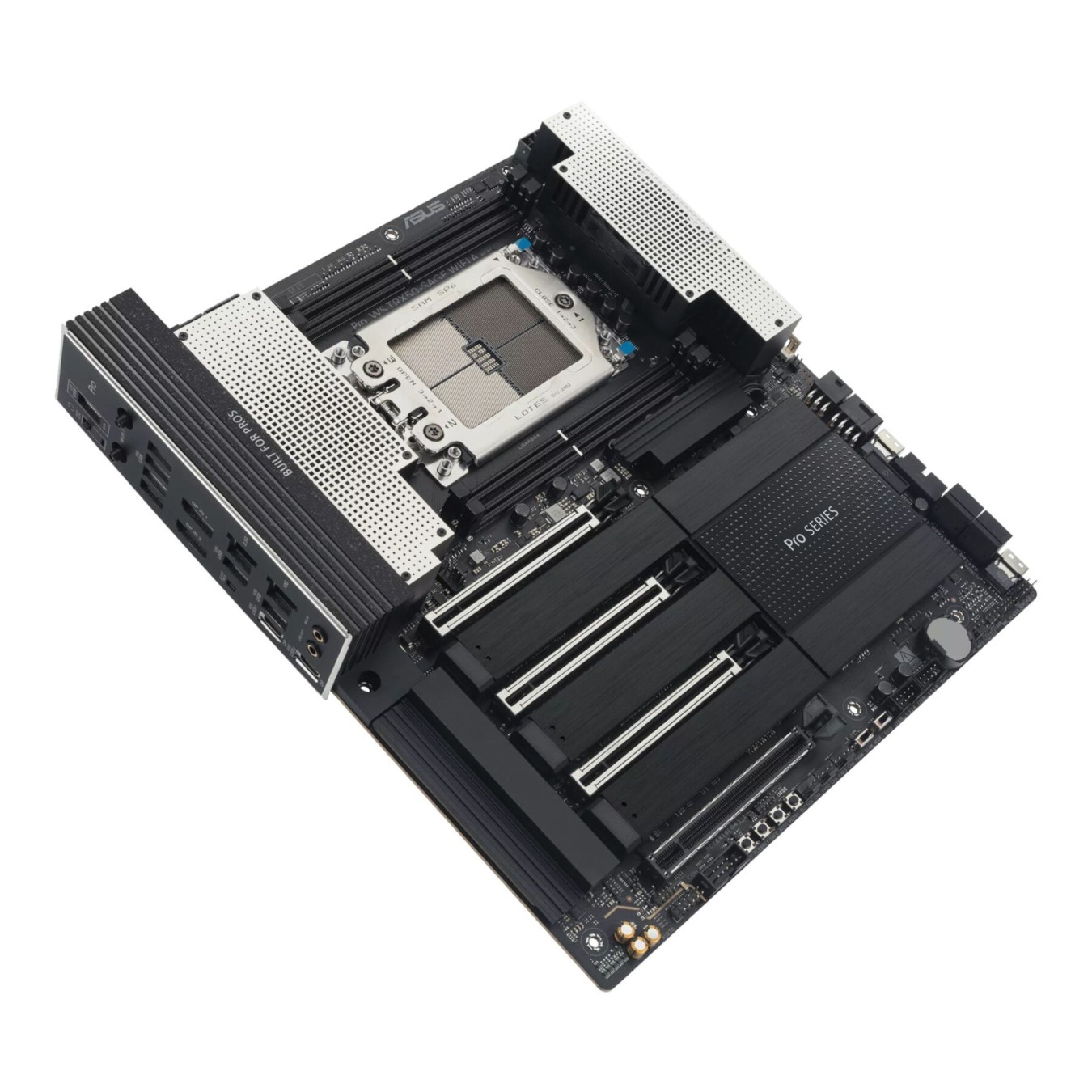

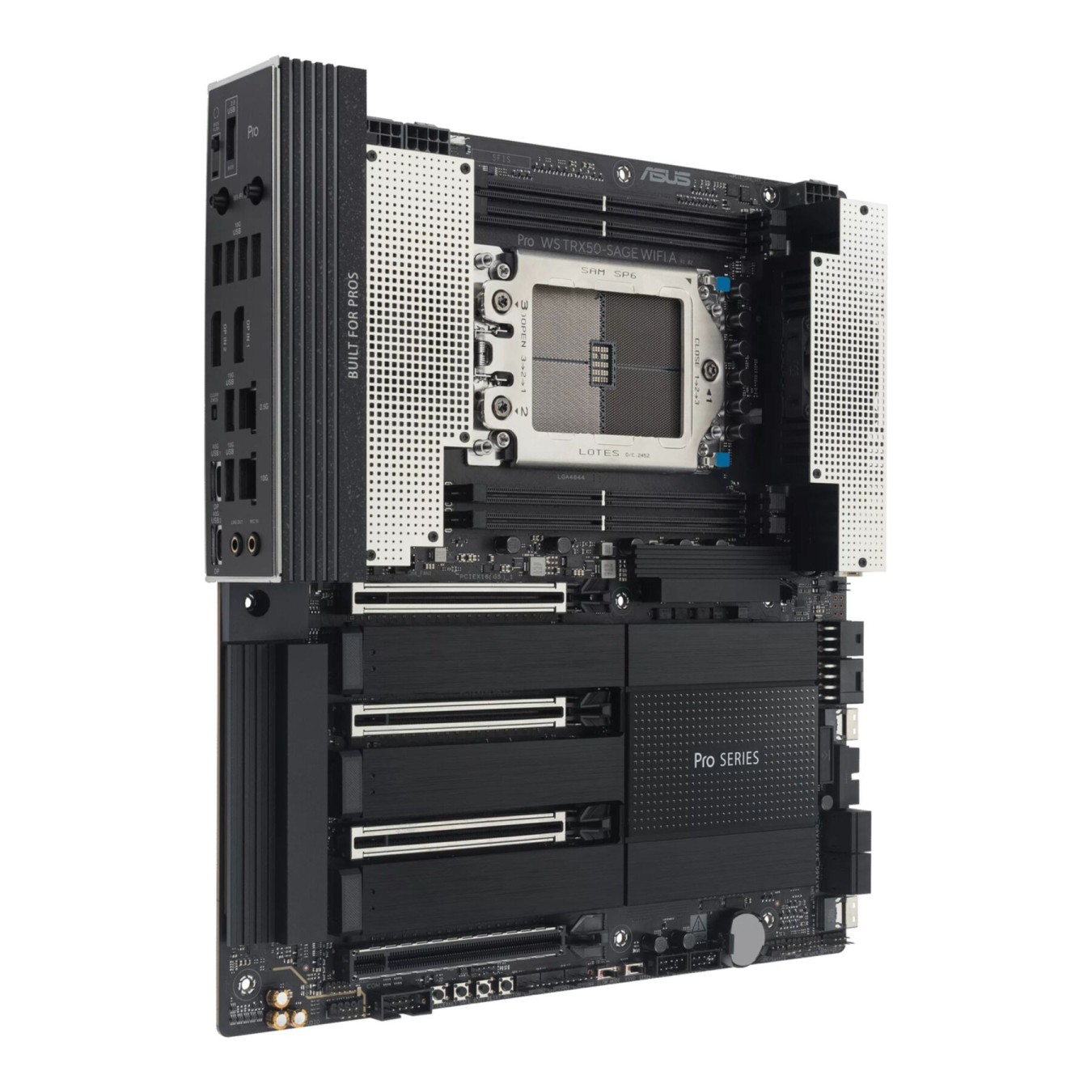

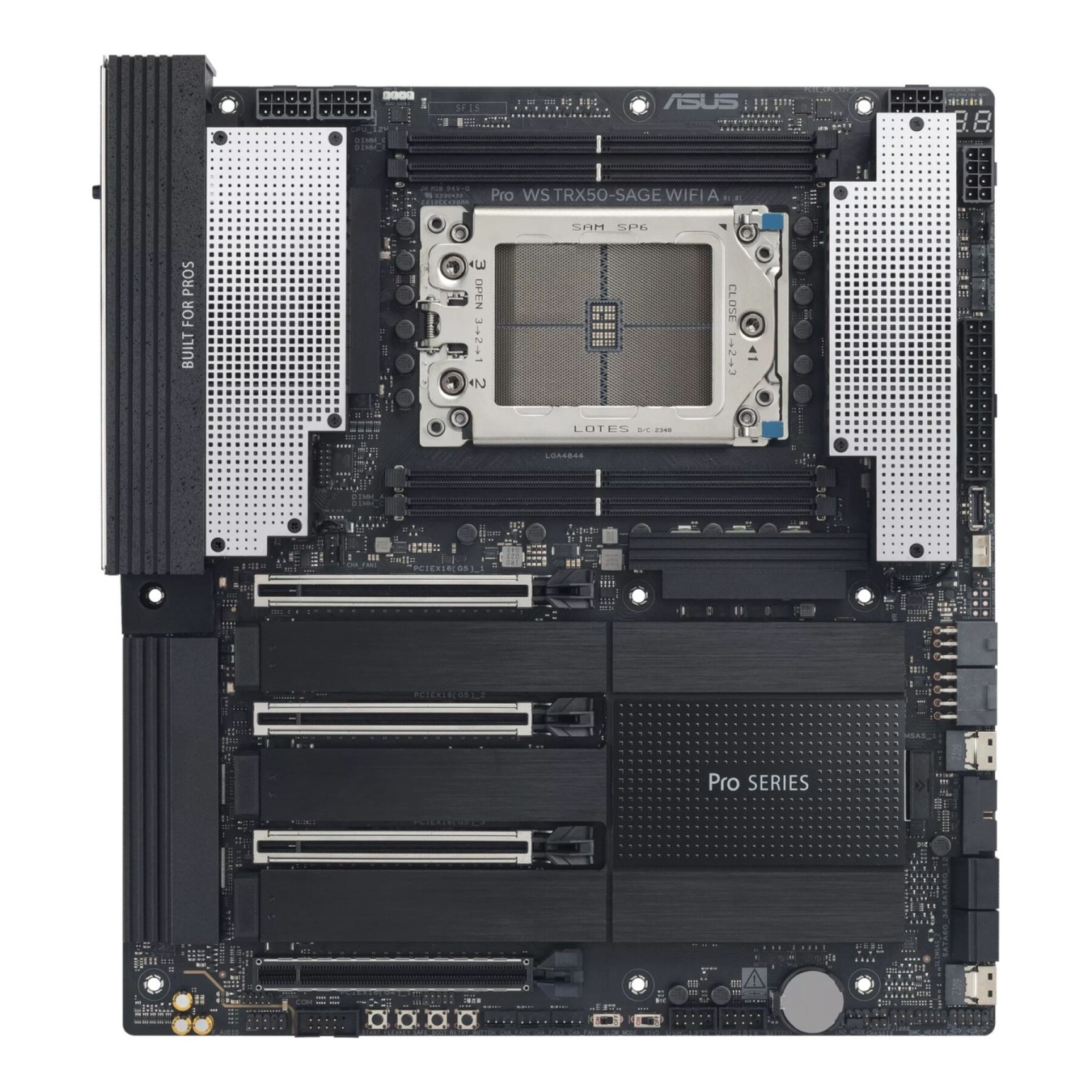

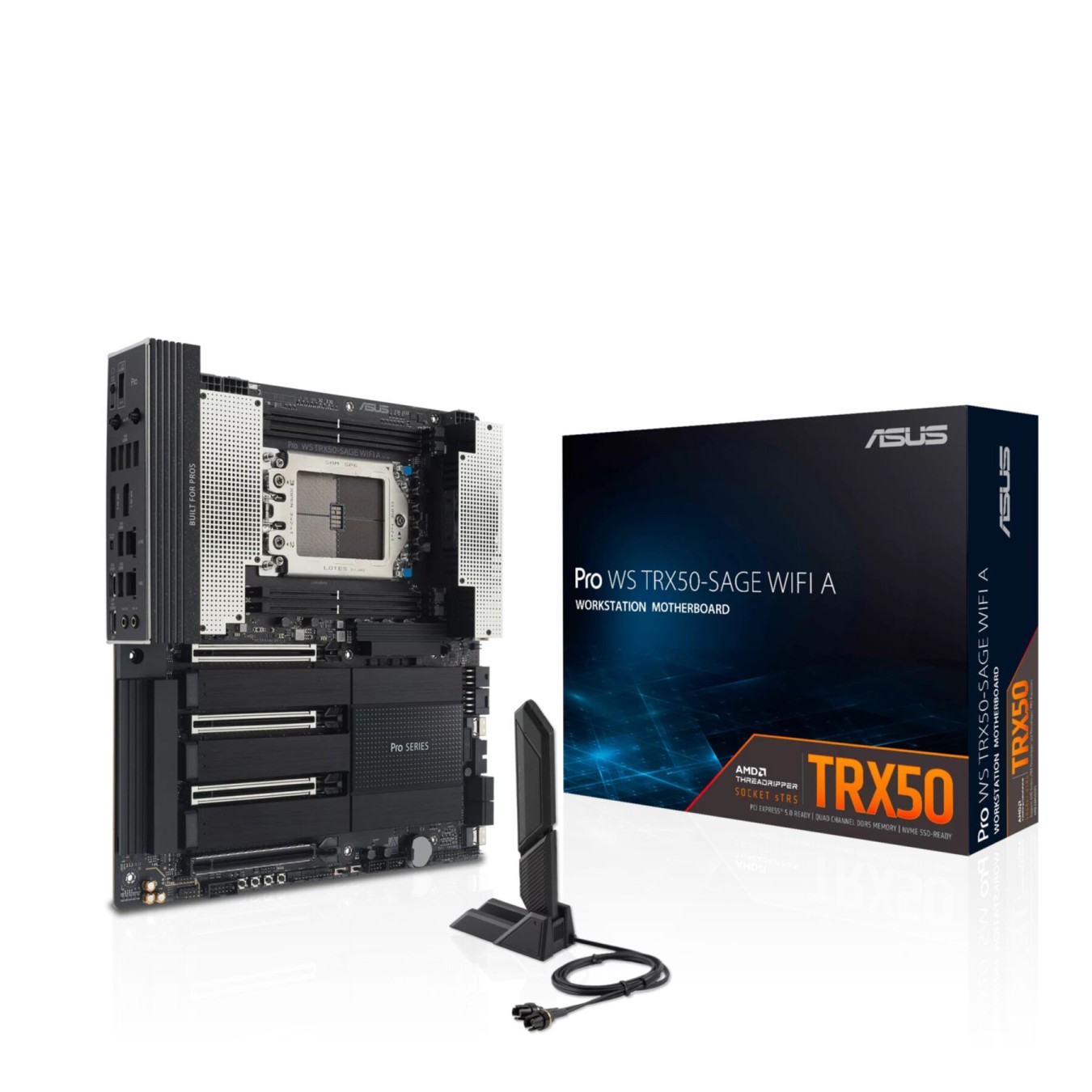

ASUS PRO WS - TRX50 - SAGE WIFI A (D)
ASUS Pro WS motherboard for sTRX5 with DDR5, 4 DIMMs, ECC; supports Ryzen Threadripper 7000/PRO 7000 WX; M.2/SATA storage, RAID, Wi‑Fi 7, 2.5/10 Gb Ethernet.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | sTRX5/sTR5 |
|---|---|
| Motherboards - Chipset | TRX50 |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 4 |
A WORKSTATION WONDERLAND
The Pro WS TRX50-SAGE WIFI A motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and AI era applications. Twenty power stages fuel AMD Ryzen™ Threadripper™ processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.
With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, WiFi 7, USB4® (40 Gbps), SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI A comes prepared for a wide array of scenarios and industries.
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |
| Compatible processor series | AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series |
| Supported processor sockets | Socket sTR5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| Number of temperature sensor headers | 1 |
| RGB LED pin header | Yes |

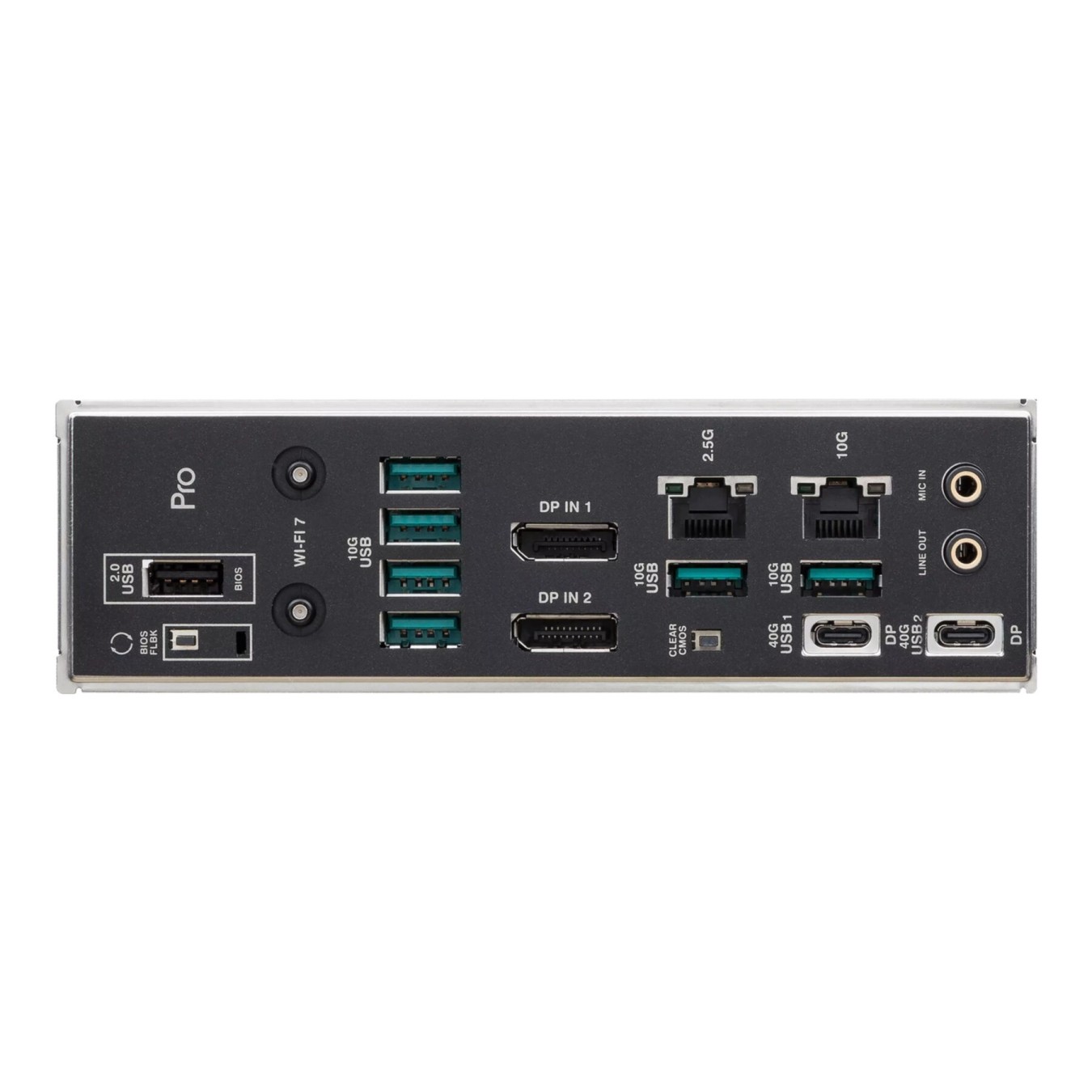

| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 2 |
| WiFi-AP antenna jack | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| LAN controller | Intel I226-LM |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Motherboard chipset | AMD TRX50 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 5.1 channels |
| Product colour | Aluminium, Black |
| Component for | Workstation |
| Motherboard form factor | CEB |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 11 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 3 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2580 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 5.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Package width | 320 mm |
| Package depth | 380 mm |
| Package height | 100 mm |
| Package weight | 4.85 kg |
| Width | 305 mm |
| Depth | 280 mm |
| Cables included | DisplayPort, SATA |
| Antenna included | Yes |
