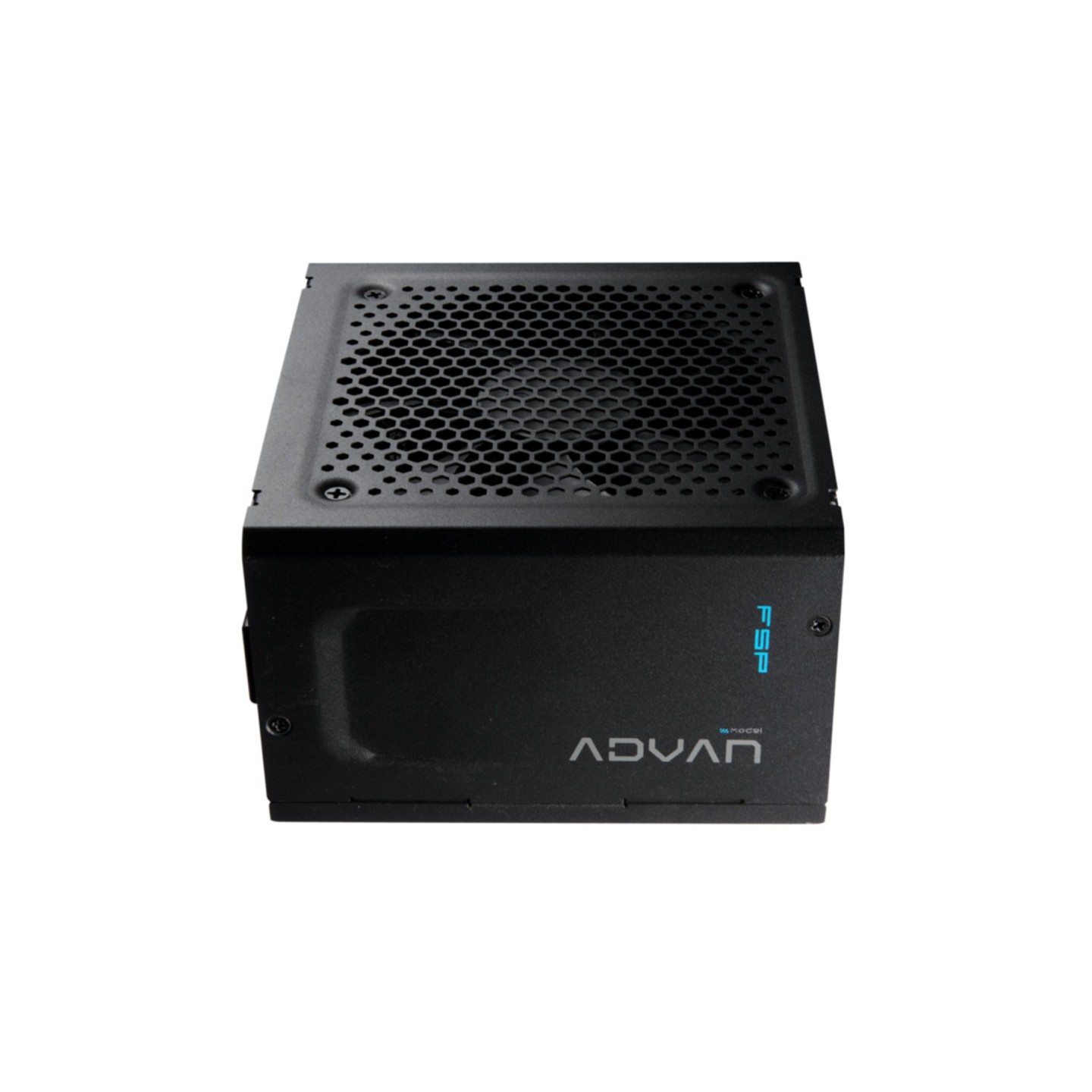

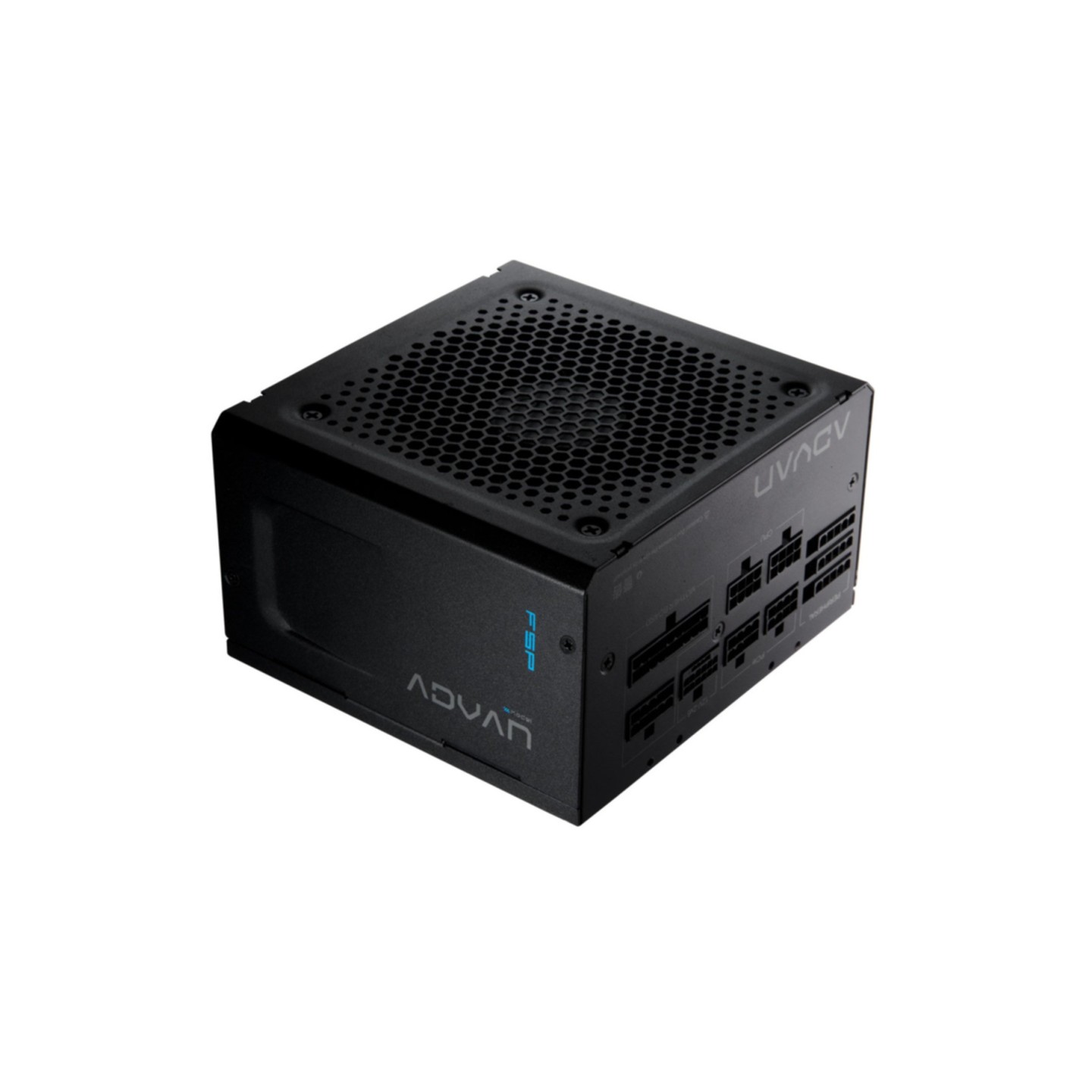

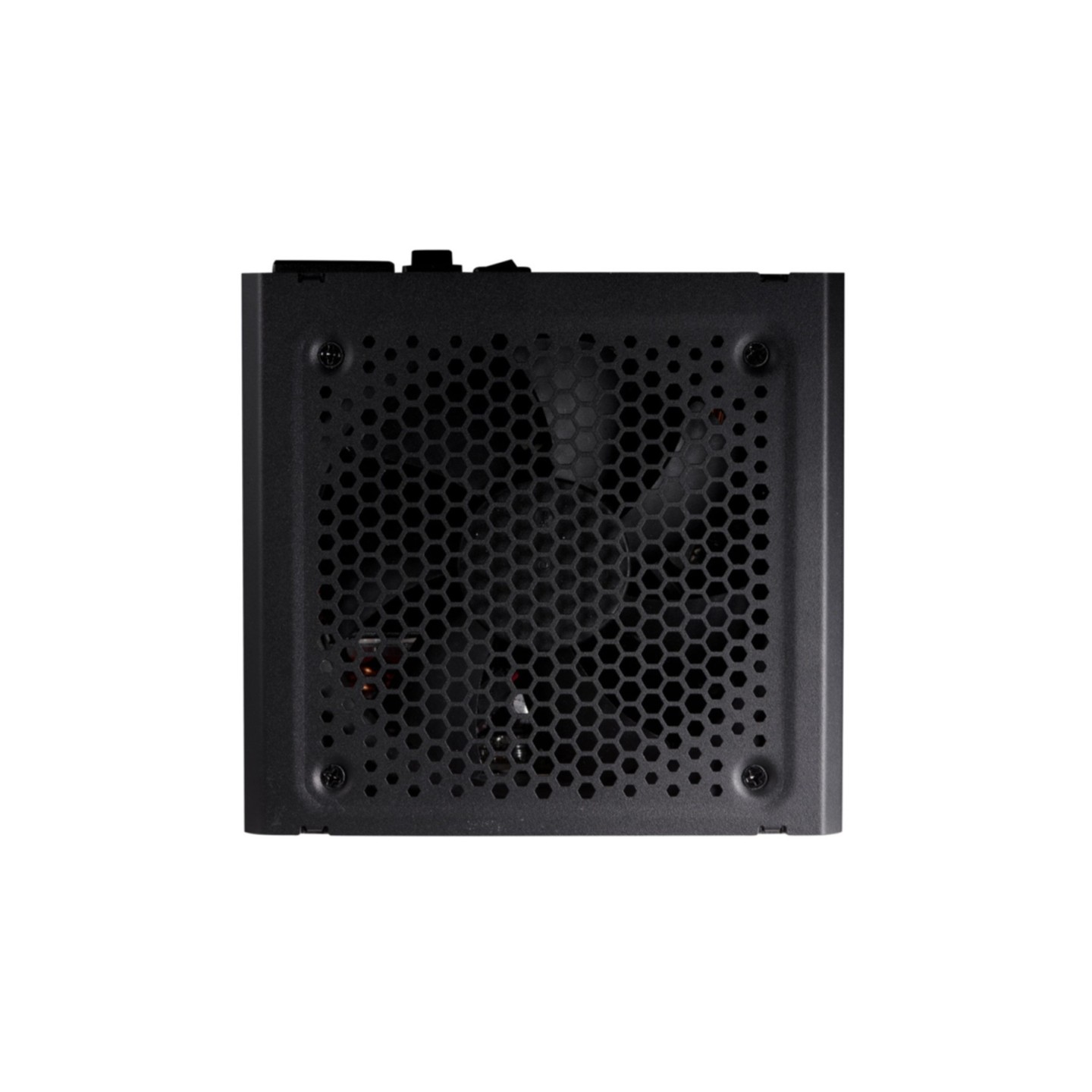

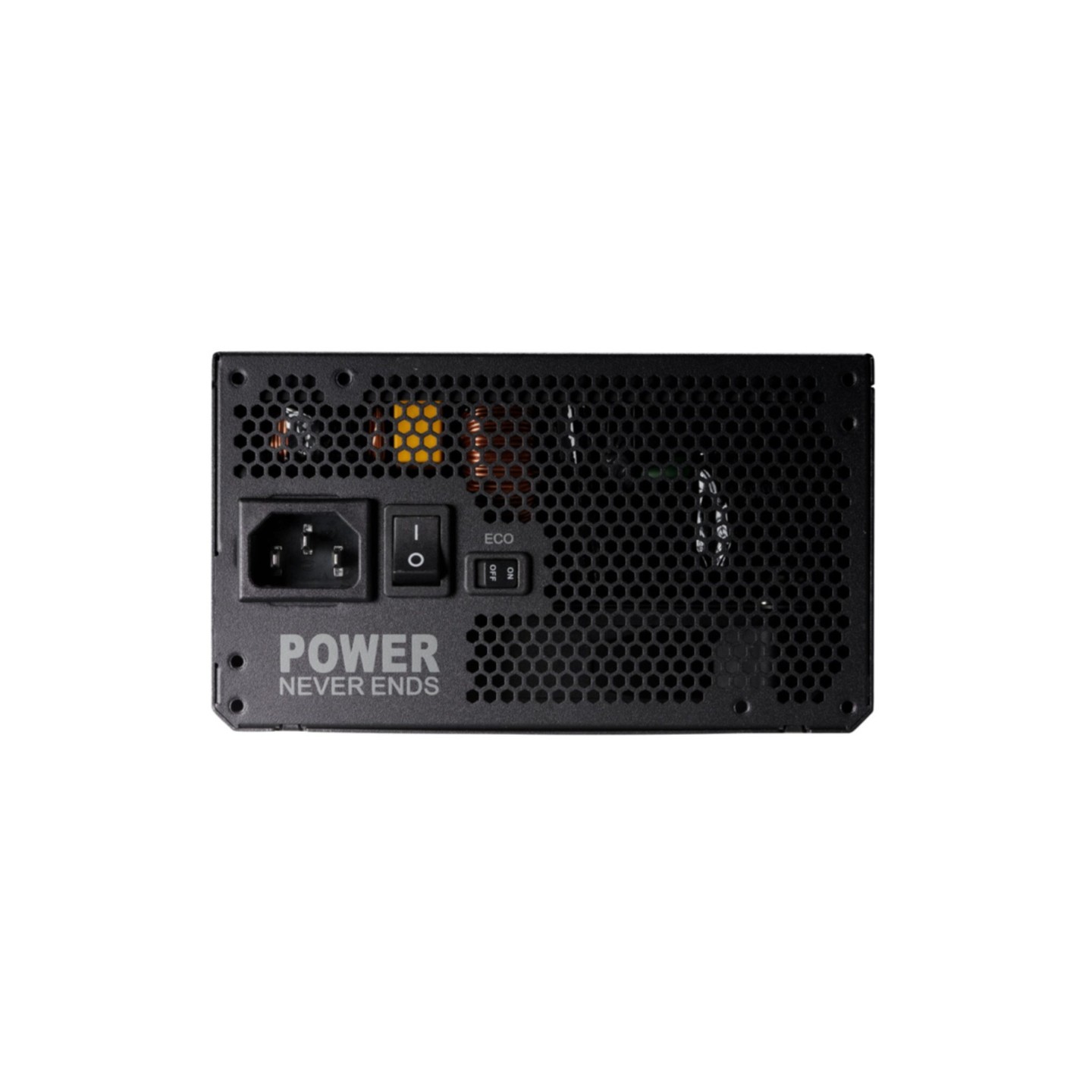

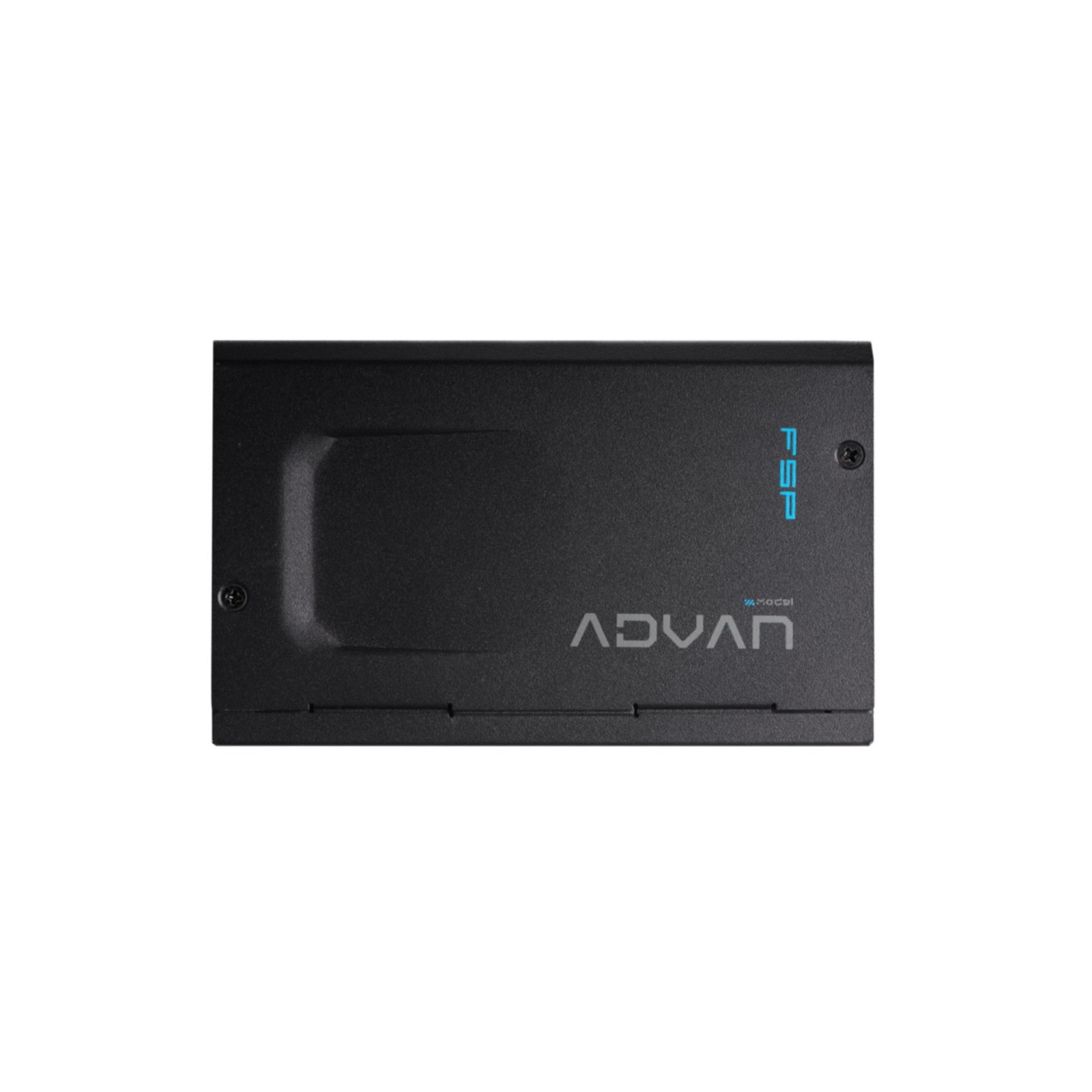

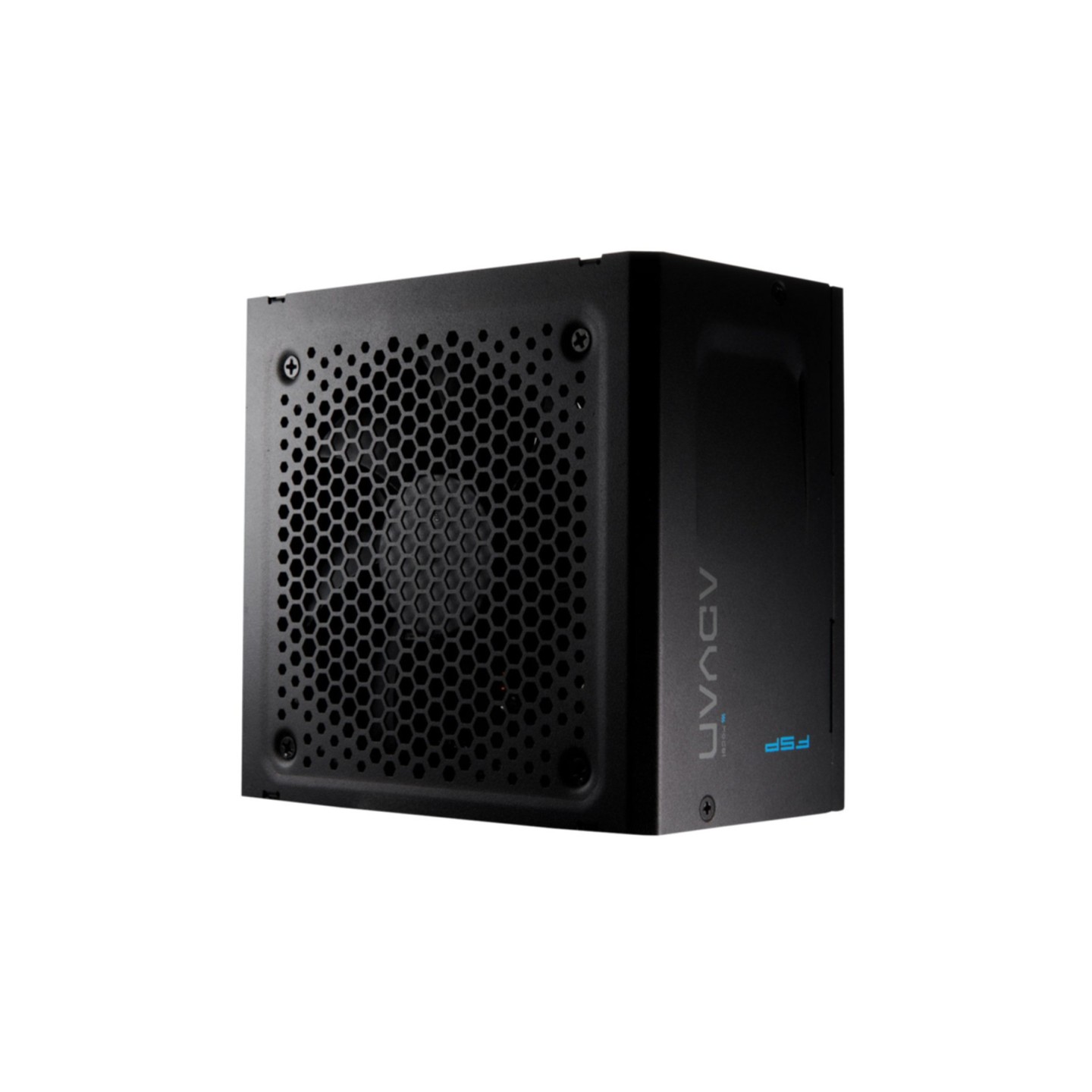

Power Supply Fortron FSP ADVAN GM 850 PPA8504800 850W (Boxed)
FSP Advan GM 850W ATX 3.1 PSU with 80+ Gold & Cybenetics Gold efficiency. Fully modular, 12V-2x6 + 2x 6+2 PCIe, HYB fan, ECO zero-RPM mode
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 2x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
Complies with Intel® ATX 3.1 Power Design Guide
The ADVAN GM 850 supports up to 200% power excursion and features PCIe 12V-2x6 connector for peak performance with next-gen GPUs.
Premium Design & Efficiency
LLC resonant-converter with synchronous rectifier ensures high efficiency (90%+), Gold-certified by 80 PLUS® and Cybenetics. 105°C Japanese capacitors, single +12V rail (70.83A), DC-DC for +5V/3.3V stability. Fully modular black embossed cables improve airflow and ease installation.
Cooling & Protection
120mm HYB fan with ECO switch for zero-RPM silent mode below 40% load. Full protections: OCP, OVP, OPP, SCP, UVP, OTP, SIP. Compact 150x140x86mm ATX form factor.
- ✅ ATX 3.1 compliant with 12V-2x6 (600W) + 2x PCIe 6+2Pin
- ✅ 80 PLUS Gold / Cybenetics Gold certified
- ✅ Fully modular, HYB fan, semi-fanless ECO mode
- ✅ 850W total, 100-240V input, active PFC >0.9
- ✅ 10-year warranty (per reviews)
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| Input current | 5.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12V-2x6) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Manufacturer Part Number | ADVAN-850GM / PPA8504800 |
