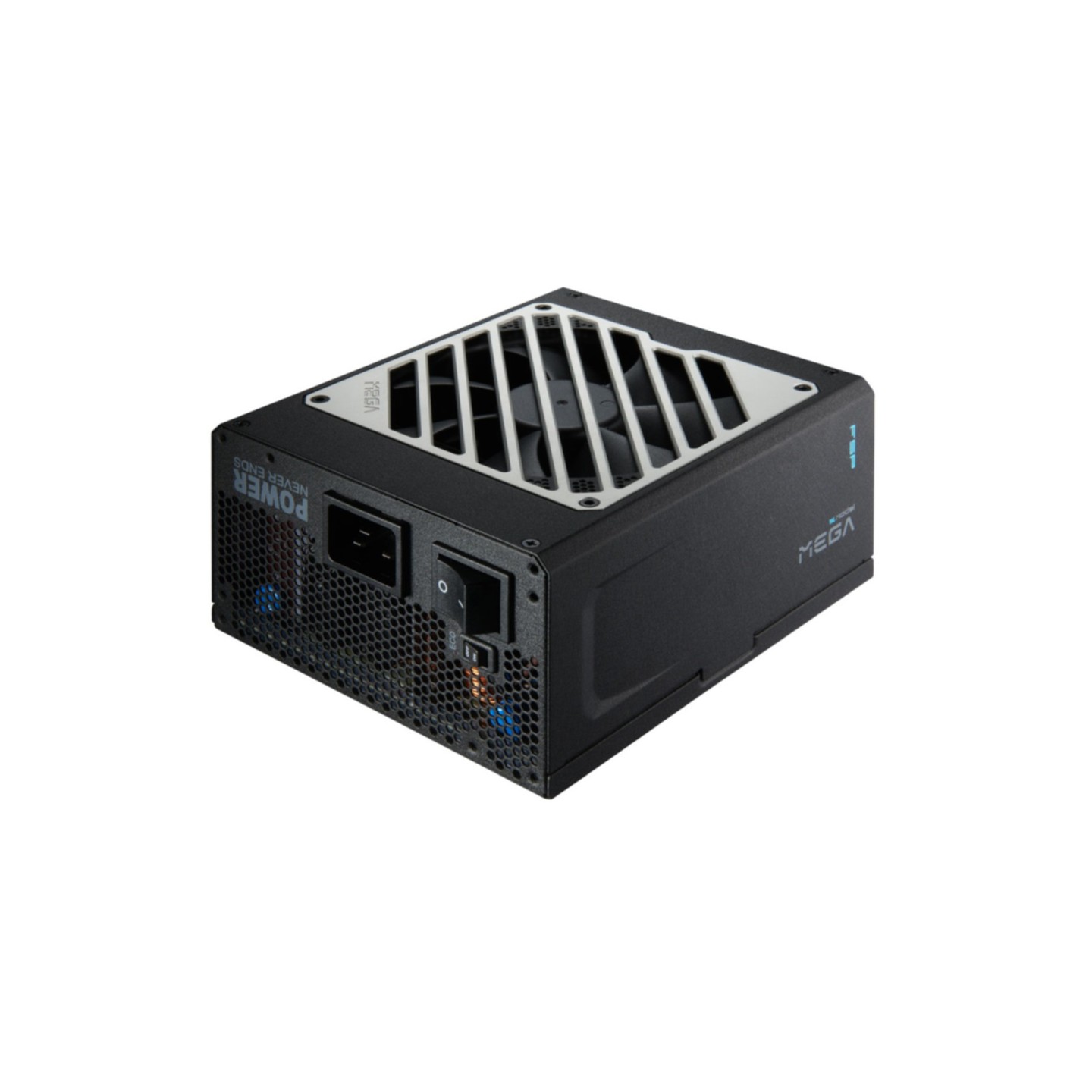

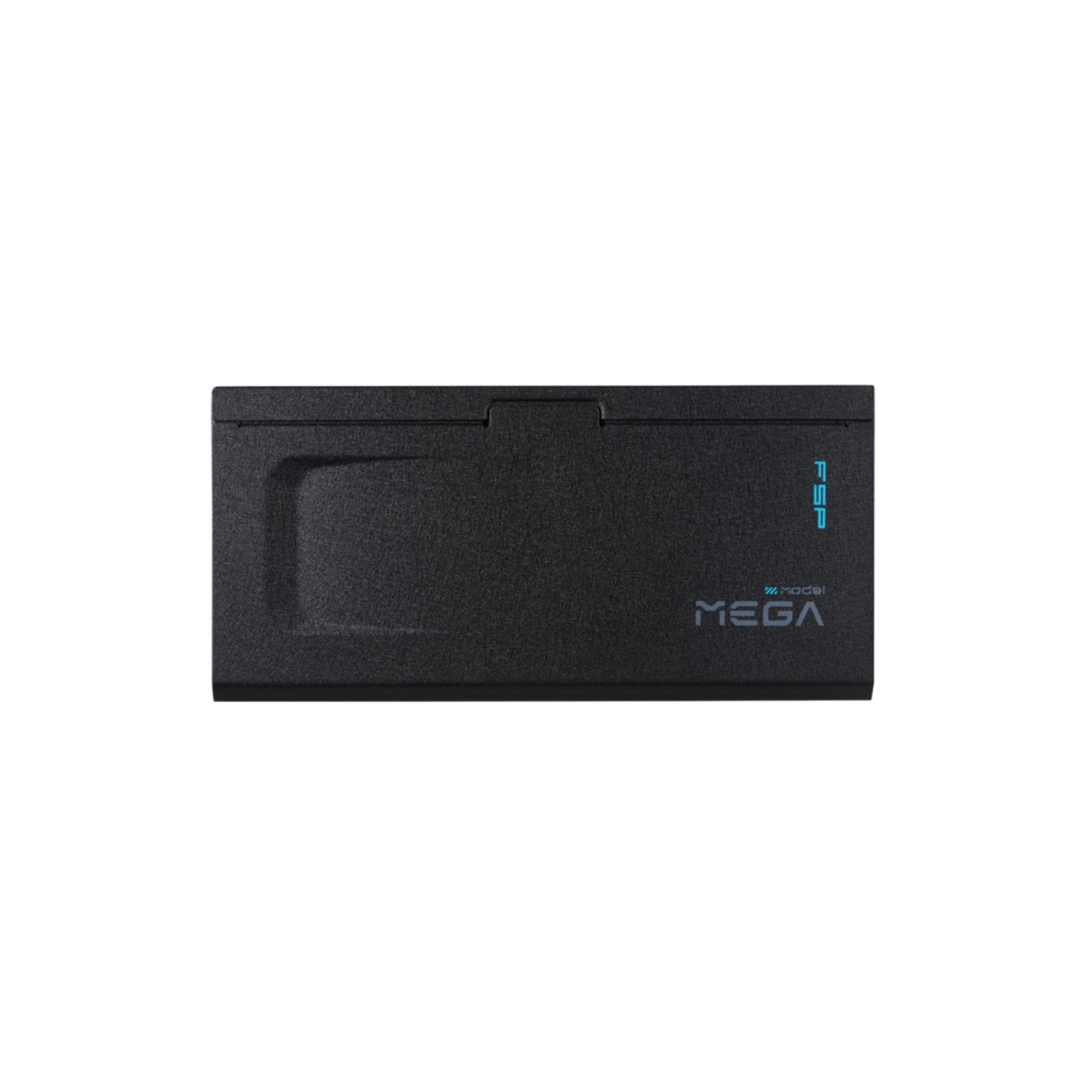

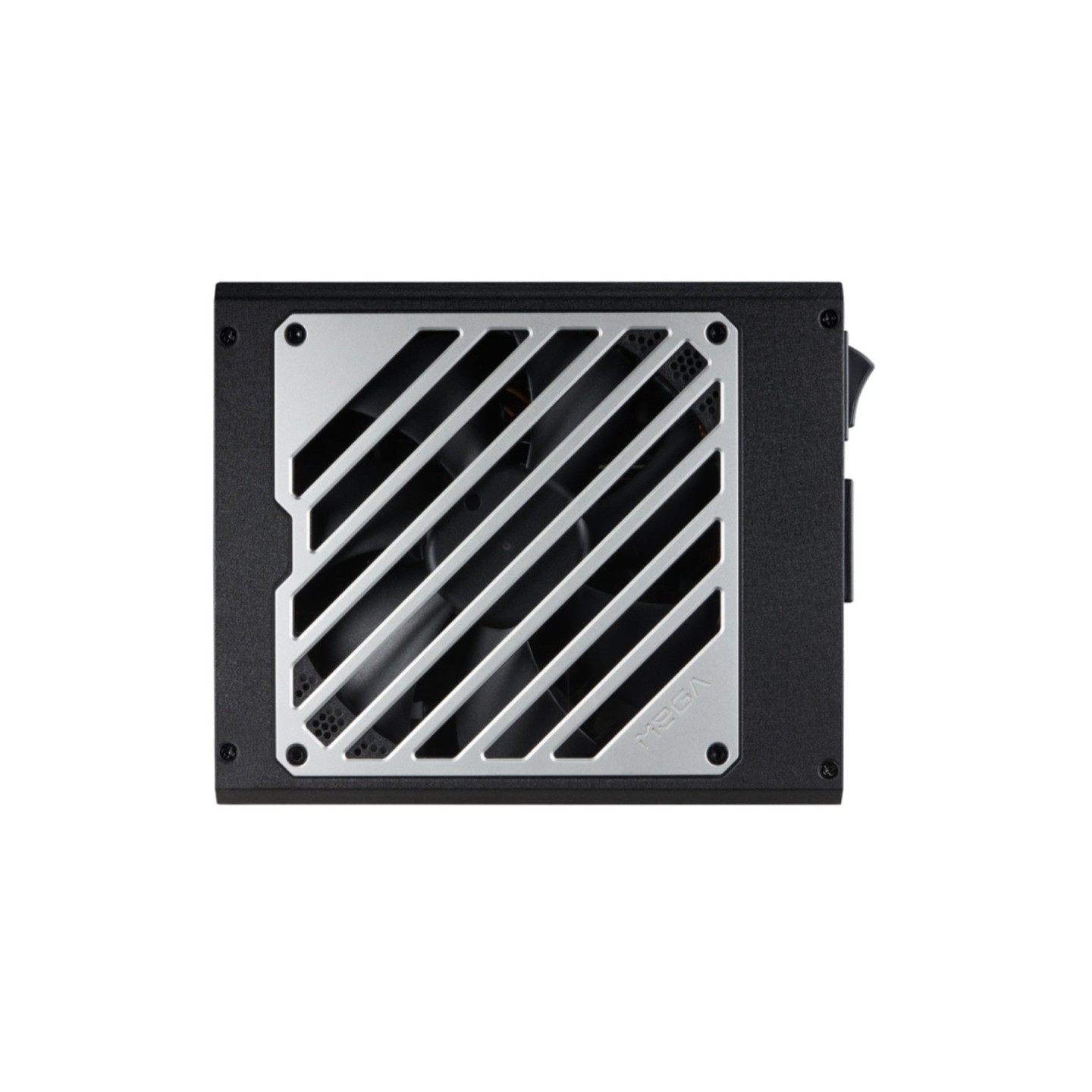

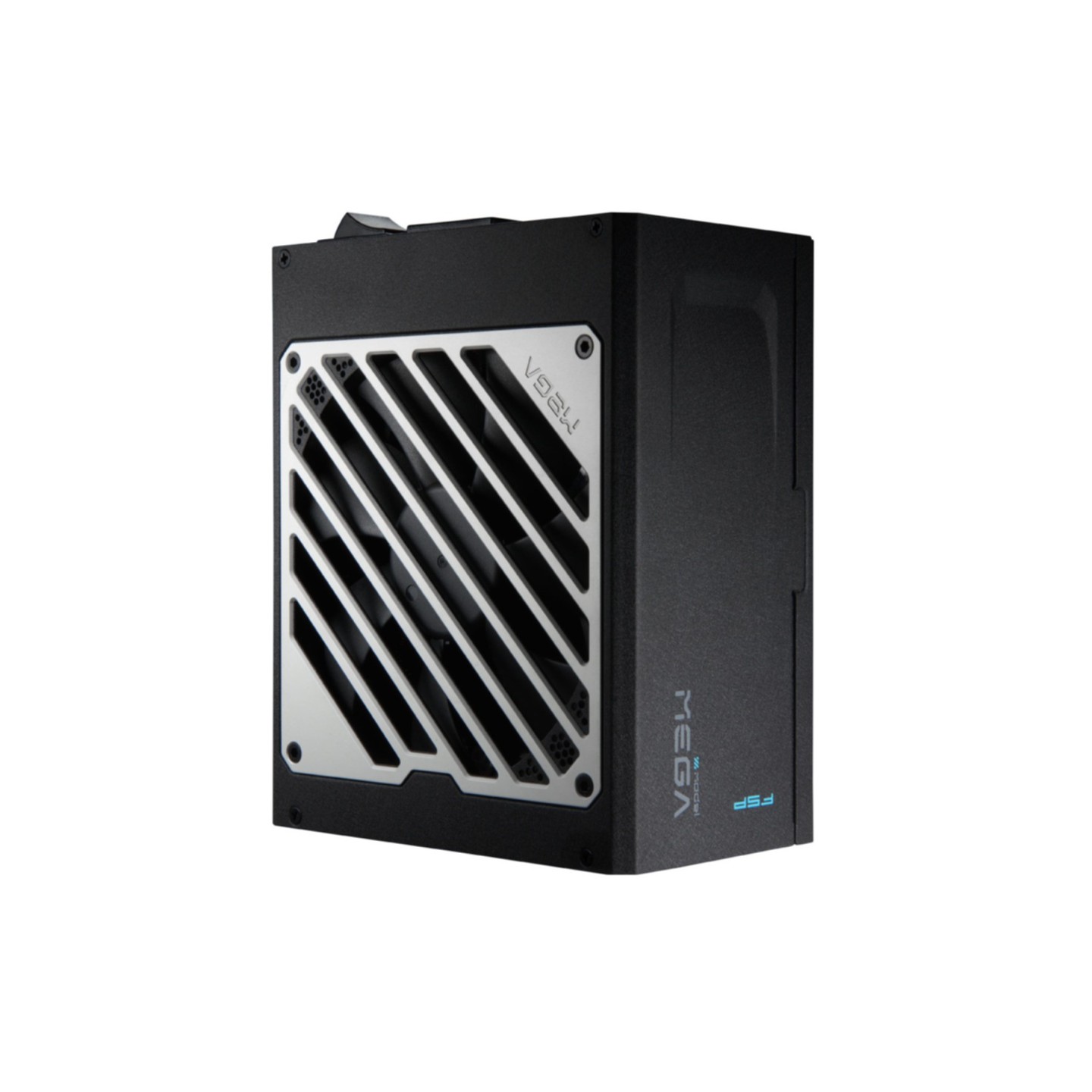

FSP MEGA TI 1650W 80 PLUS Titanium ATX 3.1 Power Supply (Boxed)
FSP MEGA TI 1650W fully modular power supply with 80 PLUS Titanium certification, ATX 3.1 compliance, dual native 12V-2x6 connectors, and compact 180mm form factor for high-performance gaming and workstation builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1500 - 1999 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Titanium Cybenetics Titanium |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 12V-2x6 6x 8/6 pins |
| PSU (Power Supplies) - Length | 180+ mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
Premium 1650W Power Delivery for Next-Generation Systems
The FSP MEGA TI 1650W is a fully modular power supply engineered for high-performance gaming, content creation, and professional workstations. With 80 PLUS Titanium certification and 94% efficiency at typical loads, it delivers exceptional power delivery while minimizing heat generation and energy waste. The unit supports the latest ATX 3.1 standard with dual native PCIe 12V-2x6 connectors, ensuring stable performance with today's most demanding graphics cards and processors. Its compact 180mm form factor makes it ideal for space-constrained builds without compromising on power or reliability.
Advanced Features & Protection
Equipped with a 135mm Fluid Dynamic Bearing (FDB) fan featuring zero-RPM semi-fanless mode, the MEGA TI operates virtually silently under light loads. The fully modular design with high-quality embossed cables allows for clean cable management and improved airflow. FSP's Interleaved PFC technology boosts efficiency while reducing ripple by 50%, and the MTLC (Micro Tolerance Load Control) system maintains ±0.5% load regulation for stable voltage delivery. Complete protection circuitry includes OVP, OCP, OPP, OTP, SCP, UVP, SIP, and NLO safeguards, while conformal PCB coating provides resistance to humidity and dust for long-term reliability.
Comprehensive Connectivity & Specifications
The power supply features 2x PCIe 5.0 (12V-2x6) connectors, 6x PCIe 8-pin connectors, 2x EPS 4+4 pin CPU connectors, 1x ATX 24-pin motherboard connector, 10x SATA connectors, and 6x Molex connectors. With a 10-year manufacturer warranty, Japanese 105°C bulk capacitors, and Cybenetics Titanium certification (Lambda A++), this unit is built for longevity and peak performance.
- 1650W rated output with 94% efficiency (80 PLUS Titanium certified)
- ATX 3.1 compliant with dual native 12V-2x6 PCIe connectors
- Fully modular design with embossed cables for clean builds
- 135mm FDB fan with zero-RPM semi-fanless mode
- Complete protection: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
- Compact 180x150x86mm form factor
- 10-year warranty and Cybenetics Titanium certification
| Rated Output Power | 1650 W |
| Form Factor | ATX 3.1 |
| 80 PLUS Certification | Titanium |
| Cybenetics Certification | Titanium (Lambda A++) |
| Input Voltage | 110-240V AC |
| Input Current | 10-15A |
| Input Frequency | 50-60Hz |
| Power Factor Correction | ≥0.9 (Interleaved PFC) |
| Efficiency at Typical Load | ≥94% |
| Cooling Fan | 135mm Fluid Dynamic Bearing (FDB), max 2100 RPM |
| Fan Mode | Zero-RPM semi-fanless mode (below 40% load) |
| Dimensions (Unit) | 180 x 150 x 86 mm (L x W x H) |
| Operating Temperature | 0-50°C |
| Protection Features | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Warranty | 10 Years |
| Capacitors | 105°C Japanese bulk capacitors |
| Load Regulation | ±0.5% (MTLC - Micro Tolerance Load Control) |
| Modularity | Fully Modular |
| Cable Type | High-quality embossed cables |
| ATX 24-pin Motherboard Connector | 1x (Modular) |
| EPS 4+4 pin CPU Connectors | 2x (Modular) |
| PCIe 12V-2x6 Connectors | 2x (Native, Modular) |
| PCIe 8-pin Connectors | 6x (Modular) |
| SATA Power Connectors | 10x (Modular, 965mm total length) |
| Molex 4-pin Connectors | 6x (Modular) |
| Hold-up Time | ≥17ms at 80% load |
| Inrush Current | 100-500ms |
| Overpower Protection Threshold | 122% of rated load |
| 12V Rail Maximum Current | 156A (114% of 137.5A rating) |
| 12V Rail Voltage Regulation | ±0.25% (within ATX specifications) |
| PCB Protection | Conformal coating (Off-Wet, Off-Dust, Off-Stain) - up to 95% relative humidity |
| Unit Weight | 2.223 kg |
| Compliance Standards | ATX12V V3.1, EPS12V V2.92, PCIe 5.1 |
