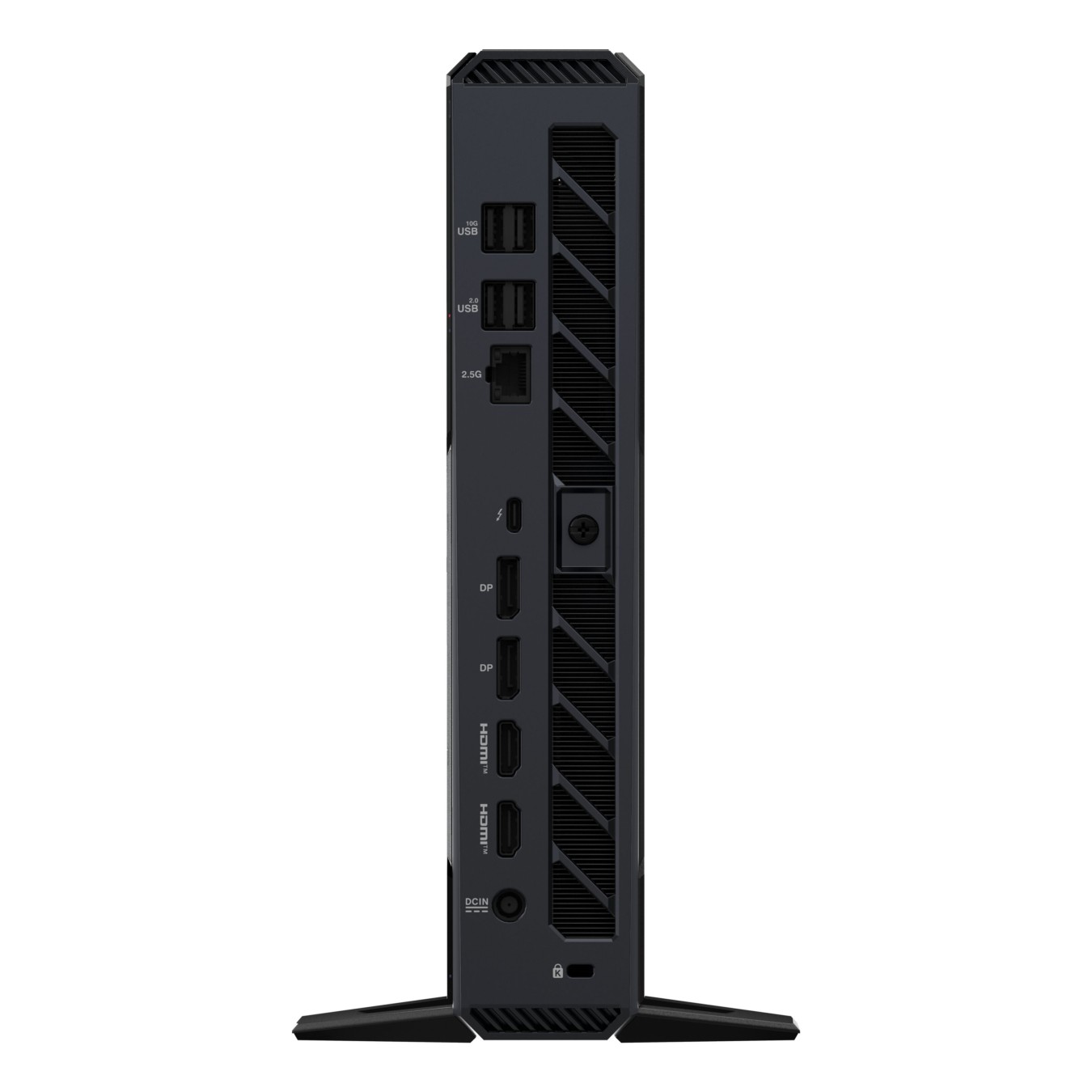

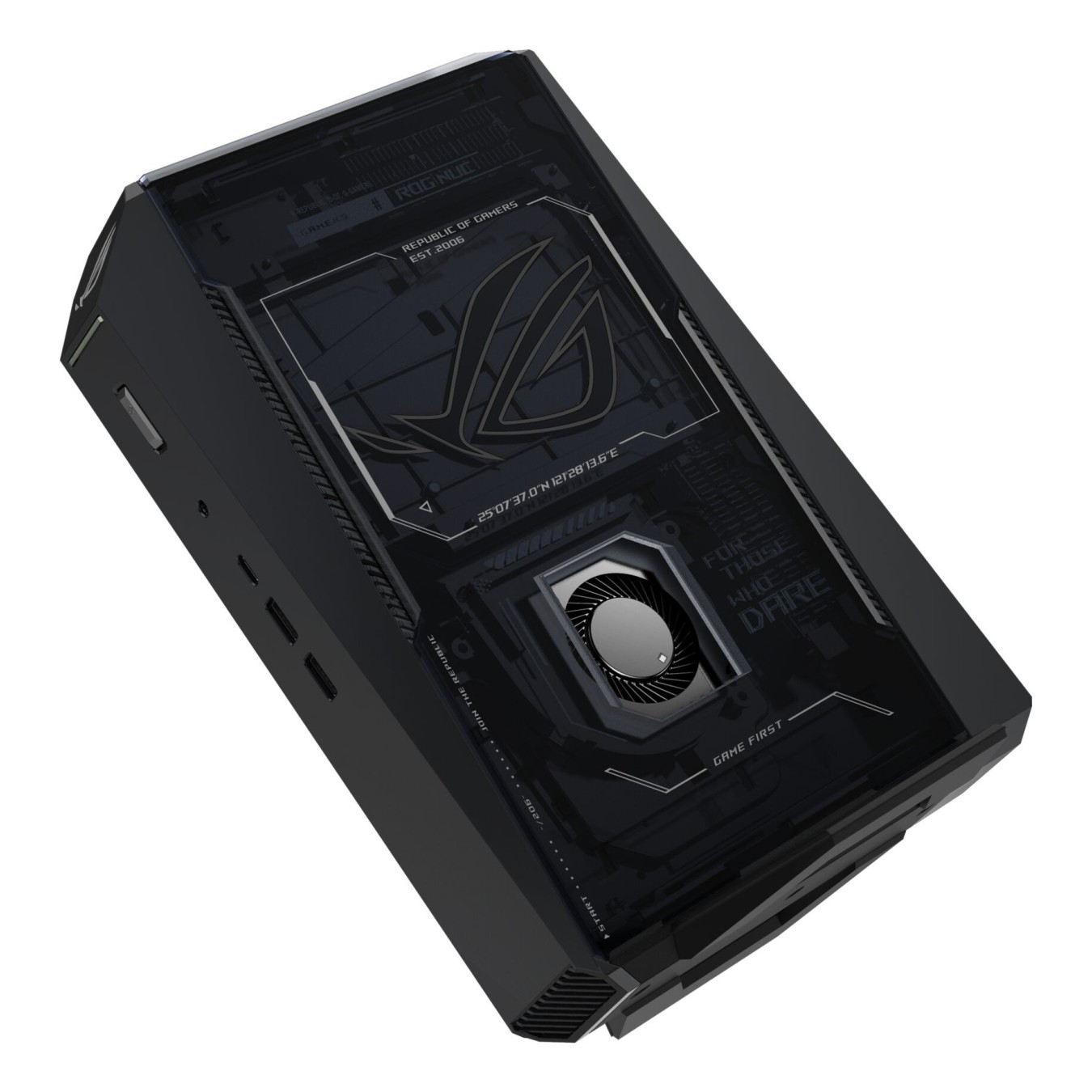

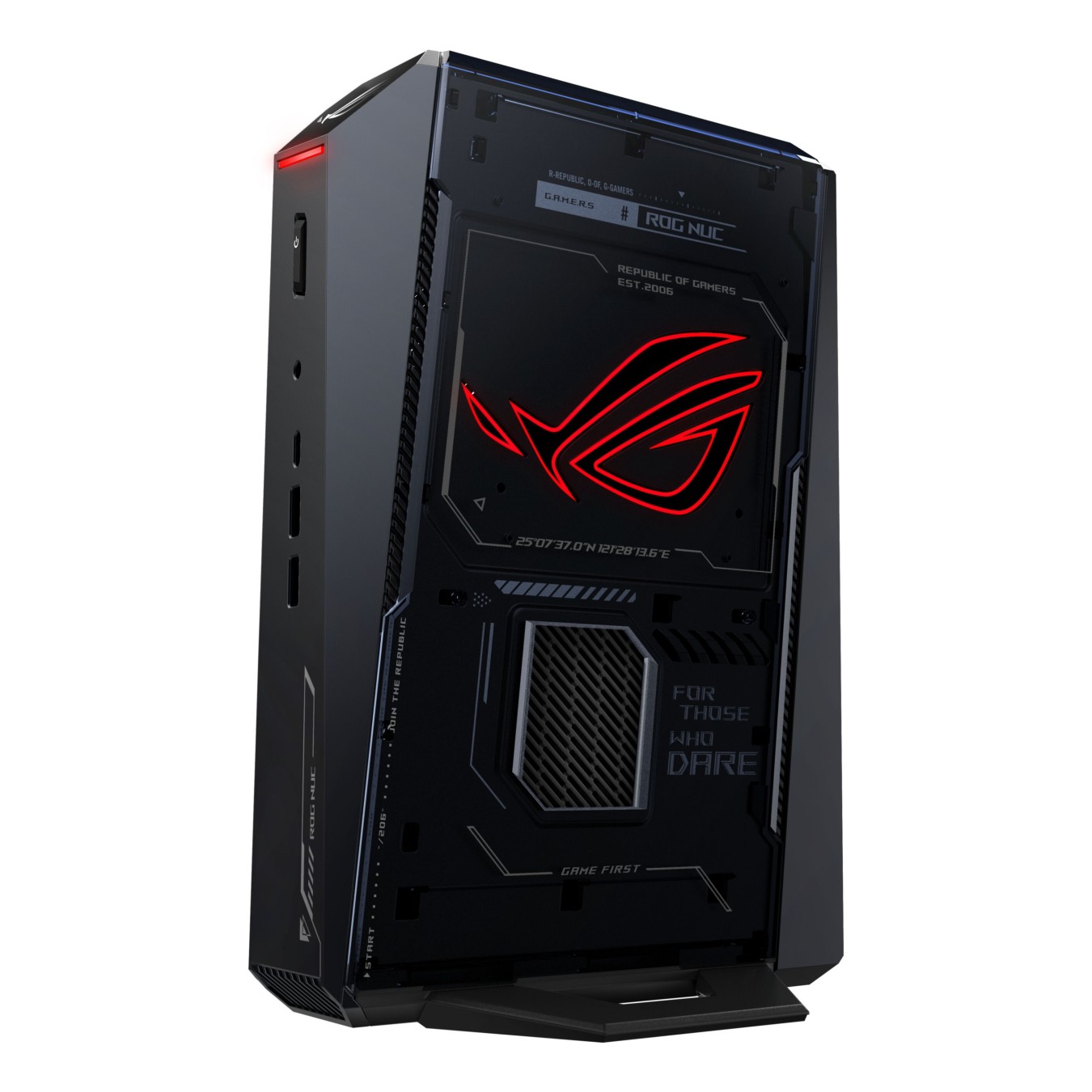

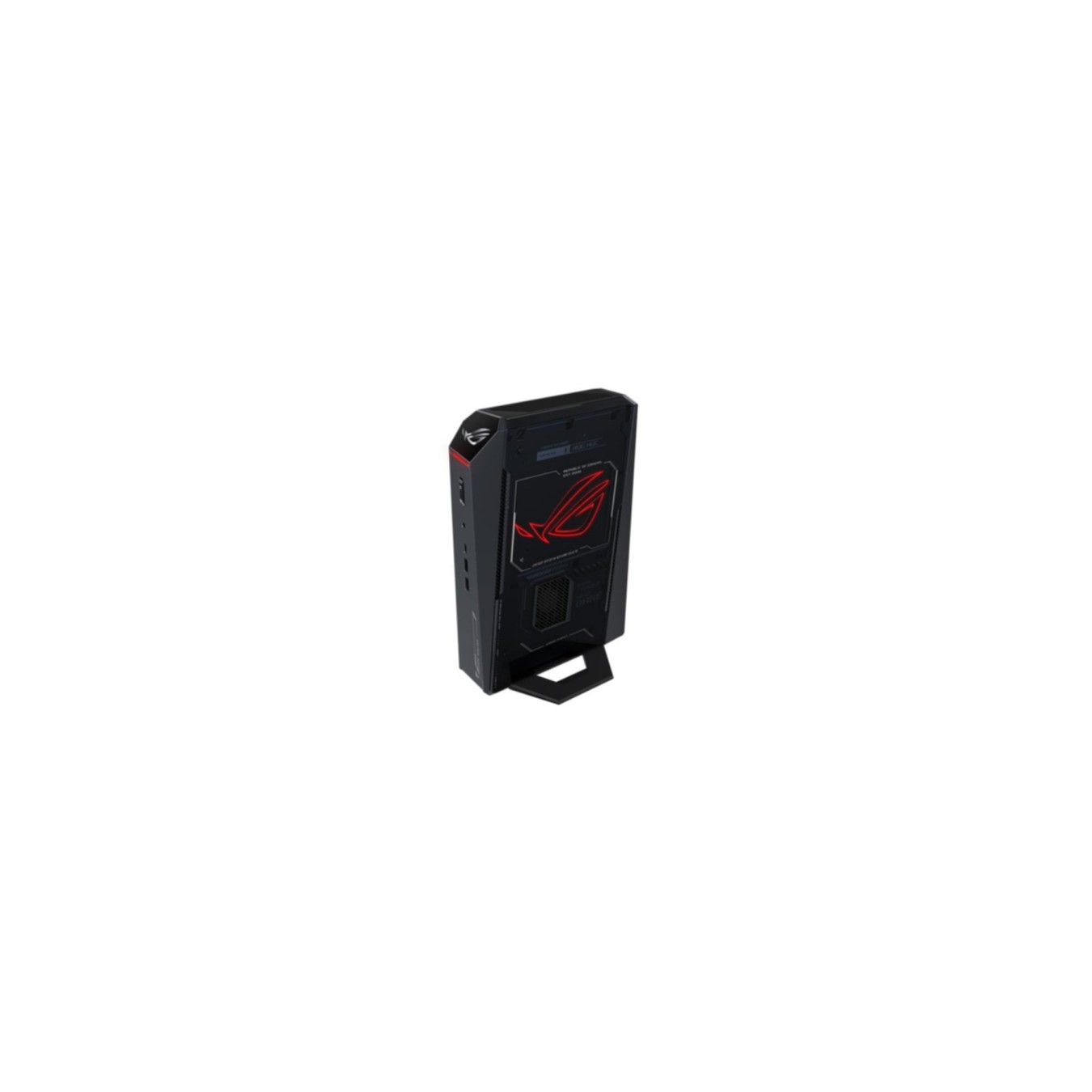

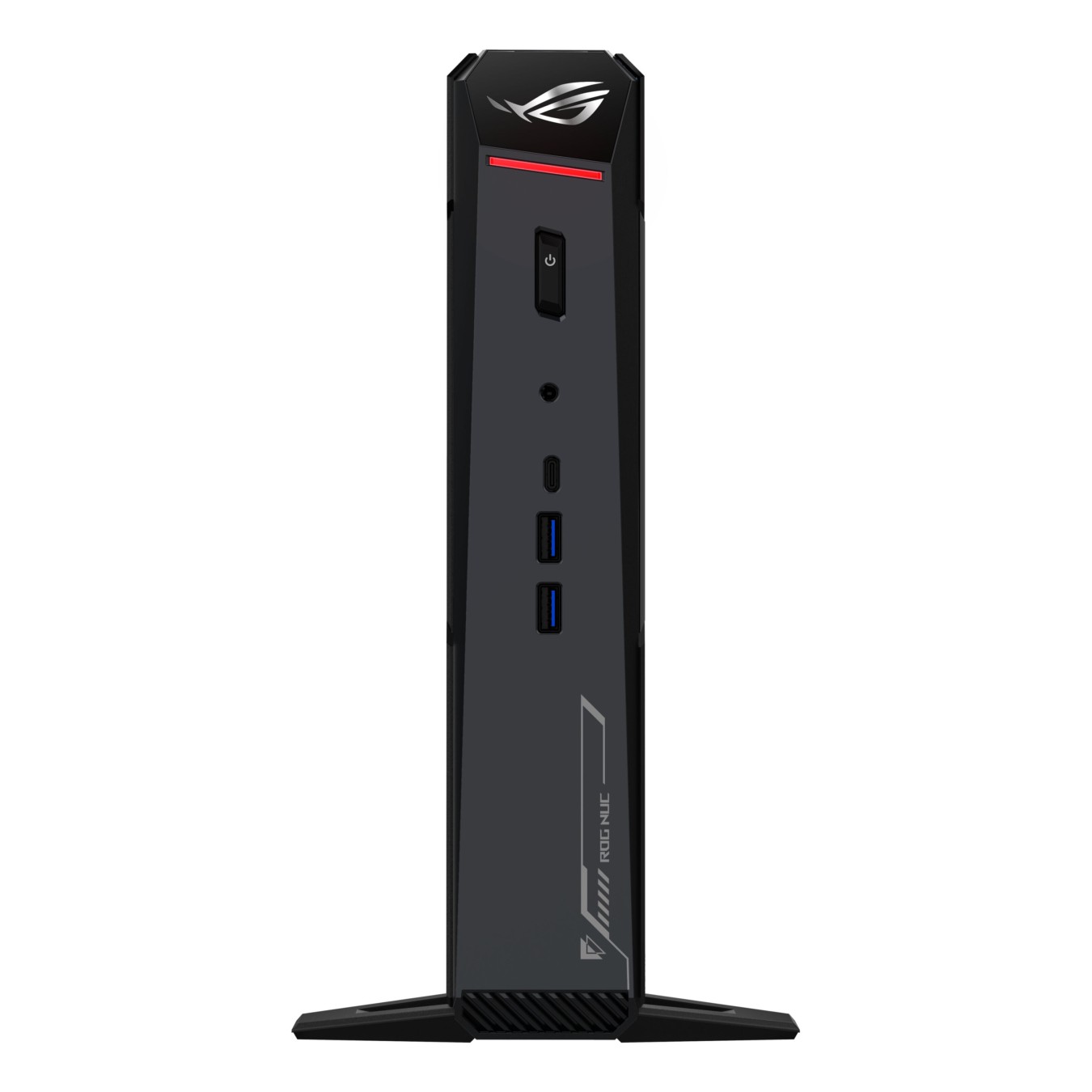

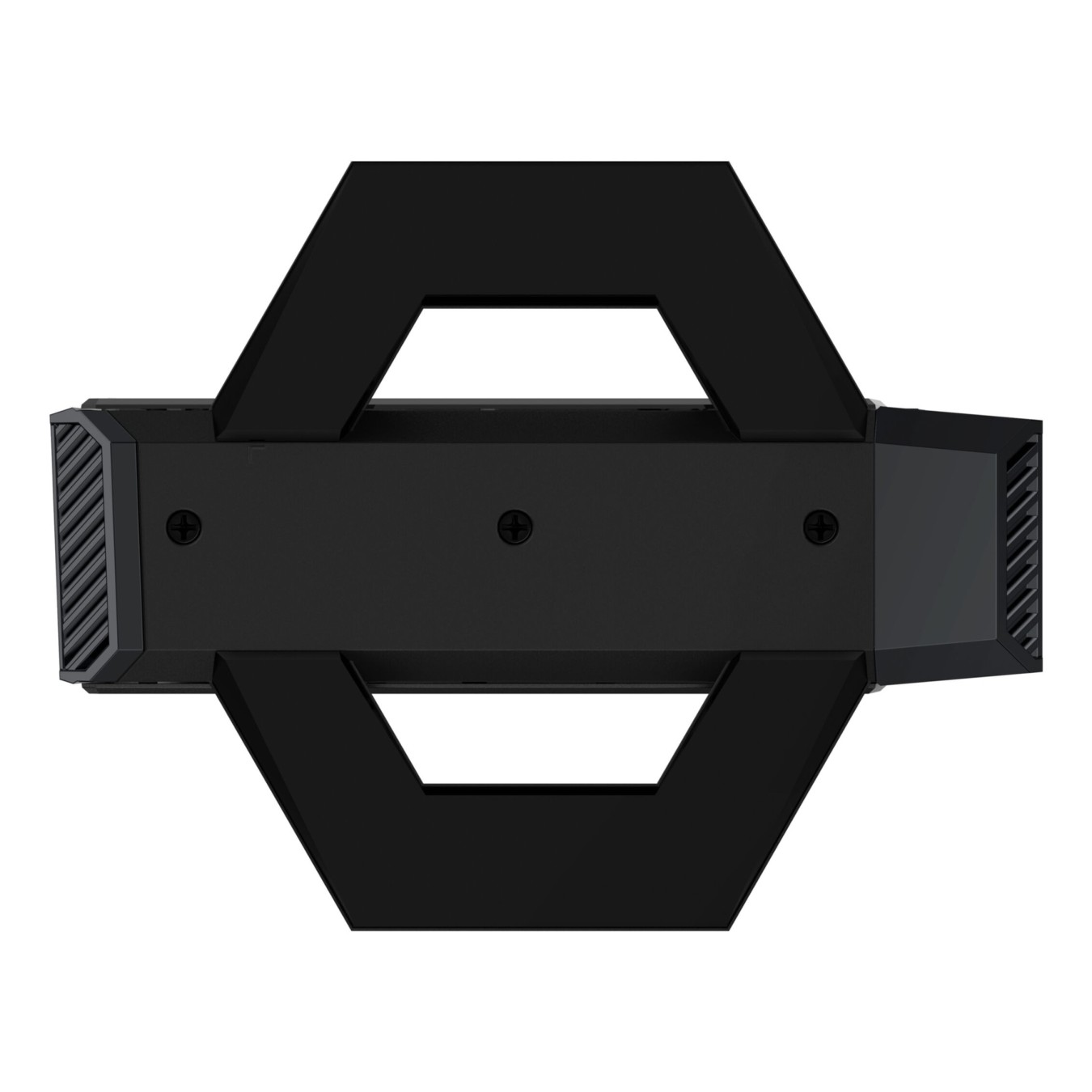

Asus NUC 15 ROG - RNUC15JNK9X28AA2 - Core Ultra 9 275HX - Jean Canyon (including Gema)
ASUS NUC 15 ROG with Intel Core Ultra 9 (275HX), 24-core CPU, 32 GB DDR5 (2x16), 2 TB PCIe 4.0 NVMe SSD, RTX 5080 16 GB GDDR7, Windows 11 Home, USFF mini PC (3.12 kg).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Gaming Redefined
Power Meets Precision

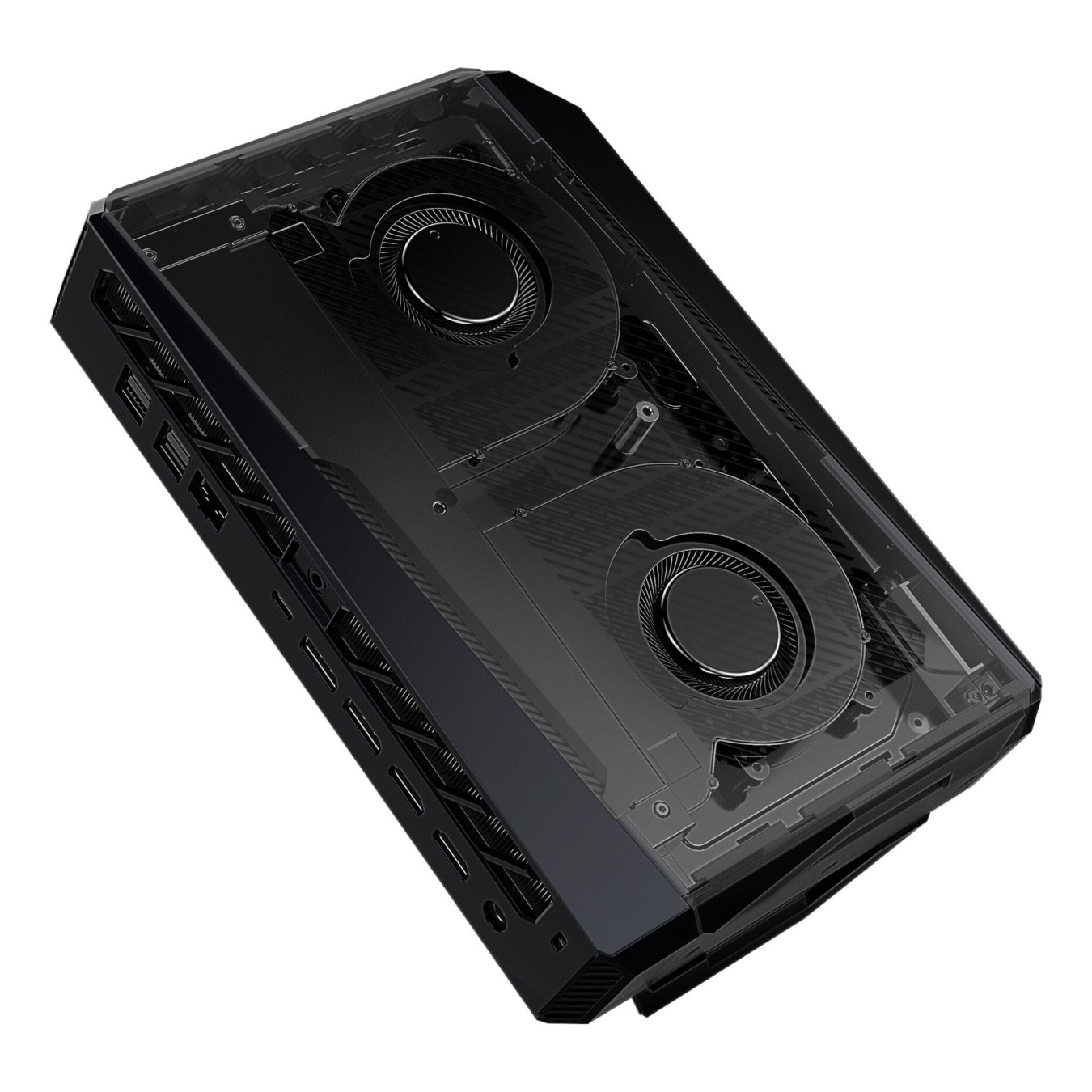

Unlock new gaming horizons with ROG NUC (2025), powered by the Intel® Core™ Ultra processors (Series 2) ARL-HX and up to NVIDIA® GeForce RTX™ 5080 Laptop GPU. Equipped with triple fan cooling and support for four 4K displays, this compact powerhouse delivers unprecedented performance.
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 275HX |
| Processor cores | 24 |
| Processor threads | 24 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.7 GHz |
| Efficient-core base frequency | 2.1 GHz |
| Processor cache | 36 MB |
| Processor base power | 55 W |
| Maximum turbo power | 160 W |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Internal memory | 32 GB |
| Maximum internal memory | 96 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory clock speed | 6400 MHz |
| Total storage capacity | 2 TB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 5080 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR7 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000, 2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Chassis type | USFF |
| Volume | 2.5 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Market positioning | Gaming |
| Audio chip | Realtek ALC3251 |
| Product type | Mini PC |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Width | 282.4 mm |
| Depth | 187.7 mm |
| Height | 56.5 mm |
| Weight | 3.12 kg |
| Display included | No |
