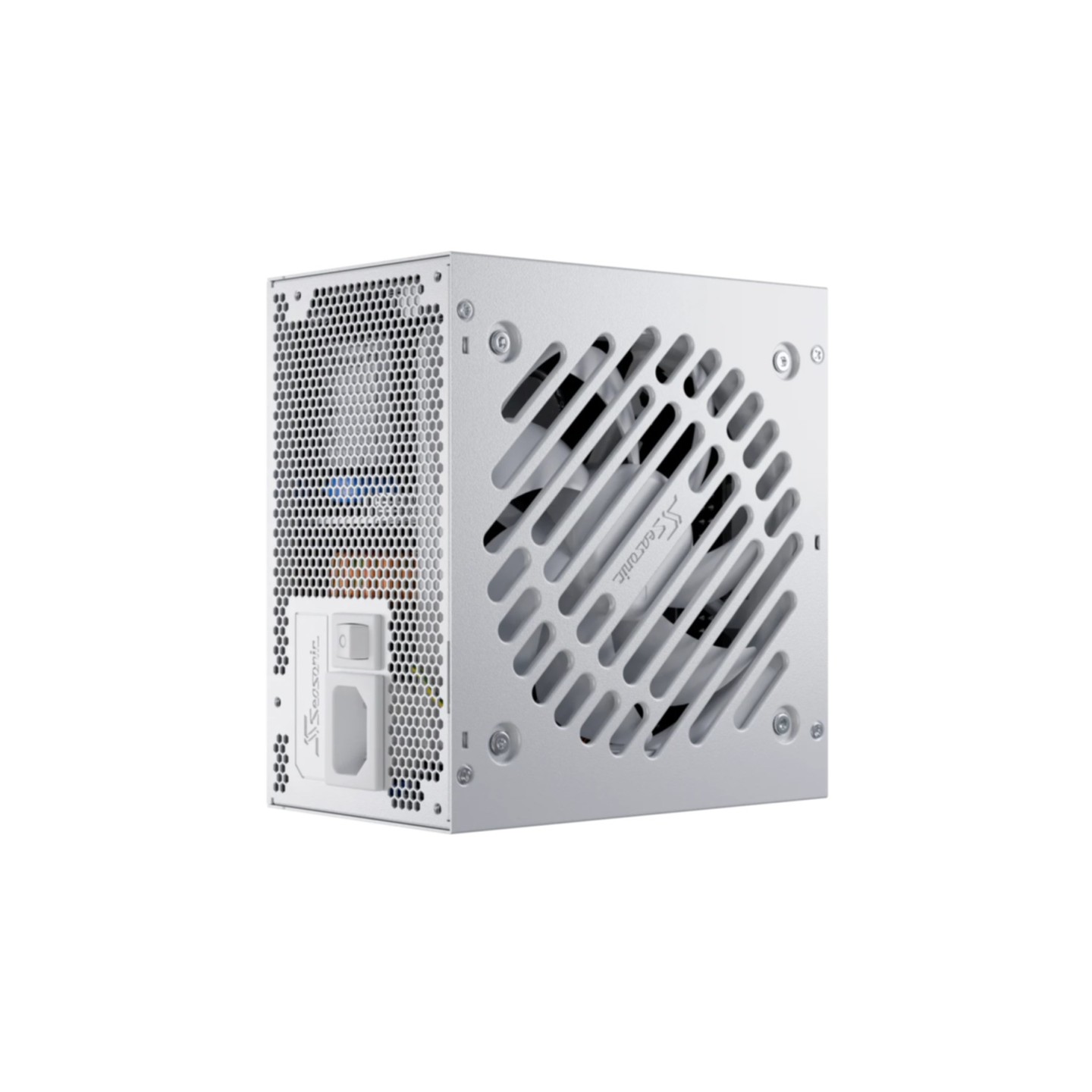

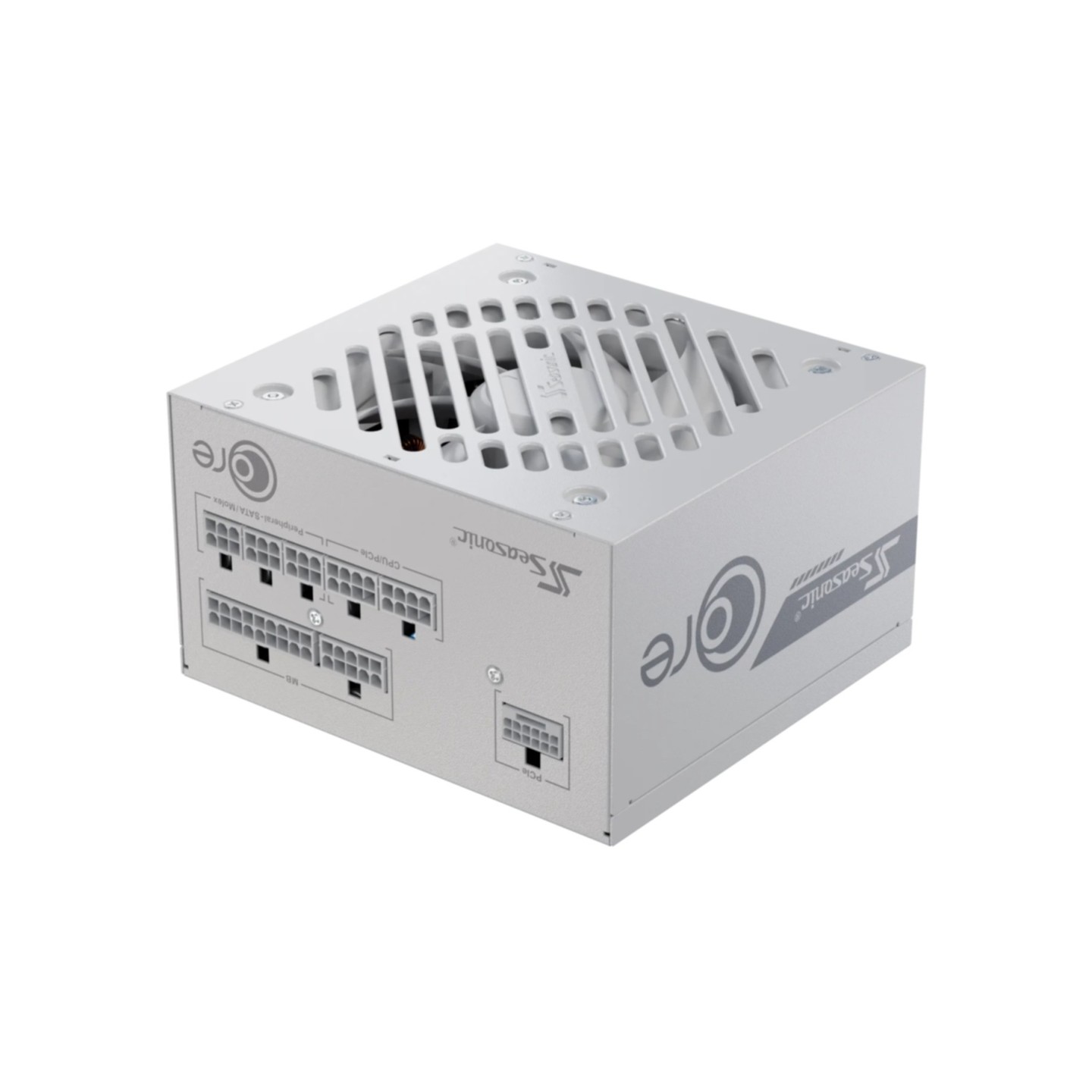

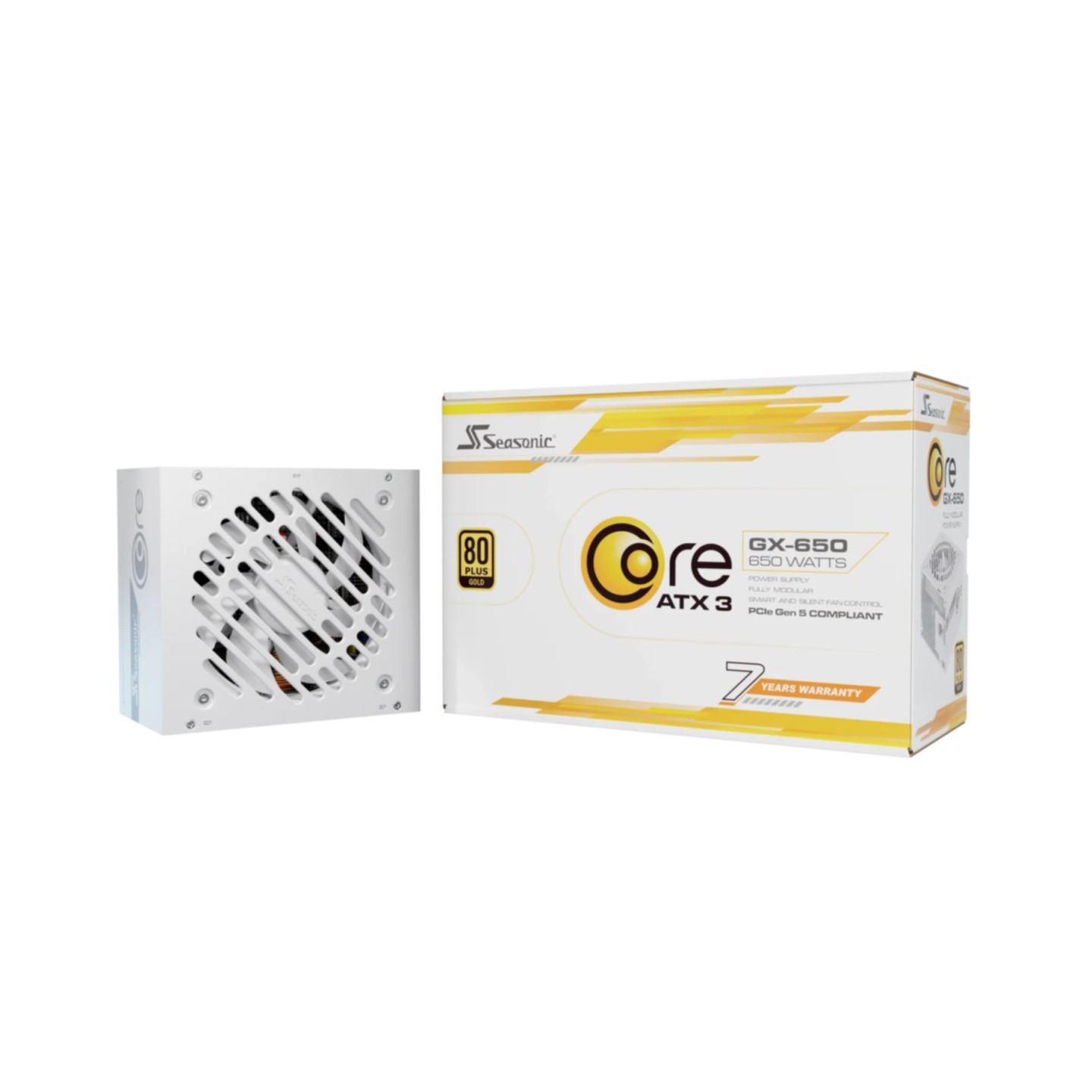

Seasonic Power Supply - Core-GX-650 - 650W Gold modular White (Boxed)
Seasonic Core-GX-650 650W 80+ Gold fully modular ATX 3.1 PSU in white. Features 12V-2x6 PCIe 5.1 connector, OptiSink cooling, Hydro Bearing fan, S2FC. 7-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 1x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
CORE GX White ATX 3.1
The Seasonic CORE GX White ATX 3.1 650W complies with ATX 3.1 & PCIe 5.1 standards. 80 PLUS Gold certified, fully modular with white braided cables. Ideal for PC builders seeking performance at value price. 120mm Hydro Dynamic Bearing fan + Smart Silent Fan Control (S2FC) for optimal cooling & low noise.
OptiSink Design & Reliability
New PCB layout & automated SMT production reduce errors. Compact MOSFETs/heat sinks boost airflow & 8x heat dissipation for cooler operation, any orientation install. Eco-friendly, enhances longevity. Backed by 7-year warranty.

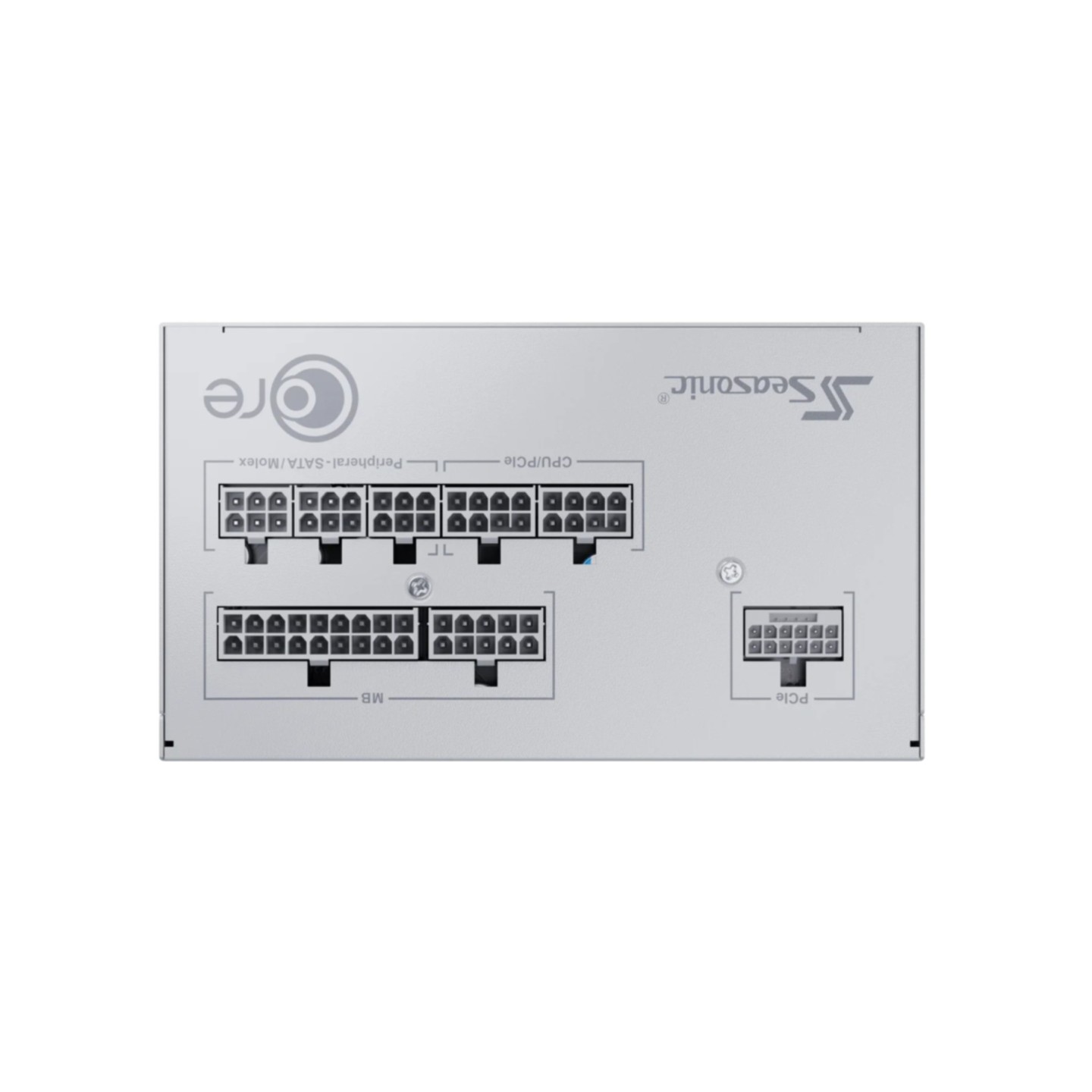

Fully Modular & Connectors

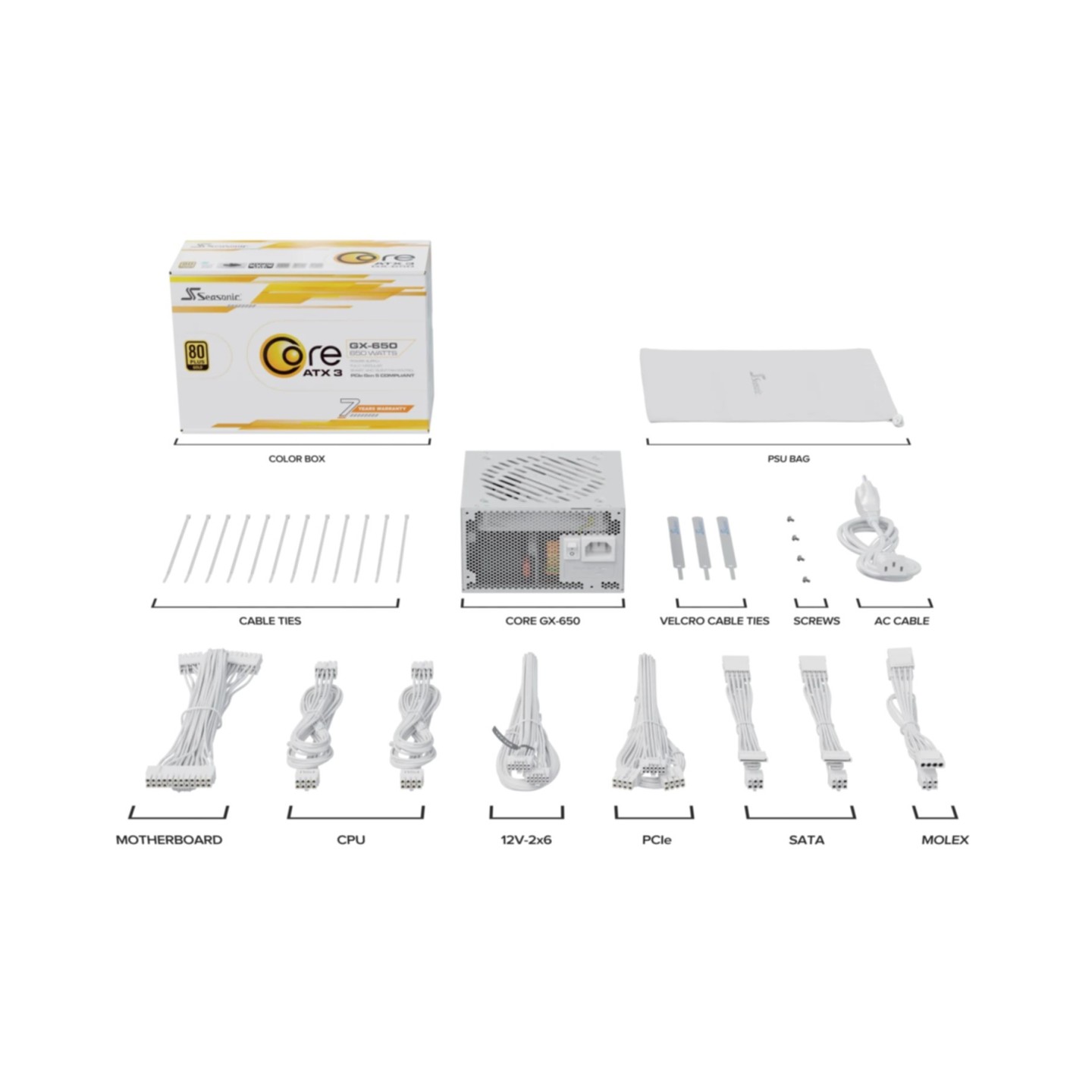

Patented design with SMD tech for efficiency, low resistance. Includes 1x 12+4 pin (12V-2x6) for modern GPUs, 1x 6+2 PCIe, CPU 4+4, 3x SATA, 3x Molex.
- ATX 3.1 / PCIe 5.1 compliant
- 80 PLUS Gold efficiency
- Fully modular white cables

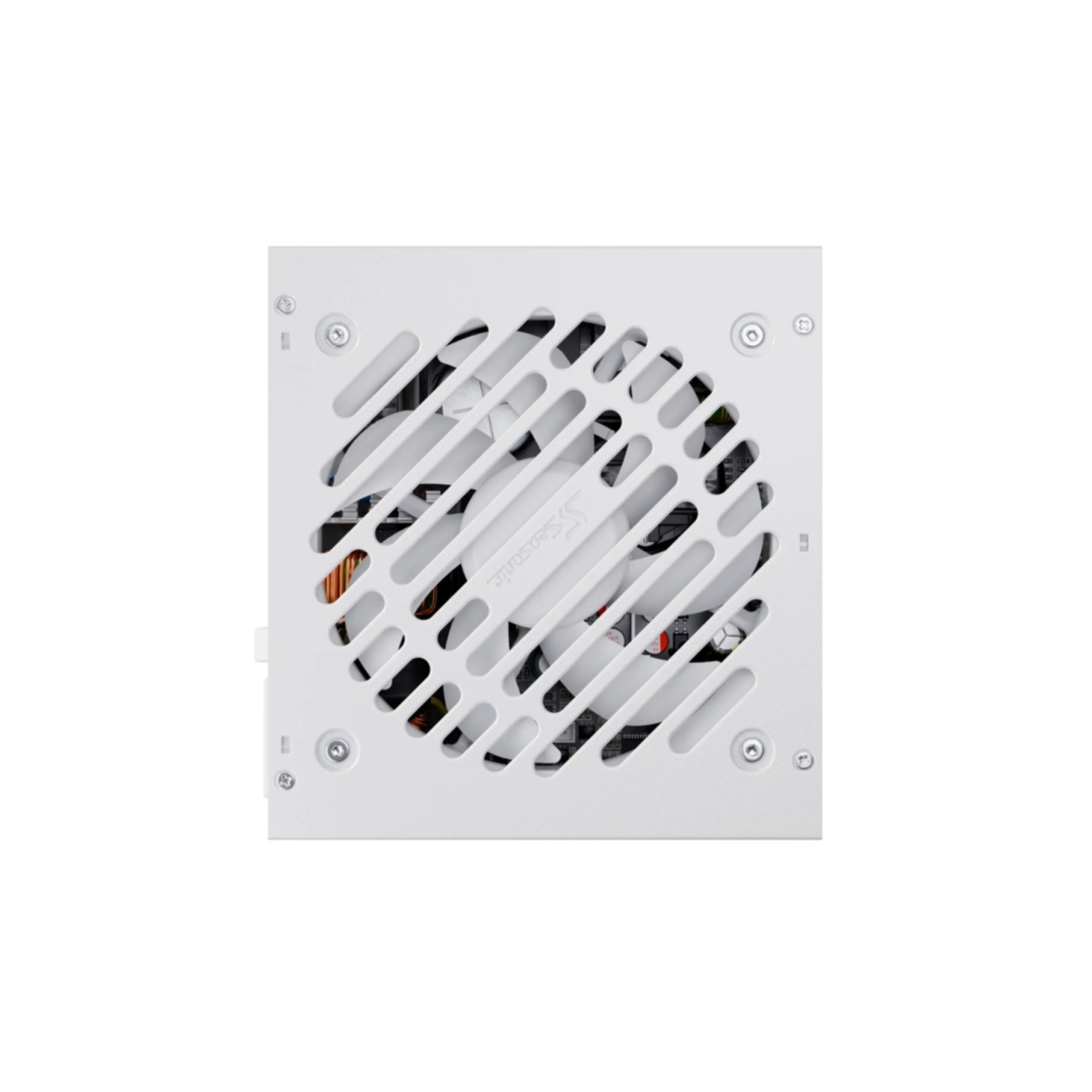

- 120mm HDB fan with S2FC
- OptiSink for superior cooling
- 7-year warranty
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 11 - 5.5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 750 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 690 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 700 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 75 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | Hypro Bearing |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
