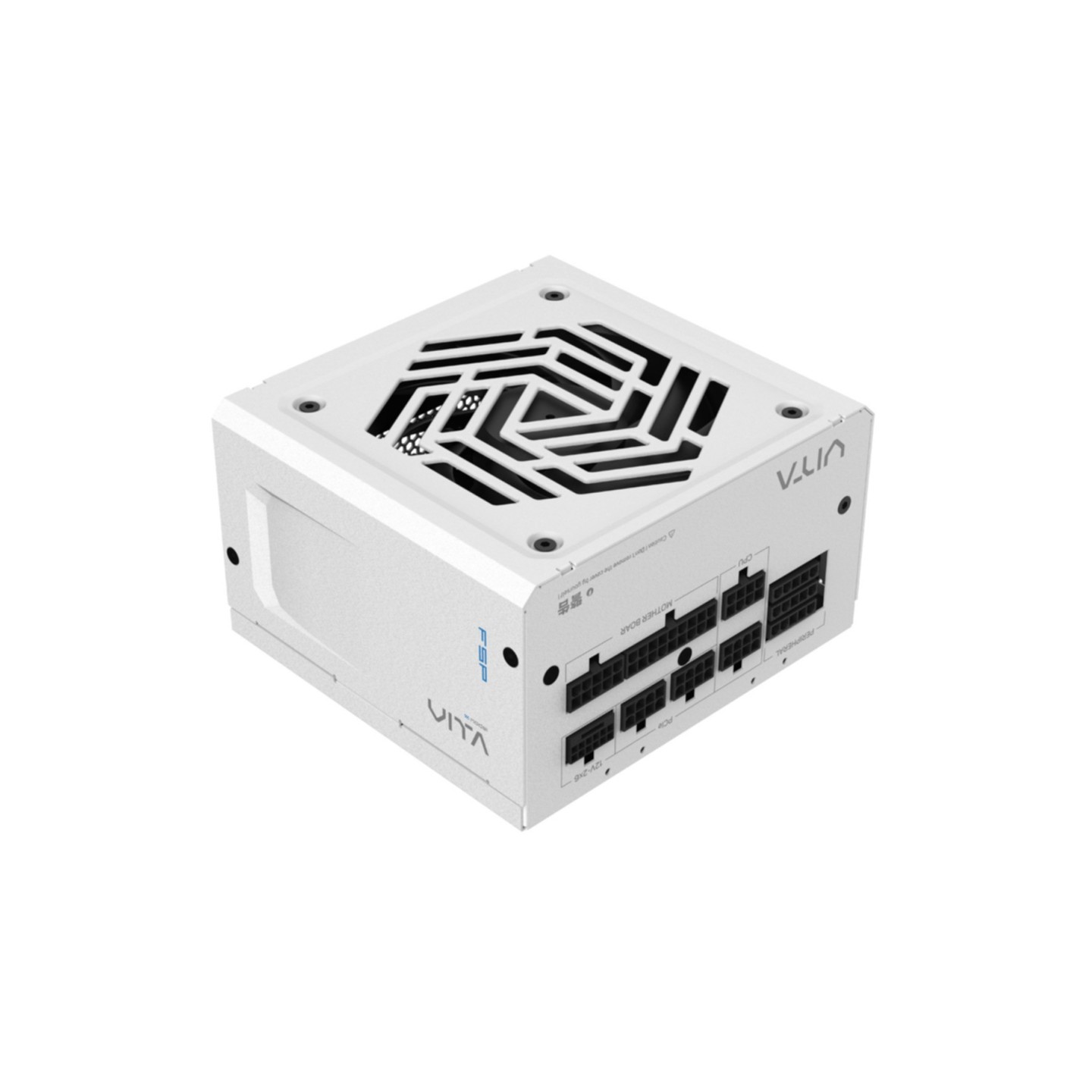

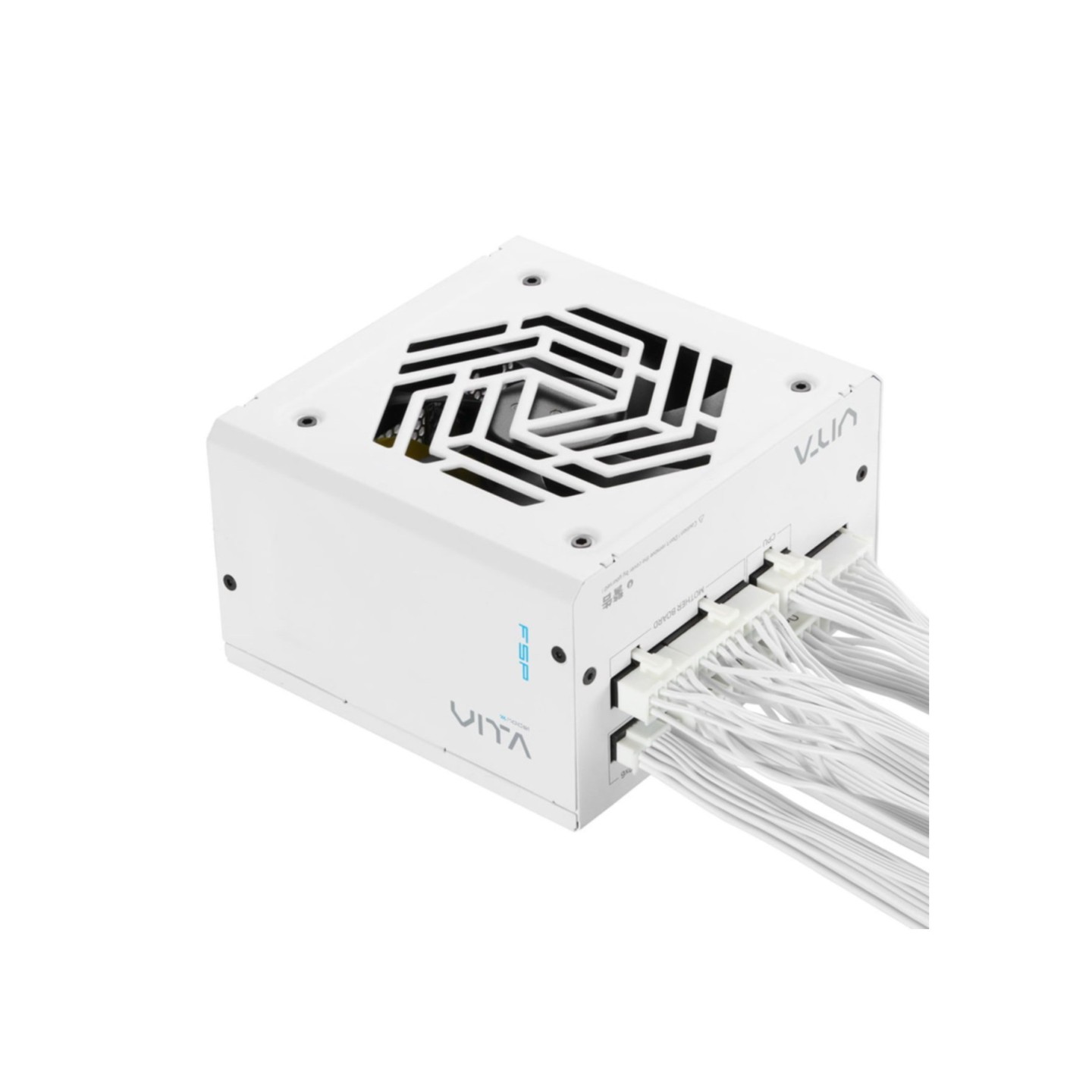

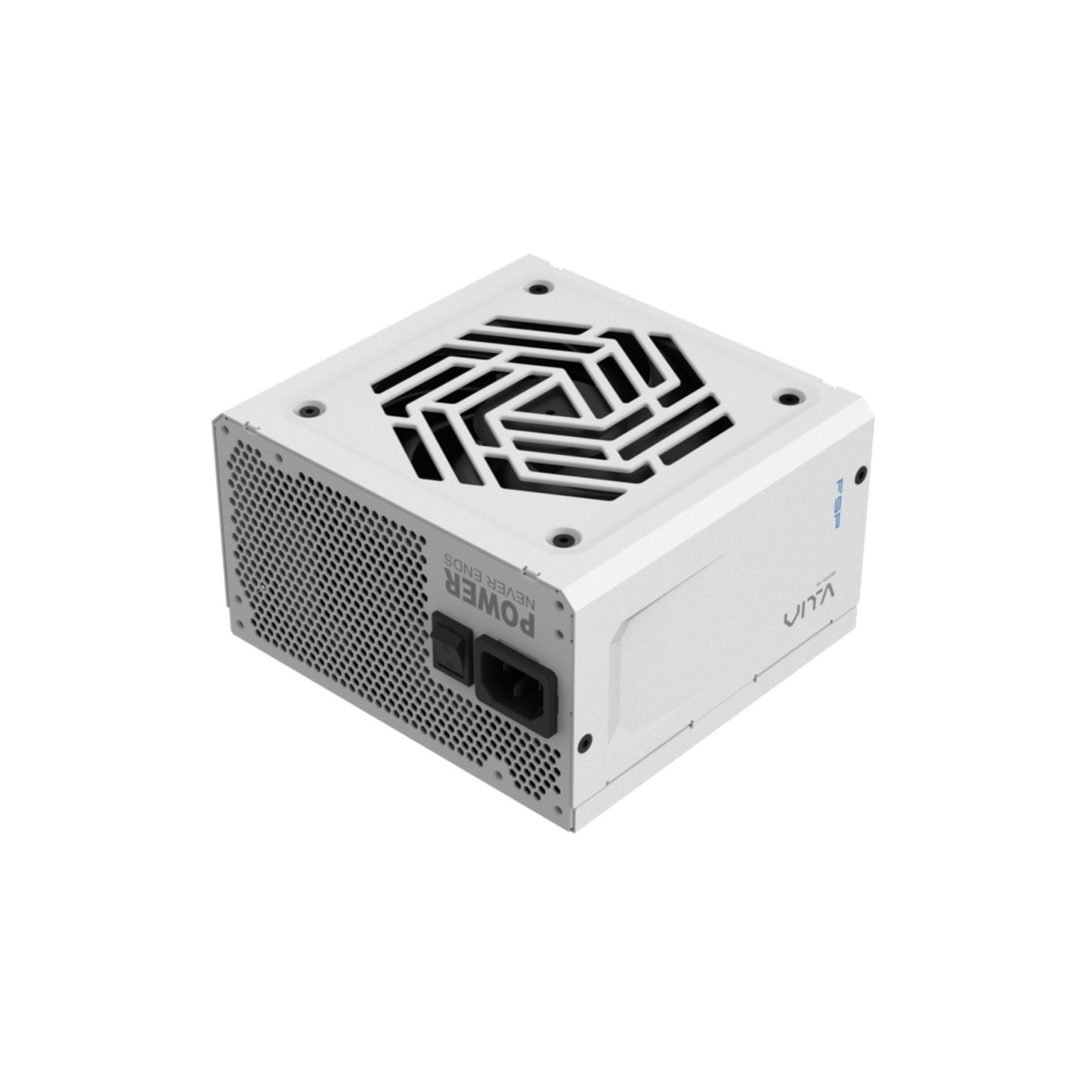

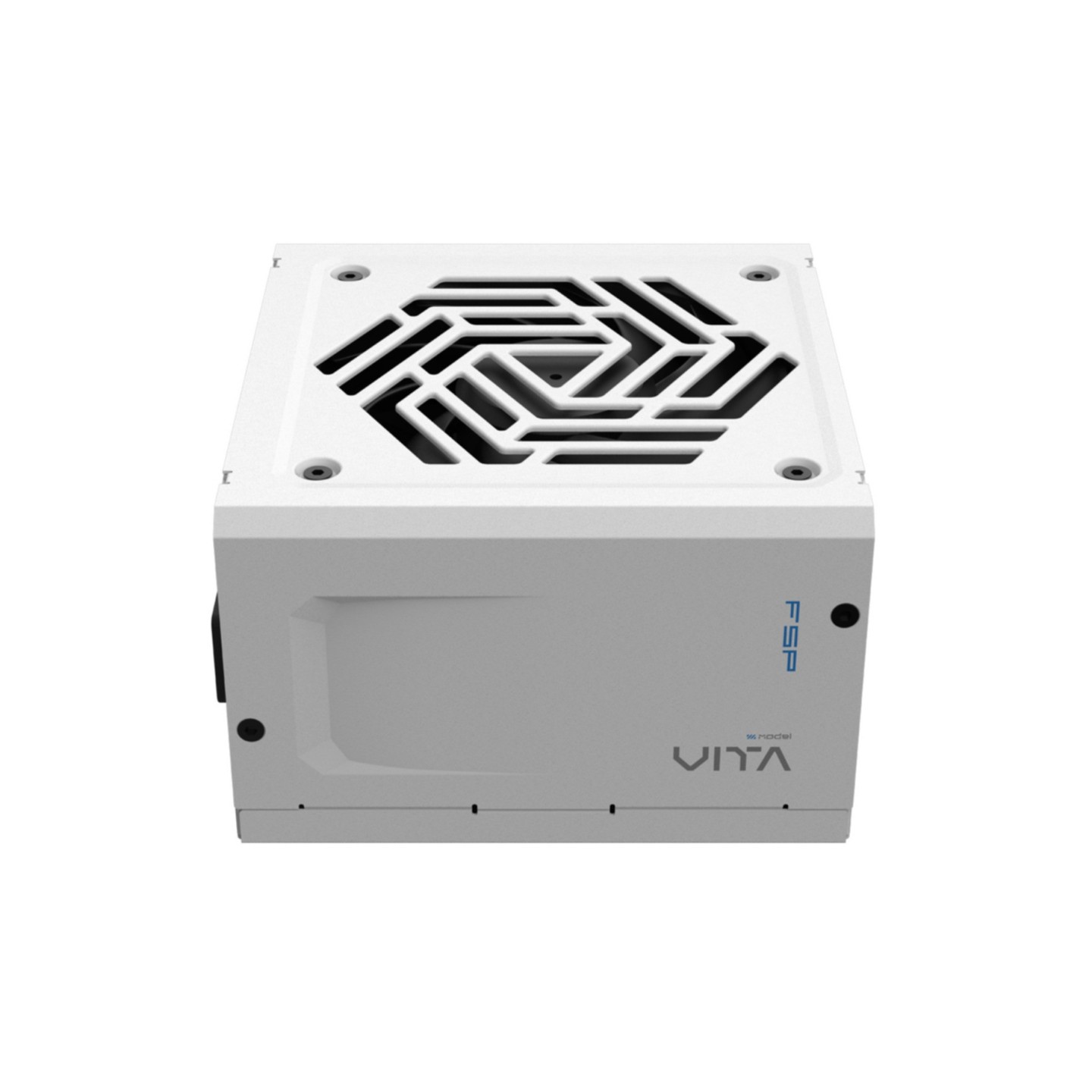

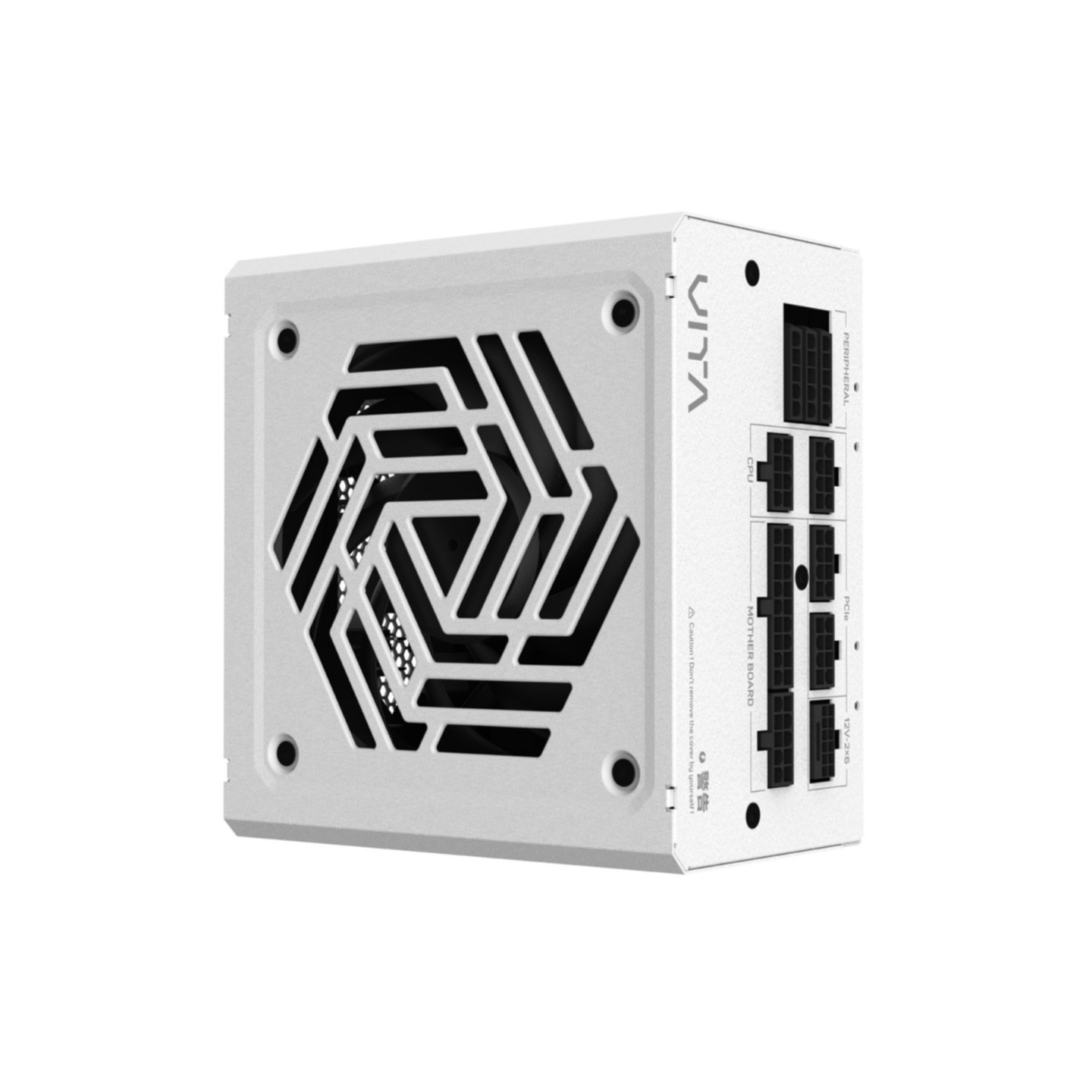

FSP Vita GM PPA8504214 850W 80+ Gold ATX 3.1 White Fully Modular (Boxed)
850W Fully Modular ATX 3.1 PSU, 80 PLUS Gold certified. Single +12V rail, 12V-2x6 + 4x 6+2 PCIe, white cables. LLC topology, 105°C Jap caps, 120mm HYB fan, compact 140mm depth for high-end PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
ATX 3.1 Compliant Powerhouse: The FSP Vita GM PPA8504214 delivers 850W with full support for Intel ATX 3.1 and PCIe 5.1 specs, handling extreme power excursions for next-gen GPUs and CPUs. 80 PLUS Gold efficiency reaches up to 90-93% for minimal heat and noise.
Premium Build & Cooling: Features LLC resonant converter with DC-DC design, 105°C Japanese capacitors, and a quiet 120mm hydraulic bearing fan. Single +12V rail (70.83A) powers demanding workloads; fully modular white cables enhance airflow and aesthetics in white-themed builds. Compact 140 x 150 x 86mm size fits tight cases.

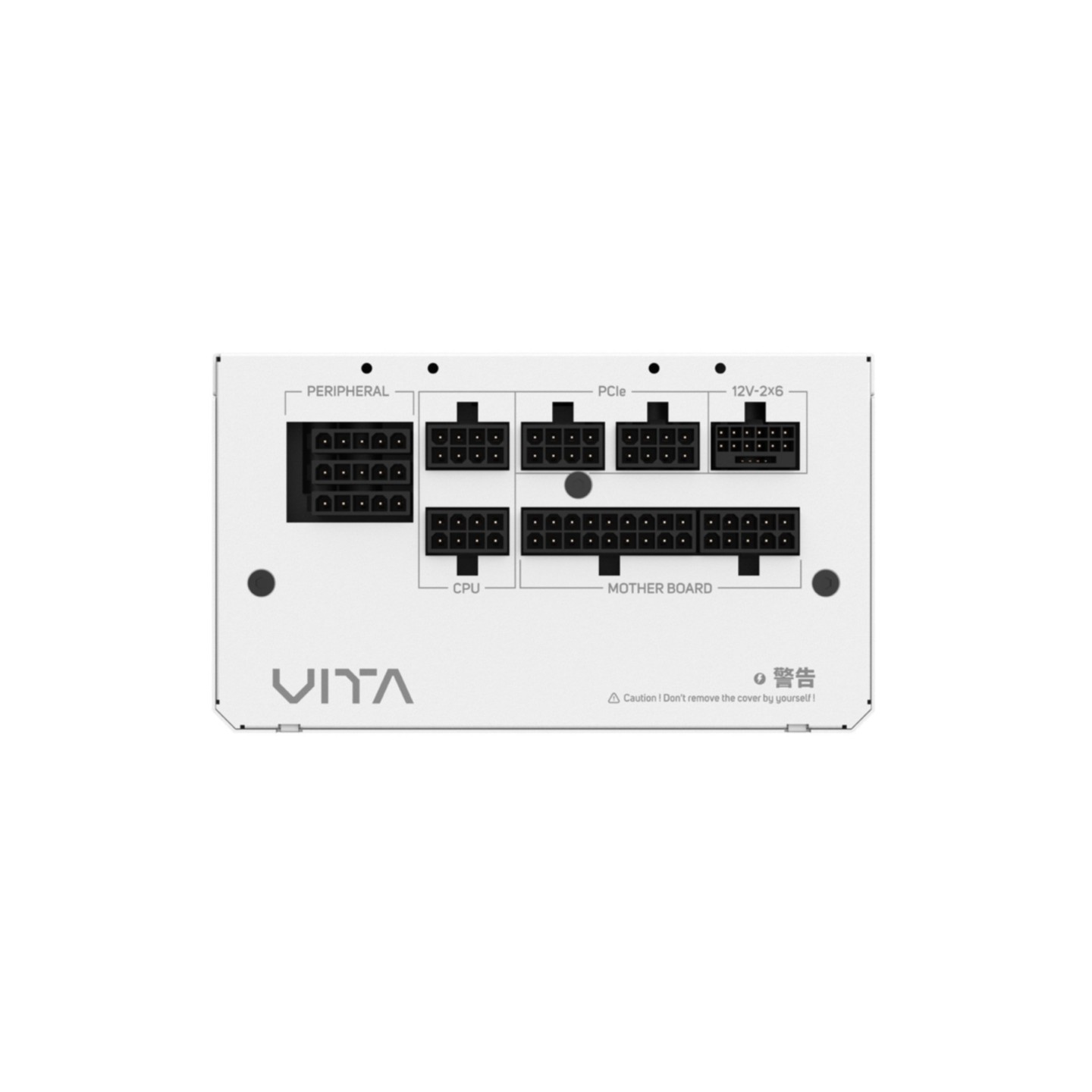

Versatile Connectivity: Includes 20+4pin ATX, dual CPU 4+4pin, 4x PCIe 6+2pin, 12V-2x6 for modern GPUs, 8x SATA, 4x Molex. Fortress protections: OCP/OPP/OVP/SCP/OTP/UVP.
- ✅ 80 PLUS Gold efficiency
- ✅ Fully modular white cables
- ✅ Native 12V-2x6 PCIe 5.1 support
- ✅ Active HYB fan cooling
- ✅ Japanese 105°C capacitors
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 11-5.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| 12V-2x6 connector | 1 |
| CPU power connector (4+4 pin) | Yes (2x) |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | HYB |
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cables included | CPU, Peripheral (Molex), SATA |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
