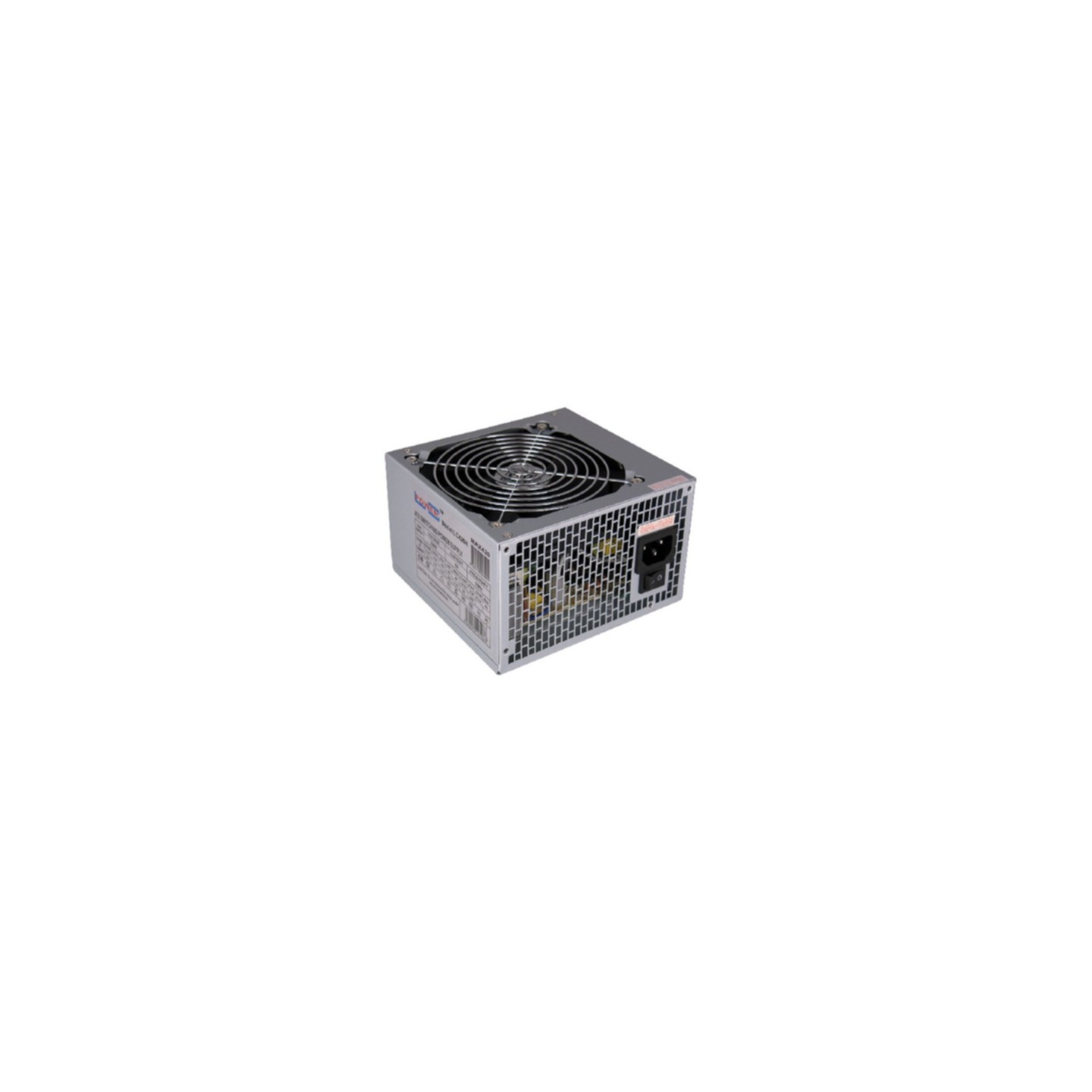

LC-Power Office Series LC420H-12 V2.31 400W ATX PSU (Boxed)
LC-Power LC420H-12 V2.31 400W ATX PSU for office PCs. Non-modular with 120mm fan, up to 85% efficiency, powerful +12V rail (33.3A). Includes 1x PCIe 6+2pin, 4x SATA, 2x PATA. Black sleeved cables & 4 safety circuits (OVP/OCP/OPP/SCP).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 400 - 499 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | Not Certified |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The LC-Power LC420H-12 V2.31 from the Office Series delivers reliable 400W power for office systems and basic multimedia PCs. Featuring a powerful single +12V rail rated at 33.3A, this ATX PSU ensures stable performance even under continuous load. With efficiency up to 85% and standby consumption under 0.5W, it meets energy-saving standards while maintaining cool, quiet operation via its 120mm fan.
Non-modular design with black sleeved cables provides clean cable management in standard ATX cases. Equipped with active PFC and four essential safety circuits: OVP (overvoltage), OCP (overcurrent), OPP (overpower), and SCP (short circuit) protection. The connector layout includes 1x PCIe 6+2-pin for entry-level graphics cards, making it suitable for light gaming or GPU-accelerated office tasks.
- ATX Form Factor (Version 2.31)
- 400W Total Power / 120mm Fan Cooling
- 1x 24-pin ATX, 1x 4+4-pin CPU, 1x PCIe 6+2-pin
- 4x SATA, 2x PATA, 1x FDD connectors
- Black color / Active PFC / 180-240V input
| Series | Office Series |
| Max Power | 400 W |
| Continuous Power | 400 W |
| ATX Version | 2.31 |
| Form Factor | ATX |
| Cable Management | Non-Modular |
| +3.3V | 16 A |
| +5V | 16 A |
| +12V | 33.3 A (single rail) |
| Efficiency | up to 85% |
| Fan Size | 120 mm |
| Fan Color | black |
| Mainboard | 20+4 pin |
| CPU | 1x 4+4 pin |
| PCIe | 1x 6+2 pin |
| SATA | 4 |
| PATA/Molex | 2 |
| FDD | 1 |
| PFC | Active |
| Safety Circuits | OVP, OCP, OPP, SCP |
| Input Voltage | 180-240 V |
| Standby Consumption | <0.5 W |
| Weight | 1.37 kg |
