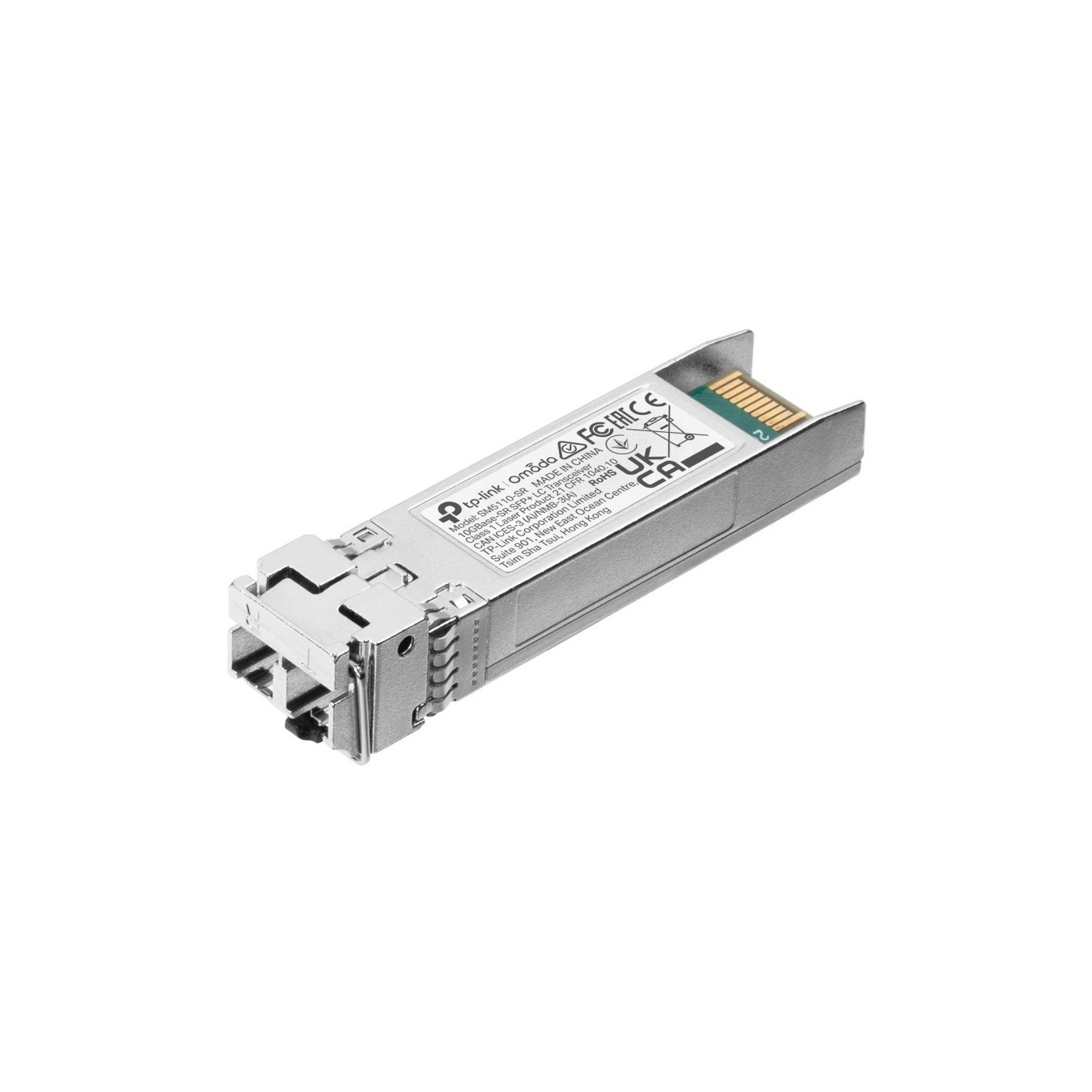

TP-LINK SFP+ LC Transceiver Module - SM5110-SR - 10GBase-SR SFP+ LC Multi-mode DDM for Switches with 10G SFP+ Ports
TP-Link Omada 10GBase-SR SFP+ LC Transceiver with DDM for switches; multimode MMF fiber, 850 nm, 300 m, 10000 Mbit/s.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| SFP/SFP+ Modules - DDM/DOM | Yes |
|---|---|
| SFP/SFP+ Modules - Coding/Brand | Generic |
TP-Link Omada 10GBase-SR SFP+ LC Transceiver. SFP transceiver type: Fiber optic. Maximum data transfer rate: 10000 Mbit/s. Interface type: SFP+. Product colour: Silver. Input voltage: 3.3 V. Certification: FCC. CE. Width: 61.3 mm. Depth: 14.5 mm. Height: 12.2 mm
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Feature | Hot-swap |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125.62.5/125 µm |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Product colour | Silver |
| Input voltage | 3.3 V |
| Certification | FCC. CE |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 61.3 mm |
| Depth | 14.5 mm |
| Height | 12.2 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 220 mm |
| Package depth | 270 mm |
| Package height | 275 mm |
| Package weight | 60 g |
