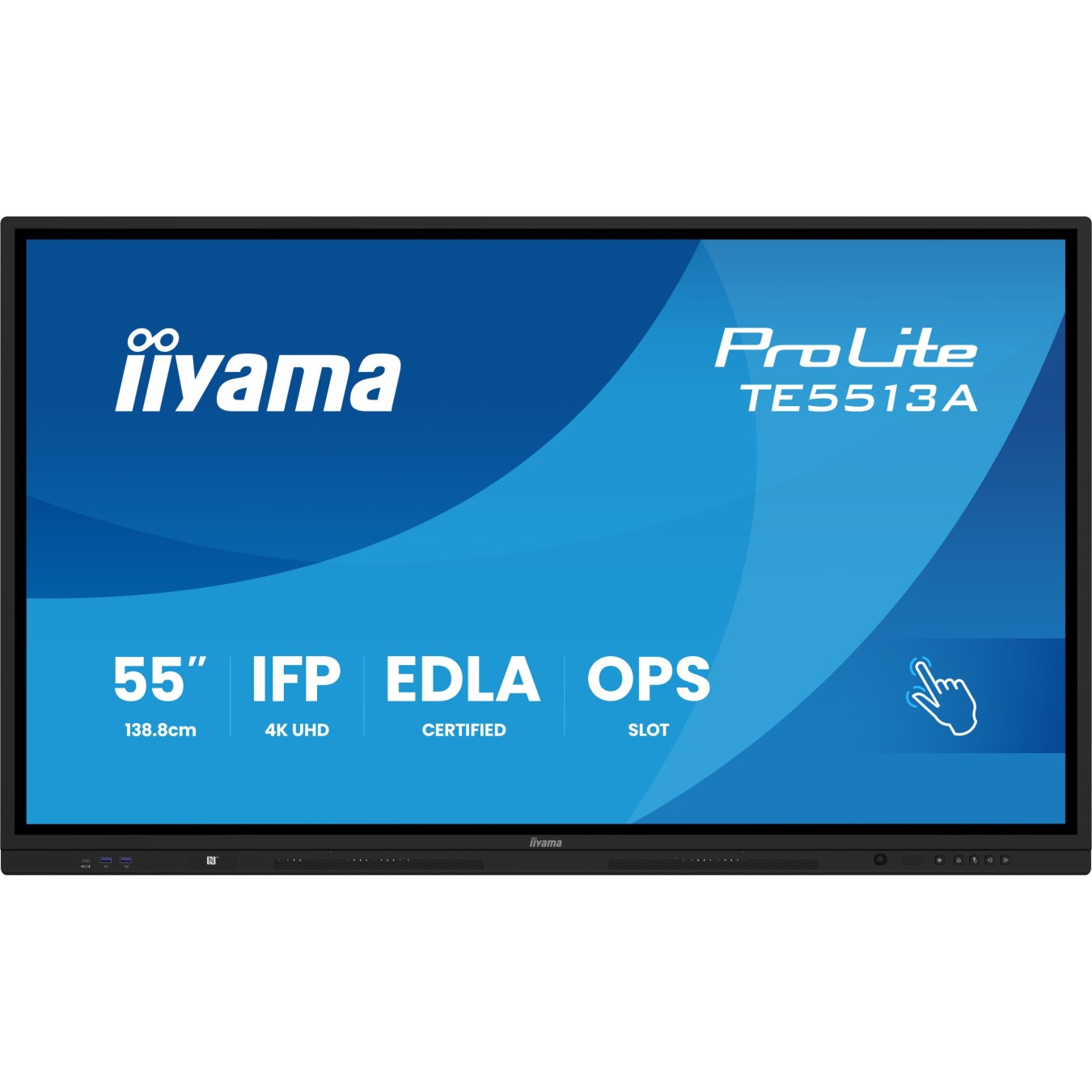

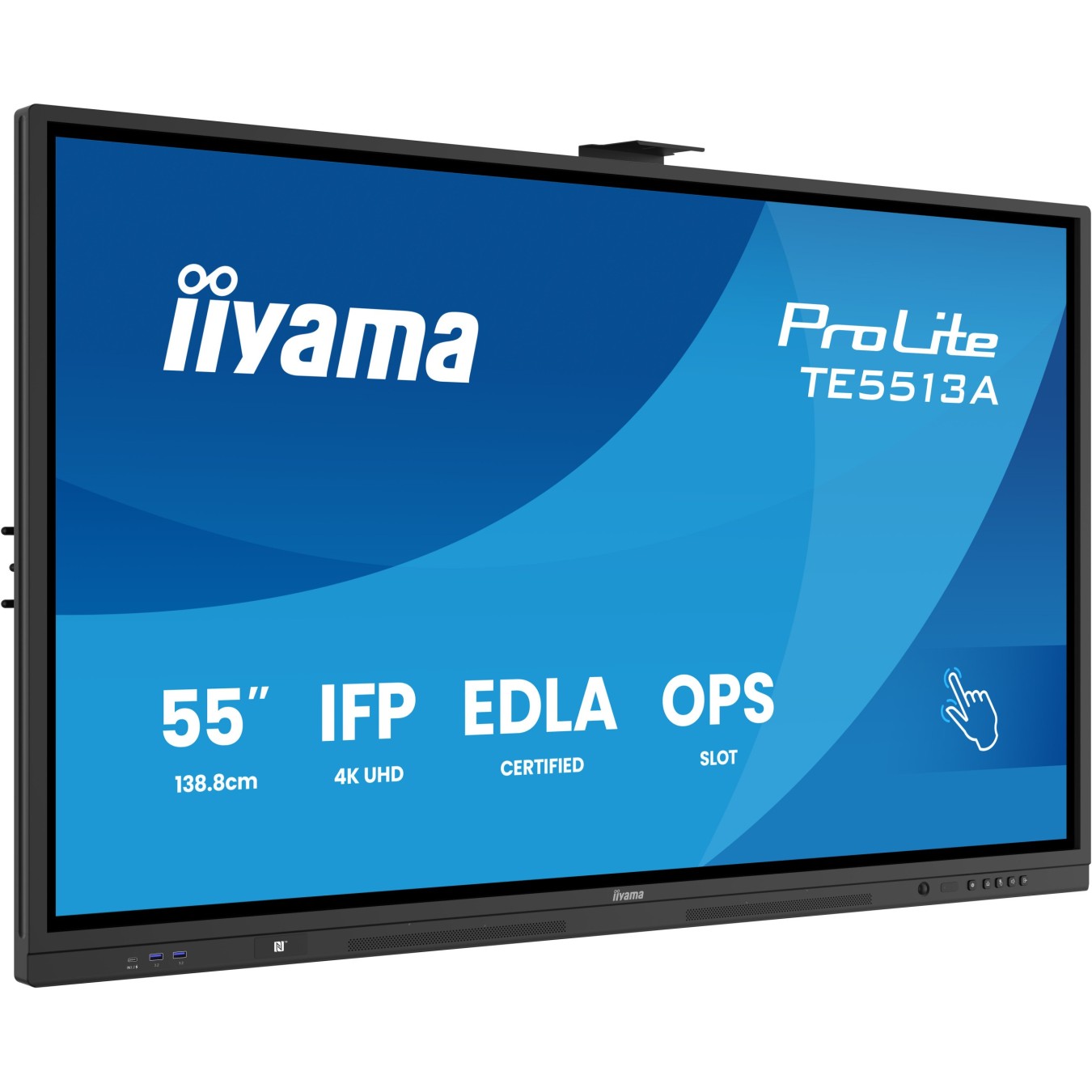

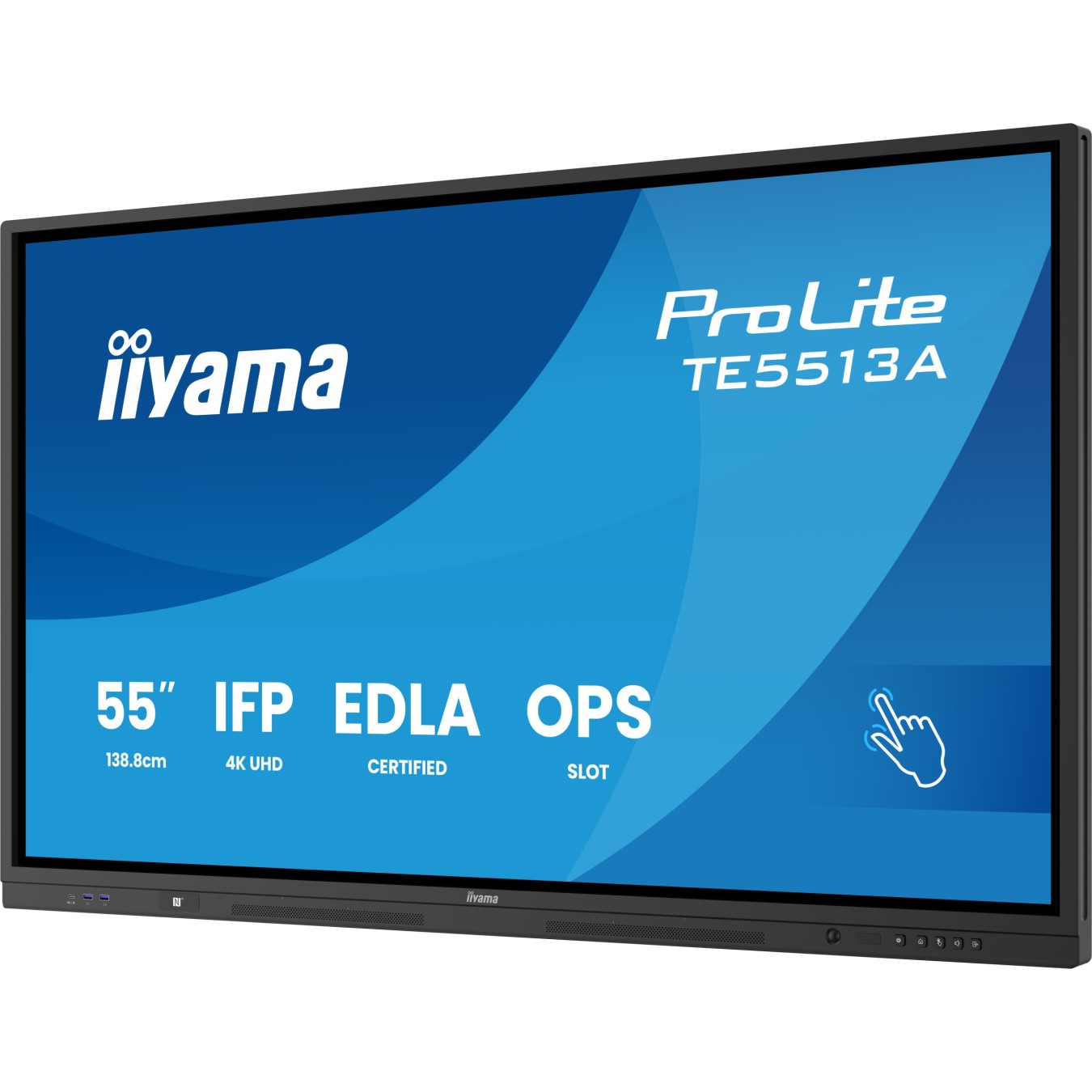

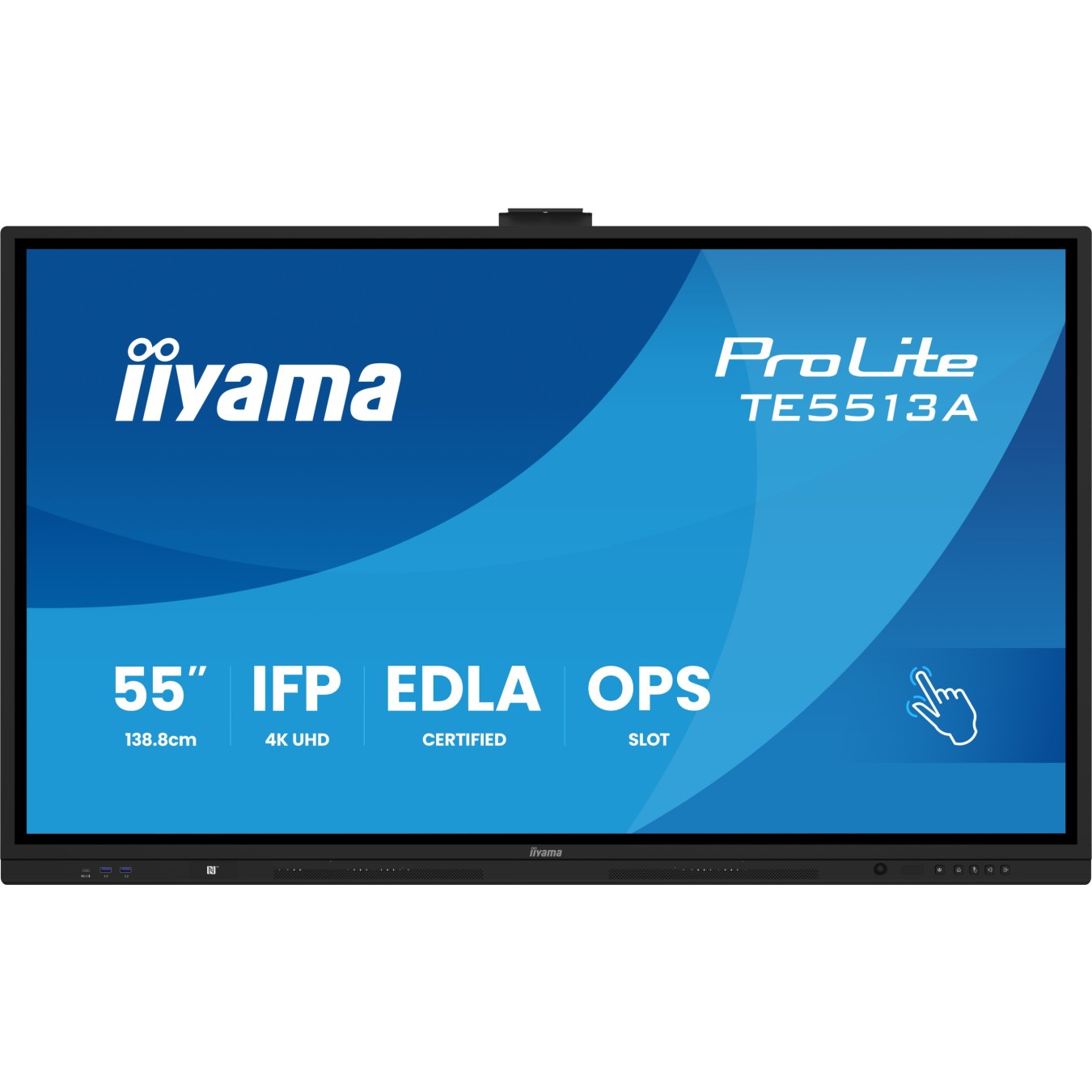

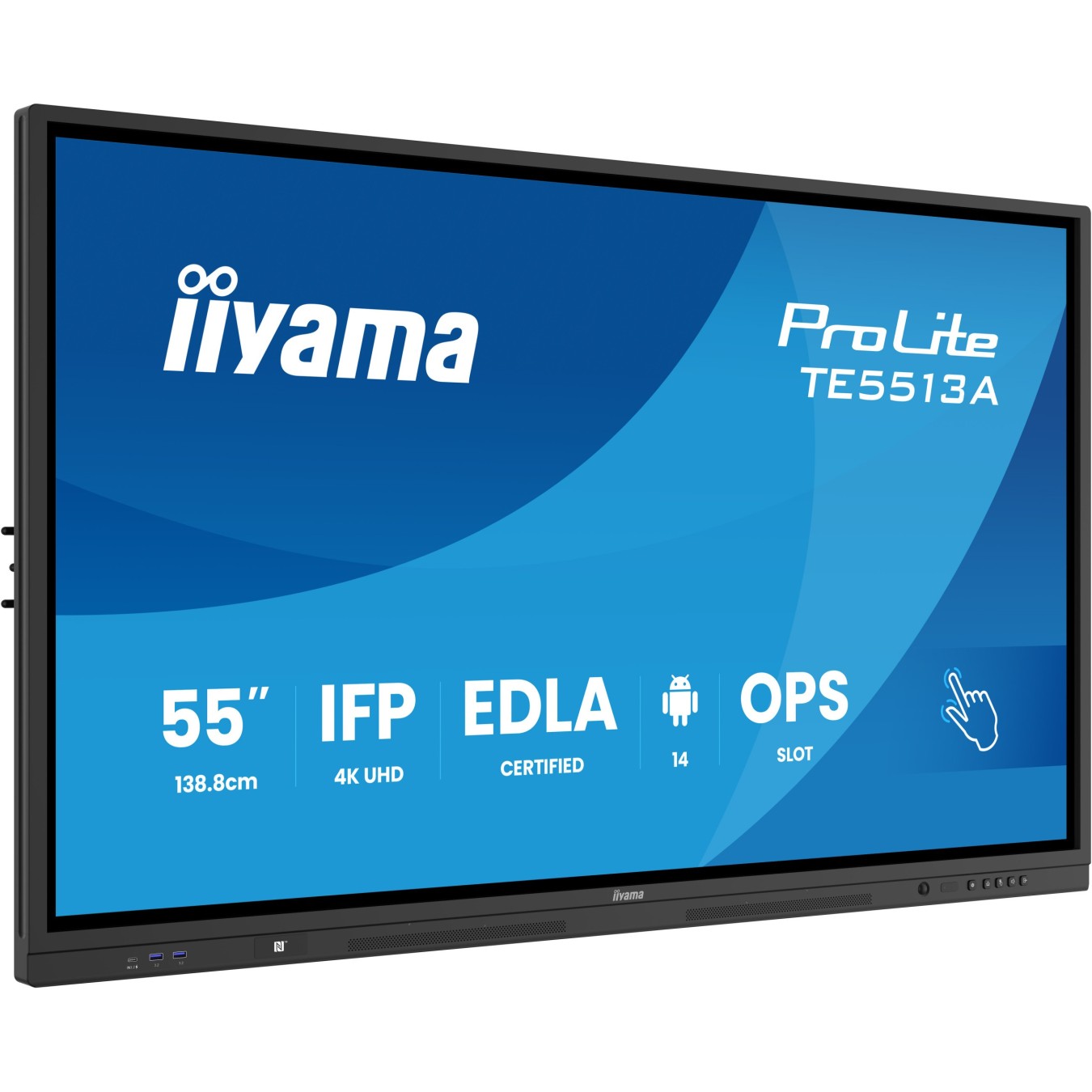

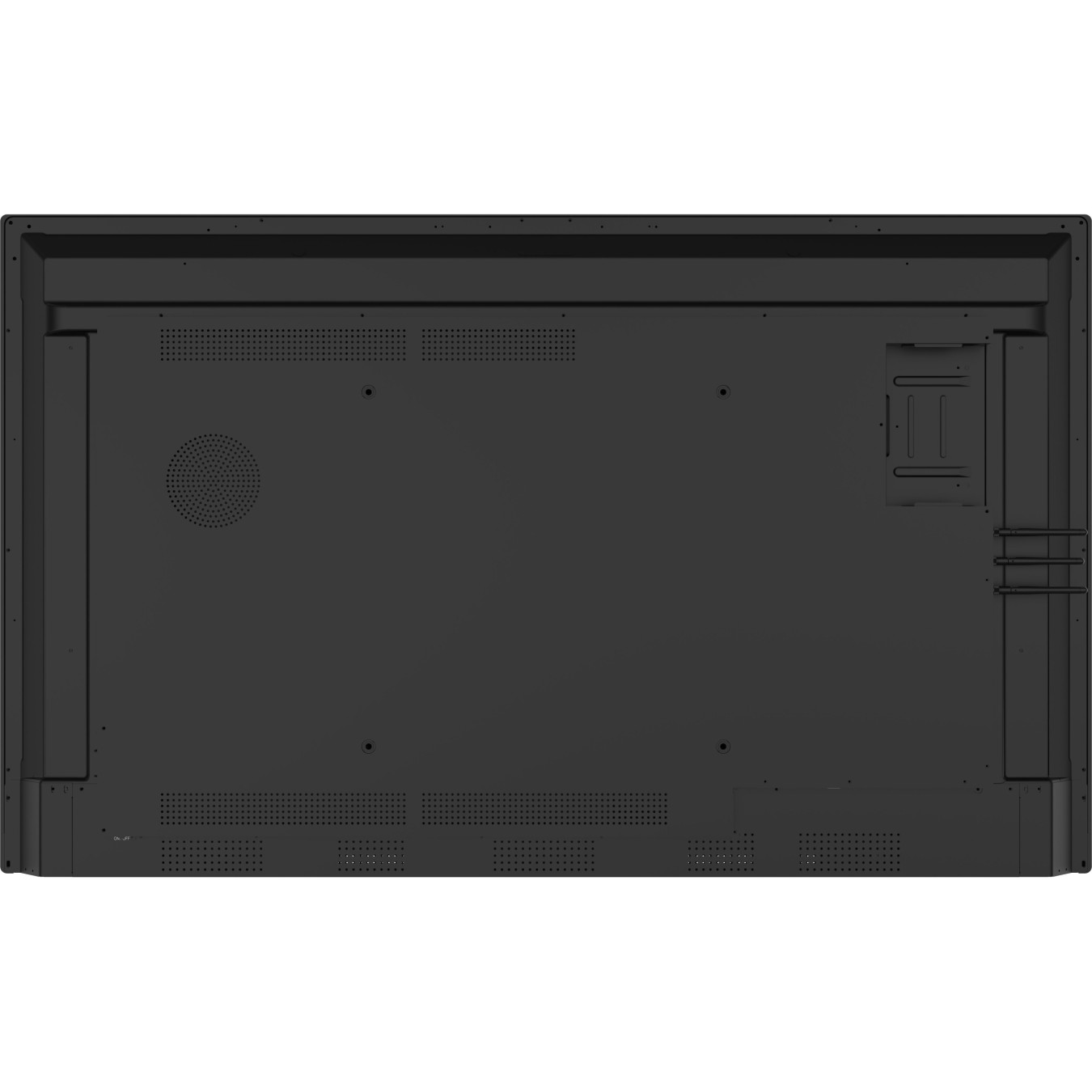

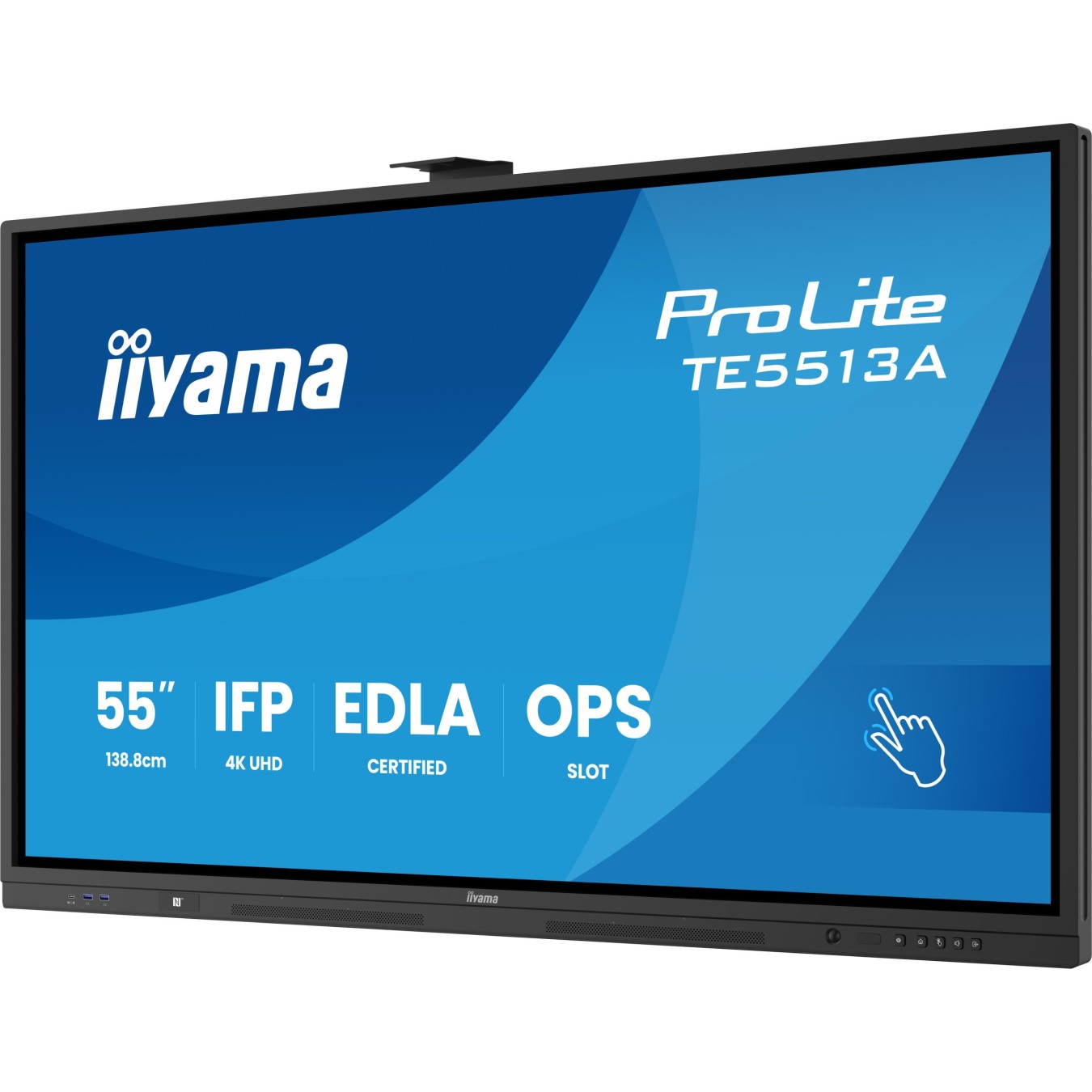

iiyama ProLite - TE5513A-B1AG - 55 IPS 4K Infrared 40-point touch
iiyama TE5513A-B1AG interactive flat panel; 55 IPS 4K infrared 40-point touch with Wi-Fi.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Panel Type | IPS |
|---|
iiyama TE5513A-B1AG. Product design: Interactive flat panel. Display diagonal: 138.7 cm (54.6"). Display resolution: 3840 x 2160 pixels. Display brightness: 450 cd/m². HD type: 4K Ultra HD. Touchscreen. Wi-Fi. Operating hours (hours/days): 18/7. Operating system installed: Android. Product colour: Black
| Panel type | IPS |
| Display diagonal | 138.7 cm (54.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 450 cd/m² |
| HD type | 4K Ultra HD |
| Feature | Quick start guide |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Active display area (W x H) | 1210 x 680 mm |
| Display diagonal (metric) | 138.8 cm |
| Horizontal scan range | 30 - 135 kHz |
| Surface hardness | 7H |
| Glass thickness | 3.2 mm |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery up to | 100 W |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |

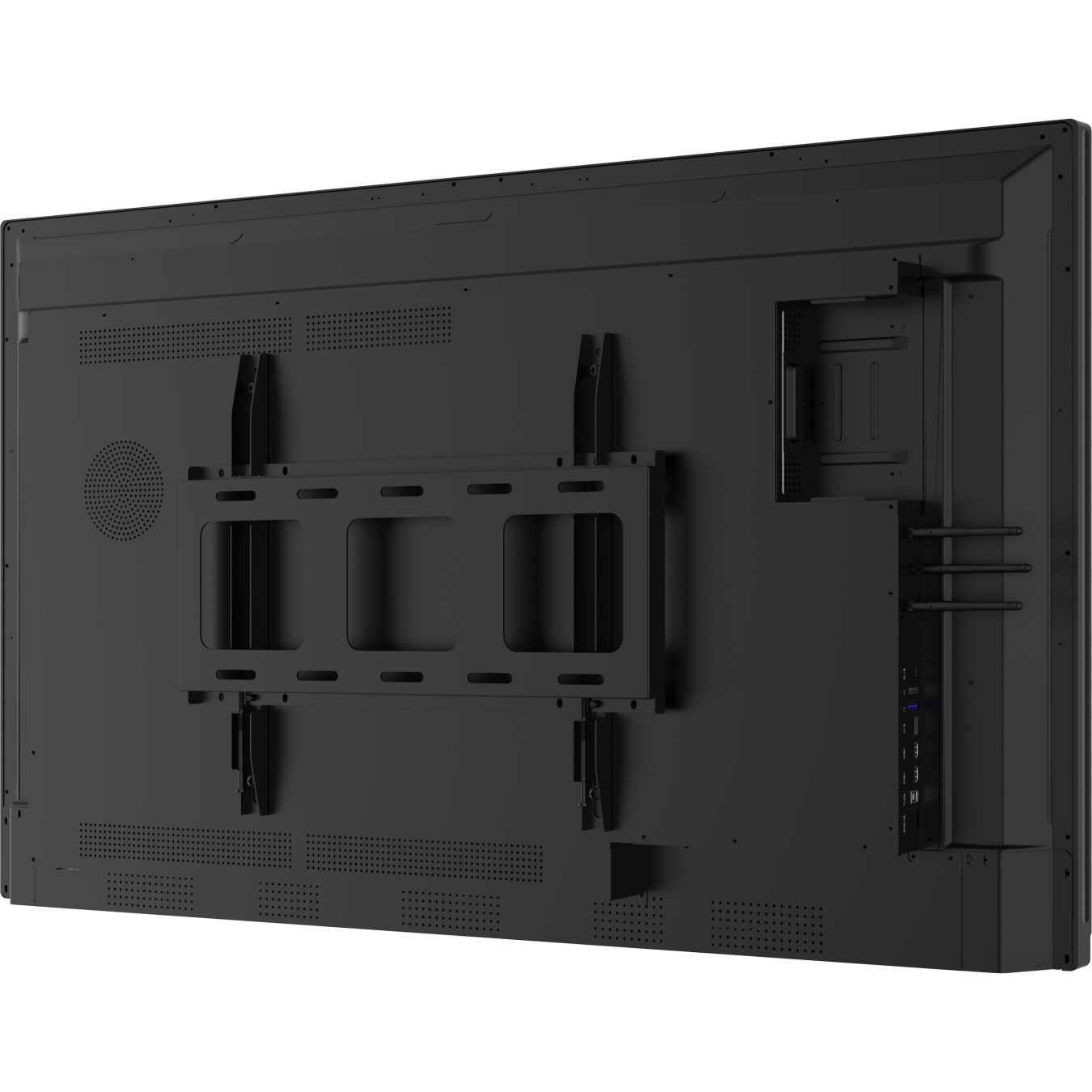

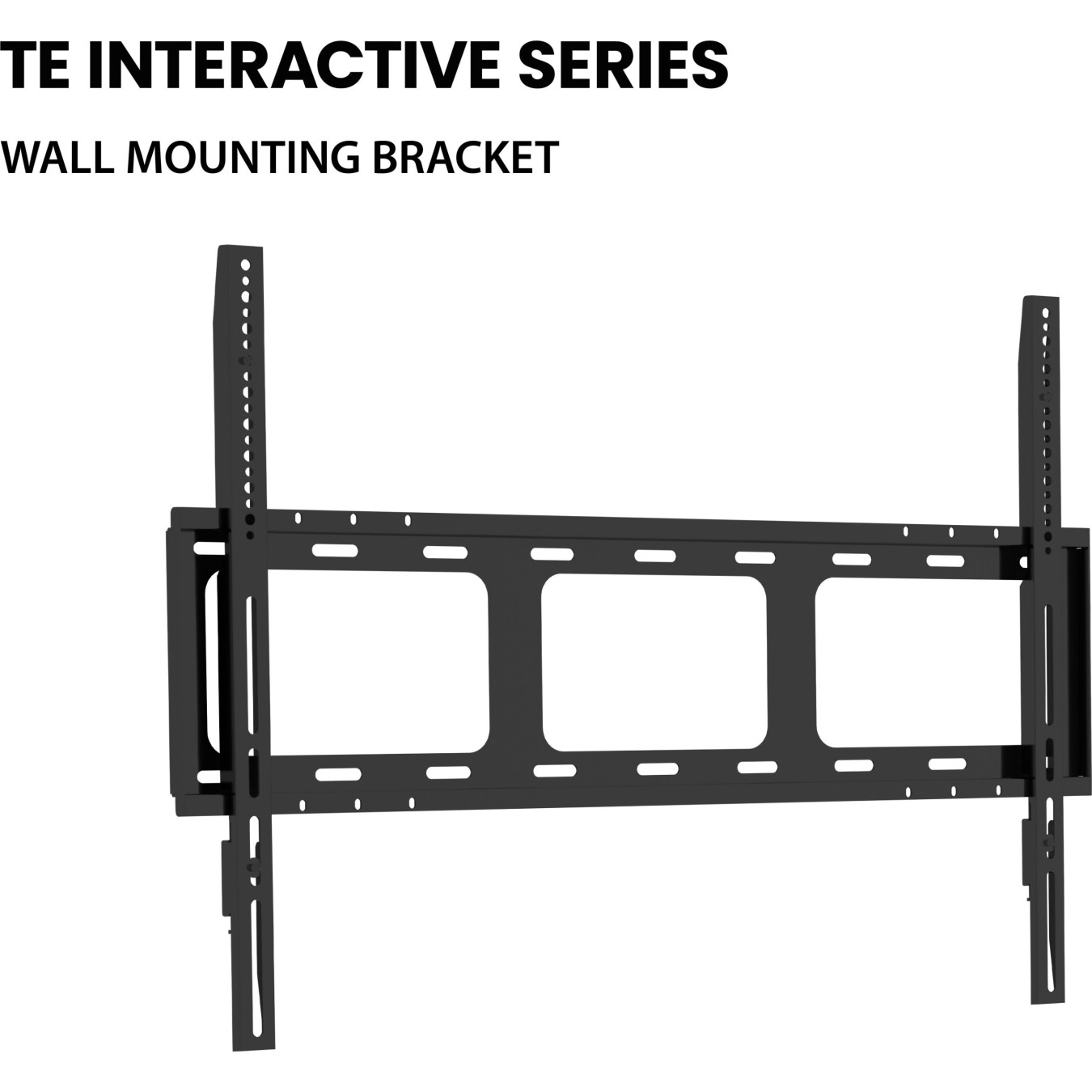

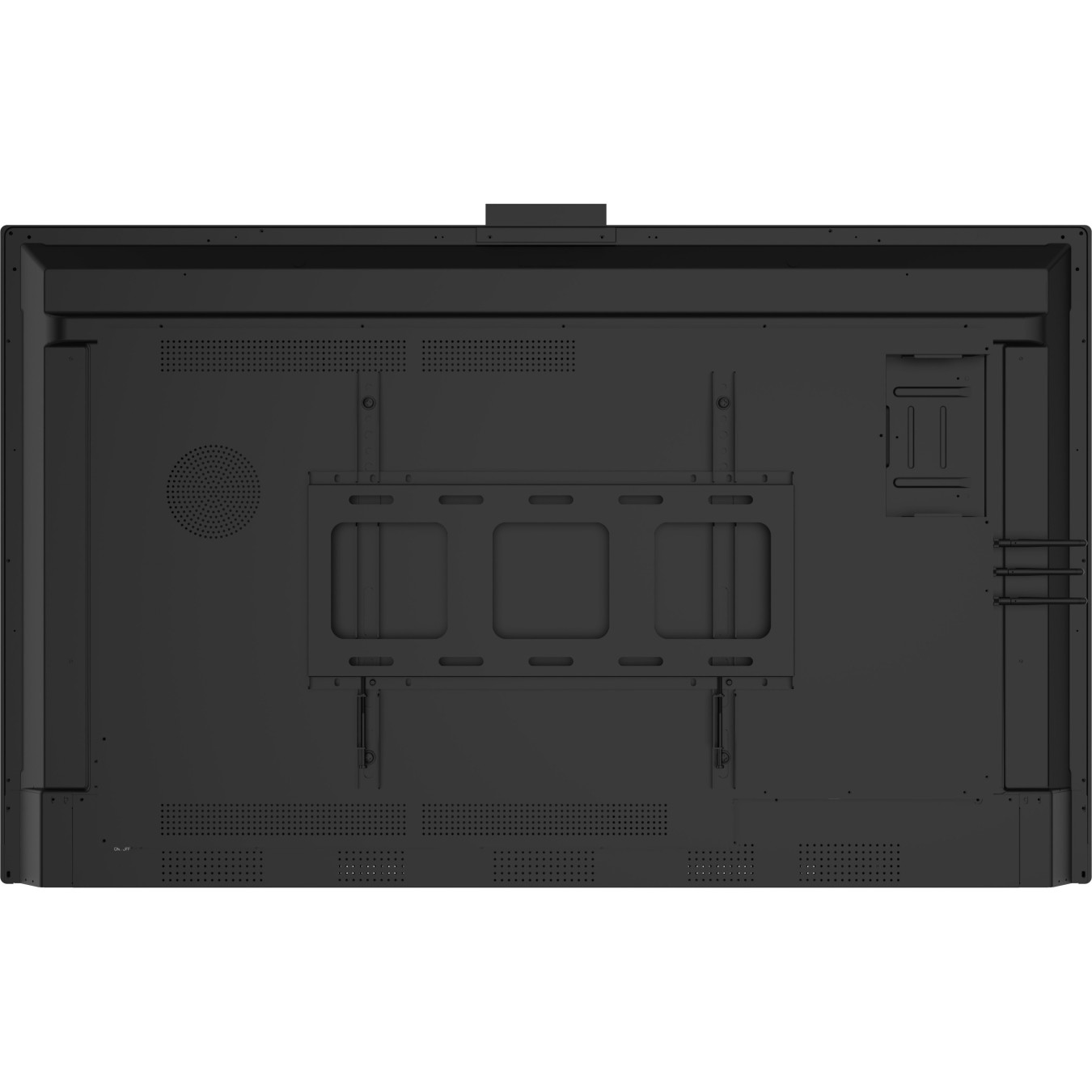

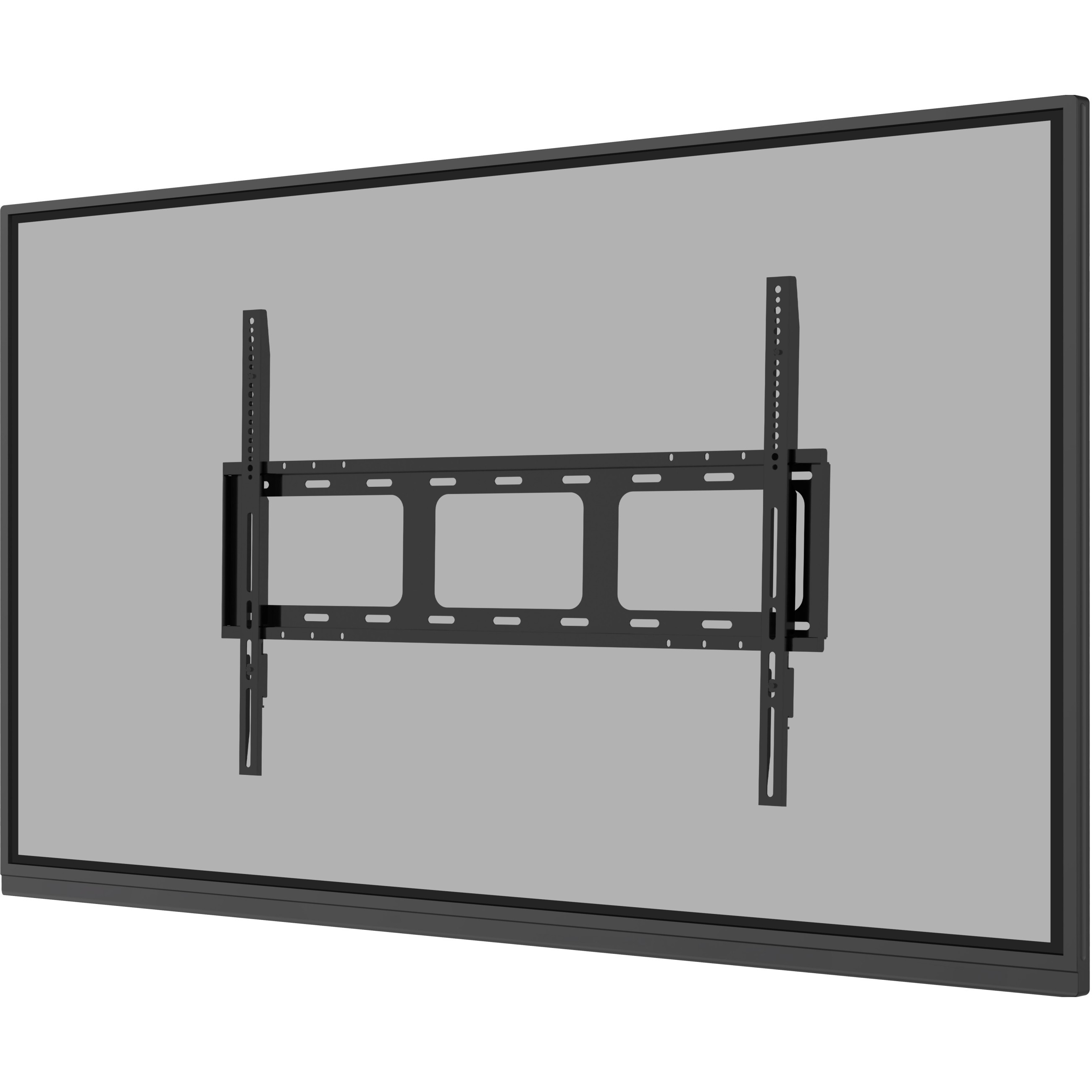

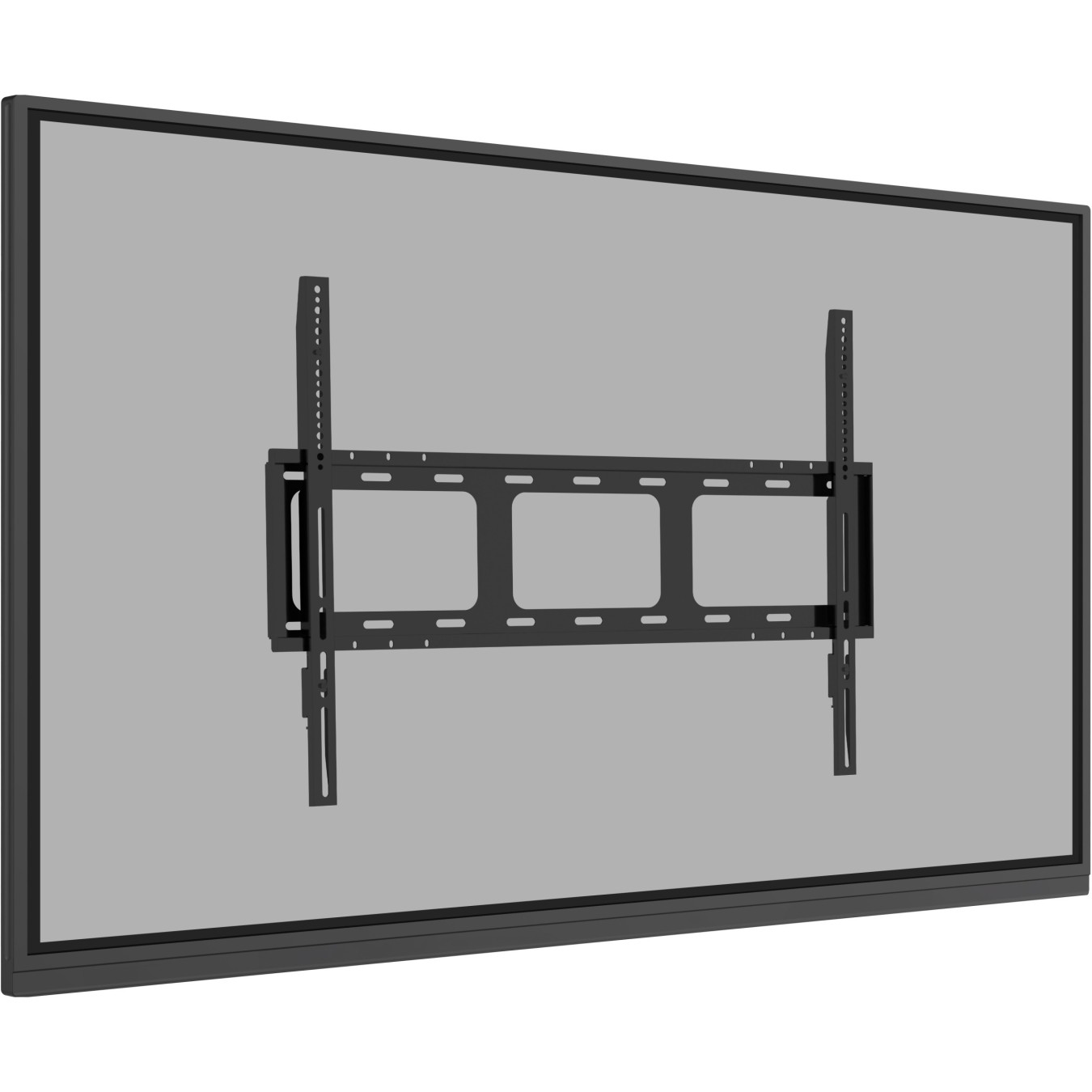

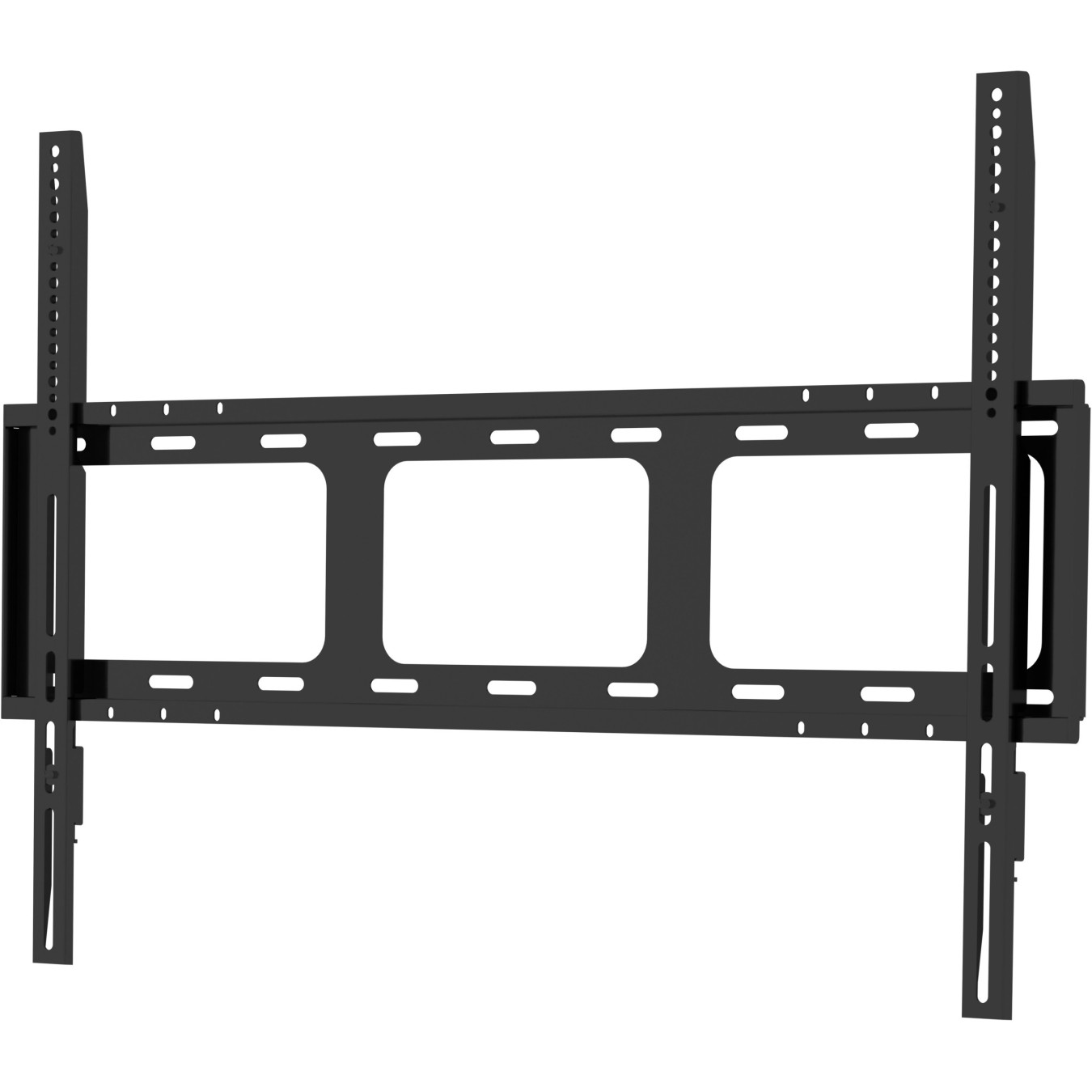

| Panel mounting interface | 400 x 400 mm |
| Bezel colour | Black |
| Positioning accuracy | 1 mm |
| Purpose | Education |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Polish. Russian. Slovenian |
| Operating hours (hours/days) | 18/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 125 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 125 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Processor architecture | ARM Cortex-A73 |
| Processor frequency | 1.4 GHz |
| Processor cores | 4 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Display width | 1267 mm |

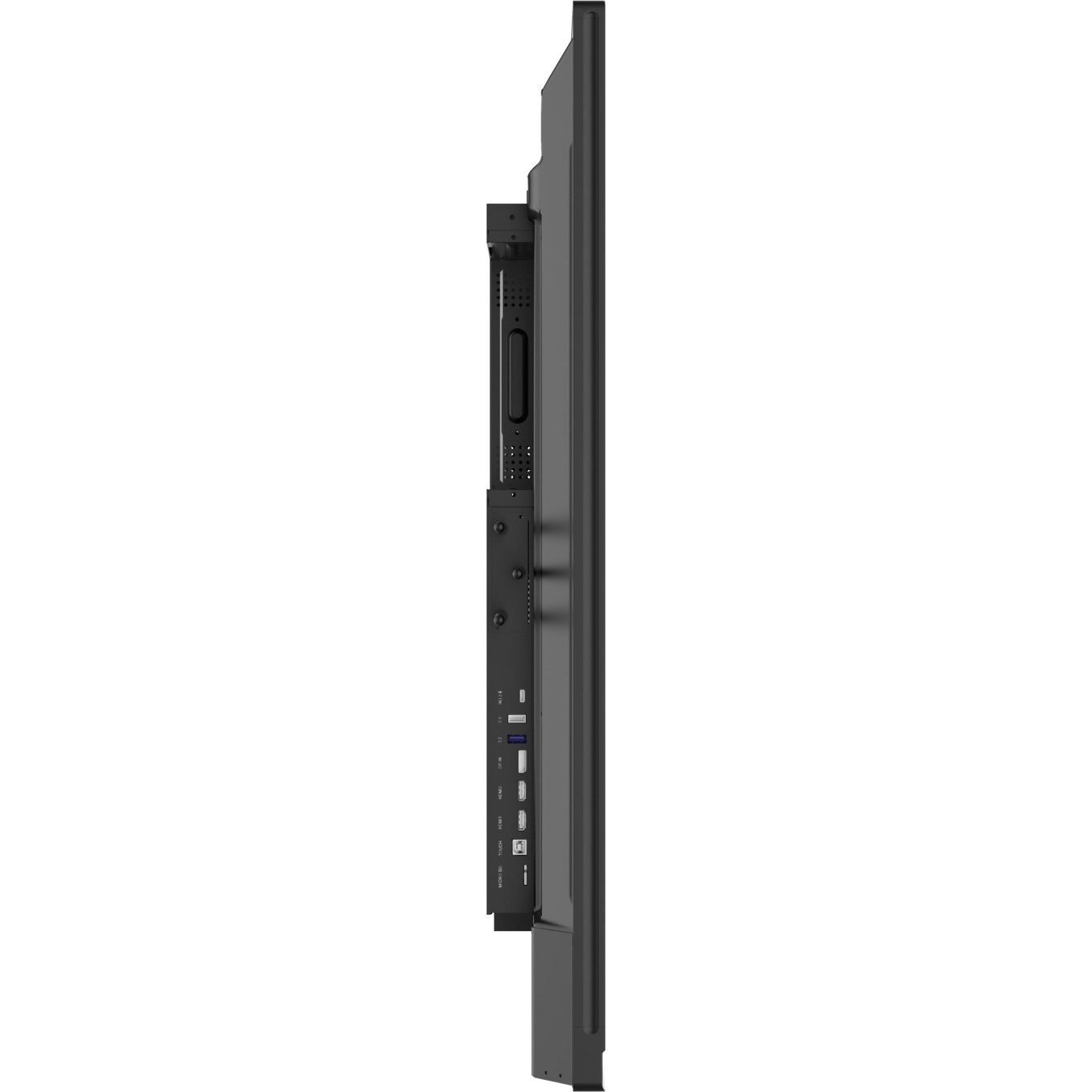

| Display depth | 86 mm |
| Display height | 765.4 mm |
| Display weight | 28.7 kg |
| Package width | 1385 mm |
| Package depth | 1385 mm |
| Package height | 865 mm |
| Package weight | 34.8 kg |

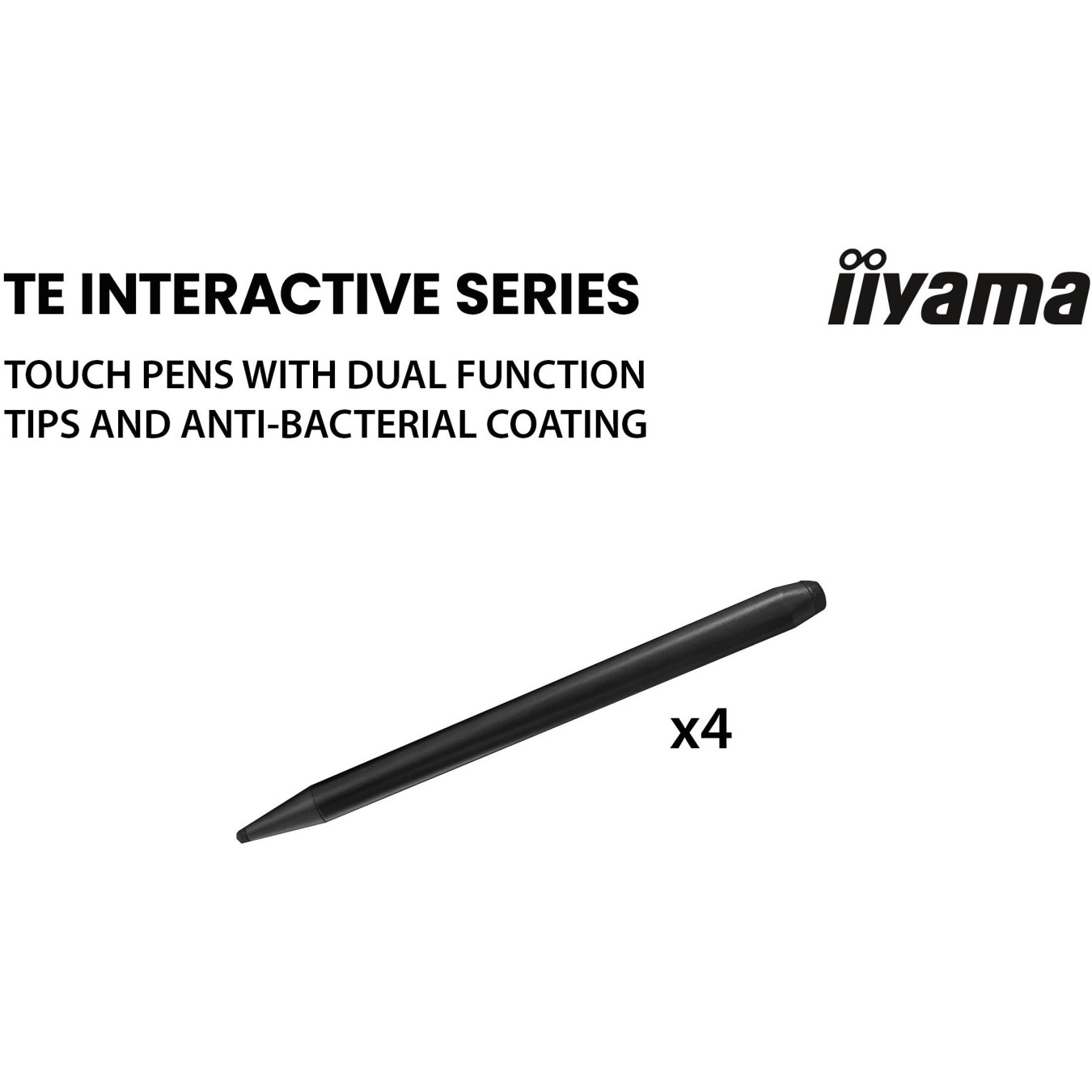

| Number of stylus pens | 4 |
| Cables included | HDMI. Power. USB |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| OPS slot | 1 |
| Power supply type | Internal |
