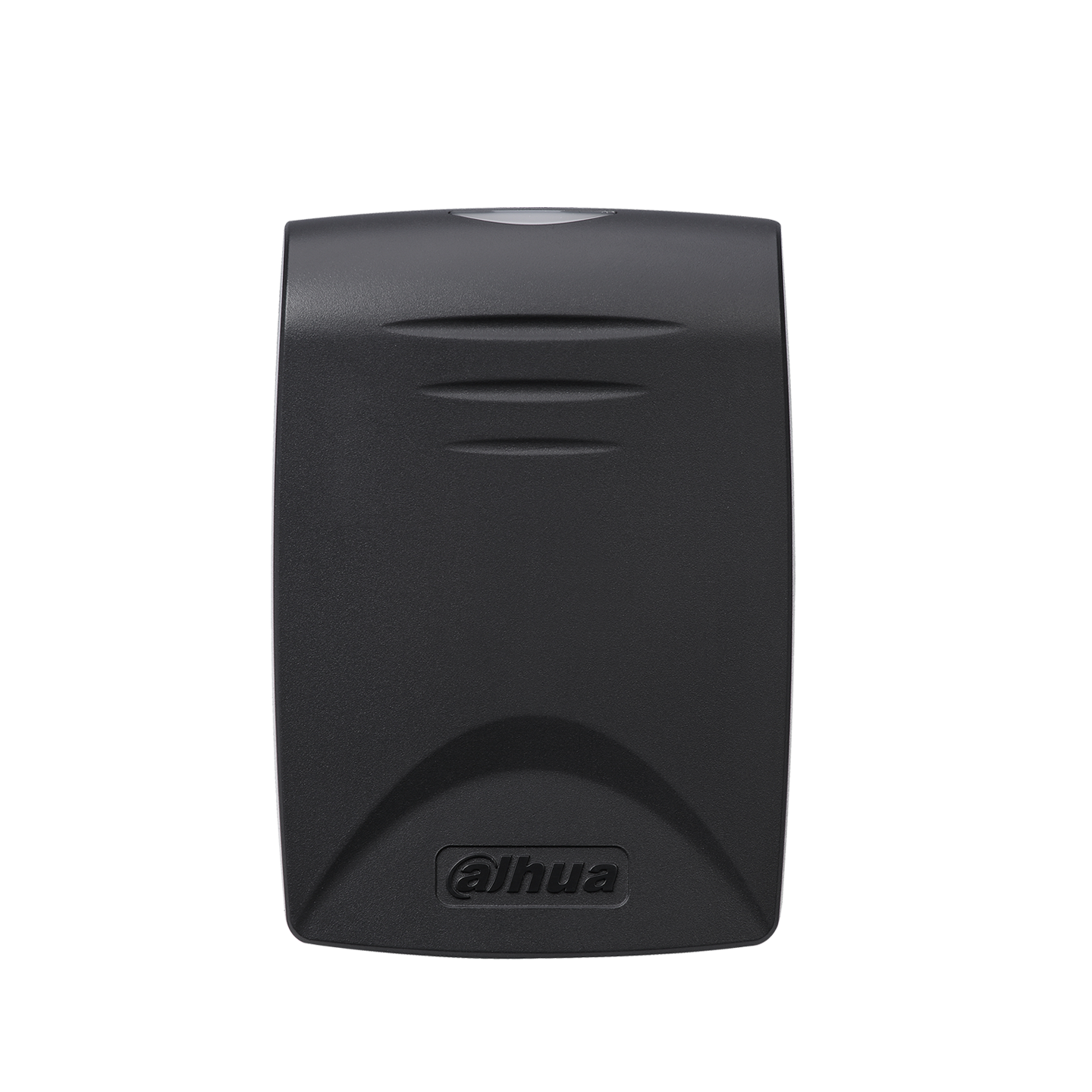

Dahua AC RFID Reader - ASR1100B - Water-proof
Supports RS485 and Wiegand34; 13.56 MHz Mifare; water-proof design; red and green indicator LEDs; watchdog function for reliability; surface-mount installation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Control - Type | Reader |
|---|
- Support RS485, Wiegand34 protocol
- 13.56MHz(Mifare)
- Water-proof design
- Red and Green indicator LEDs
- Watch dog function ensure device free from halting
- Surface mounted installation
System
- Main Processor : 8 Bit
Read
- Read Format : 13.56MHz
- Read Range : 6-8cm (max.)
- Reading time : <0.1s
Function
- Tamper Alarm : Yes
- Water-proof : IP67
Interface
- To Controller : RS485, Wiegand34(Wiegand 26 optional)
General
- LED Display : Blue backlight
- Beep Tone: Buzzer
- Ingress protection : IP67, water resistant
- Power Supply : 9-15VDC/100mA
- Working Environment : -30°C~60°C
- Working Humidity : ≤95%
- Dimension(W×D×H) : 72mm*102mm*18mm
- Weight : 0.2Kg
| Reader Frequency | Mifare (13.56MHZ) |
| Water Proof | IP67 |
