Unitek USB-C Docking Station & 2-Port KVM 10Gbps Triple Display D1106A (Boxed)
Connect 2 USB-C PCs to 3x 4K monitors (2xHDMI+DP) via Unitek D1106A KVM dock. 100W PD charging, 10Gbps USB, Gigabit Ethernet, SD/MicroSD readers, audio jack.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | USB-C |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 10 |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Power Delivery | 100W |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Aluminum Body Audio Jack External Power Supply MicroSD Card Reader SD Card Reader |

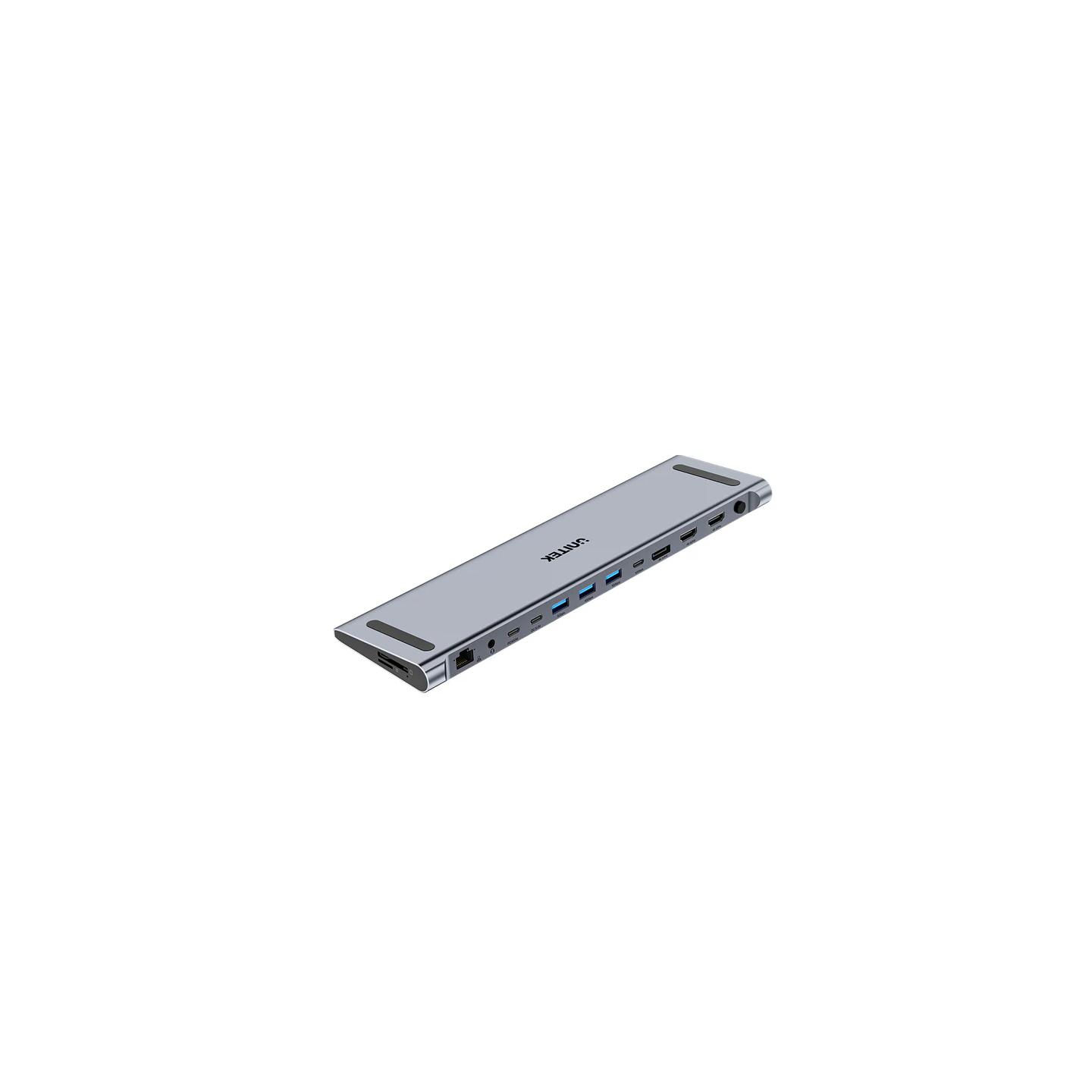

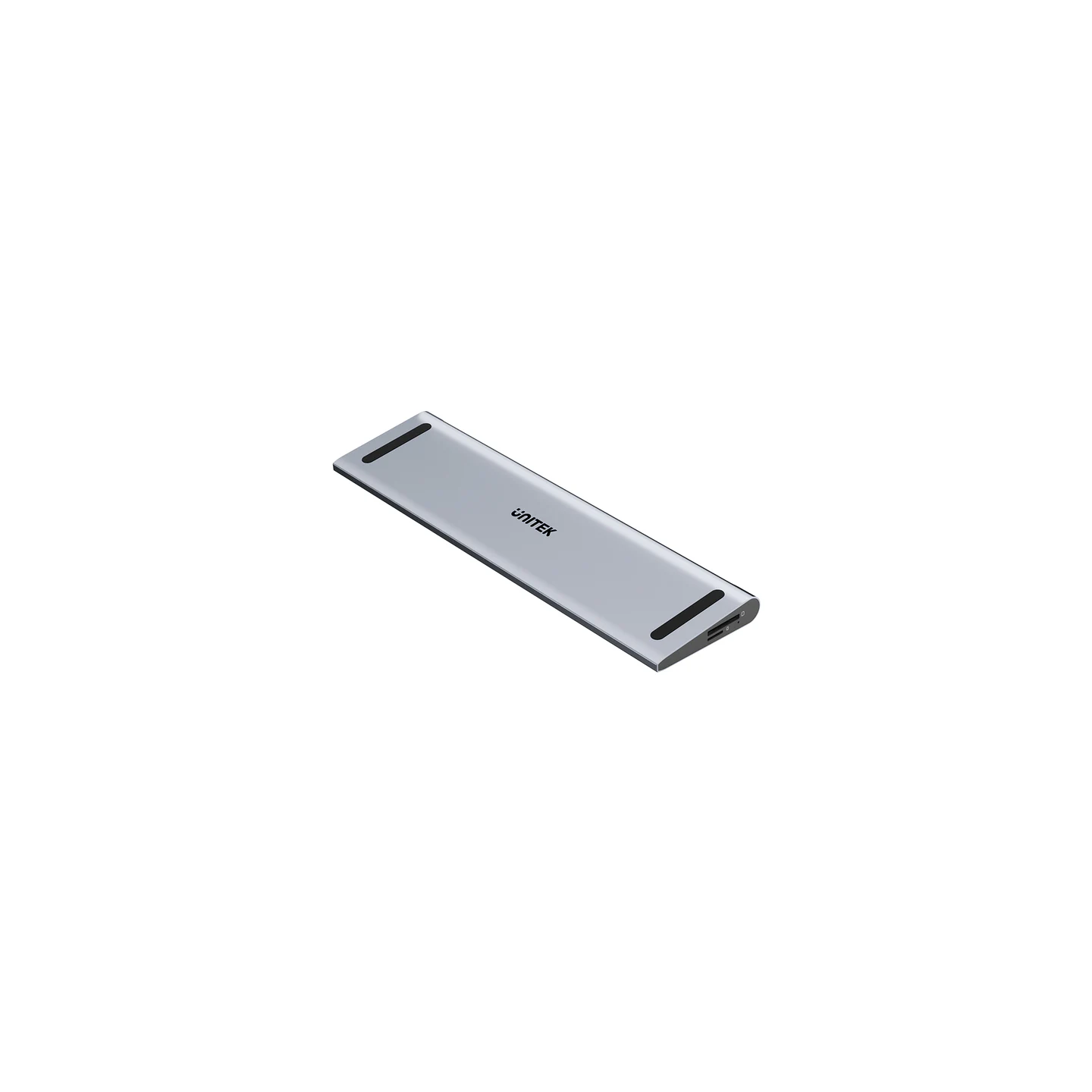

The Unitek D1106A is a premium 13-in-1 USB-C docking station with built-in 2-port KVM functionality, allowing seamless switching between two USB-C laptops while sharing peripherals and up to three 4K displays. It delivers exceptional connectivity for professionals needing enhanced productivity in multi-computer setups.
Featuring 100W Power Delivery to charge your laptop, high-speed 10Gbps USB ports, Gigabit Ethernet, dual card readers, and a 3.5mm audio jack, this aluminum alloy dock in Space Grey offers comprehensive port expansion. Supports Windows, macOS, and Linux with resolutions up to 4K@60Hz (single/dual) or mixed triple display output.

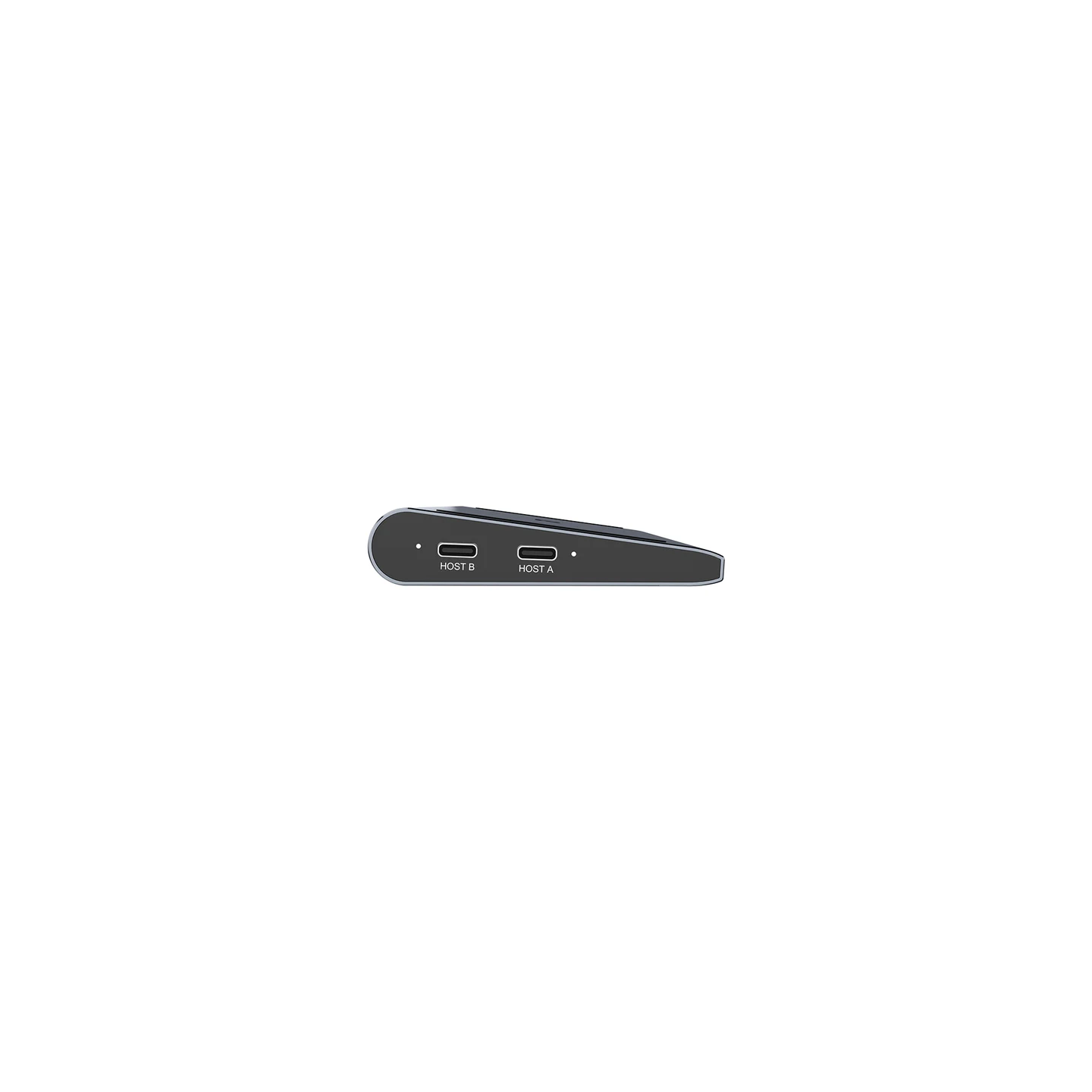

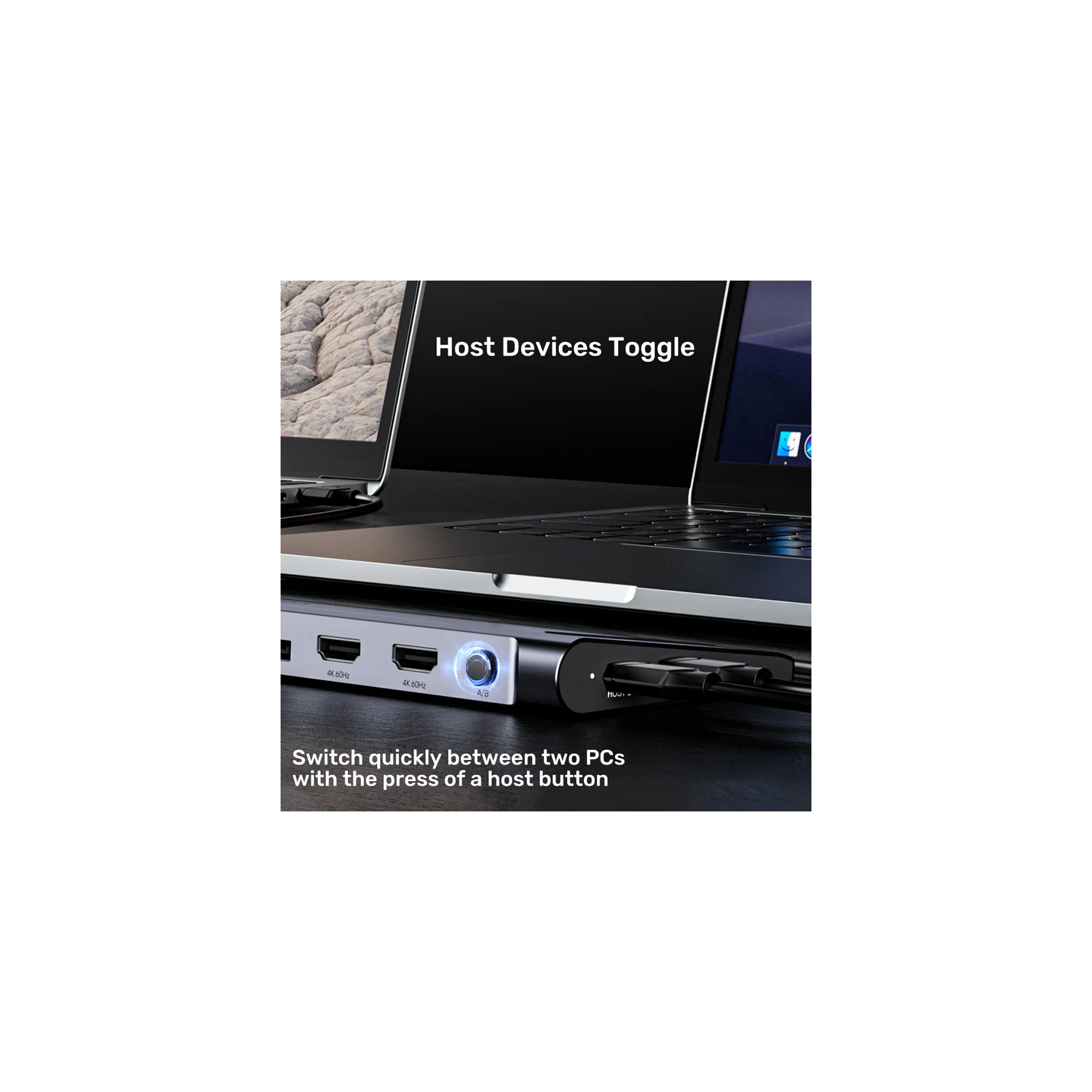

- Dual USB-C Host KVM Switch for easy PC switching

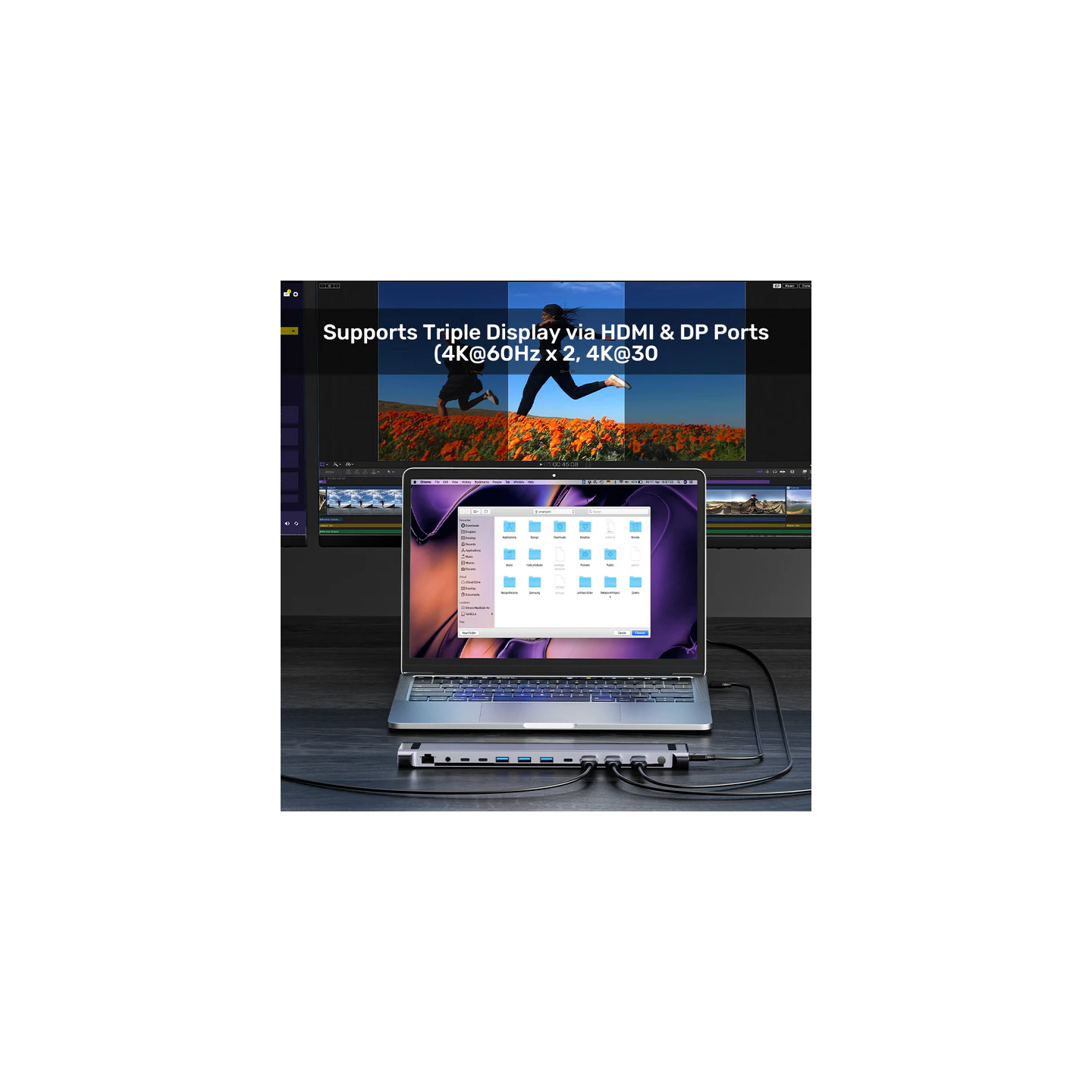

- Triple Display: 2x HDMI 2.0 + 1x DP 1.4 (4K@60Hz x2 + 4K@30Hz x1)

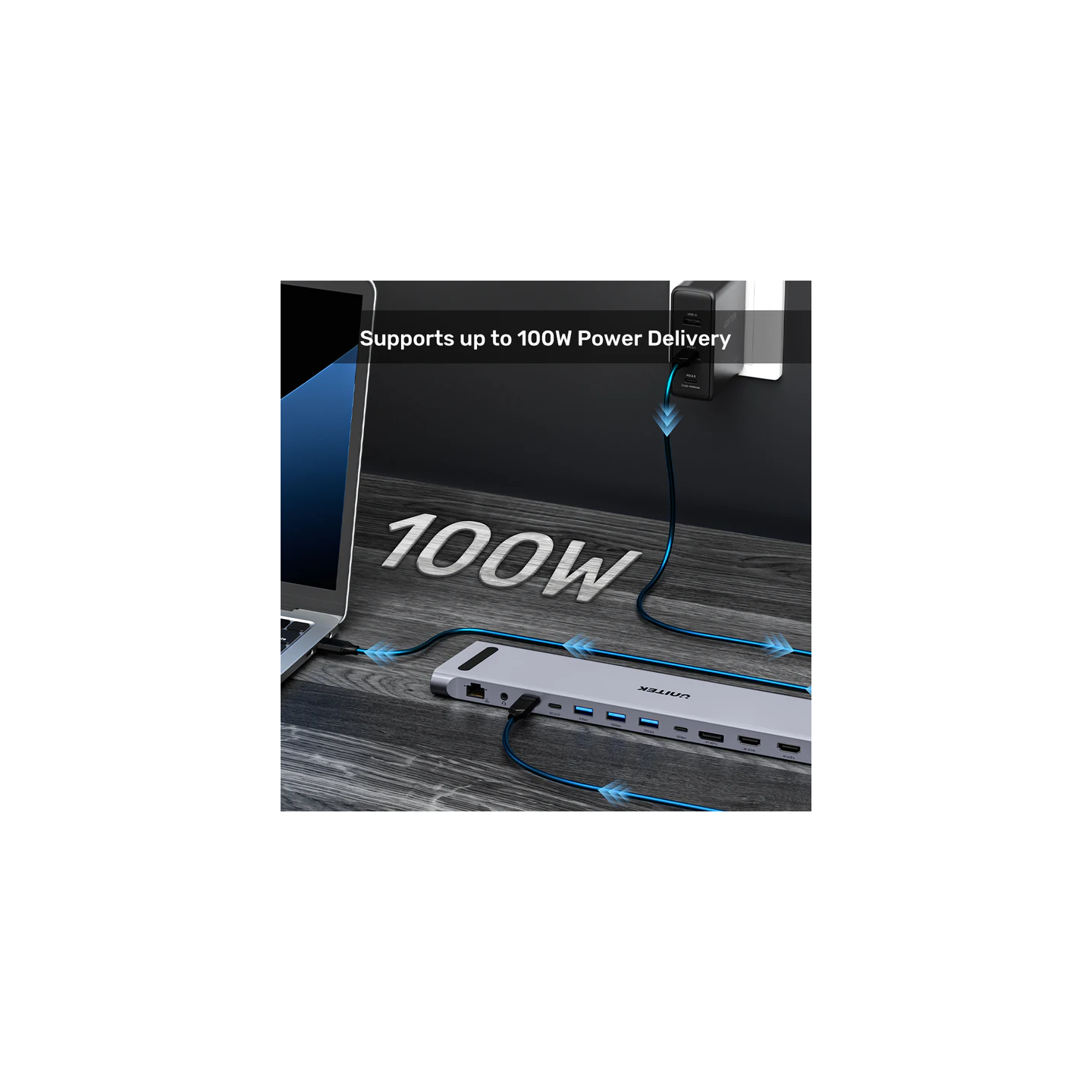

- 100W PD Charging via USB-C

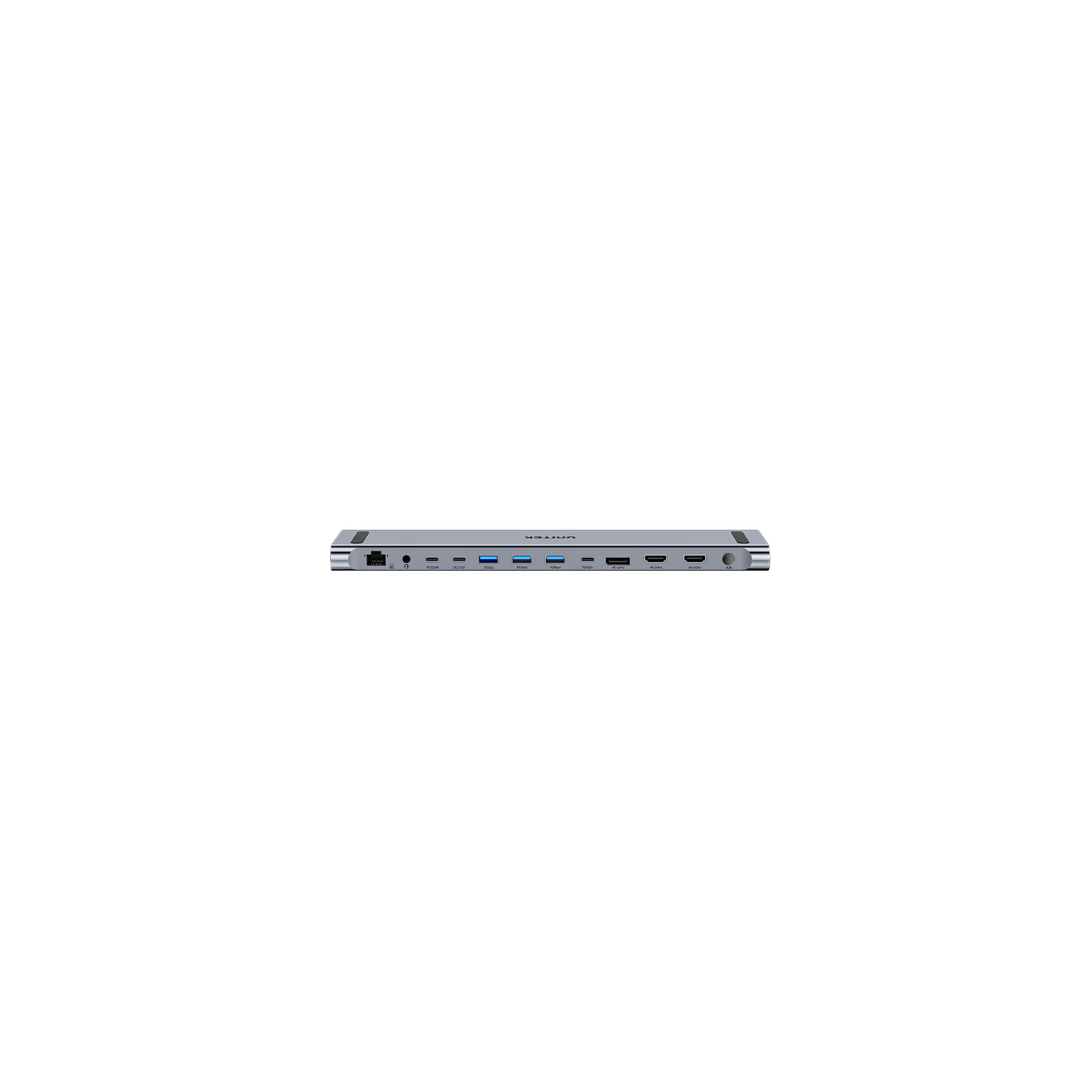

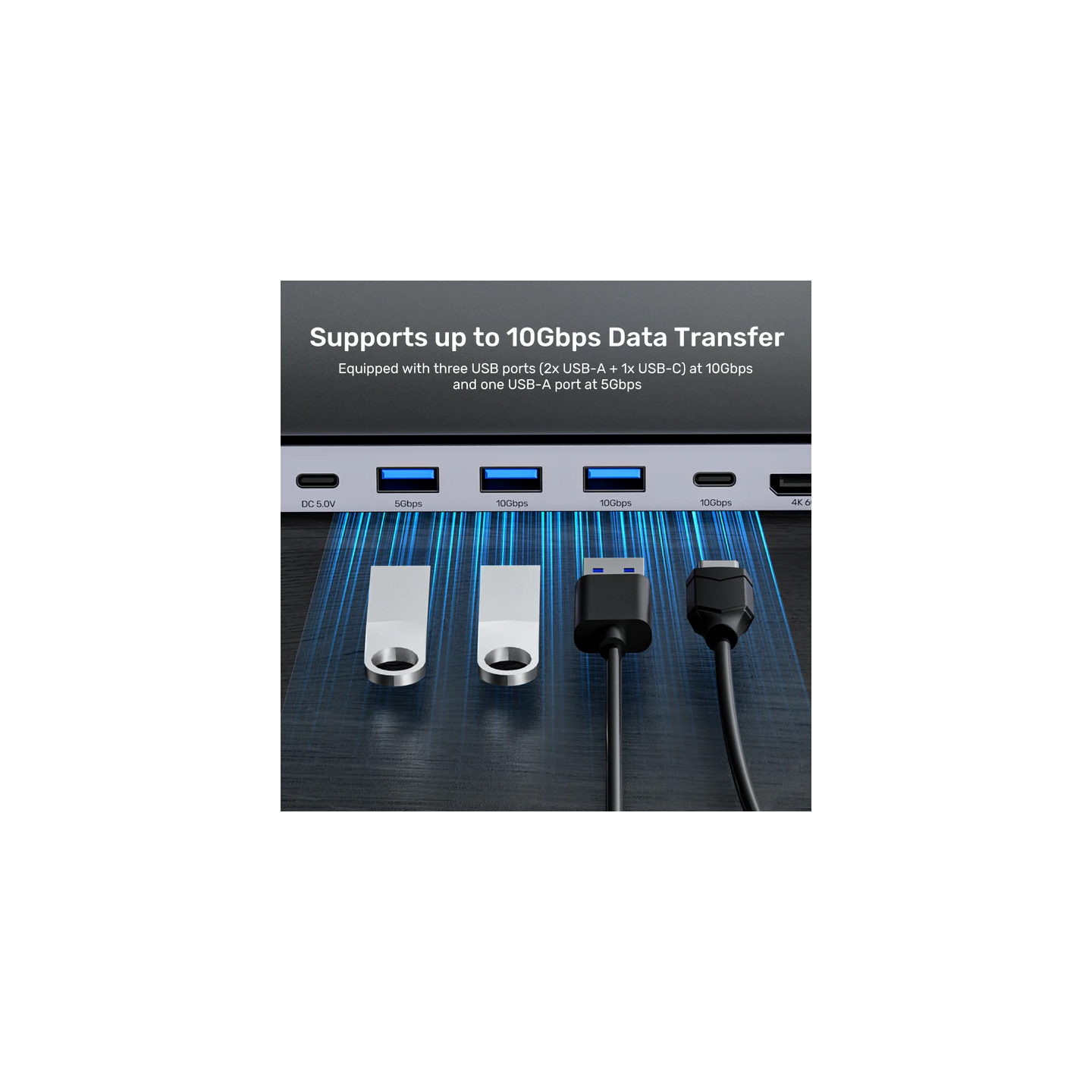

- USB Ports: 2x USB-A 10Gbps, 1x USB-A 5Gbps, 1x USB-C 10Gbps

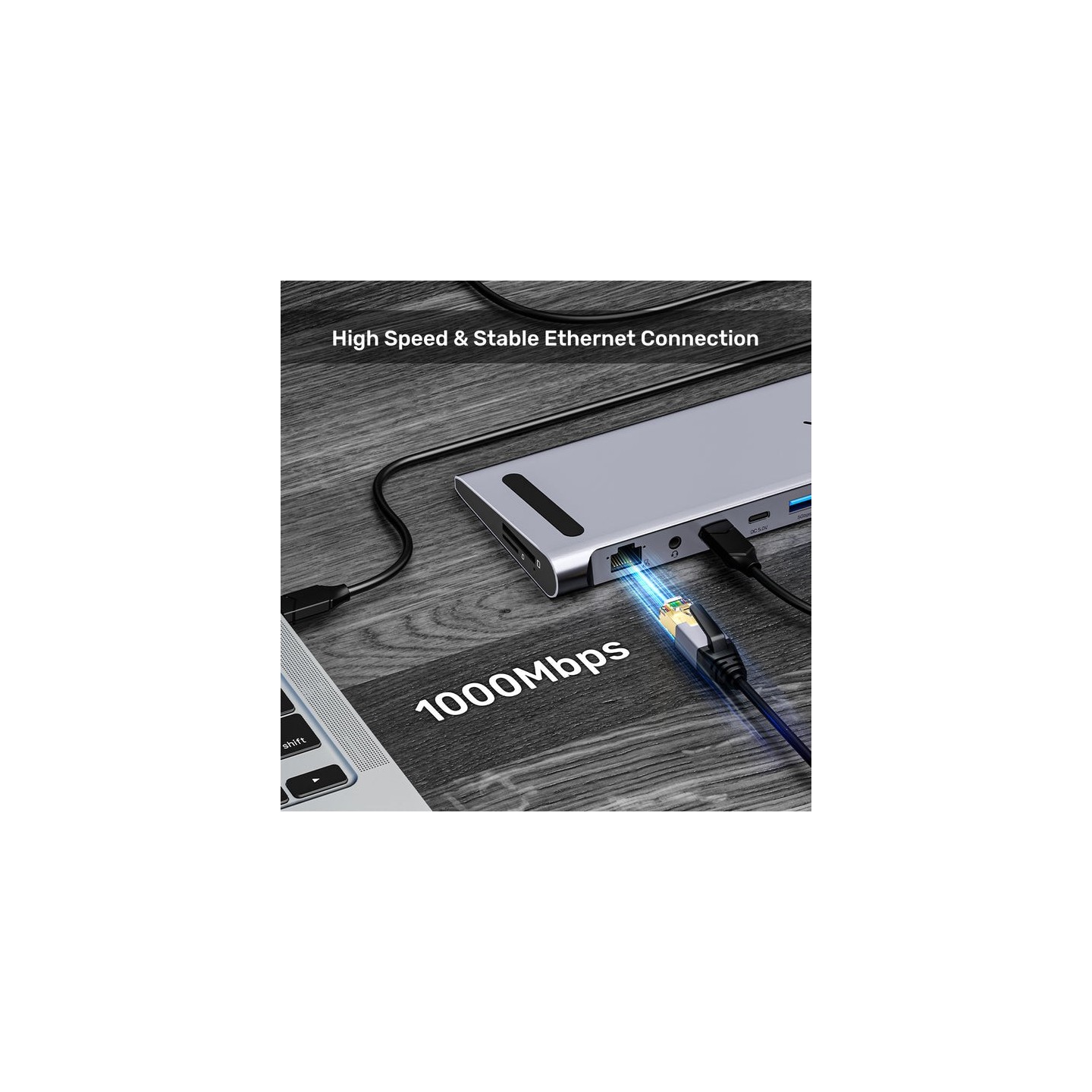

- Gigabit RJ45 Ethernet + SD/TF card slots + 3.5mm audio
- Dimensions: 290 x 80 x 17.6mm, aluminum body

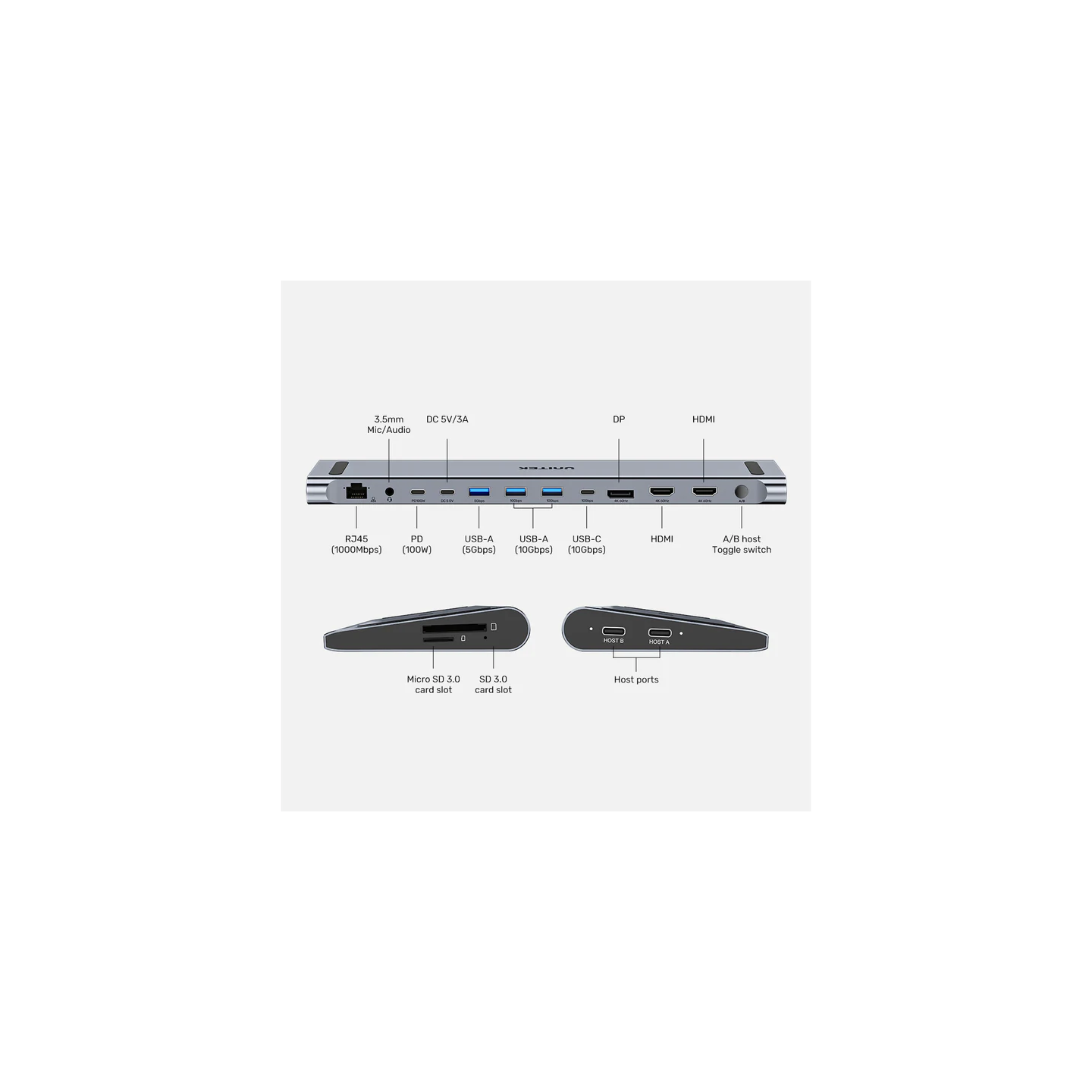

| Model | D1106A |
| Host Interface | 2 x USB-C 10Gbps |
| Display Outputs | 2 x HDMI 2.0, 1 x DisplayPort 1.4 |
| Max Resolution | Single/Dual: 4K@60Hz, Triple: 4K@60Hz x2 + 4K@30Hz x1 |
| Power Delivery | USB-C PD 100W |
| USB Downstream | 2 x USB-A 10Gbps, 1 x USB-A 5Gbps, 1 x USB-C 10Gbps |
| Ethernet | RJ45 1000Mbps |

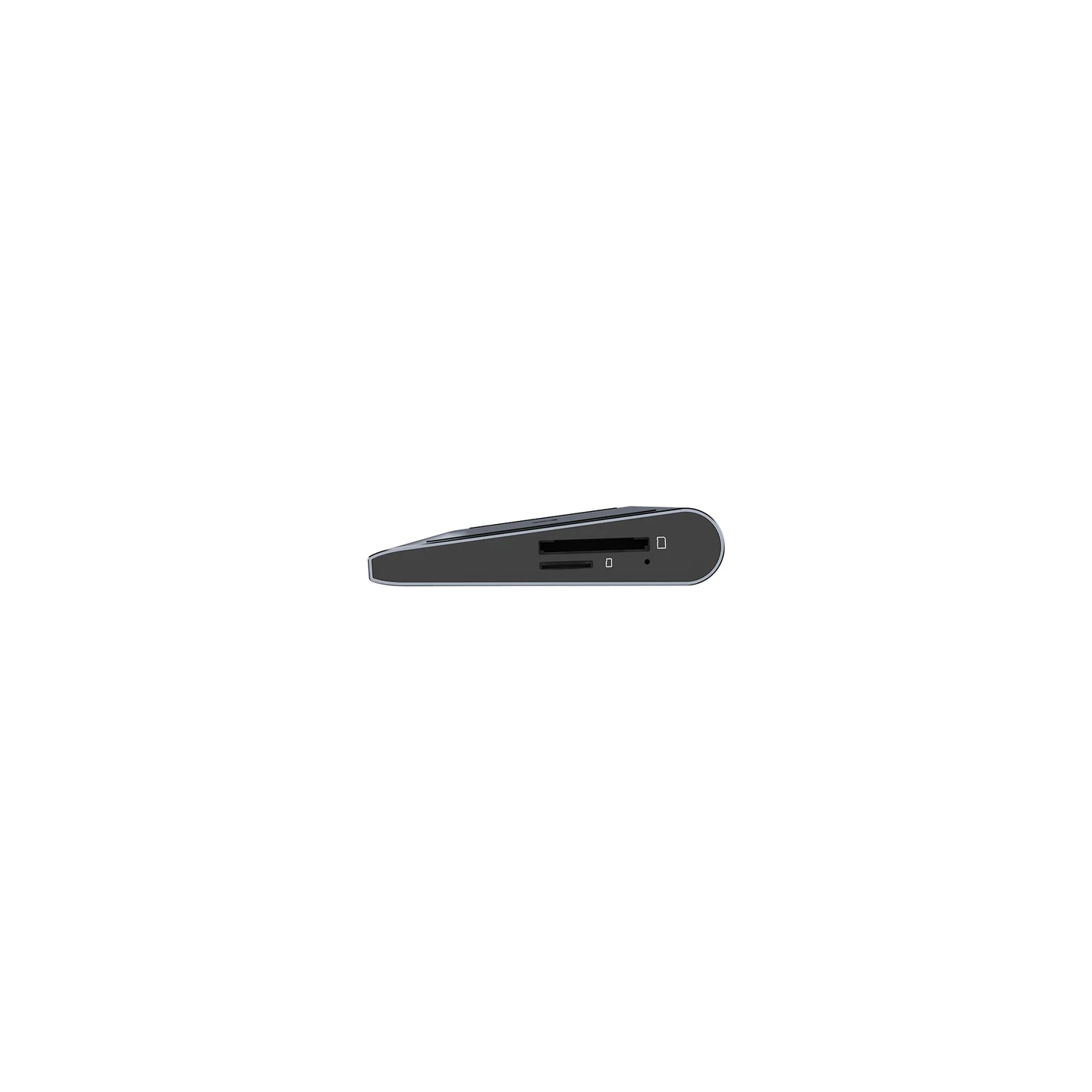

| Card Readers | 1 x SD, 1 x MicroSD 3.0 |
| Audio | 3.5mm Aux jack (In/Out) |
| Dimensions | 290.0 x 80.0 x 17.6 mm |
| Material | Aluminum Alloy |
| Color | Space Grey |
| Power Supply | 5V/3A DC |
| Compatibility | Windows 7/8/10/11, macOS 10.6+, Linux 3.x |
| KVM | Yes, 2-port |
