Unitek Y-7305 2-Port USB3.1 PCI Express Card (Boxed)
USB3.1 SuperSpeed 2-port PCI Express expansion card with 10Gbps data transfer, PCIe 3.0 support, backwards USB3.0/2.0/1.1 compatibility, and independent port power control.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | PCIe x1 |
| Expansion Cards - Internal Connectivity | External Only |
| Expansion Cards - Form Factor | Standard Profile Full-Height |
| Expansion Cards - External Connectivity | USB Type-A |

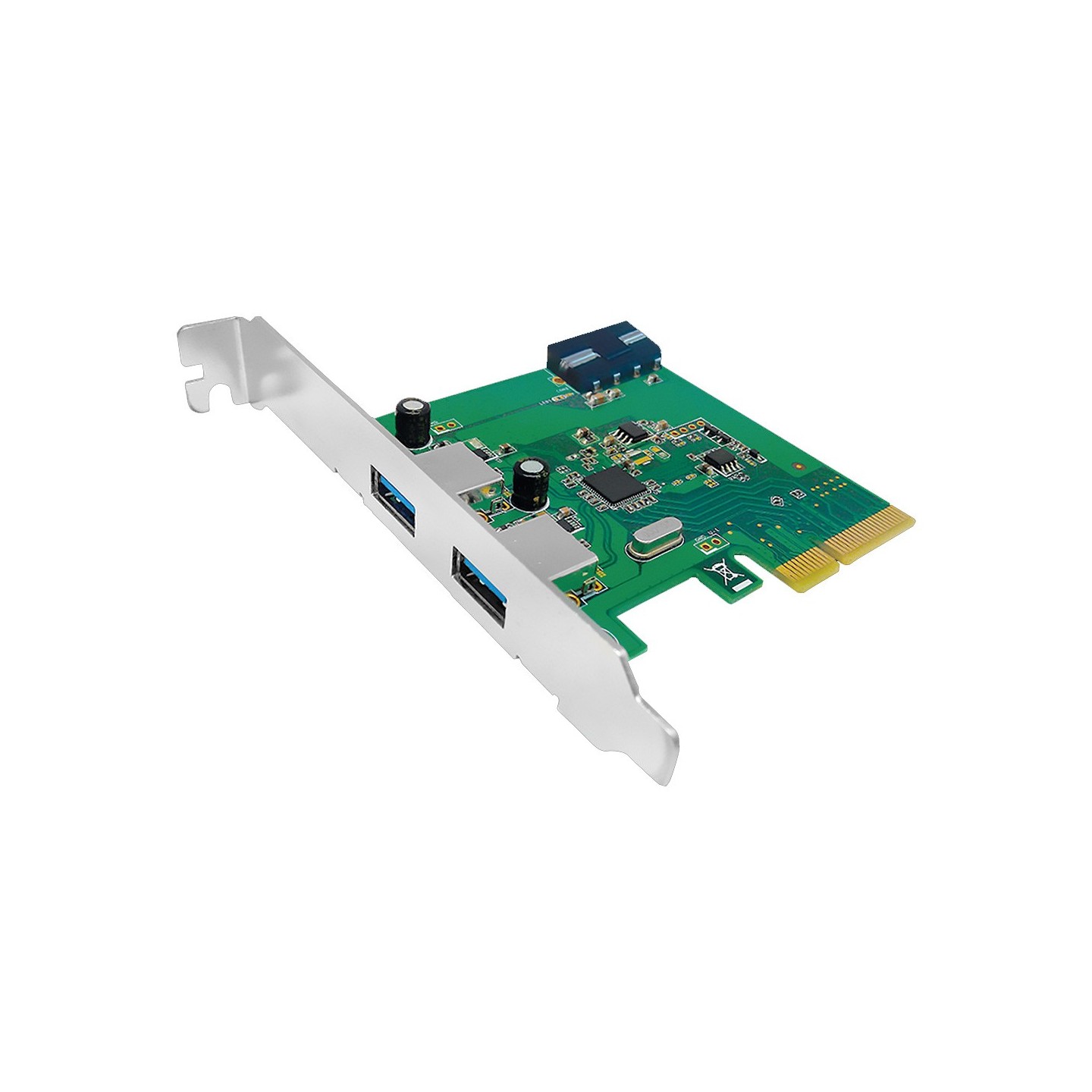

The Unitek Y-7305 is a high-performance 2-port USB3.1 PCI Express expansion card designed to add SuperSpeed USB connectivity to desktop computers. This card delivers data transfer speeds up to 10Gbps while maintaining full backwards compatibility with USB3.0, USB2.0, and USB1.1 devices, making it an ideal solution for users needing additional USB ports without replacing their motherboard.
Built with PCIe 3.0 specification support, the card features independent port power control and over-current detection for enhanced reliability and device protection. The included 4-pin power connector strengthens power delivery to support optimal performance under demanding workloads. Additional features include PCI Express Link power management for energy efficiency and Wake-on-LAN support for remote system management.
Key specifications and features:
- USB3.1 SuperSpeed+ data transfer up to 10Gbps
- Backwards compatible with USB3.0, USB2.0, and USB1.1
- PCIe 3.0 specification support
- Independent port power control and over-current detection
- PCI Express Link power management
- Wake-on-LAN support
- 4-pin power connector for enhanced performance
| Product Type | USB Port Expansion Card |
| Host Interface | PCIe x1 |
| External Ports | 2x USB3.1 Type-A |
| Data Transfer Speed | 10Gbps (USB3.1 SuperSpeed+) |
| PCIe Specification | PCIe 3.0 |
| Backwards Compatibility | USB3.0, USB2.0, USB1.1 |
| Power Connector | 4-pin |
| Features | Independent port power control, over-current detection, PCI Express Link power management, Wake-on-LAN support |
| Form Factor | Standard Profile Full-Height |
| Manufacturer | Unitek |
| Model Number | Y-7305 |
| EAN13 | 4894160017529 |
