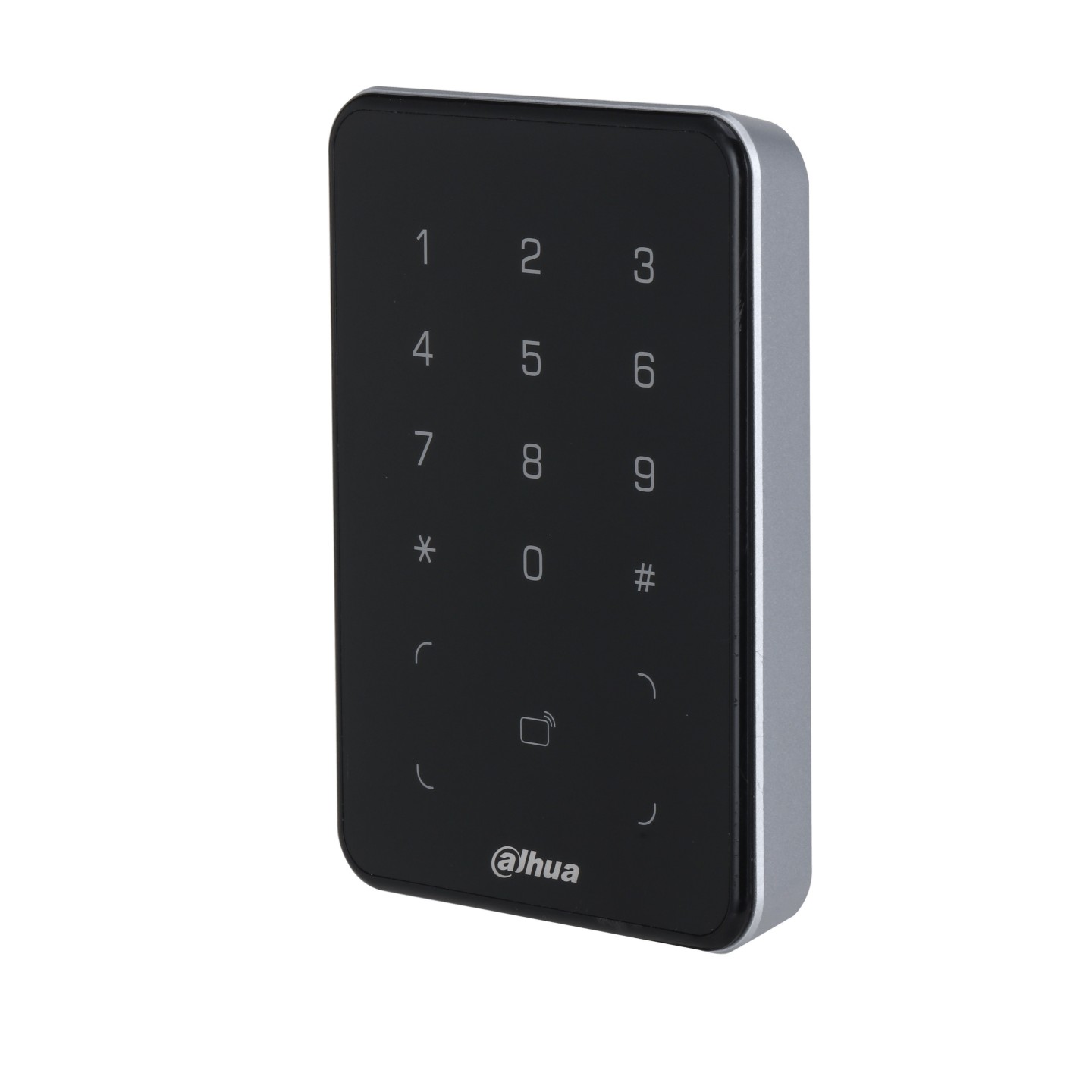

Dahua AC RF ID IC Reader - ASR2101A-ME - Reader
Supports contactless IC/MIFARE and ID card recognition at two frequencies; IP66-rated enclosure with PC material and acrylic panel; suitable for indoor/outdoor use; supports card/password unlock.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Control - Type | Reader |
|---|---|
| Access Control - Software | Standalone |
- Support contactless recognition of IC card (Mifare card) and ID card in two frequencies
- PC material, acrylic panel and IP66, suitable for indoor and outdoor use
- Support card/password unlock
- Support RS485 and Wiegand communication
- Support buzzer and indicator prompt
- Support anti-tampering alarm
- The built-in watchdog can detect and control abnormal operation status of the equipment and perform recovery processing to ensure the long- term operation of the equipment
- All connection ports have overcurrent and overvoltage protection
Basic
- Product Type : Card reader
- Buzzer : Yes
- Casing : PC/acrylic panel
Function
- Unlock Mode : Card swiping/password / Multiple unlocking modes
- Card Type : IC/ID card
Performance
- Response Time : 0.1 s
- Card Reading Distance : 0 cm–5 cm
Port
- RS-485 : 1 channel
- Wiegand : 1 output channel
Alarm
- Tamper Alarm : Yes
General
- Power Supply : 12V 0.5A DC
- Protection : IP66 (silicon sealant is needed, see the manual)
- Power Consumption : Standby ≤ 0.9W, working ≤ 1.7W
- Product Dimensions : 123 mm × 86 mm × 15 mm (L × W × H)
- Packaging Dimensions : 185 mm × 163 mm × 71 mm
- Operating Temperature : –30°C to +70°C
- Operating Humidity : 5%RH–95% (non-condensing)
- Operating Environment : Indoor; outdoor
- Gross Weight : 0.35 kg
- Installation :Surface mount
- Certifications : CE; FCC
| Reader Frequency | IC/ID |
| Water Proof | IP66 |
