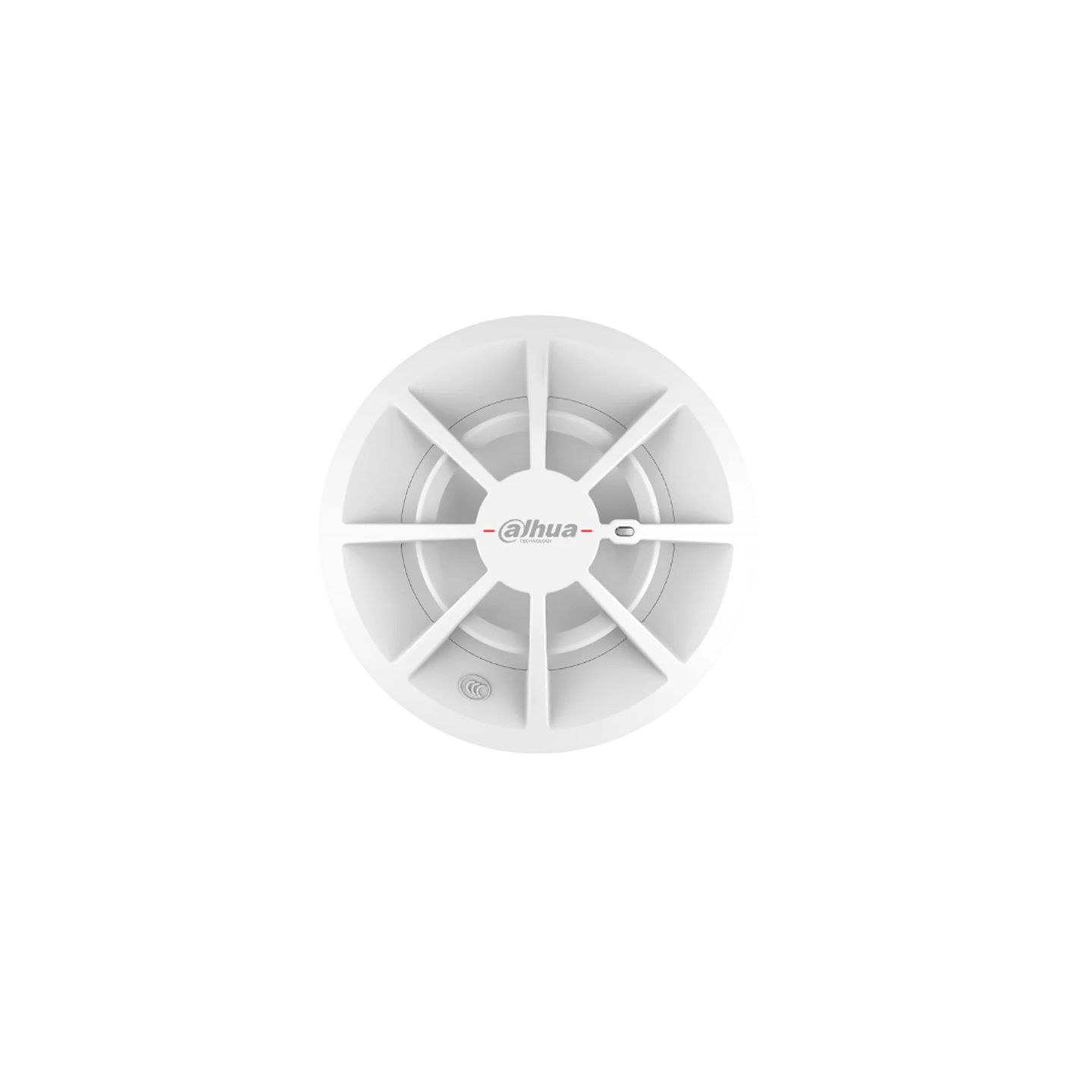

Dahua Conventional Fire Alarm Detector With Base (Heat) - HY-C132 - Conventional Fire Alarm Detector With Base (Heat)
Meets EN54 requirements; two-wire, polarity-free wiring; EMC tested with strong EMI resistance; differential temperature intelligent detection; non-loosening base screws; corrosion-resistant contacts.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Smoke/CO Detectors - Detector Type | Heat |
|---|---|
| Smoke/CO Detectors - Power | Mains |
- Meets all requirements of latest EN54
- Two-wire, polarity-free realizes convenient wiring
- Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
- Differential temperature intelligent detection algorithm satisfies a variety of complex scenarios
- Non-loosening screws on base terminal for easy installation
- Contacts material is highly acid-resistant and rust-resistant
- Working Voltage : DC16V-DC28V
- Rated Power : 3.408mW
- Current : Standby current: ≤ 120μA / Alarm current: ≤ 170μA
- Alarm Mode : Visual alarm
- Coverage Area : H ≤ 4 m (13.12 ft): 50 m2 / 4 m(13.12 ft) ≤ H ≤ 12 m(39.37 ft): 30 m2
- Operating Temperature : –10°C to +50°C (+14°F to +122°F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Dimensions (with base) : Φ100 mm × 50 mm (Φ 3.00" × 2.13")
- Weight (with base) : 81 g (0.18 lb)
- Installation : Ceiling Mount
- Compliance Standard : EN 54-5: 2017/A1:2018
