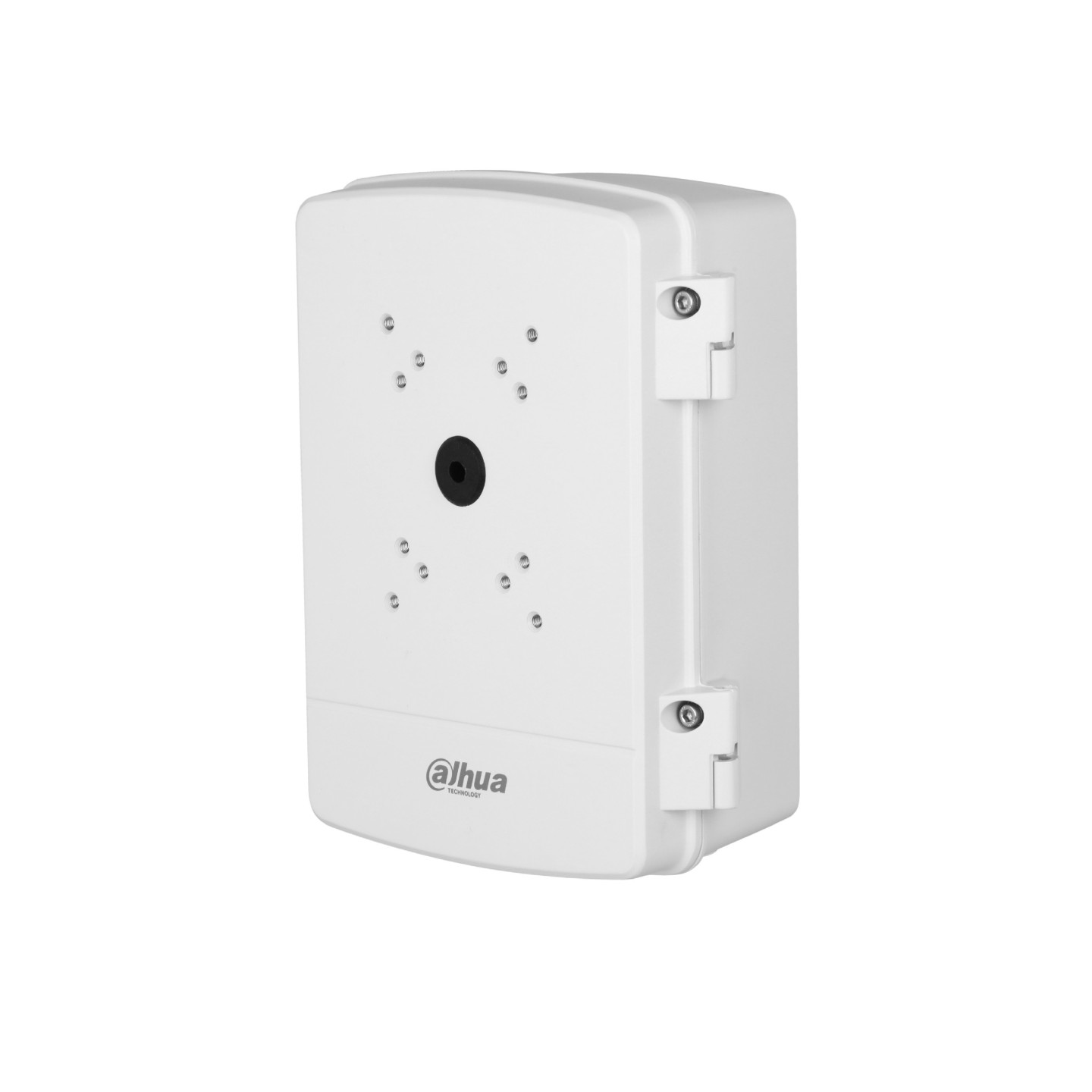

Dahua Junction Box Water Proof - PFA6400S - For PTZ
Water-proof junction box in aluminum alloy and SECC steel; IP66 rated; supports wall, pole, and corner mounts; compatible with PTZ cameras and IPCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Camera Mounts - Type | Junction Box |
|---|---|
| Camera Mounts - Load Capacity | greater than5 kg |
| Camera Mounts - Weather Rating | IP66+ |
Water-proof Power Box
- Made from aluminum alloy and SECC steel
- IP66 rated
- Easy to install, it supports the wall mount, pole mount and corner mount installation methods
- Highly adaptable, it can be used with PTZ cameras and IPCs
- Large enclosure that can accommodate many types of power
Structure
- Casing Material : Aluminum alloy & SECC
- Product Dimensions : 297.2 mm × 248.0 mm × 130.7 mm (L × W × H)
- Appearance Color : White
- Net Weight : 3.38 kg
- Gross Weight : 3.86 kg
- Load Bearing : 8.0 kg
- Installation : Wall mount; pole mount; corner mount
- Screw Thread Type : G1/2
- Packaging Dimensions : 366.0 mm × 298.0 mm × 183.0 mm (L × W × H)
Environment
- Protection : IP66
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : <90% (RH)
- Storage Temperature : –40 °C to +60 °C
- Storage Humidity : 10%–90% (RH)
- Anti-corrosion Level : Basic Protection
