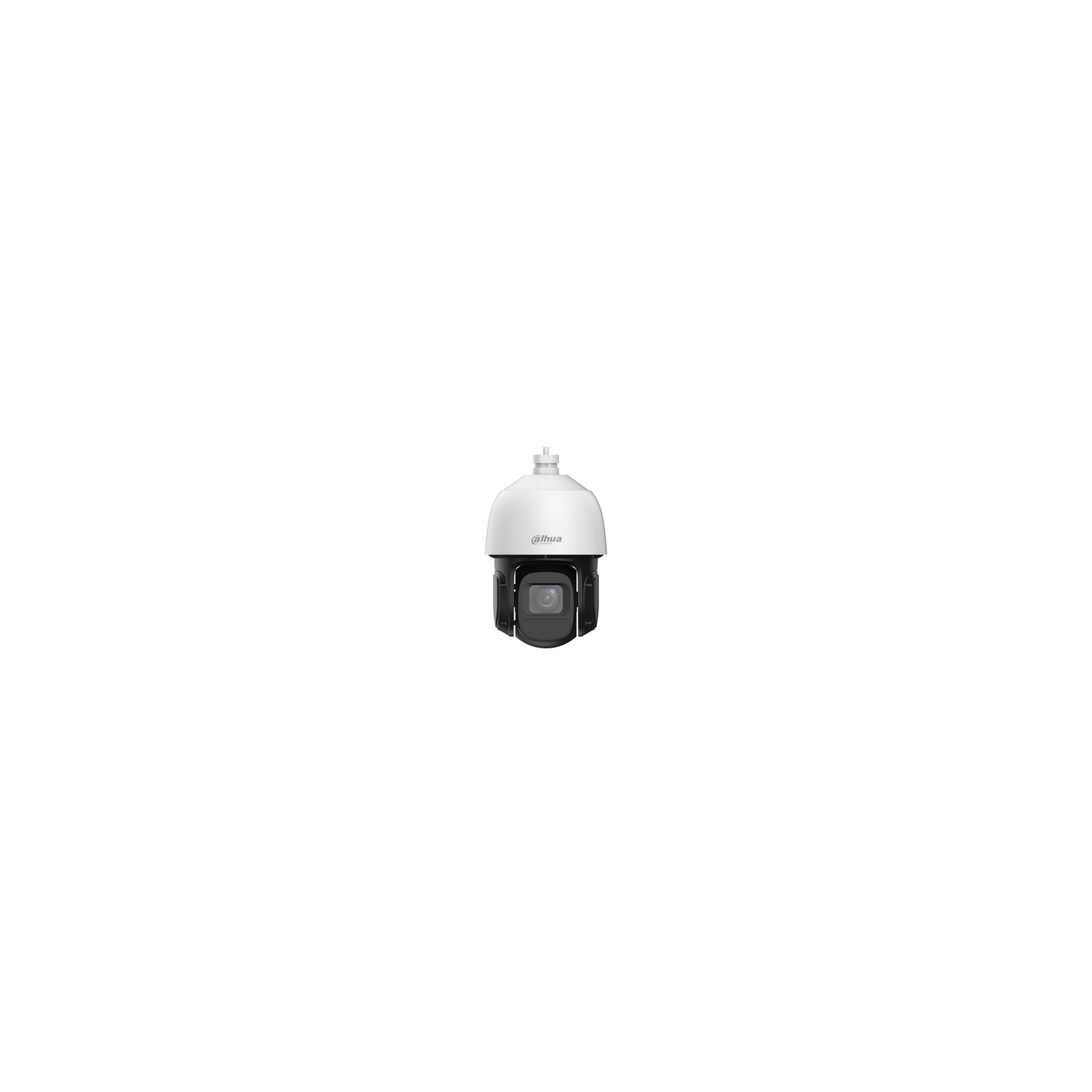

Dahua IP 2.0MP PTZ 16x Optical Zoom Wizsense - SD3D216NB-GNY

• 1/2.8" 2Megapixel CMOS
• 16x optical zoom
• Starlight technology
• Max. 25/30 fps@1080P
• IR distance up to 80 m
• IVS(Human/Vehicle Detection)
• SMD 3.0
• IP66

Camera

• Image Sensor: 1/2.8” STARVIS™ CMOS
• Effective Pixels: 2 Megapixels
• RAM/ROM: 128 MB
• Scanning System: Progressive
• Electronic Shutter Speed: 1/1s~1/30,000s
• Minimum Illumination: 0.005 lux@F1.6 (Color, 30 IRE); / 0.0005 lux@F1.6 (B/W, 30 IRE); / 0 lux (Illuminator on)
• IR Distance: Distance up to 80m
• IR On/Off Control: Zoom Prio,Auto/Manual/Off
• IR LEDs: 3

Lens

• Focal Length: 5.0 mm~80 mm
• Max. Aperture: F1.6 ~ F3.5
• Angle of View: H: 54.4°–4.1° ; V: 31.4°–2.3°; D: 61.3°–4.7°
• Optical Zoom: 16x
• Focus Control: Auto/Semi-Auto/Manual
• Close Focus Distance: 0.1 m–1 m
• Iris Control : Fixed

PTZ

• Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
• Manual Control Speed: Pan: 0.1° ~40° /s; Tilt: 0.1° ~40° /s
• Preset Speed: Pan: 0.1° ~40° /s; Tilt: 0.1° ~40° /s
• Presets: 300
• Power-off Memory : Yes
• Idle Motion: Preset
• Protocol: DH-SD

Intelligence

• IVS (Perimeter Protection) : Tripwire; intrusion

• SMD : SMD 3.0

Video

• Compression: Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
• Streaming Capability: 2 Streams
• Resolution: 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
• Frame Rate: Main stream:1080p/1.3M/720p @(1–25/30 fps)Sub stream: D1/VGA/CIF@ (1–25/30 fps)
• Bit Rate Control: CBR/VBR
• Bit Rate: H264: 64–10,496 Kbps / H265: 25–6,400 Kbps
• Day/Night: Auto(ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR(120dB)
• White Balance: Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
• Gain Control: Auto / Manual
• Noise Reduction : 2D NR; 3D NR
• Motion Detetion: Support
• Region of Interest: Support
• Defog : Electronic Image Stabilization (EIS)
• Digital Zoom: 5x
• Flip: 180°
• S/N Ratio : ≥ 55 dB

Network

• Ethernet: RJ-45 (10Base-T/100Base-TX)
• Protocol:HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP
• Interoperability: CGI;SDK;ONVIF (Profile S & Profile T)
• Streaming Method: Unicast / Multicast
• Max. User Access: 20 users
• Storage: Micro SD card (256 GB); FTP
• Browser : IE 7 and later versions; / All Chrome versions; / All Firefox versions; / All Safari versions
• Management Software: DSS Pro
• Smart Phone: IOS, Android

Certification

• Certifications : CE: EN55032/EN55024/EN50130-4

Port

• Alarm Linkage : Capture; recording; send email
• Alarm Event : Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

• Power Supply: DC 12V/2A, PoE+(802.3at)
• Basic: 8 W / Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation + Heater ): 18 W (12 VDC)

Environmental

• Operating Conditions: -30°C ~ 60°C / Less than 95% RH
• Ingress Protection: IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection

Construction

• Dimensions : 240 mm × Φ151.5 mm
• Net Weight: 1.5 kg
• Gross Weight: 2.5 kg

Remarks

The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
