Unitek D1049A Type-C HDMI 4K60Hz VGA PD100W Hub (Boxed)
Unitek D1049A 4-in-1 USB-C hub: HDMI 4K@60Hz, VGA 1080p@60Hz dual display (MST on Windows), PD 100W charging, USB-A 480Mbps. Thunderbolt 3/USB-C DP Alt Mode compatible. Aluminium, plug & play.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | Thunderbolt 3 USB-C |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 4 |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | HDMI VGA |
| USB Hubs & Docking Stations - Power Delivery | 100W |
| USB Hubs & Docking Stations - Special Features | Aluminum Body Compact Design MST Support Plug and Play |

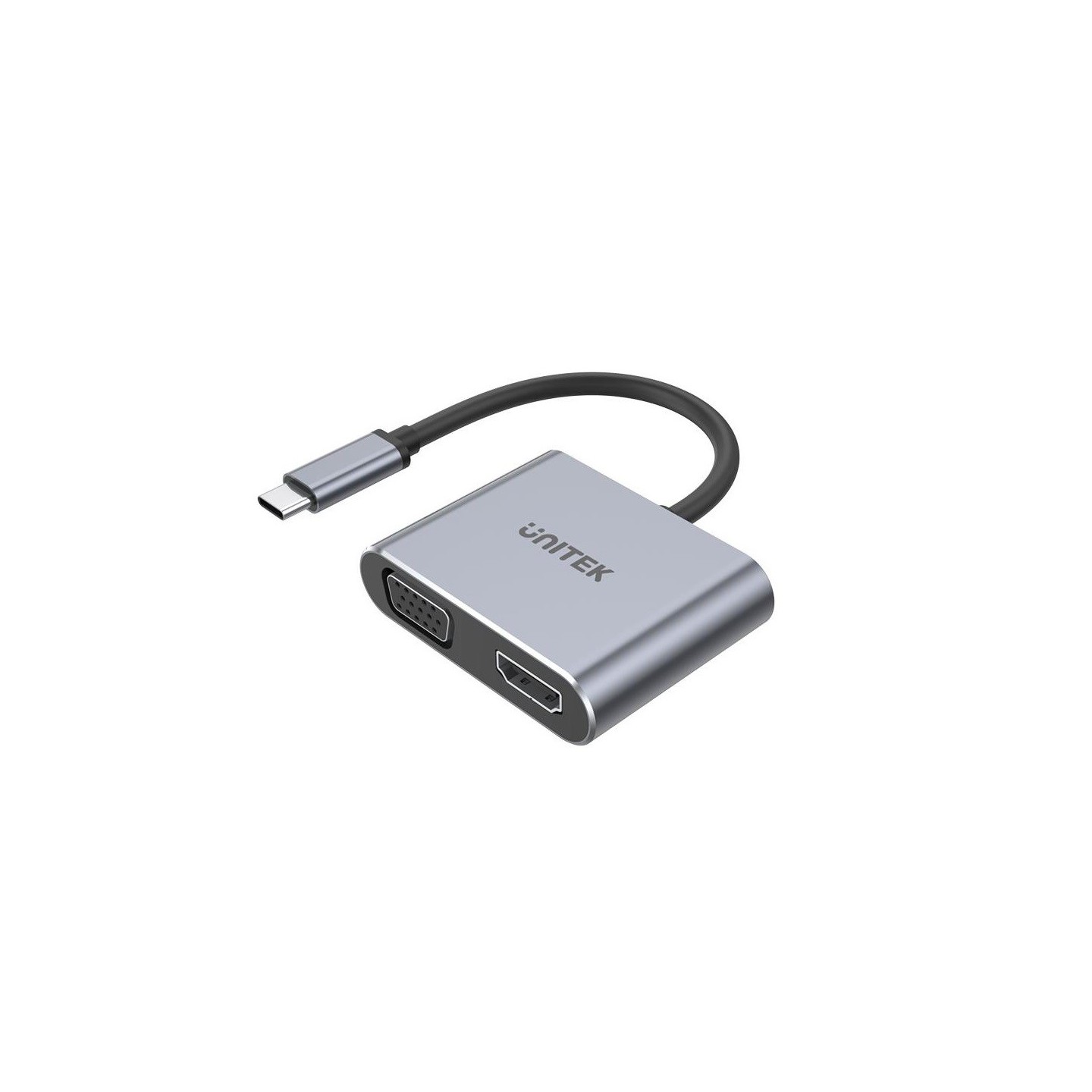

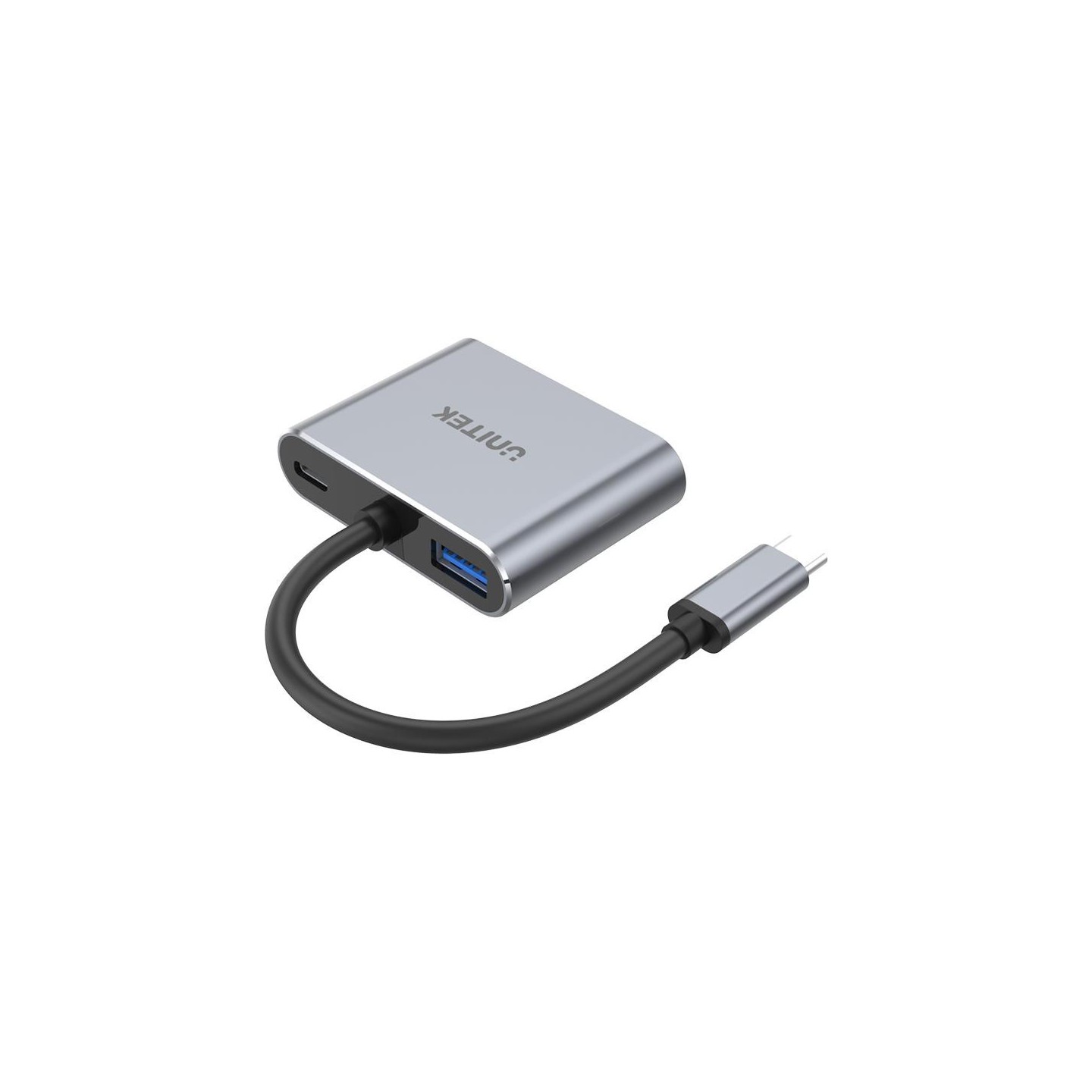

The Unitek D1049A is a compact 4-in-1 USB-C hub designed for users needing dual video outputs, power delivery, and data transfer from a single USB-C port. It supports Thunderbolt 3 or USB-C with DisplayPort Alt Mode, making it ideal for laptops like MacBook Pro 2019 and Windows PCs.
Key features include HDMI at Ultra-HD 4K@60Hz and VGA at Full HD 1080p@60Hz. Multi-Stream Transport (MST) enables extended displays on Windows (up to 1080p per monitor); MacOS supports only single extended display. The USB-C PD port delivers up to 100W (actual output varies by adapter: 85W for 96W, 76W for 87W), while the USB-A port offers USB 2.0 speeds at 480Mbps.
- Aluminium housing for durability and heat dissipation
- Plug and play - no drivers required
- Product size: 44.1 x 57.6 x 14.6 mm; Weight: 0.100 kg
- Upstream: USB-C Male
- Downstream: HDMI, VGA, USB-C PD 100W, USB-A
| Model | D1049A |
| Upstream Port | USB-C Male (TB3 / DP Alt Mode) |
| Downstream Ports | HDMI, VGA, USB-C PD 100W, USB-A 2.0 |
| HDMI Resolution | 4K@60Hz UHD |
| VGA Resolution | 1080p@60Hz Full HD |
| USB-A Data Rate | 480 Mbps (USB 2.0) |
| Power Delivery | Up to 100W (20V/5A), adapter dependent |
| Display Modes | MST (Windows), Mirror/Extend/Single (Mac) |
| Housing | Aluminium, Space Gray |
| Dimensions | 44.1 x 57.6 x 14.6 mm |
| Weight | 0.100 kg |
| Plug and Play | Yes, no driver needed |
