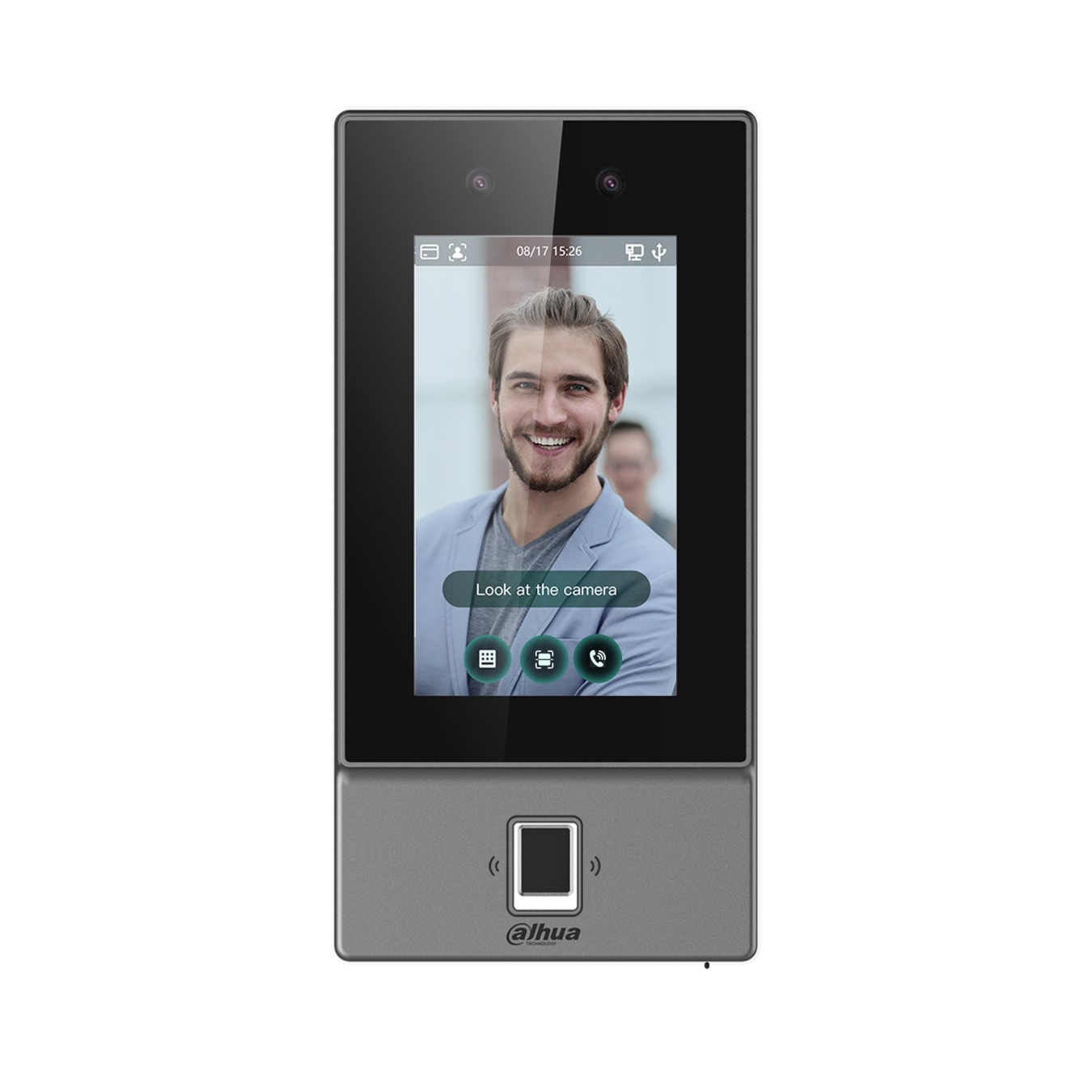

Dahua AC Face Recognition With Fingerprint Controller (Built in POE) ASI6214S-PW

• 4.3 inch glass touch screen with a resolution of 272 × 480
• 2-MP wide-angle dual-lens camera with IR illumination and DWDR
• Multiple unlock methods including fingerprint, face, IC card and password
• Supports 6,000 users, 6,000 faces, 6,000 passwords, 6,000 fingerprints, 10,000 cards, 50 administrators, and 300,000 records
• Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft); face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person
• Supports improved security and to protect against the device being forcefully opened, security module expansion is supported
• Features face mask detection and safety helmet detection
• Supports visitor QR code and doorbell function
• Supports making video calls and using the app to receive alarm notifications, remotely unlock doors and to perform other tasks
• TCP/IP and Wi-Fi connection
• PoE power supply
• IP65 rated

System

• Main Processor : High-performance embedded processor
• Network Protocol : IPv4; TCP; UDP; P2P
• OSDP Protocol : Yes
• Interoperability : CGI; ONVIF
• SDK and API : Yes

Basic

• Product Type : Standalone
• Display Screen : 4.3" LCD
• Screen Type : Capacitive Touchscreen
• Screen Resolution : 272 (H) × 480 (V)
• Camera : 2-MP CMOS HD dual-lens camera
• WDR : DWDR
• Light Compensation : Auto IR
• Voice Prompt : Yes
• Buzzer : Yes
• Casing Material : PC+GF

Function

• Unlock Mode : Card/Remote/Password/Fingerprint unlock and unlock through their combinations
• Card Type : IC card
• Period List : 128
• Holiday Period : 128
• Network Update : Yes
• First User Unlock : Yes
• Remote Verification : Yes
• Restricted List/Trusted List : Yes
• Wi-Fi : Yes
• Peripheral Card Reader : 1 × RS-485 card reader / 1 × Wiegand card reader
• Multi-user Authentication : Yes
• Multi-factor Authentication : Yes
• Web Configuration : Yes
• Auto Registration : Yes

Performance

• Card Reading Distance : 0 cm–3 cm
• Face Recognition Height Range : 1.1 m–2.0 m
• Face Recognition Distance : 0.3 m–1.5 m
• Face Recognition Accuracy : 99.9%
• Face Recognition Time : 0.2 s
• Fingerprint Verification Mode : 1:N

User

• User (Card) Type : General user, VIP user, patrol user, guest user, blocklist user and others

Capacity

• User Capacity : 6,000
• Face Image Capacity : 6,000
• Fingerprint Capacity : 6,000
• Card Capacity : 10,000
• Password Capacity : 6,000
• Record Capacity : 300,000

Port

• RS-485 : 1
• Wiegand : 1
• USB : 1 × USB2.0 port
• Network Port : 1 × RJ-45, 100 Mbps
• Alarm Input : 1
• Alarm Output : 1
• Alarm Linkage : Yes
• Exit Button : 1
• Door Status Detection : 1
• Lock Control : 1

Alarm

• Anti-pass Back : Yes
• Tamper Alarm : Yes
• Duress Alarm : Yes
• Door Sensor Timeout : Yes
• Intrusion : Yes
• Illegal Card Exceeding Threshold : Yes
• Duress Fingerprint : Yes

General

• Power Adapter : Included
• Power Supply : Stanard PoE / 12 VDC, 1.5 A
• Protection : IP65 (silicone sealant is needed, see the quick start guide)
• Power Consumption : ≤ 12 W
• Product Dimensions : 180.1 mm × 90.1 mm × 27.0 mm
• Packaging Dimensions : 268 mm × 136 mm × 78 mm
• Operating Temperature : –30 °C to +60 °C
• Operating Humidity : 10%–95% (RH), no condensing
• Operating Altitude : 0 m–1,300 m
• Operating Environment : Indoor; outdoor
• Gross Weight : 700 g
• Accessory : Bracket (included)
• Installation : Turnstile mount; 86 case mount; Wall mount; surface mount
