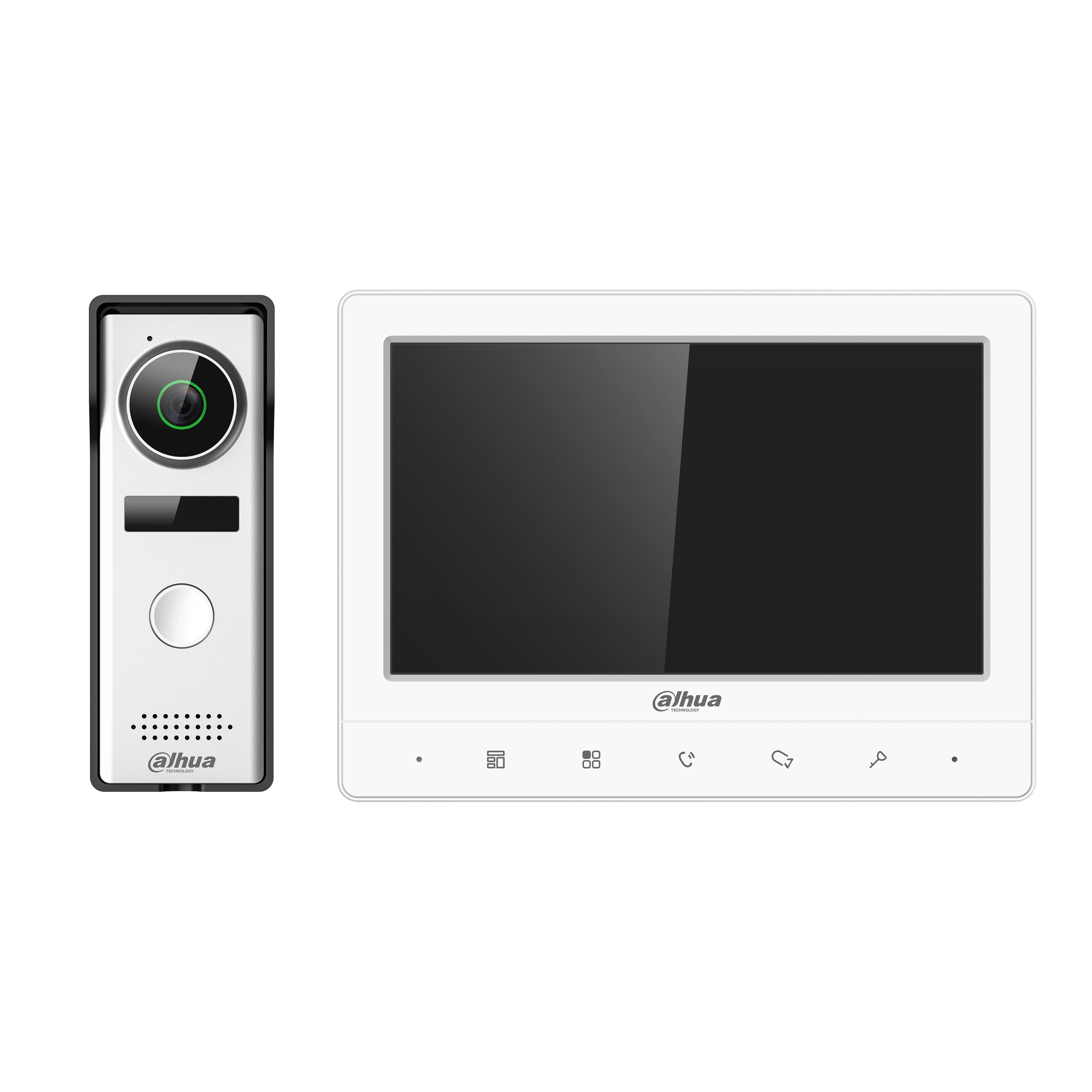

Dahua VD Analog Doorphone - KTA02 - KIT
7-inch TFT video doorphone kit with unlock, voice call, video call and volume control; supports 2 door stations and 3 indoor monitors; multiple bell sounds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | 12 V DC |
|---|---|
| Intercoms - Display (Indoor) | 7inch |
- 7" TFT screen
- Video intercom function: Unlock, voice call, video call, volume adjustment
- System Capacity：2 door stations + 3 indoor monitors
- Multiple bell sounds
- Supports digital wide dynamic range (DWDR)
VTH1020J
- Button Type : Touch button
Basic
- Display : 7.0" TFT
- Screen Resolution : 1024 × 600
- Status Indicator : 1 indicator light
- Green : Power on
Function
- Communication Mode : Analog
Performance
- Casing : PC + ABS
General
- Color : White
- Power Supply : DC 12V/2A
- Power Adapter : Included
- Installation : Surface mount
- Certifications : CE/FCC
- Accessory : Bracket (included)
- Dimensions : 133.90 mm × 182.70 mm × 17.70 mm
- Operating Temperature : -10°C to +55°C
- Operating Humidity : 10%RH–95%RH
- Power Consumption : ≤ 2W (standby) / ≤ 5W (working)
- Net Weight : 0.25 kg
- Gross Weight : 0.48 kg
VTO1000J
- Button Type : Mechanical
Basic
- Camera : 1.3MP CMOS
- Field of View : Horizontal: 70° / Vertical: 40°
- WDR : DWDR
- Illuminator Type : Auto IR
- Day/Night
- ICR auto switch
- Audio Input : 1 channel to the microphone; pickup distance 0.5 m
- Audio Output : 1 channel to the speaker
- Status Indicator : 1 indicator light
- Green : Power on
Function
- Communication Mode : Analog
- Unlock Mode : Local unlock
Performance
- Casing : PC + ABS
Port
- Exit Button : 1
- Door Status Detection : 1
General
- Color : Silver
- Power Supply : Powered by indoor monitor
- Installation : Surface mount
- Certifications : CE/FCC
- Accessory : Rain cover (included)
- Dimensions : 131.45 mm × 46.00 mm × 33.80 mm
- Protection Grade : IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
- Operating Temperature : -30°C to +60°C
- Operating Humidity : 10%RH–95%RH
- Power Consumption : ≤ 1W (standby) / ≤ 3W (working)
- Net Weight : 0.18 kg
- Gross Weight : 0.38 kg
| Connectivity | 4-Wire |
| Type | Kit |
| Image Sensor | 1.3MP |
| Display | 7'' |
| Monitor Resolution | 1024*600 |
| Voltage | 12V |
