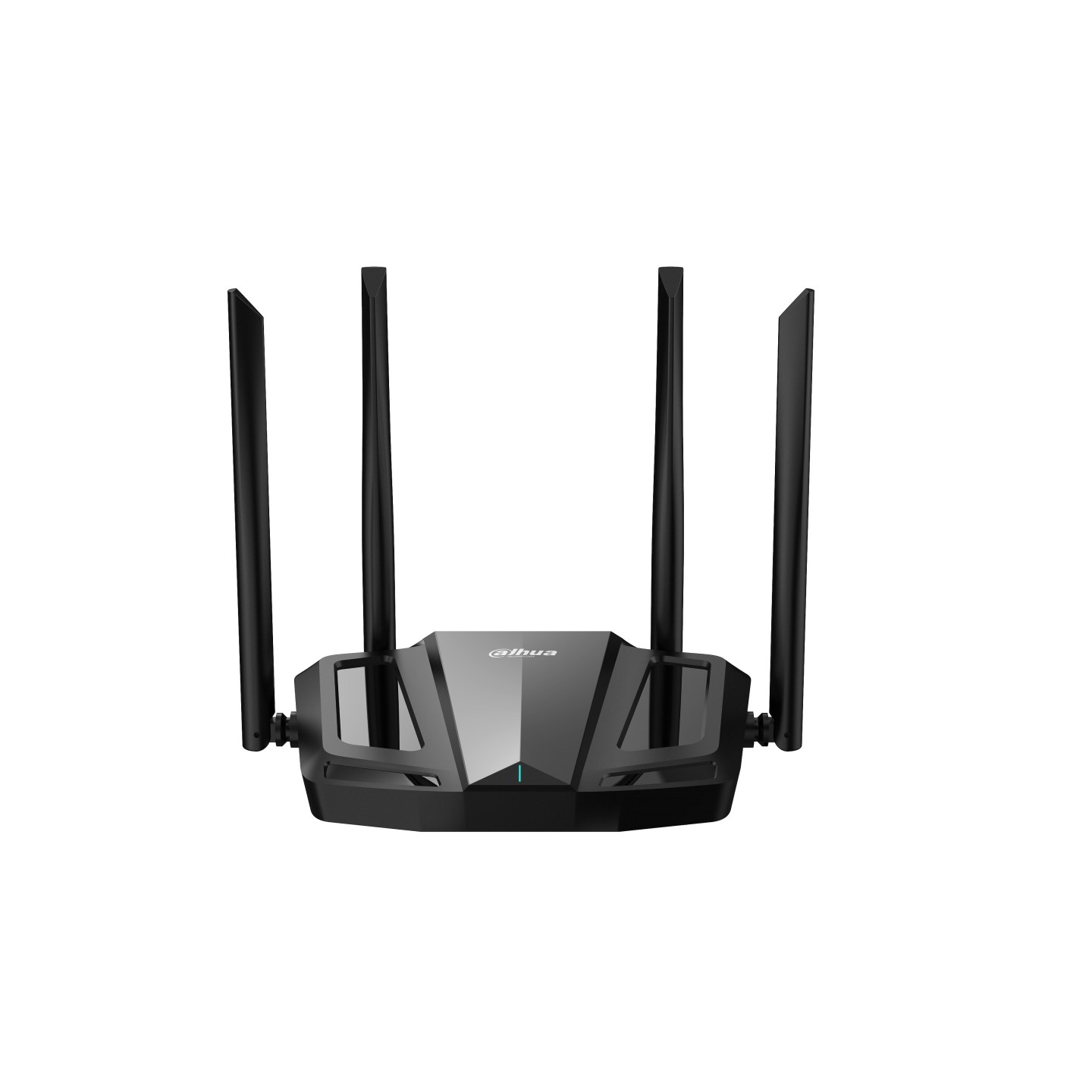

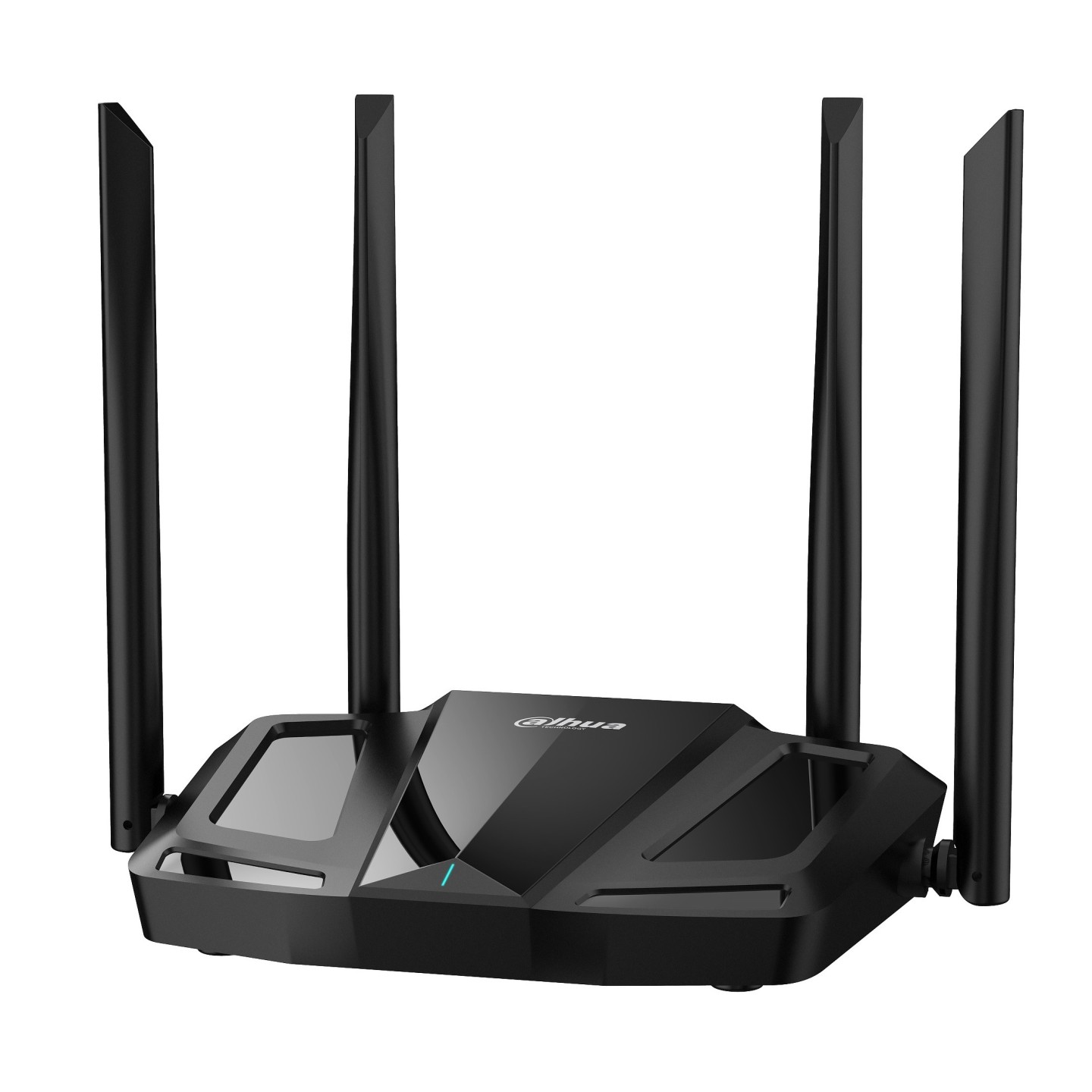

Dahua WR AC1200 Wireless Dual Band Gigabit Router - AC12 - AC1200 Wireless Dual Band Gigabit Router
AC1200 Wireless Dual-Band Gigabit Router with 4 external antennas, 3 Gigabit LAN ports, 802.11ac, beamforming, MU-MIMO, and WPA/WPA2 security.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Routers - Bands | Dual-band (2.4+5 GHz) |
| Routers - LAN Ports | 3 |
| Routers - Antennas | 4x External |
- 1.2 Gbps Wireless Speed(300 Mbps@2.4 GHz, 867 Mbps@5 GHz)
- Backward compatible (IEEE 802.11 b/g/n/ac standard)
- Beamforming for better Coverage
- Bi-directional MU-MIMO
- WiFi protected Access(WPA/WPA2)
- Guest Wi-Fi
- Parental Control
Hardware

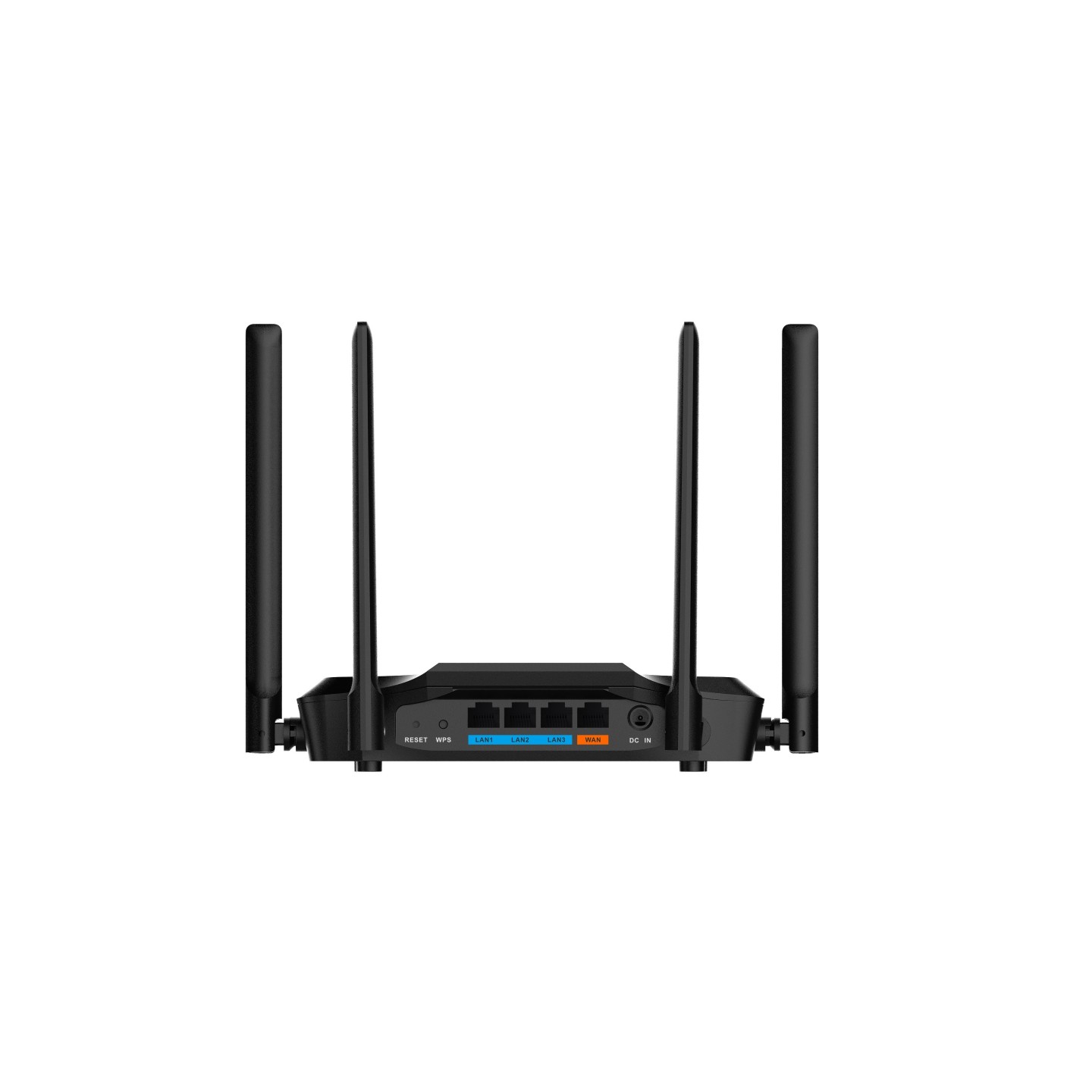

- External Port : 1×10/100/1000 Mbps(WAN) / 3×10/100/1000 Mbps(LAN)
- Power Consumption : <12 W
- Memory : 64 MB RAM
- Indicator Light : PWR
- Wireless Standard : 2.4 GHz: 802.11 b/g/n / 5 GHz: 802.11 a/b/g/n/ac
Performance
- Operating Frequency : 2.412 GHz–2.484 GHz / 5.150 GHz–5.850 GHz
- Wireless Transmission Rate : 2.4 GHz: 300 Mbps / 5 GHz: 867 Mbps
- Channel Width : 20/40/80 MHz
- Max. Output Power : 20 dBm ± 2 dBm
- Antenna Gain : 2.4 GHz: 5 dBi (±0.5) / 5 GHz: 5dBi (±0.5)
- Receiver Sensitivity 5GHz: 11ac VHT80_MCS0: -89dbm / 11ac VHT80_MCS9:-62dbm / 2.4GHz : 11n HT20_MCS0: -95dbm / 11n HT20_MCS7: -75dbm / 11n HT40_MCS0: -92dbm / 11n HT40_MCS7: -72dbm
- Channel : 2.4 GHz: 1-13 / 5GHz:36/40/44/48,52/56/60/64,149/151/153/157/161/165
- Connected Wireless Terminals : 2.4 GHz: 32 / 5 GHz: 32
Function
- Encryption Mode : WPA / WPA2
- Firmware Update : Web/WiLynk App update
- OFDMA : Yes
- MU-MIMO : 2x2
- DHCP : Yes
- NAT : Mapping based on port
- VPN : L2TP / PPTP
- QoS : Yes
- DDNS : Yes
- Parental Controls : Yes
- Equipment Management : Yes
General
- Power Supply : 12 VDC,1A
- Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature : 20 °C to +70 °C (–4 °F to 158 °F)
- Operating Humidity : 0%–90% (RH), non-condensing
- Net Weight : 0.31 kg
- Packaging Dimensions : 300 mm × 260 mm × 70 mm (L × W × H)
- Product Dimensions : 222 mm × 147.4 mm × 188.4 mm (L × W × H)
- Statics Protection : Air discharge: 8 kV / Contact discharge: 6 kV
- Lighting Protection : Common mode: 2 kV / Differential mode: 0.5 kV
- Installation : Desktop mount; wall mount
Packing List
- 1 × Device
- 1 × Power adapter
- 1 × Ethernet cable
- 1 × Quick Start Guide
- 1 × Legal and Regulatory Information
| Type | Wireless |
| Antennas | 4x5dbi |
| Ethernet Speed | Gigabit |
| Wi-Fi Technology | Wi-Fi 5 |
| Wi-Fi Speed | AC1200 |
| Ethernet Ports | 3 |
| System Memory | 64MB RAM |
| Other Features | Gigabit WAN |
