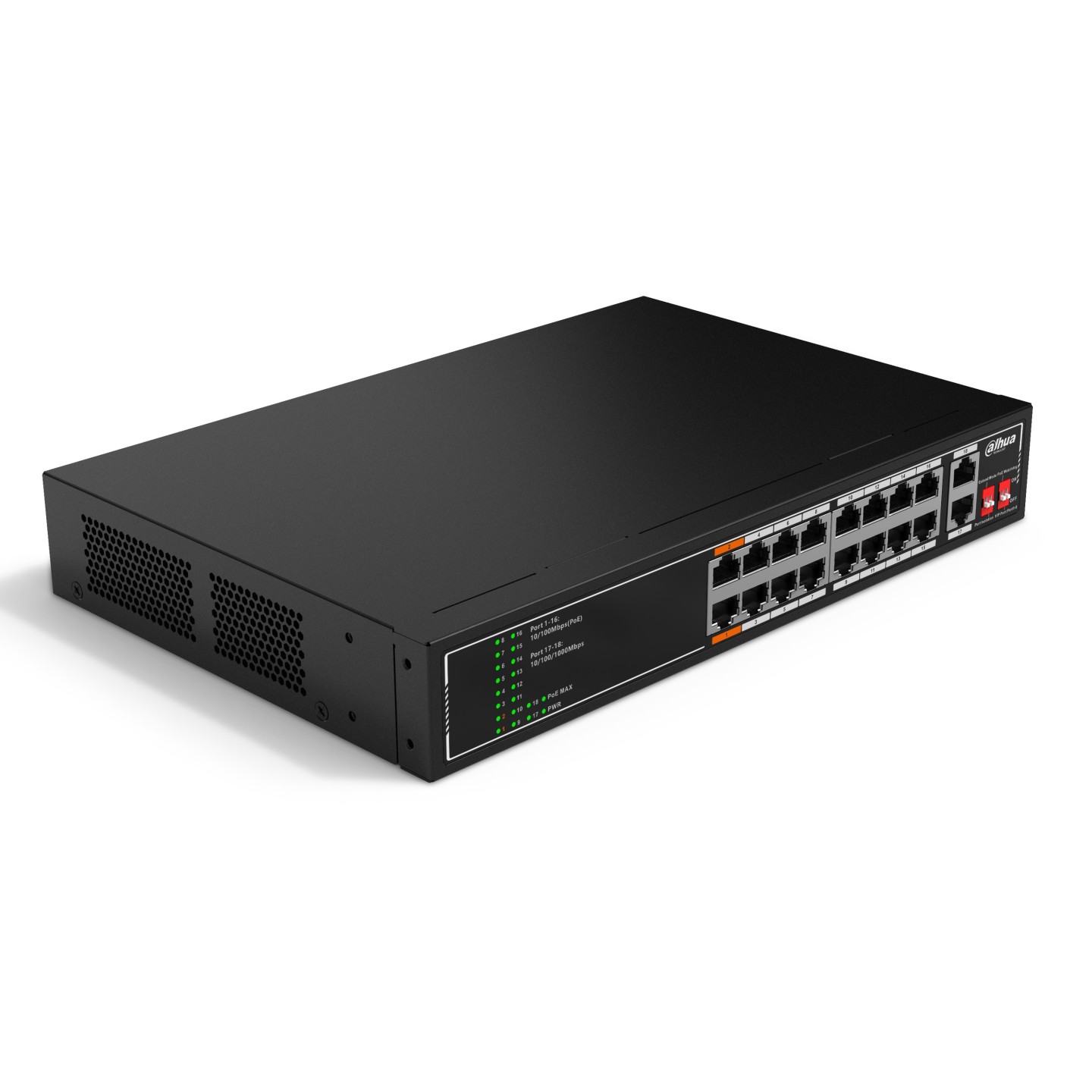

Dahua PoE Switch - SF1018LP - 16port+2GUP 135W
Intelligent PoE switch with 16 PoE ports, 135W total PoE, 2 Gig uplinks, unmanaged, metal housing, wide operating temp (-10 to 55 C), long PoE reach up to 250 m.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 16 |
| Network Switches - Port Speed | 10/100 (Fast Ethernet) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
- Intelligent PoE
- PoE watchdog
- Long distance PoE transmission
- Smooth transmission
- Wide operating temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Port isolation
- VIP port
Hardware
- Included Power Adapter : Yes
- PoE : Yes
- Ethernet Port : Port 1-24:24 × RJ-45 10/100Mbps(PoE) / Port 17-18:2 × RJ-45 10/100/1000Mbps(Uplink)
- Optical Port : 0
- Ethernet Port Speed : 10/100 Mbps
- Ethernet Port Uplink Speed : 10/100/1000 Mbps
- Reset Button : 0
- Power Supply : Built-in power supply: 100–240 VAC, 50/60 Hz, 2.83A
- Operating Temperature : –10 °C to +55 °C
- Operating Humidity : 10%–90% (RH), non-condensing
- Storage Temperature : –40 °C to +85 °C
- Storage Humidity : 5%–95% (RH), non-condensing
- Power Consumption : Idling: 5 W; / Full load: 135 W
Performance
- Layer : Layer 2
- Management Type : No
- Smart Managed Switch : No
- MTBF : 51.15 years
- Switching Capacity : 8.8 Gbps
- Packet Forwarding Rate : 6.5472 Mpps
- Packet Buffer Size : 4 Mbit
- Jumbo Frame : 9K Byte
- MAC Table Size : 8K
- Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab
Feature
- PoE Protocol : IEEE802.3af; IEEE802.3at; Hi-PoE
- PoE Power : Port 1–2 ≤ 60 W; / Port 3–16 ≤ 30 W; / Total ≤ 135 W
- Intelligent PoE : Support PoE power prioritizing on port number
- PoE Pin Assignment : 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
- ePoE : No
- Long Distance PoE Transmission : Yes
- Spanning Tree Protocol : No
- VLAN Function : No
- Link Aggregation : No
- IEEE 802.3x Flow Control : Yes
- ARP : No
- DHCP Function : No
- Security : No
- QoS/ACL : No
- IPv6 : No
- Equipment Management : No
General
- Statics Protection : Air discharge: 8 kV; / Contact discharge: 6 kV
- Lighting Protection : Common mode: 4 kV; / Differential mode: 2 kV
- Net Weight : 1.71 kg
- Gross Weight : 2.37 kg
- Product Dimensions : 285.0 mm × 189.5 mm × 43.7 mm
- Packaging Dimensions : 369 mm × 299 mm × 81 mm
- Casing Material : SGCC
- Installation : Desktop mount; rack mount; wall mount
- Certifications : CE
| Ethernet Speed | Fast Ethernet |
| Ethernet Ports | 16 |
| Long Distance POE | Up to 250 Meters |
| Poe Ports | 16 |
| Power | 135W |
| Total PoE Power | 135W |
| Max. Watt per Port | 60W |
| Type | Unmanaged |
| Housing | Metal |
| Mounting | Desktop/Wall/Rack |
| PoE Type | 802.3af/at |
| Gigabit Uplink Ports | 2 x RJ45 |
| Recommended for | VoIP Phones, IP Cameras |
