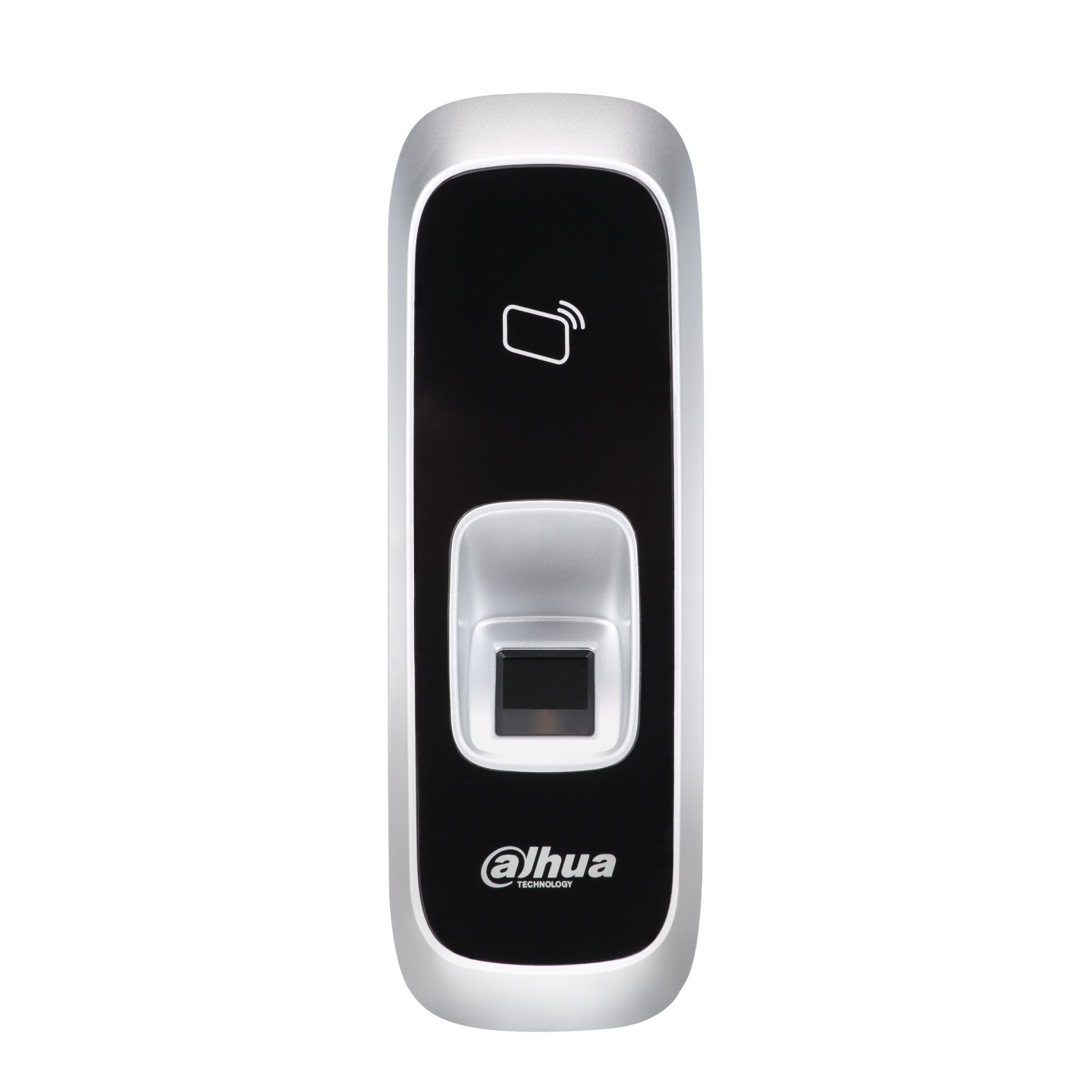

Dahua AC Fingerprint RFID Reader - ASR1102A(V2) -
RS-485 access control reader supporting MIFARE (13.56 MHz); supports card and fingerprint; up to 3000 fingerprints; blue backlight; watchdog for stability.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Control - Type | Reader |
|---|
- RS-485 protocol
- Default IC (Mifare) card (“-D” means ID EM card)
- Support card, fingerprint
- Up to 3000 fingerprints capacity
- Blue backlight
- Watch dog function ensure device free from halting
- Beep and indicator
- Surface mounted installation
System
- Main Processor : 8 Bit
Read
- Read Format : 13.56MHz
- Read Range : 6-8cm (max.)
- Reading time : <0.1s
Fingerprint
- Capacity : 3000
- Response Time : ≤0.5s
- Recognition Time : ≤1.5s
- FAR : ≤0.00004%
- FRR : ≤0.15%
Function
- Tamper Alarm : Yes
Interface
- To Controller : RS485
General
- LCD Display : Blue backlight
- Beep Tone : Buzzer
- Power Supply : 9-15VDC/100mA
- Working Environment : -5°C-+55°C
- Working Humidity : 5%~95%
- Dimension(W×D×H) : 165mm*57mm*29mm
- Weight : 0.25kg
| Reader Frequency | Mifare (13.56MHZ) |
