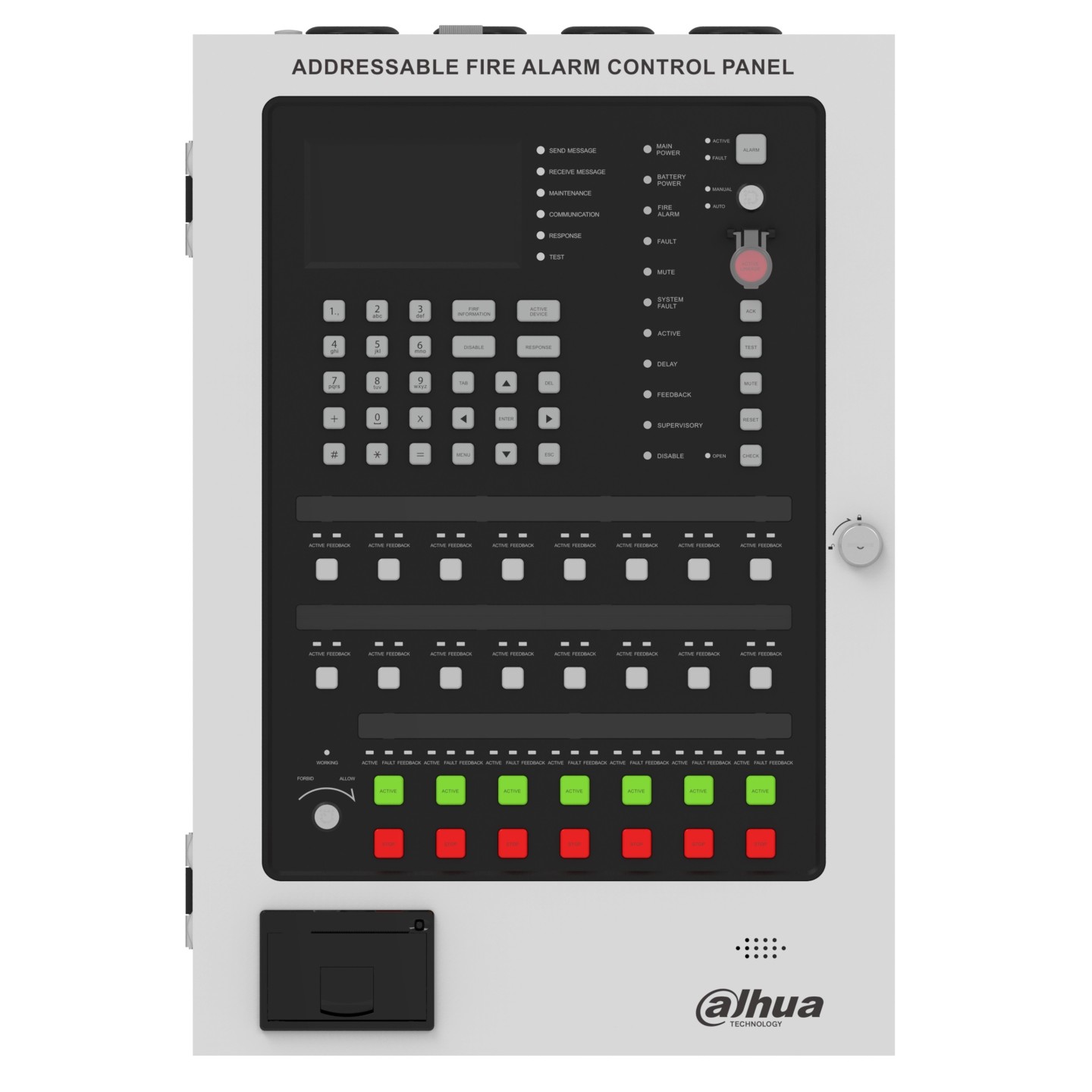

Dahua Addressable Fire Alarm Control Panel - HY-1022R-AB - 1 Loop-254 Devices
Dahua addressable fire alarm control panel with 1 loop for up to 254 devices. Model HY-1022R-AB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Class A Topology: Reduce wiring costs and enhance circuit stability.
- Two-Wire, Polarity-Free Communication: The system uses a two-wire, polarity-free technology, eliminating the need for an external power source. This enhances reliability, simplifies wiring, reduces costs, and facilitates maintenance.
- User-Friendly Display: The 4.3-inch LCD screen (480 × 272) offers an intuitive interface for complete system setup without external tools.
- Extended Event Logging: Historical events are securely saved and can be queried and printed by time and type.
- Intelligent Power Management: Automatic switching between main and backup power ensures a stable supply, enhancing system reliability.
- Comprehensive Protection: Includes short circuit, open circuit, and overcurrent protection for stable operation
- Working Voltage : 16V DC–28V DC
- System Capacity : Max. 254 devices for one loop
- Loop Number : 1 Loop
- Main Power : AC90-240V/50Hz, 60Hz
- Backup Power : 2×12V/5Ah lead-acid battery
- Fire Alarm Terminal : NO/NC
- Fire Fault Terminal : NO/NC
- Communication Distance : Max. 1500m
- Max Cascade : 128 Panels By RS-485
- Cable Specs : 2×1.5 mm²
- Display : 480 × 272 4.3’’ LCD screen
- Printer (optional) : Micro thermal printer
- Dimensions : 333.0 mm×115.0 mm×480.0 mm (13.11" × 4.53" × 18.90")
- Operating Temperature : –10°C to +40°C (+14°F to +104°F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Protection Grade : IP30
- Weight : 7 kg / 10 kg (with 2 batteries
