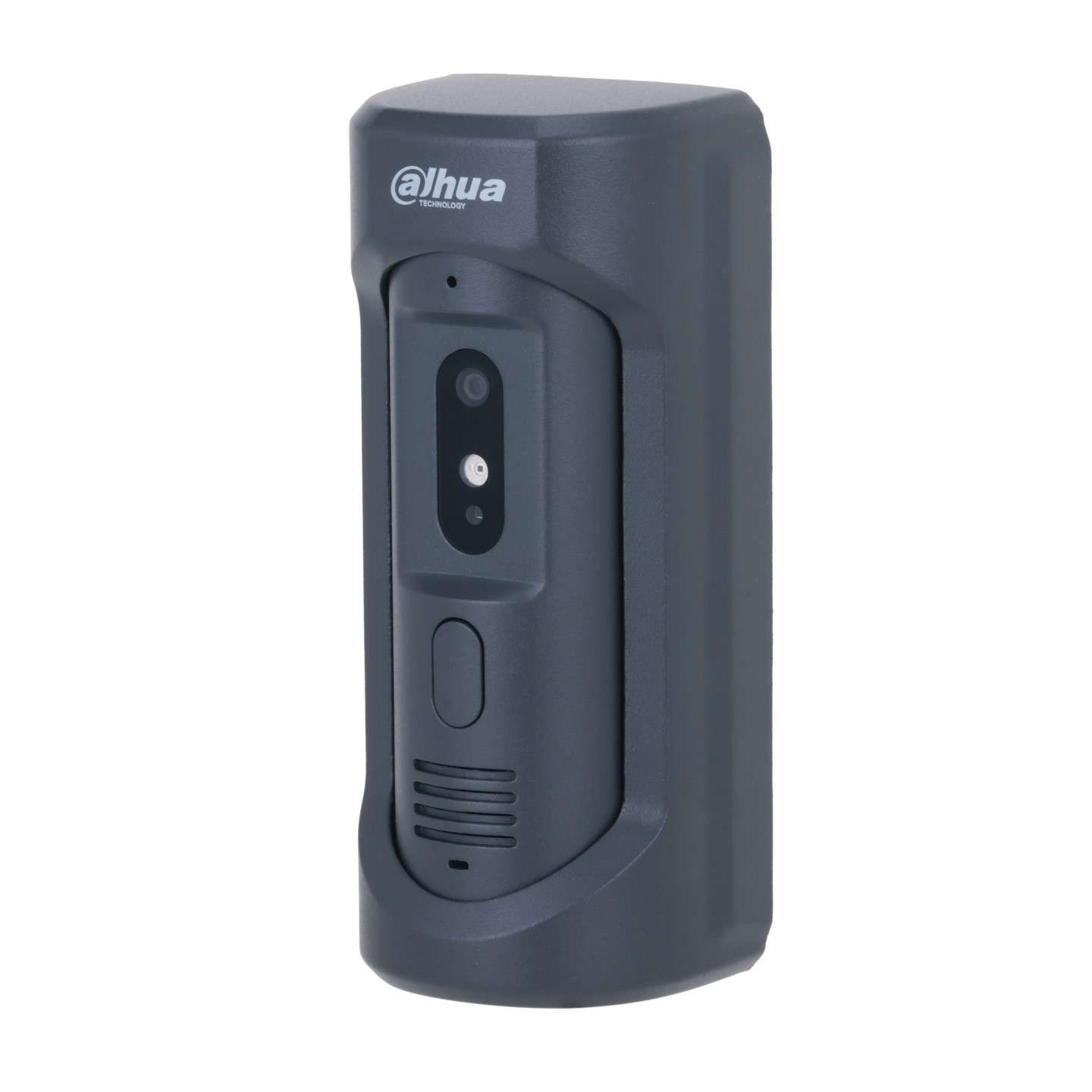

Dahua VD IP Doorphone Villa Camera - VTO2101E-P-S2
HD CMOS doorphone with zinc alloy panel; IP65 and IK10 rated; ICR night vision and voice prompts; video and audio messaging; TCP/IP and SIP; surface mounted.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | PoE |
|---|---|
| Intercoms - Access | Button |
| Intercoms - Camera | 1080p |
- HD CMOS camera
- Zinc alloy panel, IP65 and IK10 rated
- ICR night vision and voice prompt
- Video and audio messaging
- TCP/IP, and SIP
- Surface mounted
System
- Main Processor : Embedded Processor
- Button Type : Mechanical
- Interoperability : ONVIF; CGI
- Network Protocol : RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF
Basic
- Camera : 1/2.8" 2-MP CMOS HD Camera
- Field of View : H: 80°; V: 40°; D: 90°
- WDR : 120 dB
- Noise Reduction : 3D NR; 2D NR
- Video Compression : H.264; H.265
- Video Resolution : Main stream: 720p, WVGA, D1, and CIF; / Sub stream: 1080p, WVGA, D1, QVGA, and CIF
- Video Frame Rate
- PAL: 25 fps : NTSC: 30 fps
- Video Bit Rate : 768 kbps–8 Mbps
- Light Compensation : Auto IR
- Day/Night : Auto(ICR)/Color/B/W; Color/B/W
- Audio Compression : G.711a; G.711u; PCM
- Audio Input : 1
- Audio Output : Built-in speaker
- Audio Mode : Two-way audio
- Audio Enhancement : Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction
- Audio Bit Rate : 16 kHz, 16 bit
Function
- Communication Mode : Full digital
- Unlock Mode : Remote
- Leave Videos : Yes (SD card inserted in VTH is needed)
- Web Configuration : Yes
Performance
Casing : Zinc alloy
Port
- RS-485 : 1
- Alarm Input : 1
- Exit Button : 1
- Lock Control : 1
- Network Port : 1 × RJ-45 10/100 Mbps Ethernet port
Alarm
- Tamper Alarm : Yes
General
- Appearance color : Grey
- Power Supply : 12 VDC, 1 A; / Standard PoE
- Power Adapter : Optional
- Installation : Surface Mount
- Certifications : CE; FCC
- Accessory : Included: Alarm power ribbon cable, rain cover
- Product Dimensions : 163.0 mm × 73.0 mm × 55.0 mm
- Protection : IP65 IK10
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : 10%–90% (RH), non-condensing
- Operating Altitude : 0 m–3,000 m
- Power Consumption : ≤ 2.5 W (standby), ≤ 5 W (working)
- Gross Weight : 0.8 kg
- Net Weight : 0.3 kg
| Connectivity | IP |
| Image Sensor | 2MP |
| Material | Front: Zinc alloy Rear: Aluminum alloy |
| Angle of View | H: 80°; V: 40°; D: 90° |
| IP Rating | IP65, IK10 |
| Door Control | 1 x Relay Out,1 x Feedback,1 x Exit Button |
| Installation | Surface |
| POE | Yes |
