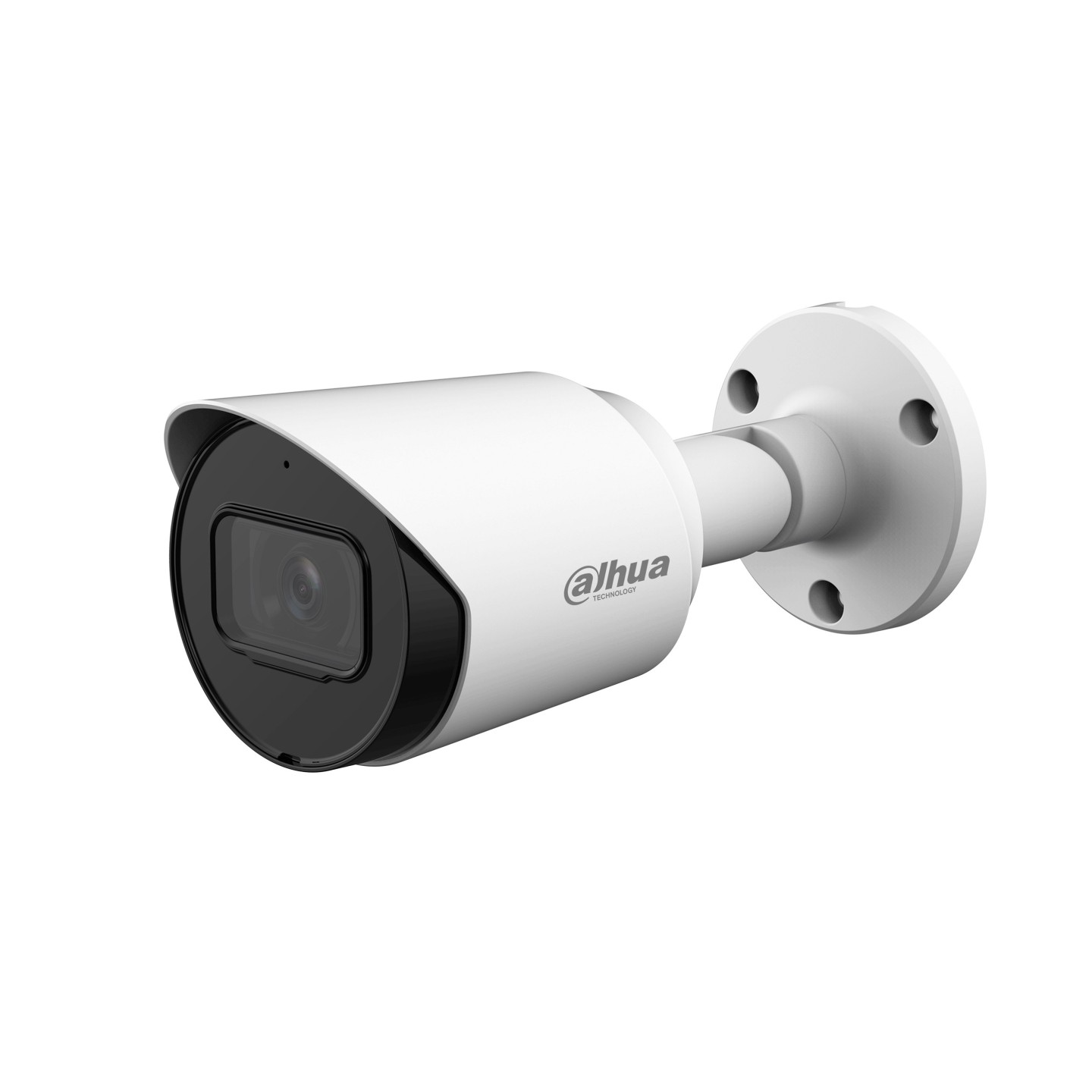

Dahua HDCVI 2.0MP Bullet - HFW1200T-S6 - 2.8mm
Dahua HDCVI 2.0MP Bullet camera with 2.8mm lens. Model HFW1200T-S6. IP67, 12V DC, up to 30 fps at 1080p.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Max. 30 fps@1080p
- Smart IR Illumination
- 30 m illumination distance
- Super Adapt
- Built-in Mic
- 3.6 mm fixed lens (2.8mm optional)
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC
Camera
- Image Sensor :2 MP CMOS
- Effective Pixels : 1920(H)×1080(V), 2MP
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25~1/100000s / NTSC: 1/30~1/100000s
- Minimum Illumination : 0.01 lux@F2.0 (Color, 30 IRE) / 0.001 lux@F2.0 (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : More than 65dB
- IR Distance : Up to 30m
- IR On/Off Control : Auto
- IR LEDs : 1
Lens
- Lens Type : Fixed lens / Fixed iris
- Mount Type : M12
- Focal Length : 2.8mm
- Max Aperture : F2.00
- Angle of View : H: 102°; V: 60°; D: 129°
- Iris Control : Fixed
- Close Focus Distance : 2.8 mm: 0.5 m
Video
- Resolution : 1080P (1920×1080)
- Frame Rate : 25/30fps@1080P, 25/30/50/60fps@720P
- Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
- Day/Night : Auto (ICR) / Manual
- OSD Menu : Multi-language
- BLC Mode : BLC / HLC / DWDR
- WDR : DWDR
- Gain Control : AGC
- Noise Reduction : 2D
- White Balance : Auto / Manual
- Smart IR : Auto / Manual
Certifications
- E-LVD: EN 62368-1;
- CE-EMC: EN 55032; EN 55035;
- FCC: 47 CFR FCC Part 15, Subpart B;
- UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Electrical
- Power Supply : 12V DC ±30%
- Power Consumption : Max 3.2W (12V DC, IR on)
Environmental
- Operating Conditions : -40°C ~ +60°C / Less than 95% RH * Start up should be done at above -40°C
- Storage Conditions : -40°C ~ +60°C / Less than 95% RH
- Ingress Protection & Vandal Resistance : IP67
Construction
- Casing : Metal
- Dimensions :174.5 mm × 72.3 mm × 70.6 mm
- Net Weight : 0.34kg
- Gross Weight : 0.46kg
| Housing Type | Bullet |
| Camera Protocols | AHD/HDCVI/TVI/CVBS |
| Camera Resolution | 2.0MP |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Distance | Up to 30m |
| WDR | DWDR |
