Cudy C200P 1.0 Router/AP Controller - Gigabit VPN 4 PoE+ Ports (Boxed)
2-in-1 Gigabit VPN Router and AP Controller with 4 PoE+ ports (802.3at/af). Manages up to 200 Cudy APs, supports Cudy Mesh, Captive Portal, QoS. USB 3.0, 256MB RAM.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Controller Wired Gateway |
|---|---|
| Routers - Special Features | Firewall Guest Network PoE Support QoS USB Sharing VLAN Support VPN Support |
| Routers - LAN Ports | 5-8 |
| Routers - Wi-Fi Standard | Wired Only |

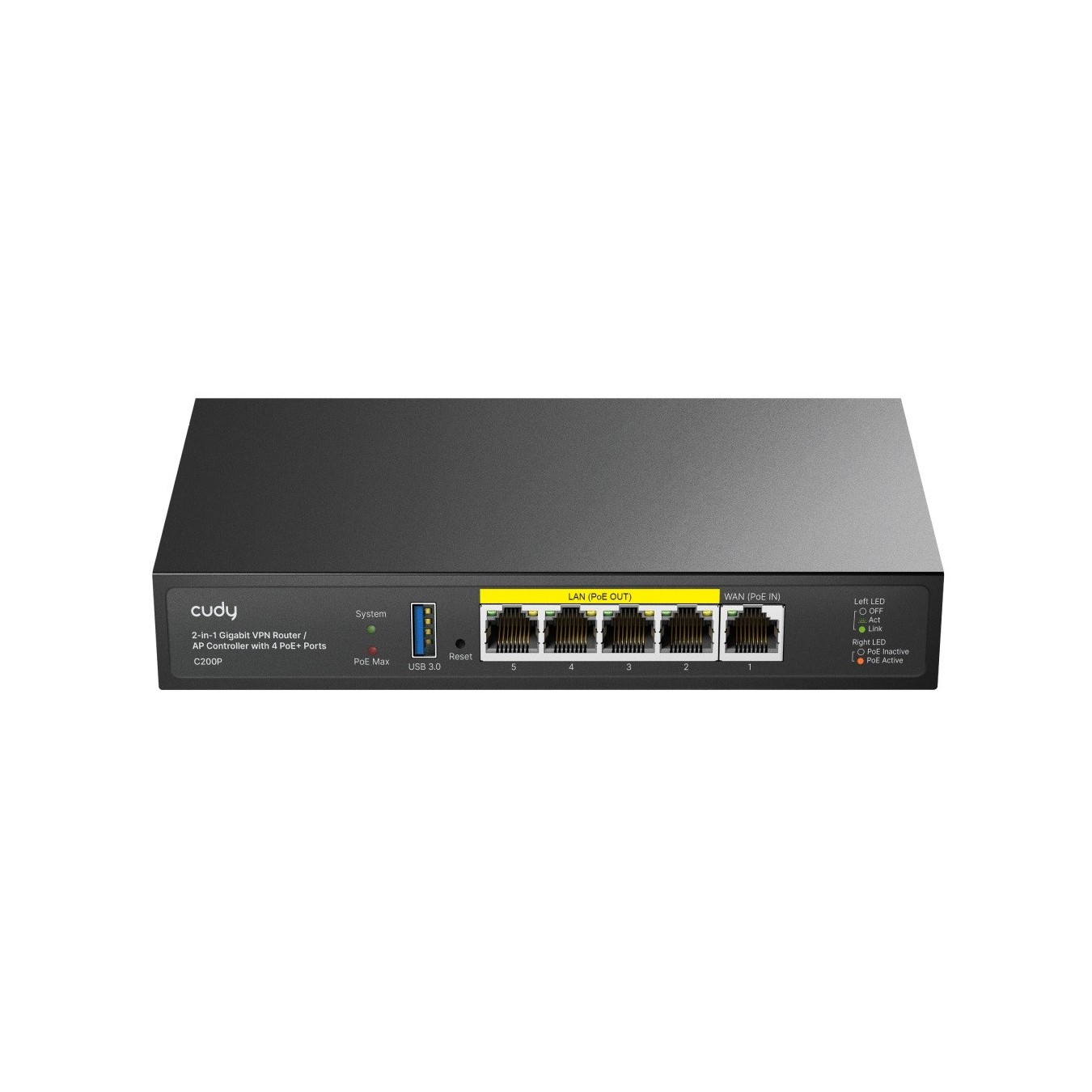

The Cudy C200P 1.0 is a versatile 2-in-1 Gigabit VPN Router and AP Controller designed for SMB and home networks requiring centralized Wi-Fi management. It features four Gigabit PoE+ output ports (802.3at/af Mode A, up to 30W each, 55-60W total) to power Cudy Access Points directly, plus one Gigabit WAN port with PoE input support and a USB 3.0 port for storage sharing.
Operate in Main Router + AP Controller mode (recommended ≤10 APs, ≤100 clients) or pure AP Controller mode (up to 200 APs). Key features include Cudy Mesh for seamless roaming, VPN Server/Client (WireGuard, OpenVPN, IPsec), Captive Portal, QoS rate limiting, IPv4/IPv6, and compact metal housing for desktop/wall mounting.
- 5× Gigabit Ethernet ports (4 PoE+ LAN #2-5, 1 WAN PoE IN)
- Manages 200 APs; Cudy Mesh, Captive Portal, VPN
- 256MB DDR3 RAM, 16MB Flash, 60W adapter (54V 1.11A)
- PoE out disabled when powered via PoE IN
- USB 3.0 Samba sharing, Wake-on-LAN
| Type | Wired |
| Environment | Indoor |
| Ethernet Speed | Gigabit |
| Mounting | Desktop/Wall |
| Ethernet Ports | 5 |
| System Memory | 256MB DDR3 RAM |
| Flash Memory | 16MB NOR |
| USB Port | USB 3.0 |
| PoE In | Yes (WAN Gigabit RJ45) |
| PoE Out | Yes 4x GbE 802.3at/af Mode A (30W max/port, 55-60W total) |
| Power Supply | 60W (54V 1.11A DC) |
| Max APs Managed | 200 (Controller mode) |
| VPN Support | Server & Client (WireGuard, OpenVPN, IPsec) |
| Other Features | Captive Portal, Cudy Mesh, QoS Rate Limiting, IPv6, Firewall |
