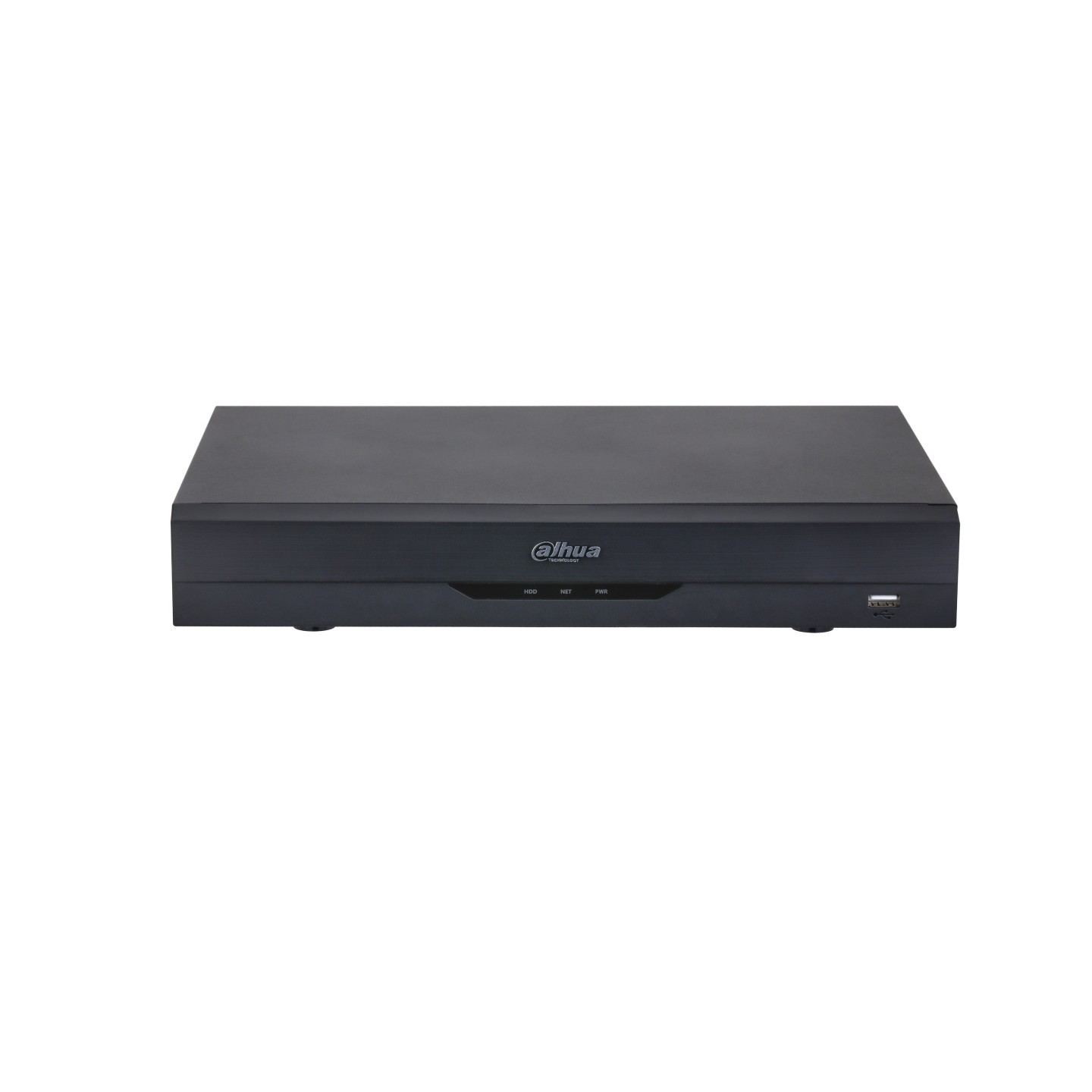

Dahua XVR - XVR5104HS-4KL-I3 - 4K 4channels H265+

• H.265+/H.265 dual-stream video compression
• Supports Full-channel AI-Coding
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth
• Up to 1 channel video stream ( analog channel ) Perimeter Protection
• Up to 4 channels video stream ( analog channel ) SMD Plus
• Up to 1 channel video stream (analog channel ) human face recognition
• IoT & POS functionalities

System

• Main Processor: Embedded Processor
• Operating System: Embedded LINUX

Perimeter Protection

• Performance : 1 channel, 10 IVS for each channel
• Object classification : Human/Vehicle secondary recognition for tripwire and intrusion
• AI Search : Search by target classification (Human, Vehicle)

Face Detection

• Performance : Max 8 face pictures/sec processing / 1 channel video stream face recognition, only support analog camera
• Stranger Mode : Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
• AI Search : Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
• Database Management : Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
• Database Application : Each database can be applied to video channels independently .
• Trigger Events : Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus

• Performance : 4 channels
• AI Search : Search by target classification (Human, Vehicle)

Video and Audio

• Analog Camera Input: 4 Channel, BNC
• HDCVI Camera: 4K,6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
• AHD Camera:4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
• TVI Camera: 4K,5MP, 3MP, 1080P@25/30, 720P@25/30fps
• CVBS Camera: PAL/NTSC
• IP Camera Input: 4+4 Channel, each channel up to 8MP
• Audio In/Out: 1/1, RCA
• Two-way Talk: Reuse audio in/Out, RCA

Recording

• Compression: AI Coding/H.265+/H.265/H.264+/H.264
• Resolution: 4K, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
• Record Rate: Main stream: 4K(1~7fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps);Sub steram:960H(1~15fps);;D1/CIF/QCIF(1~25/30fps)
• Bit Rate: 1Kbps ~ 6144Kbps Per Channel
• Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
• Audio Compression : AAC (only for the 1st channel), G.711A, G.711U, PCM
• Audio Sample Rate : 8 KHz, 16 bit Per Channel
• Audio Bit Rate : 64 Kbps Per Channel

Display

• Interface: 1 HDMI, 1 VGA
• Resolution: HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768; VGA: 1920×1080, 1280×1024, 1280×720, 1024×768
• Multi-screen Display: When IP extension mode not enabled: 16CH: 1/4/8/9/16; When IP extension mode enabled: 16CH: 1/4/8/9/16/25
• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

• Interface: 1 RJ-45 Port (1000M)
• Network Function: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
• Max. User Access: 128 users
• Smart Phone: iPhone, iPad, Android
• Interoperability: ONVIF 2.42, CGI Conformant

Video Detection and Alarm

• Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
• Alarm input: N/A
• Relay Output: N/A

Playback and Backup

• Playback: 4CH: 1/4
• Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode: USB Device/Network

Storage

• Internal HDD: 1 SATA Port, up to 10TB capacity
• eSATA: N/A

Auxiliary Interface

• USB: 2USB Ports (1 USB 2.0 , 1 USB 3.0)
• RS232: N/A
• RS485: 1 Port, for PTZ Control

Electrical

• Power Supply: DC12V/2A
• Power Consumption: <7W (Without HDD)

Construction

• Dimensions: Compact 1U, 260mm×237.9mm×47.6mm
• Net Weight: 0.53kg (without HDD)
• Gross Weight: 1.07kg
• Installation: Desktop installation

Environmental

• Operating Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
• Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

• Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

• FCC: Part 15 Subpart B
• CE: CE-LVD: EN 60950-1/IEC 60950-1
• CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
