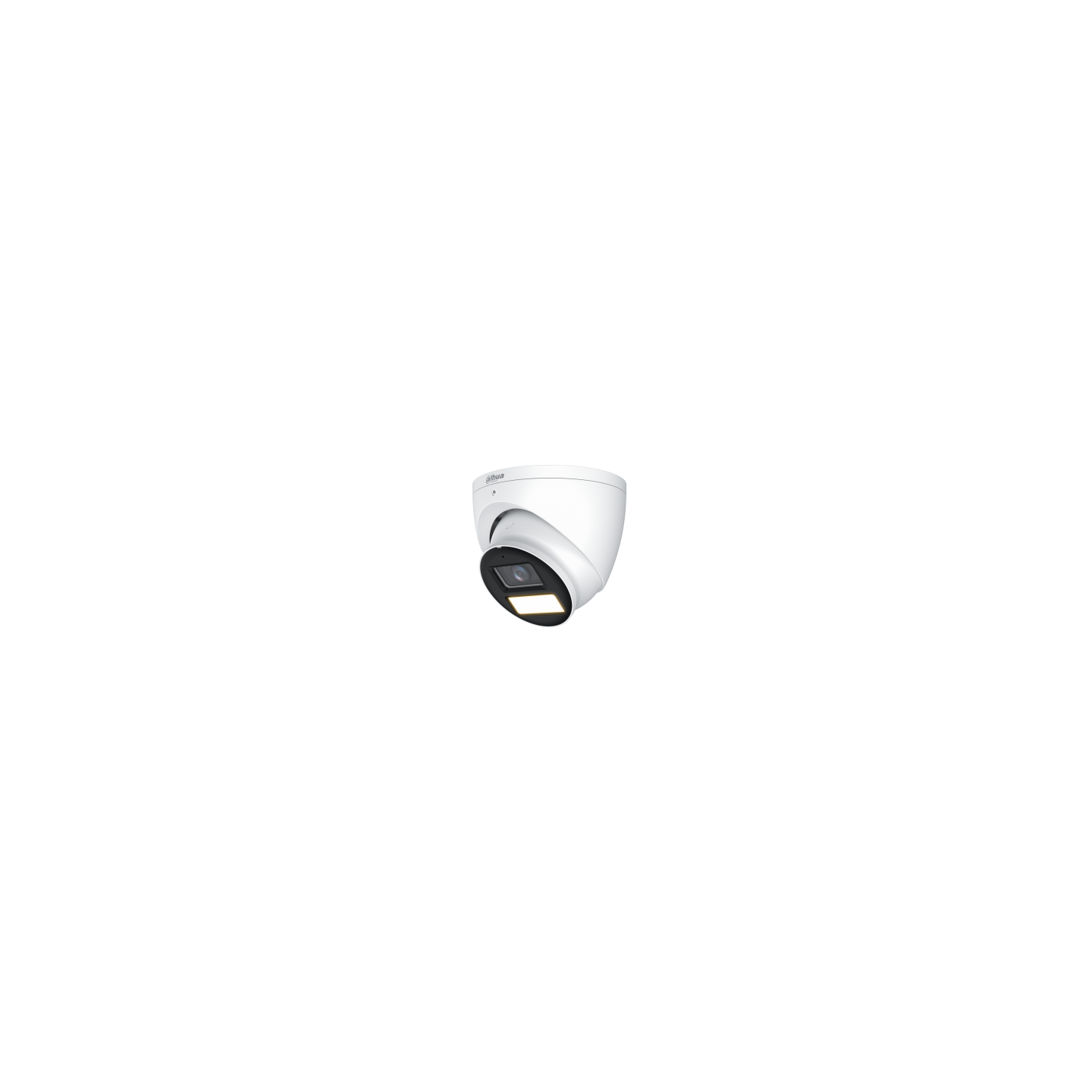

Dahua HDCVI 5.0MP Dome - HDW1509T-A-LED-0280B-S3 - 2.8mm
For 1509-S3 series; requires XVR firmware upgrade to use the 5MP 16:9 HDCVI camera (V4.001.0000001.0.R.200908 or later).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
* The parameters and datasheets below can only be applied to 1509-S3 series.
*In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version
- Max 25 fps@5MP (16:9 video output)
- Super Adapt, 120 dB true WDR, 3D NR
- 24/7 color imaging
- Smart Light+
- Smart Area Lighting
- Built-in Mic
- 40 m illumination distance
- CVI/CVBS/AHD/TVI switchable
- 2.8 mm fixed
- mm fixed lens
- IP67, 12 VDC
Camera
- Image Sensor : 5 MP CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/3 s–1/100,000 s; / NTSC: 1/4 s–1/100,000 s
- Min. Illumination : 0.0005 lux@F1.0 (Color, 30 IRE) / 0 lux (Illuminator on
- S/N Ratio : >65 dB
- Illumination Distance : 40 m (131 ft)
- Illuminator On/Off Control : Auto/Manual
- Illuminator Number : 4 (Warm light)
- Angle Adjustment : Pan: 0°–360° / Tilt: 2°–75° ./ Rotation: 0°–360°
Lens
- Lens Type : Fixed-focal
- Auto Focus : No
- Lens Mount : M12
- Focal Length : 2.8 mm
- Max. Aperture : F1.0
- Field of View : 2.8 mm: H: 112°; V: 57°; D: 132°
- Iris Control : Fixed
- Close Focus Distance : 2.8 mm: 2 m
Video
Video Frame Rate : CVI: / PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps / NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps / AHD: / PAL: 4M@25 fps / NTSC: 4M@30 fps / TVI: / PAL: 5M 16:9@20 fps; 4M@25 fps / NTSC: 5M 16:9@20 fps; 4M@30 fps / CVBS: / PAL: 960H / NTSC: 960H
- Resolution : 5M (2880 × 1620); TVI 5M 16:9 (2960 × 1665); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night : Color
- BLC : BLC; HLC; WDR; HLC-Pro
- WDR : 120 dB
- White Balance : Auto;Area white balance
- Gain Control : Auto/Manual
- Noise Reduction : 3D NR
- Illumination Mode : Smart Light
- Defog : Electronic defog
- Digital Zoom : 4×
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
- Pick-up Distance : 8 m (26.25 ft)
Certification
- Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035;
Audio
- Built-in Mic : Yes
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Alarm Output : 1 channel
Power
- Power Supply : 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
- Power Consumption : Max 9 W (12 VDC, LED on)
Environment
- Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity : <95% (RH), non-condensing
- Protection : IP67
- Anti-corrosion Level : Basic Protection
Structure
- Casing Material : Metal
- Product Dimensions : Φ106.0 mm × 96.9 mm (Φ4.17" × 3.81")
- Net Weight : 0.49 kg (1.08 lb)
- Gross Weight : 0.68 kg (1.50 lb)
- Installation : Wall mount; ceiling mount; vertical pole mount
| Full-Color | Yes |
| Camera Resolution | 5.0 MP |
| Illumination | Up to 40m |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Distance | Up to 40m |
| Audio | Built-in Mic |
