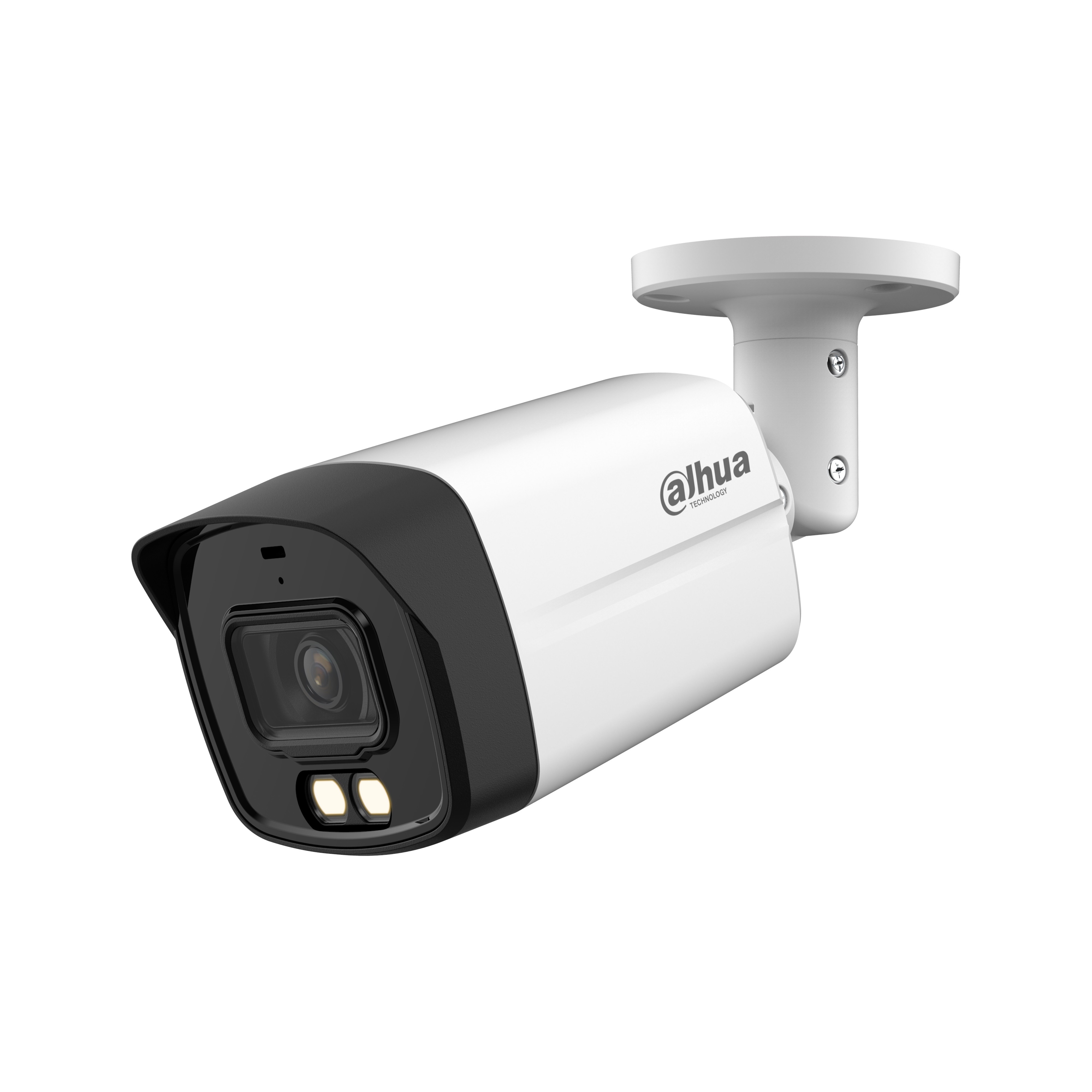

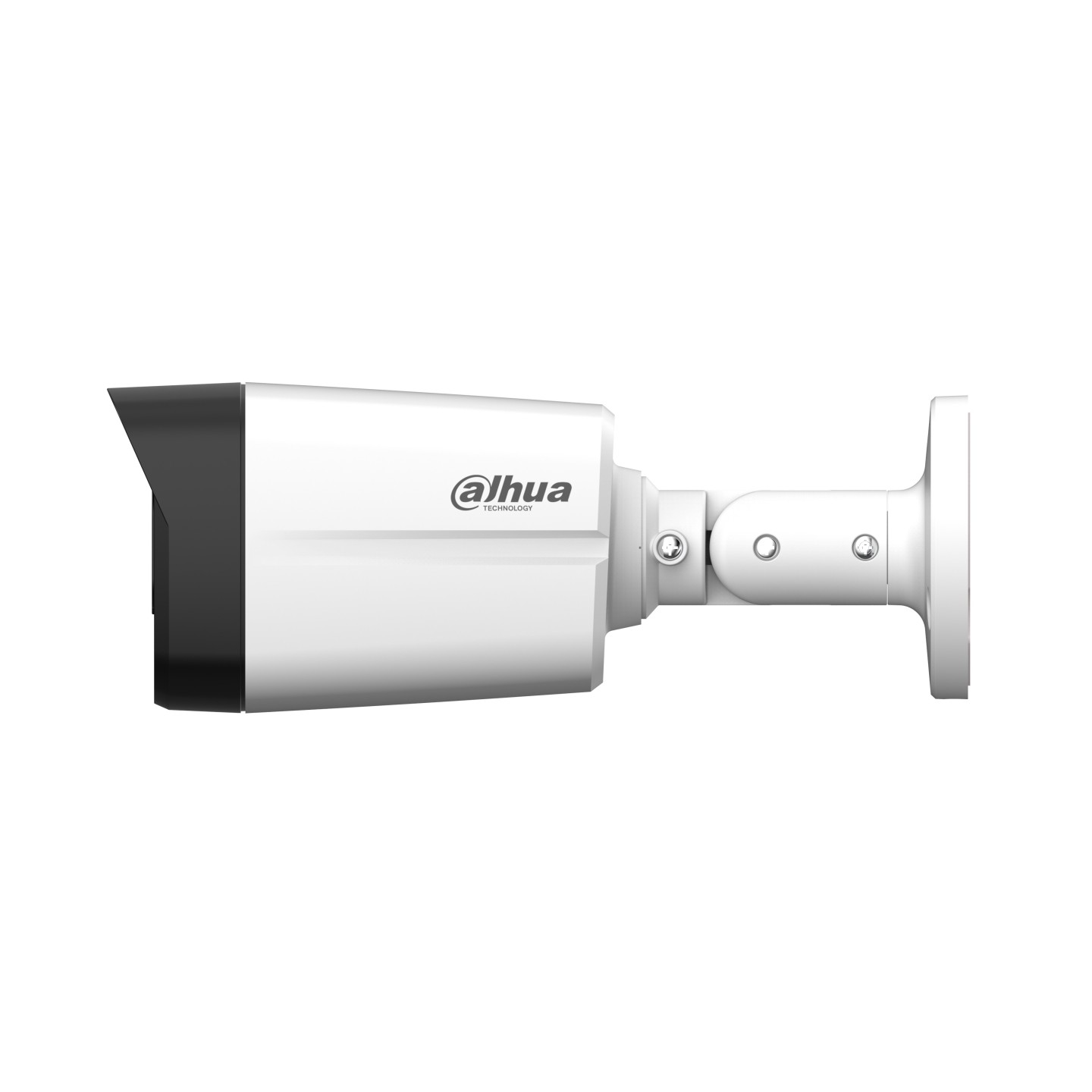

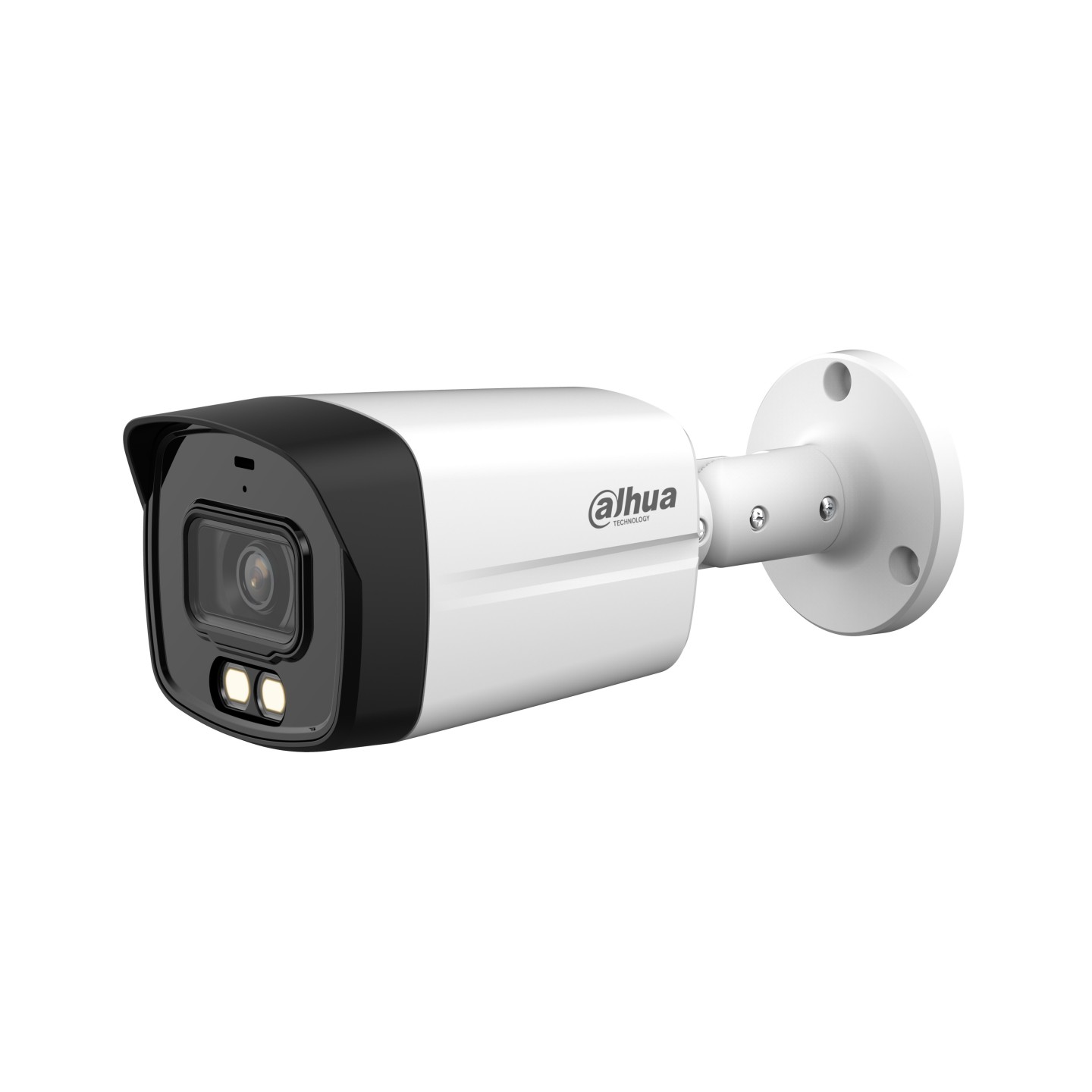

Dahua HDCVI 5.0MP Bullet 3.6mm Dual Illuminator - HFW1509TLM-IL-A-0360B-S2 - HDCVI 5.0MP Bullet 3.6mm Dual Illuminator
Requires firmware V4.001.0000001.0.R.200908+ for 5MP 16:9 HDCVI; up to 25 fps; 120 dB true WDR; 3D NR; dual illuminator.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
- Max 25 fps@5MP (16:9 video output)
- 120 dB true WDR, 3D NR
- Smart Dual Illuminators
- 40 m illumination distance
- Super Adapt
- Built-in MIC
- 3.6 mm fixed lens
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC
Camera
- Pixel : 5MP
- Image Sensor : 5MP CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/3 s–1/100000 s / NTSC: 1/4 s–1/100000 s
- Min. Illumination : 0.001 lux@F1.0 (Color, 30 IRE) / 0.0001 lux@F1.0 (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : >65 dB
- Illumination Distance : IR: 40 m / Warm light: 40 m
- Illuminator On/Off Control : Auto; manual
- Illuminator Number : 2 (IR light) / 2 (Warm light)
Lens
- Lens Type : Fixed-focal
- Mount Type : M12
- Focal Length : 3.6 mm
- Max. Aperture : F1.0
- Field of View : 3.6 mm: H: 89°; V: 47°; D: 104°
- Iris Control : Fixed
- Close Focus Distance : 3.6 mm: 2.2 m
Video
- Video Frame Rate : CVI : PAL : 5M@25 fps; 4M@25 fps; 1080p@25 fps / NTSC : 5M@25 fps; 4M@30 fps; 1080p@30 fps; / AHD : PAL: 4M@25 fps; / NTSC : 4M@30 fps; / TVI : PAL: 4M@25 fps; / NTSC: 4M@30 fps; / CVBS: PAL: 960H; / NTSC: 960H
- Resolution : 5M (2880 × 1620); / 4M (2560 × 1440); / 1080p (1920 × 1080); / 960H (960 × 576/960 × 480)
- Day/Night : Auto (ICR)/Color/B/W
- BLC : BLC; HLC; WDR; HLC-Pro
- WDR : 120 dB
- White Balance : Auto; Area white balance
- Gain Control : Auto; manual
- Noise Reduction : 3D NR
- Defog : Electronic defog
- Digital Zoom : 4×
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
- Illumination Mode : Smart IR&WL; WL Mode; IR Mode
Certifications
- Certifications : CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024: 2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017) / FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) / UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input : One channel built-in MIC
Power
- Power Supply : 12 VDC ± 30%
- Power Consumption : Max 5.7 W (12 VDC, LED on)
Environment
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C
- Protection : IP67
Structure
- Casing Material : Metal front cover + plastic rear barrel + metal bracket
- Product Dimensions : 198.4 mm × 80.2 mm × 76.2 mm
- Packaging Dimensions : 240 mm × 115 mm × 111 mm
- Net Weight : 0.34 kg
- Gross Weight : 0.51 kg
- Installation : Wall mount; ceiling mount; vertical pole mount
| Housing Type | Bullet |
| Camera Protocols | AHD/HDCVI/TVI/CVBS |
| Full-Color | Yes |
| Camera Resolution | 5.0 MP |
| Illumination | Up to 40m |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| IR Distance | Up to 40m |
| WDR | 120dB true WDR |
| Audio | Built-in Mic |
