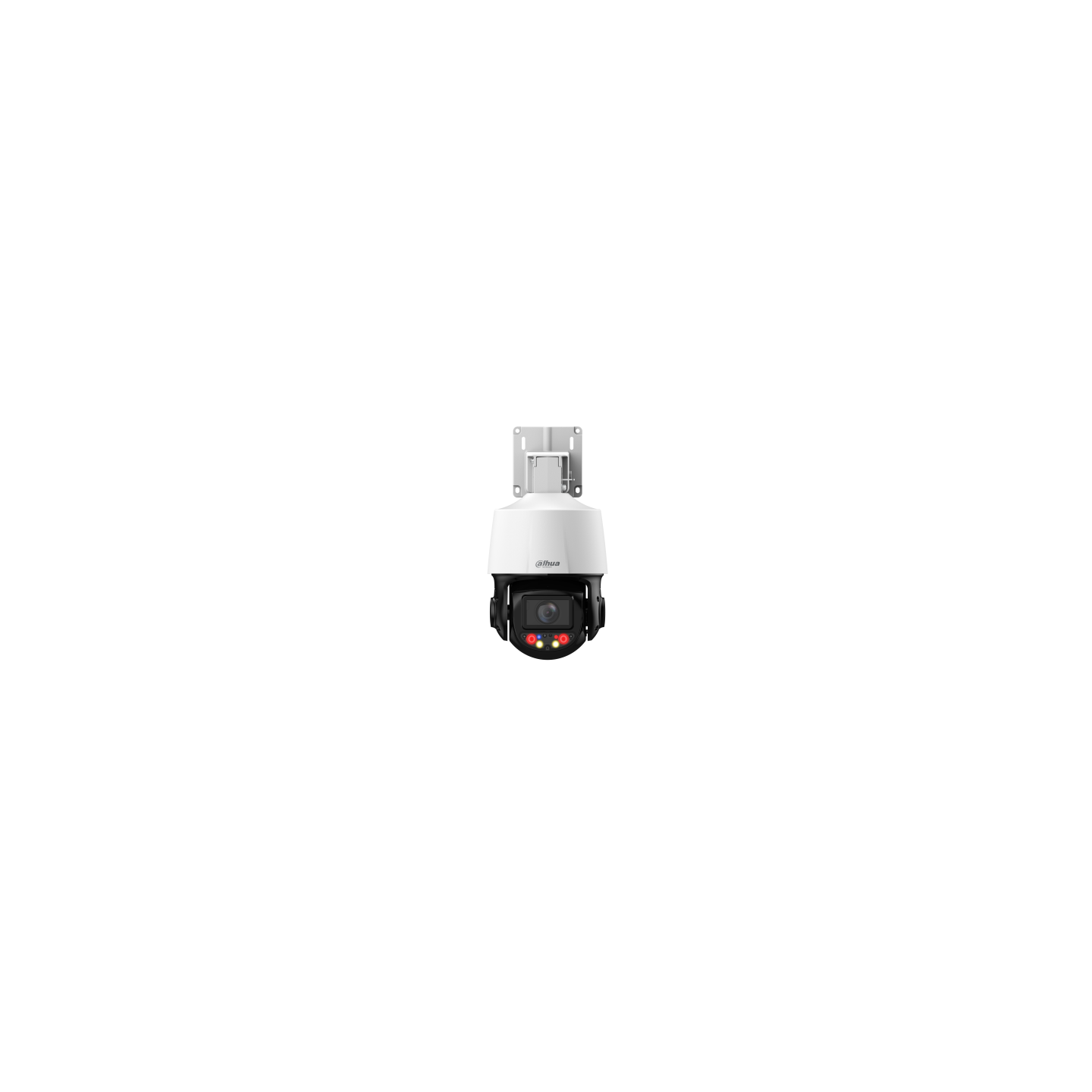

Dahua IP 4.0MP PTZ 10x Optical Zoom Wizsense - SD3E410DB-GNY-A-PV1

• 1/2.8" 4Megapixel CMOS.
• 10x optical zoom.
• Max. 25/30fps@4M.
• IR distance up to 70 m.
• Warm light illumination distance up to 30 m.
• SMD 3.0.
• Perimeter protection.
• Face detection.
• Built-in Mic and Speaker for Two-way Talk.
• IP66.
• Sound and light alarm (red and blue lights).

Camera

• Image Sensor : 1/2.8" CMOS
• Pixel : 4 MP
• Max. Resolution : 2560 (H) × 1440 (V)
• ROM : 128 MB
• RAM : 512 MB
• Electronic Shutter Speed : 1/1 s–1/30,000 s
• Scanning System : Progressive
• Min. Illumination : Color: 0.005 lux@F1.6 / B/W: 0.0005 lux@F1.6 / 0 lux (IR light on)
• Illumination Distance : 70 m (164.04 ft) (IR) / 30 m (98.43 ft) (Warm light)
• Illuminator On/Off Control : Zoom Prio; Manual; Auto; Off
• Illuminator Number : 2 (IR) / 2 (Warm light) / 1 (Red light) / 1 (Blue light)

Lens

• Focal Length : 4 mm– 40 mm
• Max. Aperture : F1.6–F3.0
• Field of View : H: 50.7°–11.0°; / V: 27.6°–6.3°; / D: 57.6°–12.5°
• Optical Zoom : 10×
• Focus Control : Auto; semi-auto; manual
• Close Focus Distance : 1m- 1.5 m (4.92 ft)
• Iris Control : Fixed

PTZ

• Pan/Tilt Range : Pan: 0° to 355° / Tilt: –15° to +90°
• Manual Control Speed : Pan: 0.1°/s–36°/s / Tilt: 0.1°/s–25.8°/s
• Preset Speed : Pan: 24.32°/s; Tilt: 18.75°/s
• Preset : 300
• Power-off Memory : Yes
• Idle Motion : Preset

Intelligence

• IVS (Perimeter Protection) : Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
• Face Detection : Supports face detection, snapshot, and face enhancement; / Supports face cutout: Face, one-inch photo; / Capturing strategies include real-time capturing and quality first
• Auto Tracking Lite : Yes
• SMD : Yes

Active Deterrence

• Light Warning : Red and blue light warning / Flash duration: 5 s–30 s / Flash frequency: high, medium, low
• Sound Warning : Offers 11 types of sound alarms, and supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times

Video

• Video Compression : H.264H;H.264B;Smart H.265+; H.264;H.265;MJPEG(Sub Stream);Smart H.264+
• Streaming Capability : 3 streams
• Resolution : 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p(1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288)
• Video Frame Rate : Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) / Sub stream 1: D1/CIF/VGA@ (1–25/30 fps) / Sub stream 2: 720p @(1–25/30 fps)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 96 kbps–14848 kbps / H.265: 38 kbps–8960 kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Yes
• WDR : 120 dB
• HLC : Yes
• White Balance : Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
• Gain Control : Auto; manual
• Noise Reduction : 2D NR; 3D NR
• Motion Detection : Yes
• Region of Interest (RoI) : Yes
• Image Stabilization : Electronic (EIS)
• Defog : Electronic
• Digital Zoom : 16×
• Image Rotation : 180°
• S/N Ratio : ≥55 dB

Audio

• Audio Compression : G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Network

• Network Port : RJ-45 (10/100 Base-T)
• Network Protocol : FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP
• Interoperability : CGI;SDK;ONVIF (Profile S&G&T);P2P
• Streaming Method : Unicast/Multicast
• User/Host : 20 (total bandwidth: 64 M)
• Storage : FTP/SFTP; Micro SD card (512 GB); NAS
• Browser : IE 9 and later versions / Chrome 41 and later versions / Firefox 50 and later versions / Safari 10 and later versions
• Management Software : DMSS;DSS Pro
• Mobile Client : iOS;Android

Certification

• Certifications : CE: EN55032/EN55024/EN50130-4 / FCC: Part15 subpartB, ANSI C63.4-2014

Port

• Audio Input : 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))
• Audio Output : 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))
• Alarm Linkag : Capture; recording; send email; preset; alarm digital input; audio; warning light
• Alarm Event : Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
• Alarm I/O : 1/1

Power

• Power Supply : 12 VDC, 2 A ± 10% / PoE+ (802.3at)
• Power Consumption : Basic: 3 W Max.: 12 W (Warning light + illuminator + PTZ + speaker + heating glass) (12 VDC) / Basic: 4 W Max.: 14 W (Warning light + illuminator + PTZ + speaker + heating glass) (PoE)

Environment

• Operating Temperature : –30 °C to +60 °C (–22 °F to +140 °F)
• Operating Humidity : ≤95%
• Protection : IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

• Product Dimensions : 142.6 mm × 140 mm × 236.1 mm (5.61" × 5.51" ×
• 9.29")
• Net Weight : 1.5 kg (3.31 lb)
• Gross Weight : 2.1 kg (4.63 lb)
