EcoFlow PowerOcean DC Fit Converter - DC Fit Converter
PV-coupled retrofit battery storage solution with 5 kW rating; direct connection to solar sources; 1- or 3-phase, 2 MPPT, IP65, LiFePO4 battery.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Output Power (W) | greater than3000 W |
|---|
An easy and unique PV-coupled retrofit battery storage solution.

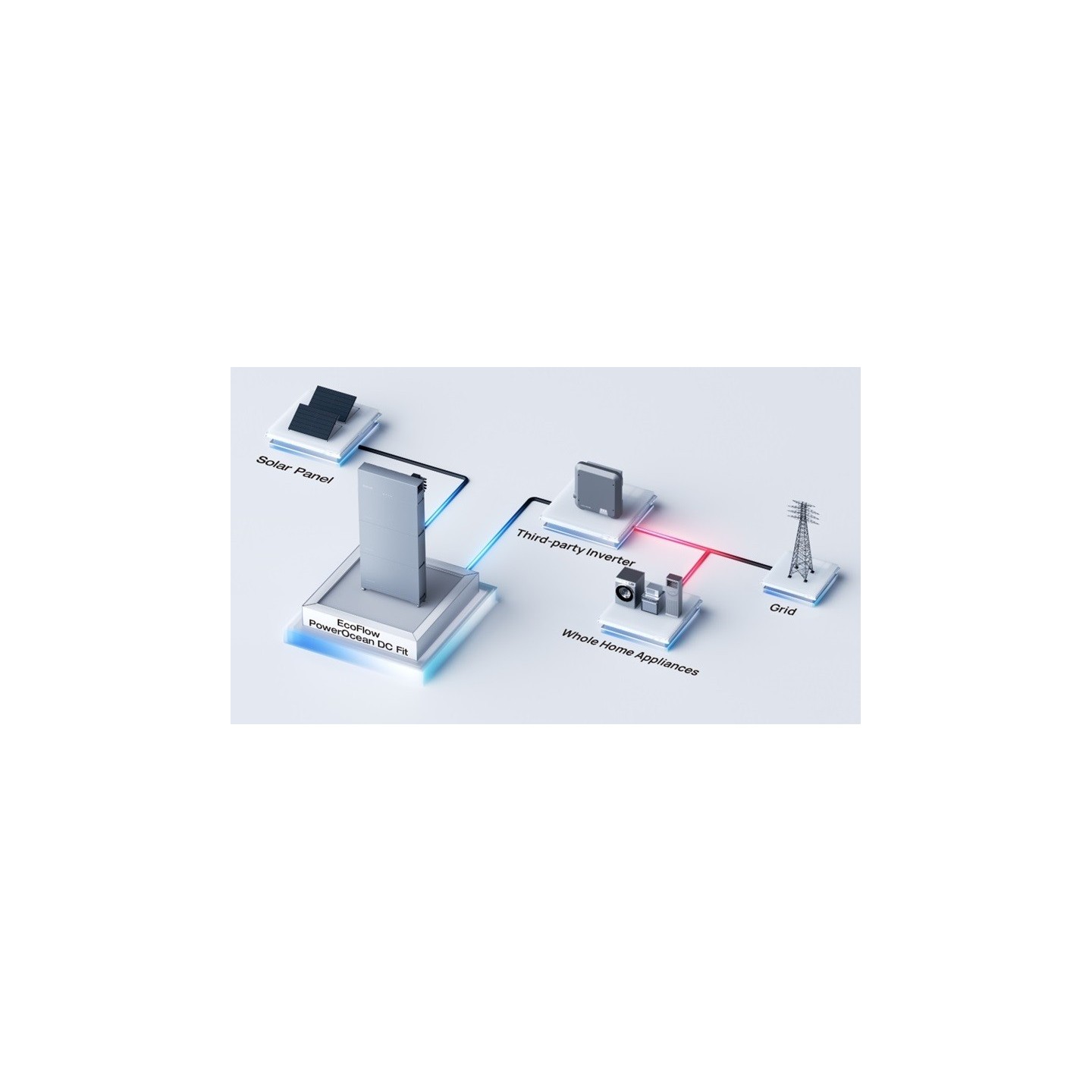

- With EcoFlow's unique PV-coupling technology, the PowerOcean DC Fit enables direct connection of the battery to the solar system on the PV side, eliminating the need for an additional storage inverter. This streamlined installation process saves valuable time while maximizing the efficiency of user’s existing solar system. By seamlessly integrating up to 15kWh of battery storage into your home solar system, the PowerOcean DC Fit empowers users to achieve energy self-sufficiency easily and cost-effectively
- Easy to retrofit Simply by connecting battery storage with solar panels
- Compared to conventional hybrid inverter and home battery systems,the PowerOcean DC Fit seamlessly integrates battery storage into your existing solar system, eliminating the need for an additional storage inverter. This innovative solution efficiently boosts your energy self-sufficiency without requiring significant modifications to your current solar inverter
No storage inverter is needed
- Seamlessly adding battery storage to your existing solar system without installing an additional storage inverter. Modular design, expandable anytime Starting with 5kWh per battery pack and expandable to up to 15kWh anytime when needed, helping users increase their energy self-sufficiency rate with more flexibility
*Needs 1 x EcoFlow PowerOcean LFP Battery 5KWh to work
**Power Ocean battery sold seperately
Technical Parameters
- Coupling Method : PV coupling
Input (PV)
- Maximum PV input power : 5kW (2.5kW * 2)
- Maximum input voltage : 1000V d.c.
- Operating voltage range :150V~800V d.c.
- Starting voltage : 150V
- Maximum PV current per string :24A
- Maximum operating current per string :12A
- Number of PV strings : 2
Output
- Supported solar inverter type : Single phase / Three phase
- Output voltage range : 150V~800V d.c.
- Maximum output power : 5kW
- Maximum output current : 24A
- Output current per string : 12A
Battery
- Battery material :LFP
- Nominal voltage : 800V
- Operating voltage range : 720V~960V
- Output voltage of the battery pack : 800V
- Capacity of each battery pack : 5.1kWh
- Maximum charging power : 2.5kW
- Maximum discharging power : 3.3kW
- Cooling method : Natural convection
Protection
- Direct current insulation resistance testing
- Input reverse polarity protection
- Direct current switch
- Overcurrent protection
- Overvoltage/Undervoltage protection
- Low/High temperature protection
Other Specifications
- Operating temperature range : -20°C~50°C
- Operating humidity : 0~100% RH
- Maximum operating altitude : 3000m
- Converter weight : 20kg

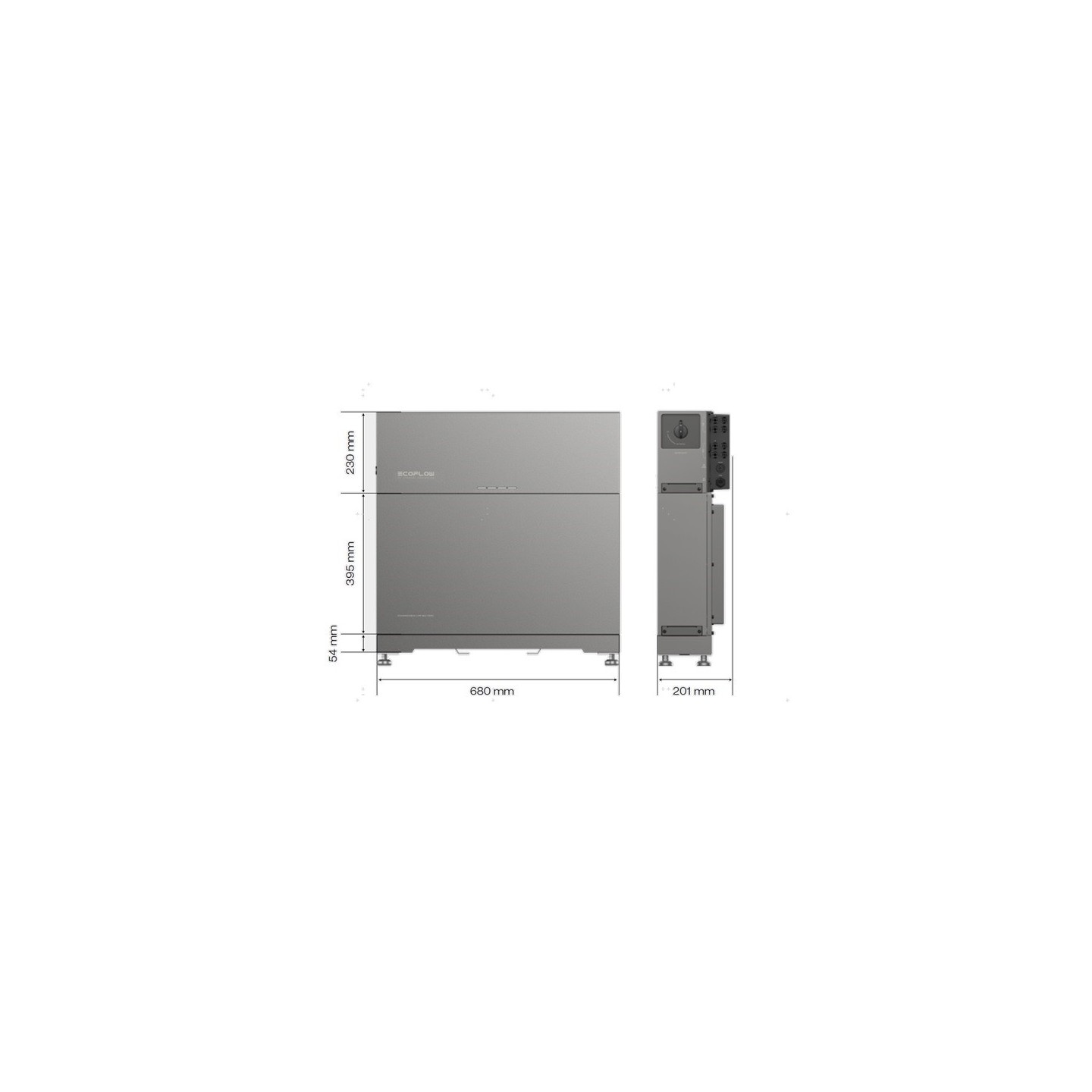

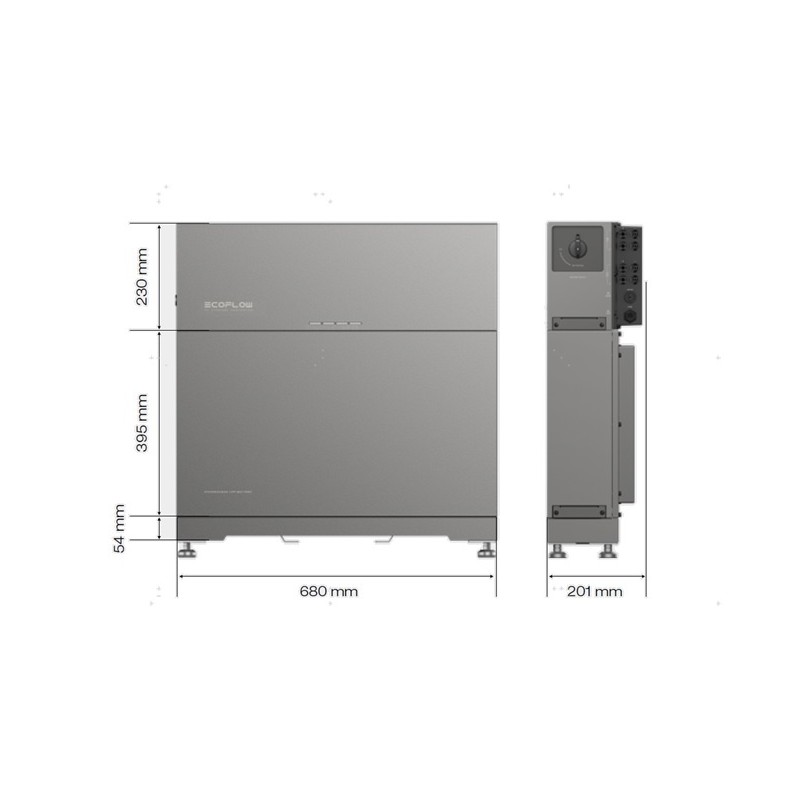

- Converter dimensions(W*D*H) : 680mm*201mm*230mm (±1mm)
- 1 battery pack weight : 59.2kg
- 1 battery pack dimensions(W*D*H) : 680mm*183mm*479mm (±1mm)
- Protection level : P65
- Communication method :RS485, Wi-Fi, WAN, Bluetooth
- Noise level : ≤35dB
Compliance
- Converter safety standard : IEC/EN62109-1
- Battery safety standard : IEC/EN62619, IEC/EN62040-1,IEC/EN62477-1, ISO13849
- Protective class : I
| Power Rating | 5KW |
| Battery Type | Lithium Ferro Phosphate (LifePO4 or LFP) |
| Phase | 1 or 3 |
| Solar Panel input | 5000 |
| Number of MPPT | 2 |
| IP Rating | 65 |
