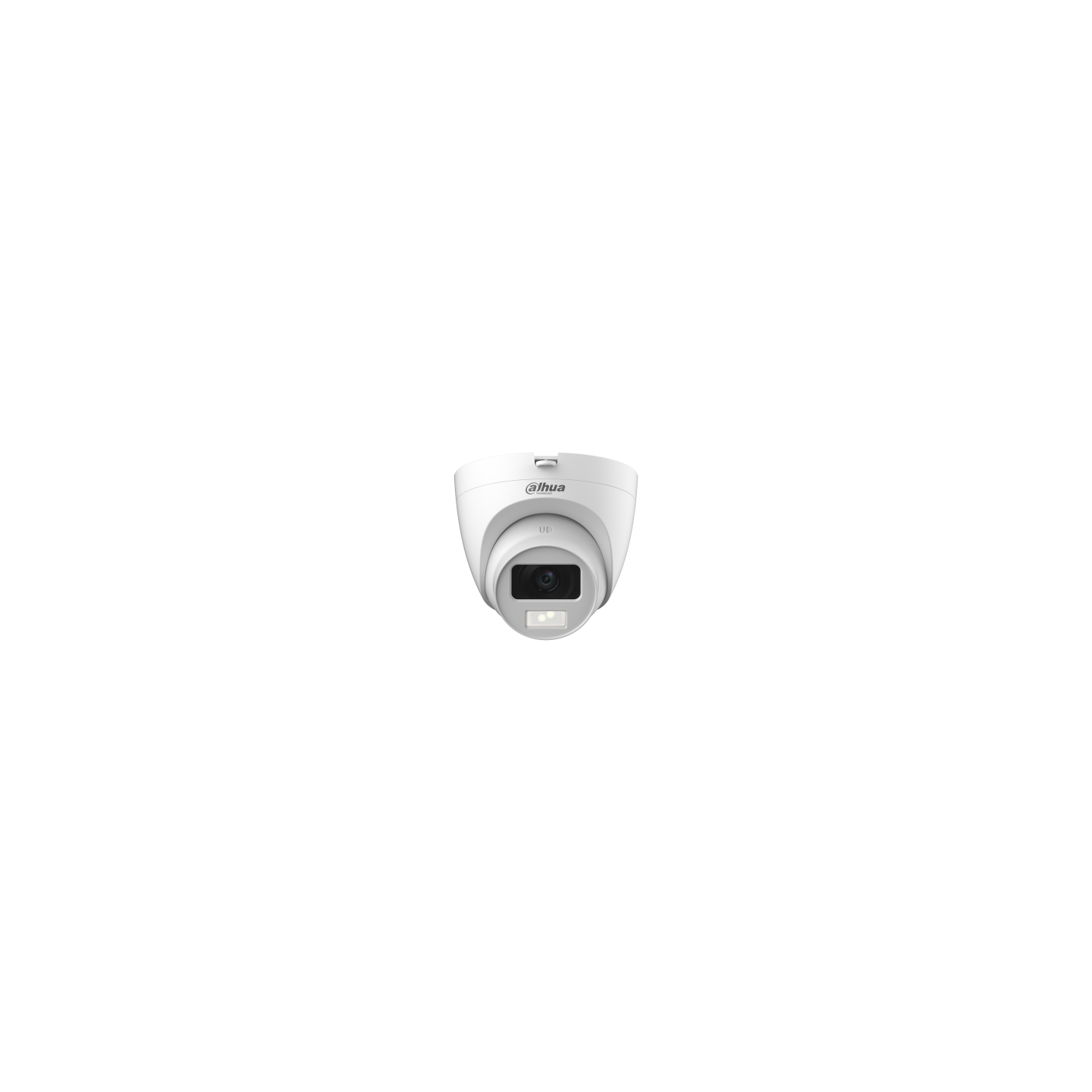

Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator - HDW1500CLQ-IL-A-0280B-S2 - Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator
5.0 MP dome camera with fixed 2.8mm lens, dual illumination up to 20 m, DWDR, built-in mic.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
* The parameters and datasheets below can only be applied to1500-IL series.
* In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
- Max 25 fps@5MP (16:9 video output).
- Smart Dual Light.
- 20 m illumination distance.
- Super Adapt.
- Built-in MIC.
- Quick-to-install eyeball saves installation time.
- 2.8 mm fixed lens
- CVI/CVBS/AHD/TVI switchable.
- IP67, 12 VDC.
Camera
- Image Sensor : 5 MP CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
- Min. Illumination : 0.05 lux@F1.6 (Color, 30 IRE) / 0.005 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : >65 dB
- Illumination Distance : IR: 20 m / Warm light: 20 m
- Illuminator On/Off Control : Auto
- Illuminator Number : 2 (Warm light); 2 (IR light)
Lens
- Lens Type : Fixed-focal
- Auto Focus : No
- Lens Mount : M12
- Focal Length : 2.8 mm
- Max. Aperture : F2.0
- Field of View : 2.8 mm: H: 102°; V: 56°; D: 125°
- Iris Control : Fixed
- Close Focus Distance : 2.8 mm: 0.5 m
Video
- Video Frame Rate : CVI: PAL: 5M@25 fps; 4M@25 fps;1080p@25 fps; NTSC: 1080p@30 fps; / AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; / TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; / CVBS: PAL: 960H; NTSC: 960H
- Resolution : 5M (2880 × 1620); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night : Auto(ICR)/Color/B/W
- BLC : BLC; HLC; DWDR
- WDR : DWDR
- White Balance : Auto;Area white balance
- Gain Control : Auto
- Noise Reduction : 3D NR
- Illumination Mode : Smart IR&WL; WL Mode; IR Mode
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
Certification
- Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035; / FCC: 47 CFR FCC Part 15, Subpart B
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input : 1 channel built-in mic
Power
- Power Supply : 12 VDC ± 30%
- Power Consumption : Max 4.5W (12 VDC, IR on)
Environment
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C
- Storage Humidity : <95% (RH), non-condensing
- Protection : IP67
Structure
- Casing Material : Plastic
- Product Dimensions : Φ97.1 mm × 93.8 mm
- Net Weight : 0.19 kg
- Gross Weight : 0.3 kg
- Installation : Wall mount; ceiling mount; vertical pole mount
| Housing Type | Dome |
| Full-Color | Yes |
| Camera Resolution | 5.0 MP |
| Illumination | Up to 20m |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Distance | Up to 20m |
| WDR | DWDR |
| Audio | Built-in Mic |
