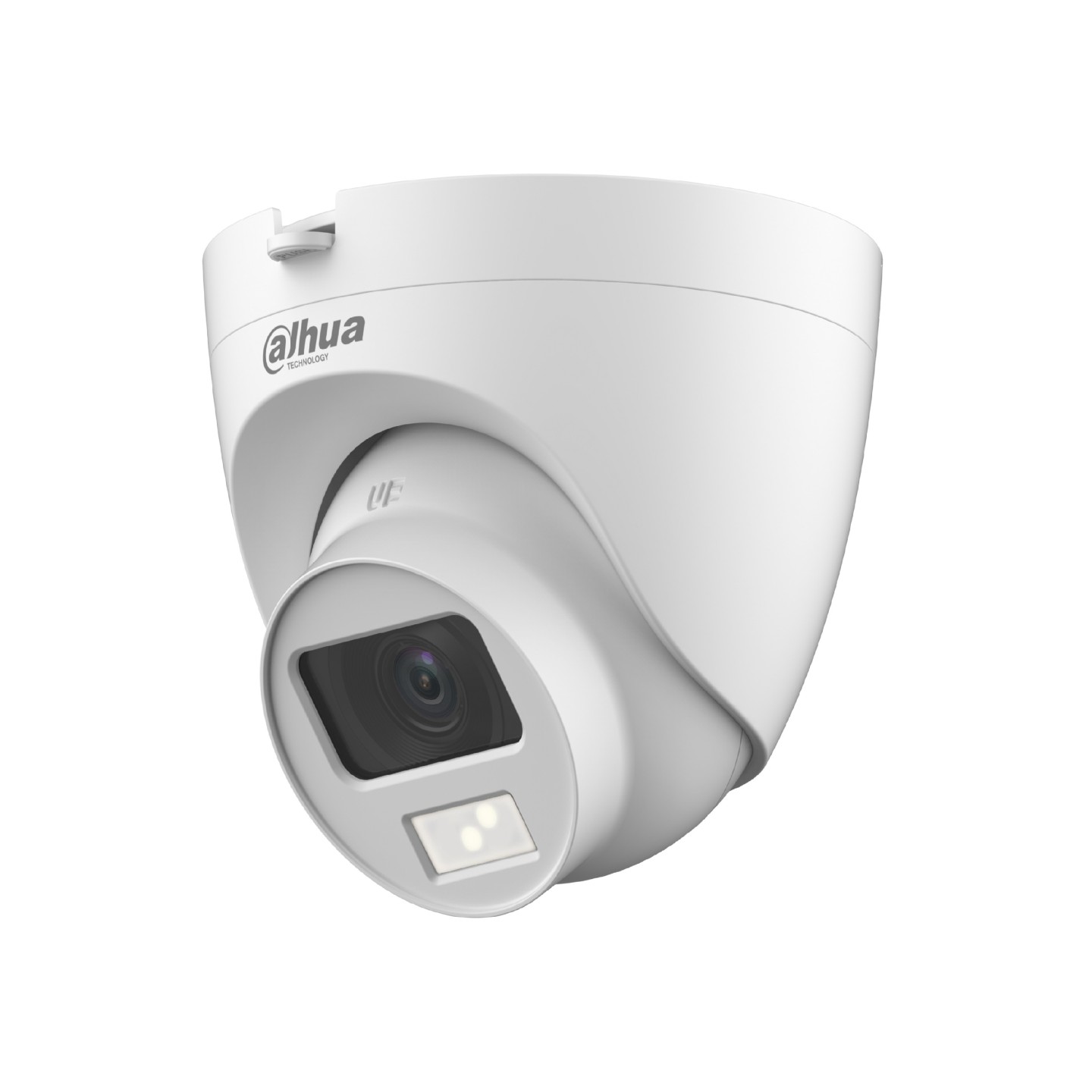

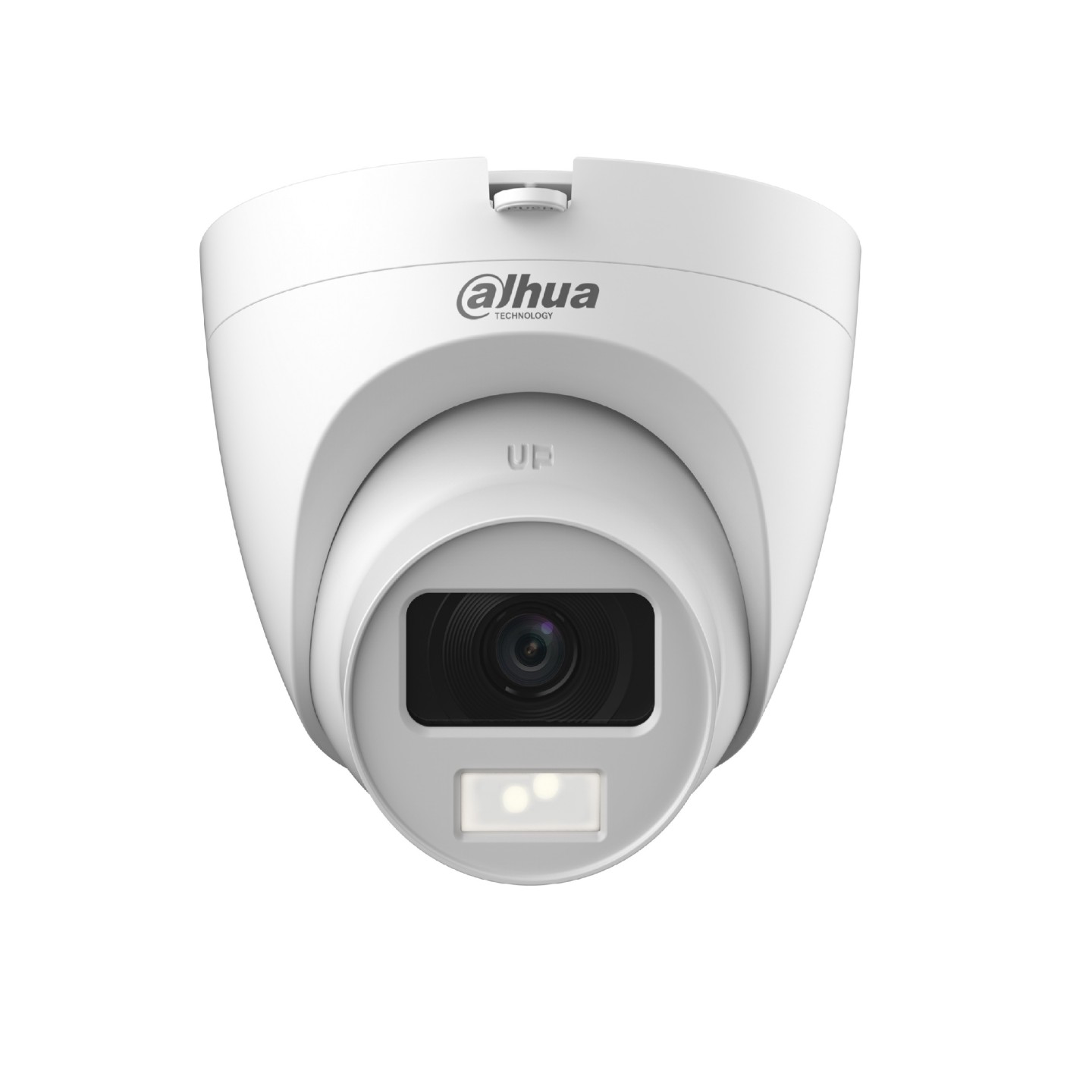

Dahua HDCVI - HDW1200CLQ-IL-A-0280B-S6 - 2.0MP Dome 2.8mm
Requires XVR firmware upgrade for Smart Dual Light; 1080p at 30fps; 3D NR; up to 20 m illumination.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version
- Max. 30 fps@1080p
- 3D NR
- Smart Dual Light
- 20 m illumination distance
- Super Adapt
- Built-in mic
- Quick-to-install eyeball saves installation time
- 2.8 mm fixed lens
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC
Camera
- Image Sensor : 2 MP CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
- Min. Illumination : 0.01 lux@F2.0 (Color, 30 IRE) / 0.001 lux@F2.0 (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : >65 dB
- Illumination Distance : IR: 20 m / Warm light: 20 m
- Illuminator On/Off Control : Auto
- Illuminator Number : 2 (Warm light); 2 (IR light)
Lens
- Lens Type : Fixed-focal
- Auto Focus : No
- Lens Mount : M12
- Focal Length : 2.8 mm
- Max. Aperture : F2.0
- Field of View : 2.8 mm: H: 102°; V: 60°; D: 129°
- Iris Control : Fixed
- Close Focus Distance : 2.8 mm: 0.5 m
Video
- Video Frame Rate : CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; / AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; / TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; / CVBS: PAL: 960H; NTSC: 960H
- Resolution : 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night : Auto(ICR)/Color/B/W
- BLC : BLC; HLC; DWDR
- WDR : DWDR
- White Balance : Auto;Area white balance
- Gain Control : Auto
- Noise Reduction : 3D NR
- Illumination Mode : Smart IR&WL; WL Mode; IR Mode
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
Certification
- Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035; / FCC: 47 CFR FCC Part 15, Subpart B
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input : 1 channel
Power
- Power Supply : 12 VDC ± 30%
- Power Consumption : Max 2.6W (12 VDC, IR on)
Environment
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C
- Storage Humidity : <95% (RH), non-condensing
- Protection : IP67
Structure
- Casing Material : Plastic
- Product Dimensions : Φ97.1 mm × 93.8 mm
- Net Weight : 0.18 kg
- Gross Weight : 0.29 kg
- Installation : Wall mount; ceiling mount; vertical pole mount
| Housing Type | Dome |
| Camera Protocols | AHD/CVI/TVI/CVBS |
| Full-Color | Yes |
| Camera Resolution | 2.0MP |
| Illumination | Up to 20m |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Distance | Up to 20m |
| WDR | DWDR |
| Audio | Built-in Mic |
