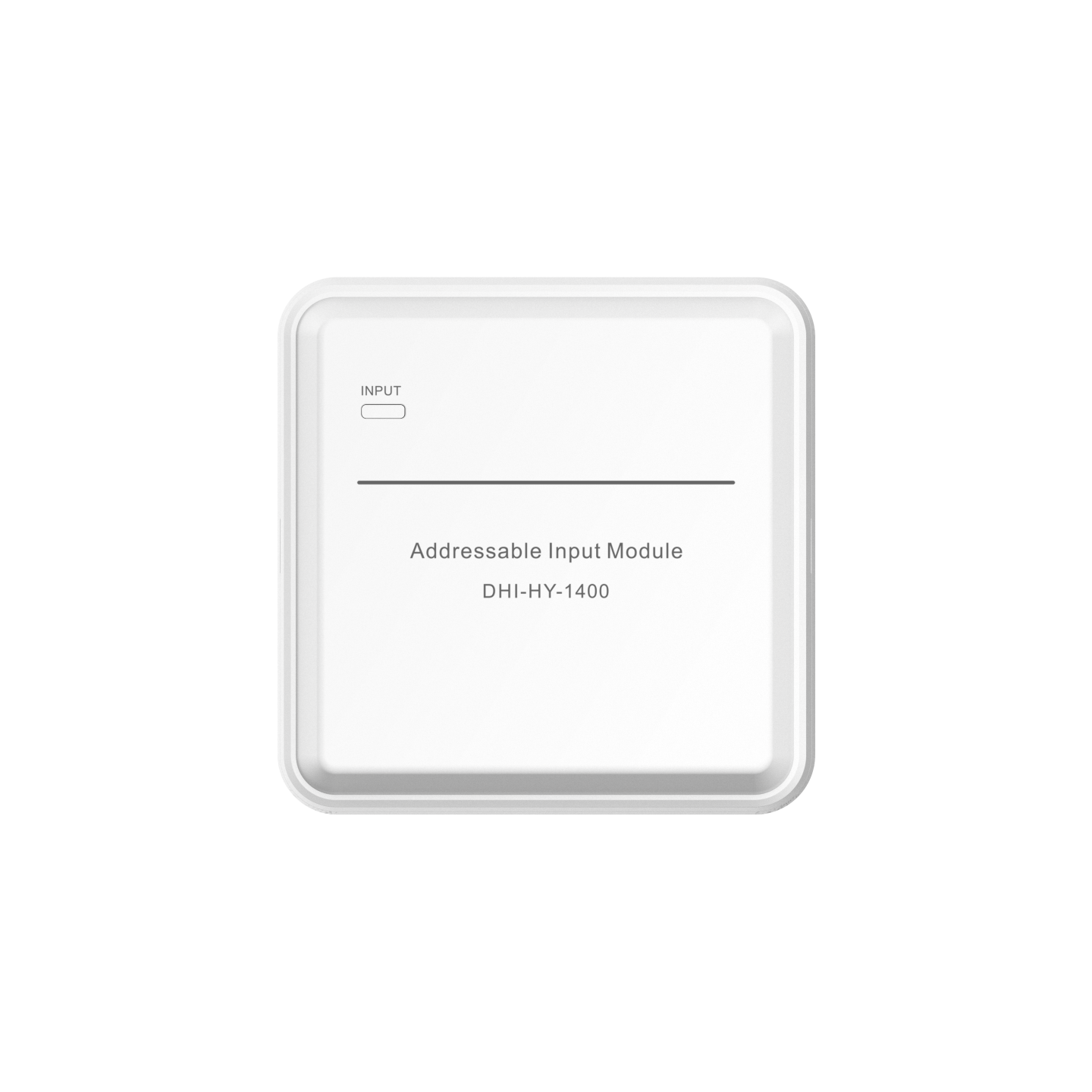

Dahua Addressable Fire Alarm Module Input - HY-1400-CTXF - without Base
Two-wire, polarity-free input with built-in microprocessor for stable communication; ultra-low monitoring and operating currents; plug-in installation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Convenient wiring: two-wire, polarity-free
- Reliable communication: built-in microprocessor, performance is stable
- Ultra-low power consumption: ultra-low monitoring current and operating current
- Simple installation: with a plug-in structure, easy to install and construct
Electrical
- Working Voltage : 24V DC
- Current : Monitoring current: ≤ 150μA / Operating current: ≤ 190μA
- Indicator : Red indicator flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned
Communication
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1–254
- Communication Distance : ≤ 1500 m
Environment
- Operating Temperature : –10°C to +55°C (+14°F to +131°F)
- Storage Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : ≤ 95% RH (no condensation)
Construction
- Color : White
- Dimensions (with base) : 90 mm × 90 mm × 37 mm (3.54" × 3.54" × 1.46")
- Weight (with base) : 103 g (0.23 lb)
- Compliance Standard : EN54-18
