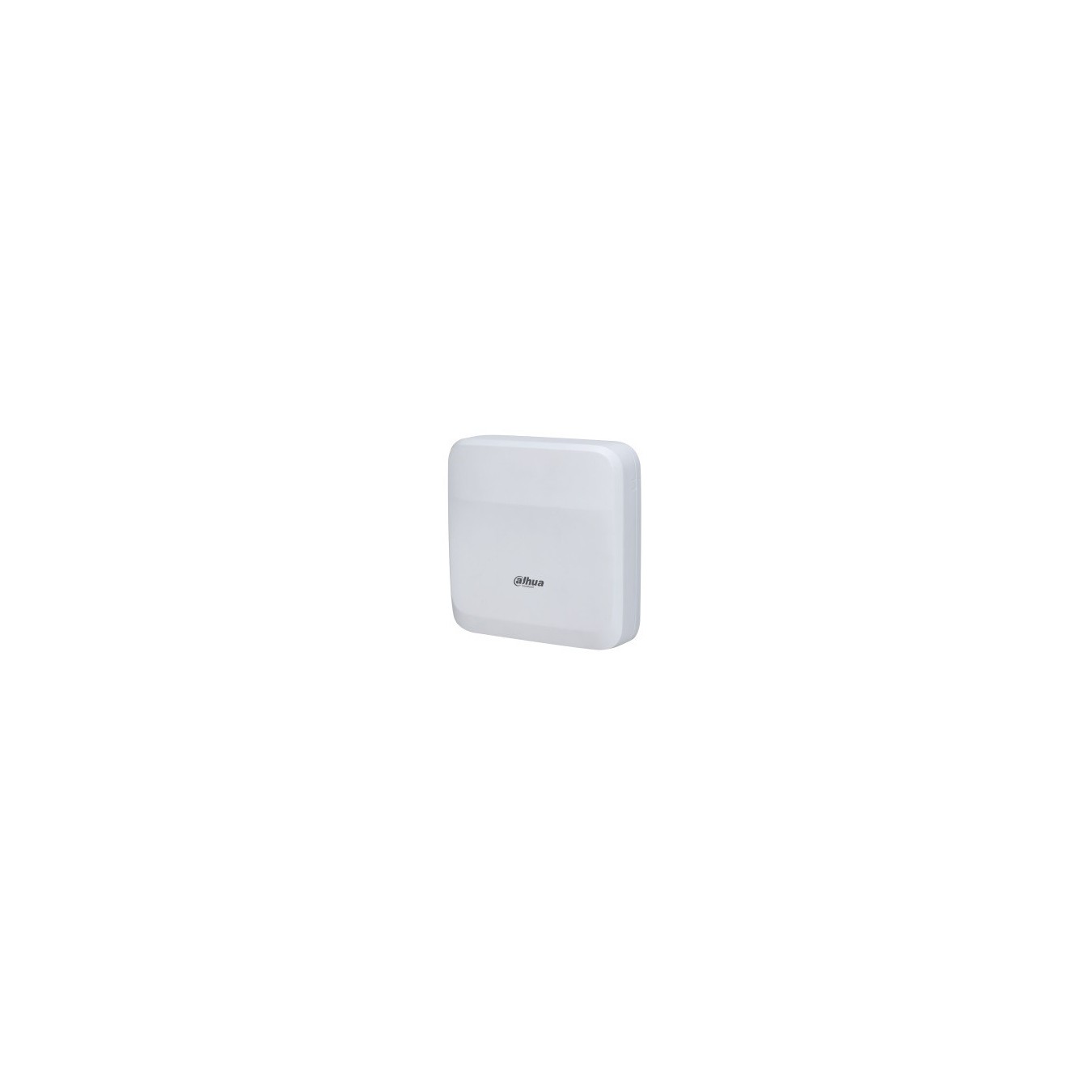

Dahua AC Two Door One Way - ASC3202B - Two Door One Way

• Bulit-in Web server, features main and sub control modes
• The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms
• Supports 1000 users, 3000 fingerprints, and 300,000 records
• Accesses card readers through Wiegand and RS-485 protocols
• Supports TCP and IP connection, and standard PoE
• Supplies power to the lock through its 12 VDC output power supply, which has a maximum output current of 1000 mA
• Supports configuring the hardware I/O port and exporting configuration diagrams
• Retains stored data even while powered off

System

• Main Processor : Embedded processor
• Internet Protocol : P2P; IPv4; DNS; DDNS; TCP; UDP
• Interoperability : ONVIF; CGI
• SDK and API : Yes

Basic

• Product Type : Controller
• Buzzer : Yes
• Casing Material : PC + ABS

Function

• Unlock Mode : Card; remote; password; fingerprint; combination unlock
• Period List : 128 periods
• Holiday Period : 128 periods
• Network Update : Yes
• Blocklist/Allowlist : Yes
• Peripheral Card Reader : Supports 2 × RS-485 card readers; 2 × Wiegand card readers
• Multi-user Authentication : Yes (Use with platform)
• Real-time Monitoring : Yes
• Multi-factor Authentication : Yes
• Web Configuration : Yes

User

• User (Card) Type : General users, patrol users, blocklist users, VIP users, guest users, custom user 1, custom user 2, and other users

Capacity

• User Capacity : 1000
• Fingerprint Capacity : 3000
• Card Capacity : 5000
• Record Capacity : 300,000

Port

• RS-485 : 3
• Wiegand : 2 × input
• Network Port : 1 × RJ-45 10/100 Mbps Ethernet port
• Alarm Input : 2 (digital quantity)
• Alarm Output : 2 (digital quantity)
• Alarm Linkage : Yes
• Exit Button : 2
• Door Status Detection : 2
• Lock Control : 2

Alarm

• Tamper Alarm : Yes
• Duress Alarm : Yes
• Door Sensor Timeout : Yes
• Intrusion : Yes
• Illegal Card Exceeding Threshold : Yes
• Duress Fingerprint : Yes

General

• Power Supply : Power in: 12V DC or Power over Ethernet IEEE 802.3at Type 2 Class 4
• Protection : IK06
• Power Consumption : Standby Power (no peripheral devices) : ≤2 W
• Working Power :Total power budget if powered by DC: 1700 mA at 12 V for peripheral devices (locks, readers etc.) / Total power budget if powered by PoE: 1200 mA at 12 V for peripheral devices (locks, readers etc.)
• Product Dimensions : 186.4 mm × 185.8 mm × 58.3mm (L × W × H)
• Packaging Dimensions : 254 mm × 243 mm × 86 mm (L × W × H)
• Operating Temperature : –10 °C to +55 °C
• Operating Humidity : 5%–95% (RH), non-condensing
• Operating Environment : Indoor
• Gross Weight : 0.99 kg
• Installation : Surface Mount; Guide Rail Mount

Certifications

• CE; FCC; UL
