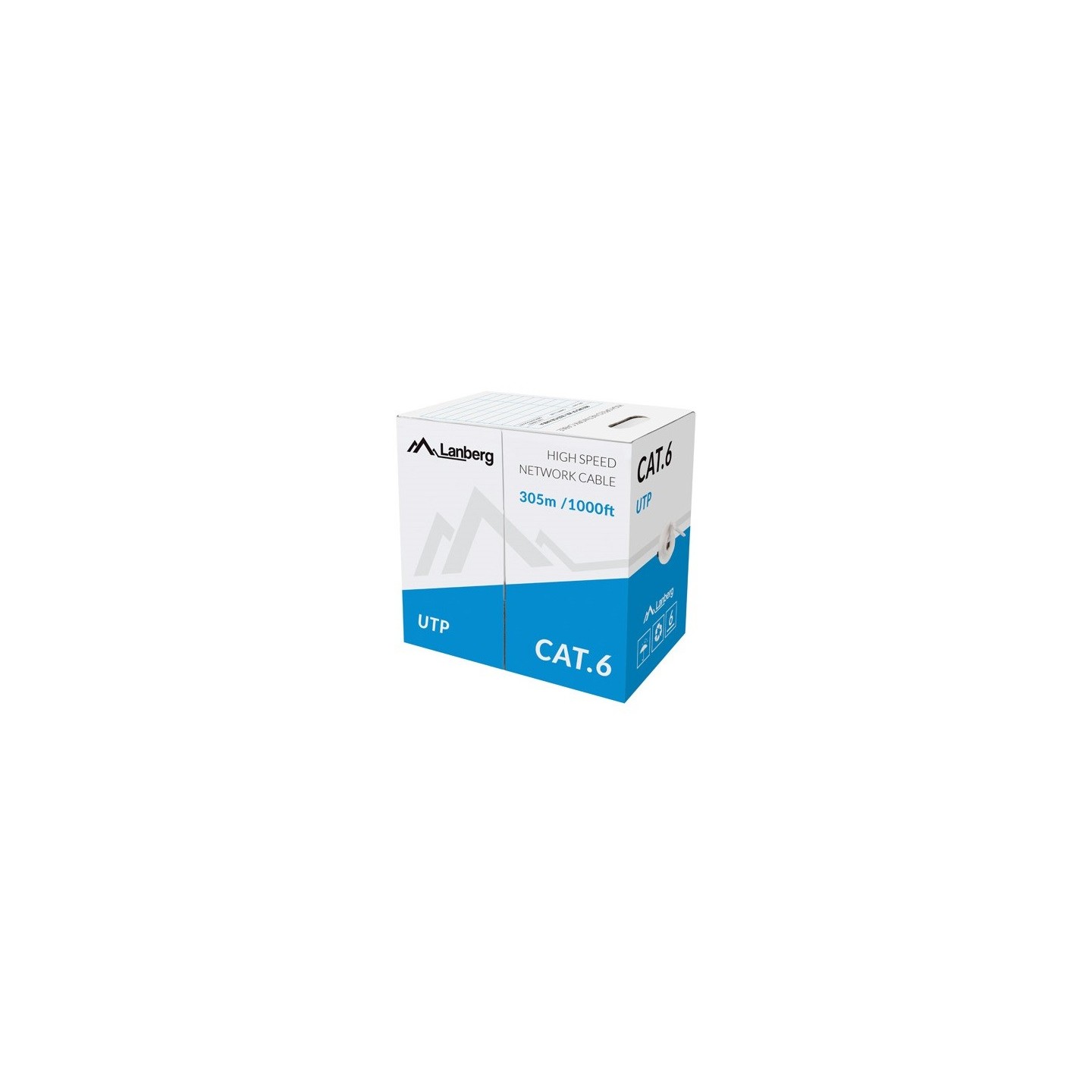

Lanberg Cable - LCU6-10CC - CAT6 UTP CCA Cable 305m Grey
Lanberg CAT6 UTP CCA Cable, 305 m, grey, indoor use; copper-clad aluminium conductor. Note: CCA cables not recommended for POE installations.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - Category | Cat6 |
|---|---|
| Ethernet Cables - Shielding | UTP |
| Ethernet Cables - Conductor | CCA |
| Ethernet Cables - AWG | 23 AWG |
| Ethernet Cables - Length | Other |
| Ethernet Cables - PoE Compatible | No |
Important Note: CCA Cables are not recommended for POE installations
- LAN cable category 6 UTP (unshielded)
- Length 305m
- The wires are made of copper clad aluminium (CCA)
- AWG 23 (4*2*0.57mm)
- Conductor stranding: single wire
- Color: grey RAL7035
- Printed length counter at every meter of cable
- External PVC insulation: 5.6mm
- HDPE conductor insulation: 0.95mm
- Operation up to 250Mhz
- Compatibility with standards: ANSI/TIA/EIA-568&ISO/IEC 11801
- Package: cardboard box
- Packaging dimensions (W x D x H): 38x24x38 cm
Electrical characteristics (20 degrees):
- Conductor resistance (max.): 60 - 90Om / 305m
- Insulation resistance (min.): 5000mOm km
- Pair-to-Ground capacitance: < 330PF / 100m
- Characteristic impedance: < 100Om (+/- 15)
- Transport and storage temperature: 0 - 60 degrees
- Operating temperature: -20 - 70 degrees
- Working distance: 100-120m
- PVC isolation : 5.6 mm
- Maximum operating frequency : 250 MHz
- HDPE isolation : 0.93 mm
- Category : ICT Cat. 6
- Cable type : Solid
- Material : copper plated (CCA)
- Cable length : 305m
- Colour : Grey RAL7035
| Type | Cat6 |
| Cable Type | UTP |
| Conductor | CCA |
| Environment | Indoor |
| Length | 305m |
| Colour | Grey |
