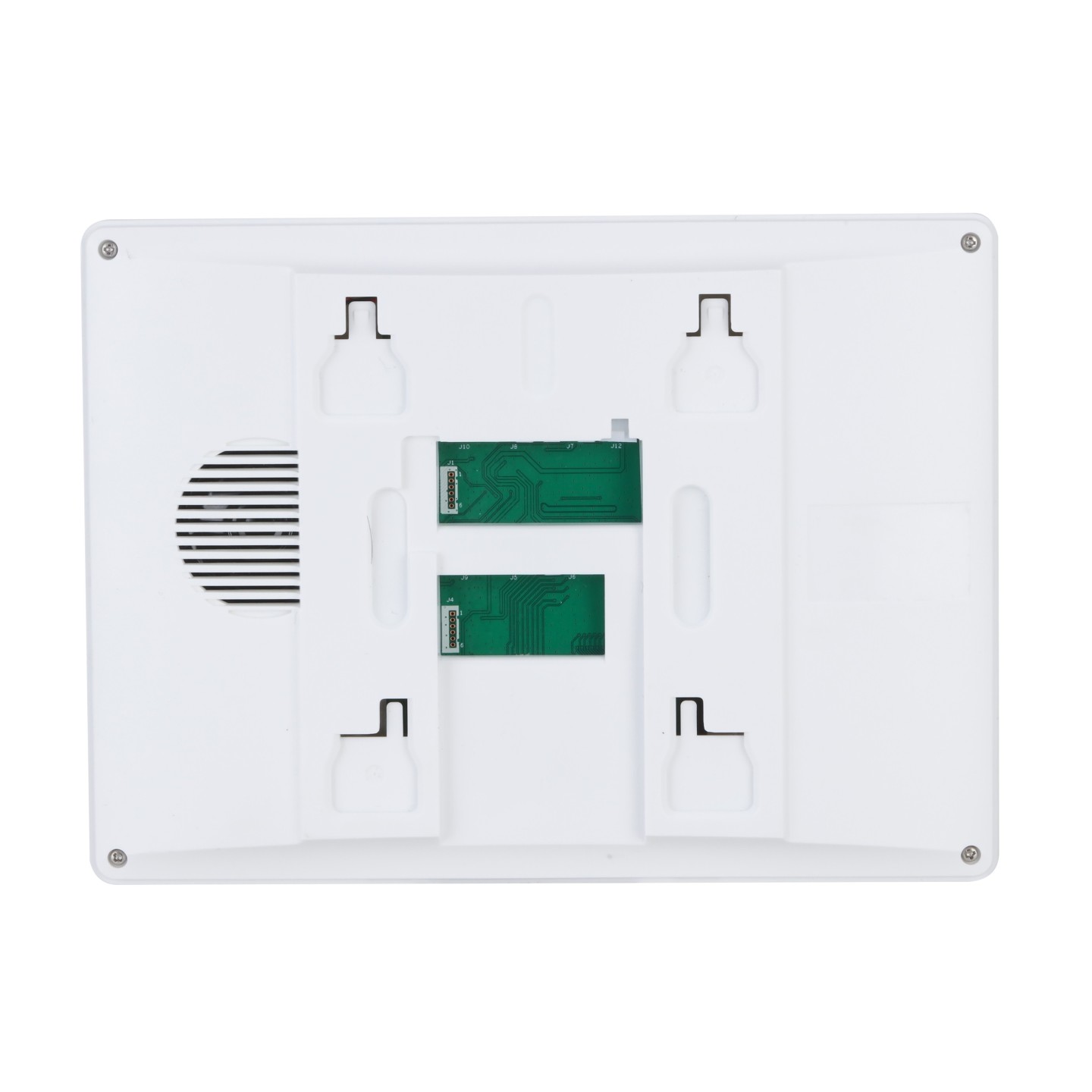

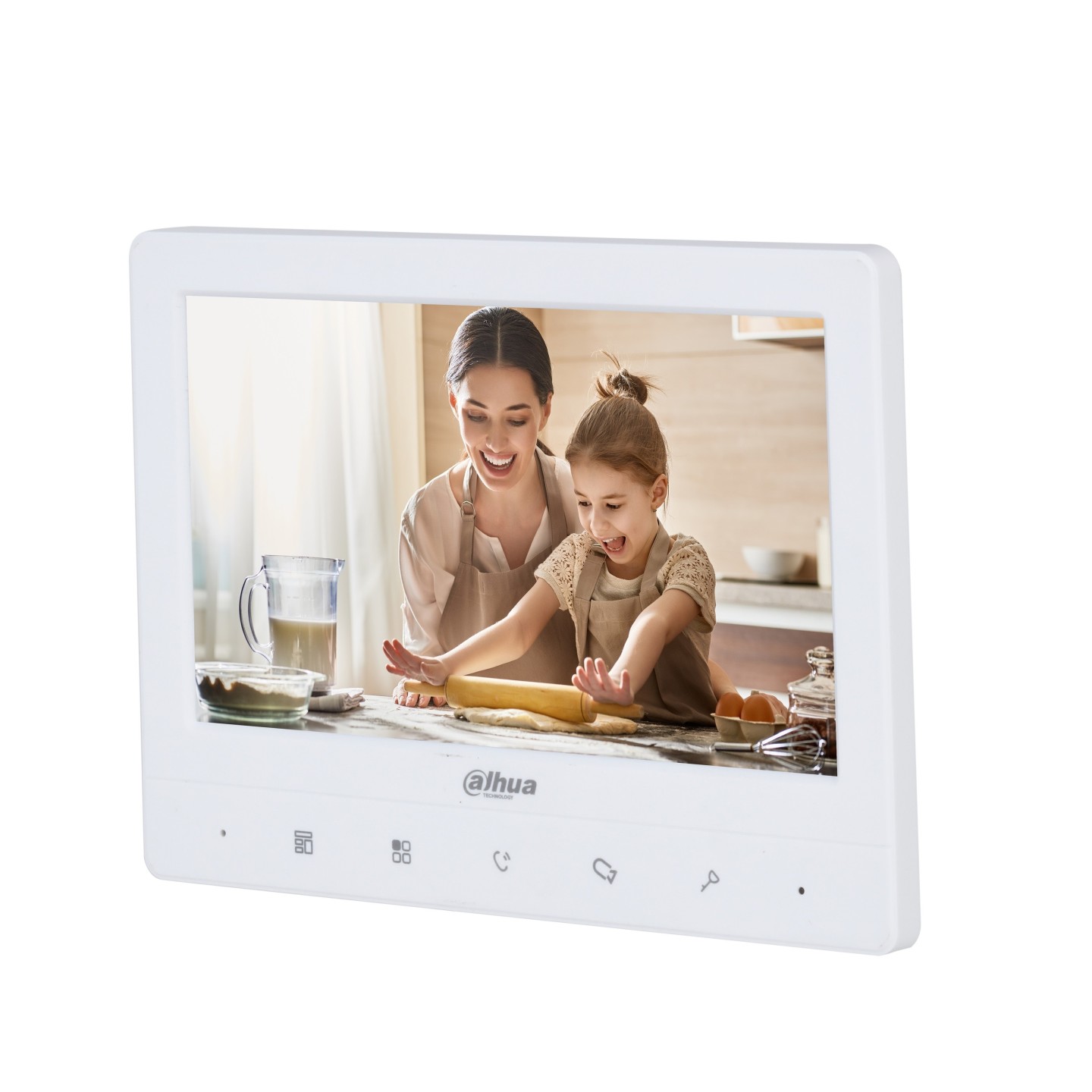

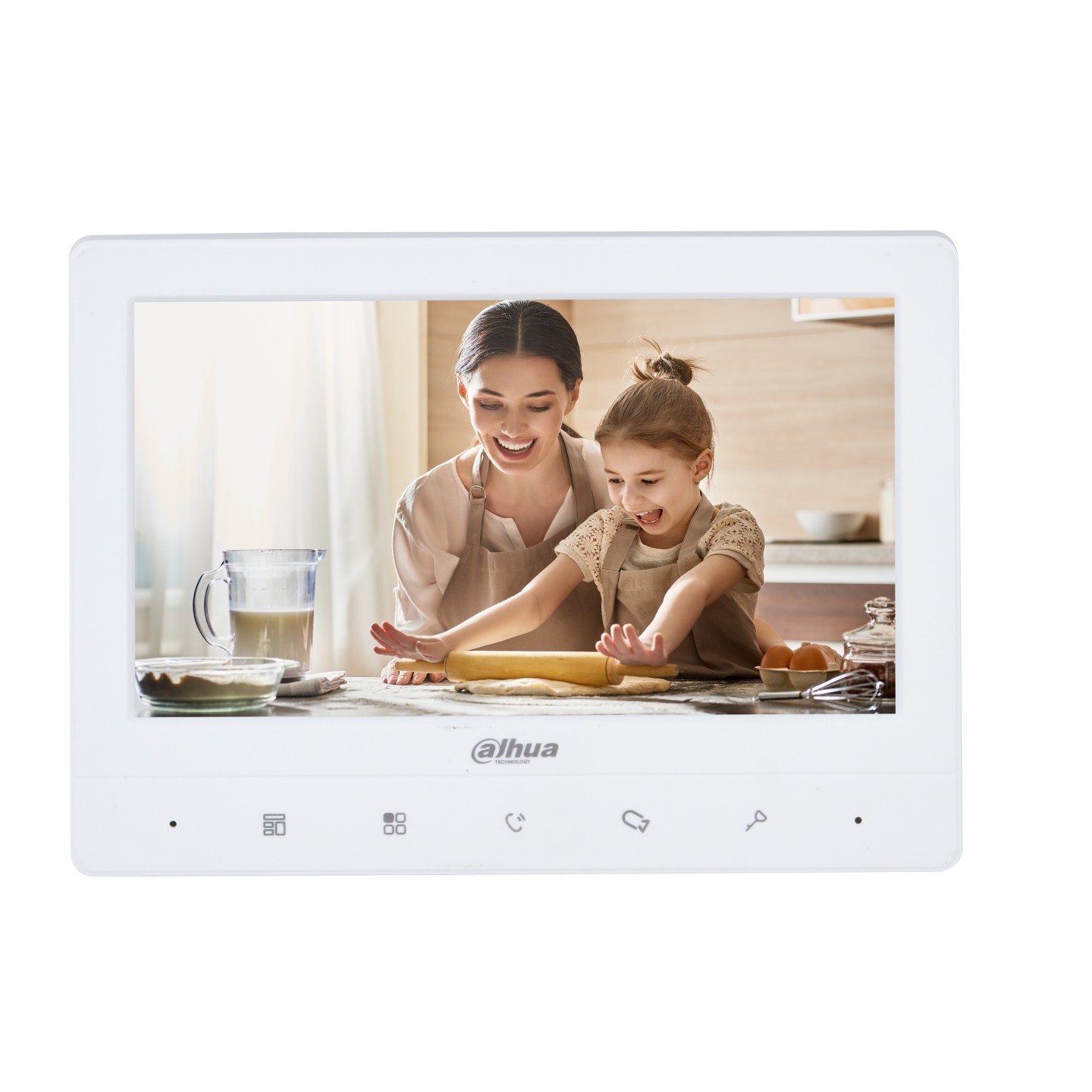

Dahua VD Analog Doorphone Monitor - VTH1020J
7" TFT doorphone monitor with video intercom (unlock, voice/video calls, volume control), touch button, multiple bell sounds; 12V DC power supply not included.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | 12 V DC |
|---|---|
| Intercoms - Access | Button |
| Intercoms - Display (Indoor) | 7inch |
- 7" TFT screen
- Video intercom function: Unlock, voice call, video call and volume adjustment
- Touch button
- Multiple bell sounds
- ** 12V Power Supply not included
System
- Button Type : Touch button
Basic
- Display : 7.0" TFT
- Screen Resolution : 1204 × 600
- Status Indicator : 1 indicator light
- Green: Power on
Function
- Communication Mode : Analog
Performance
- Casing : PC + ABS
General
- Color : White
- Power Supply : DC 12V/2A
- Installation : Surface mount
- Certifications : CE/FCC
- Accessory : Bracket (included)
- Dimensions : 133.90 mm × 182.70 mm × 17.70 mm
- Operating Temperature : -10°C to +55°C
- Operating Humidity : 10%RH–95%RH
- Power Consumption : ≤ 2W (standby) / ≤ 5W (working)
- Net Weight : 0.25 kg
- Gross Weight : 0.48 kg
| Connectivity | 4 Wires |
| Material | PC+ABS |
| Display | 7'' |
| Monitor Resolution | 1024*600 |
| Installation | Surface |
| Monitor Res | 1024x600 |
| Voltage | 12V |
