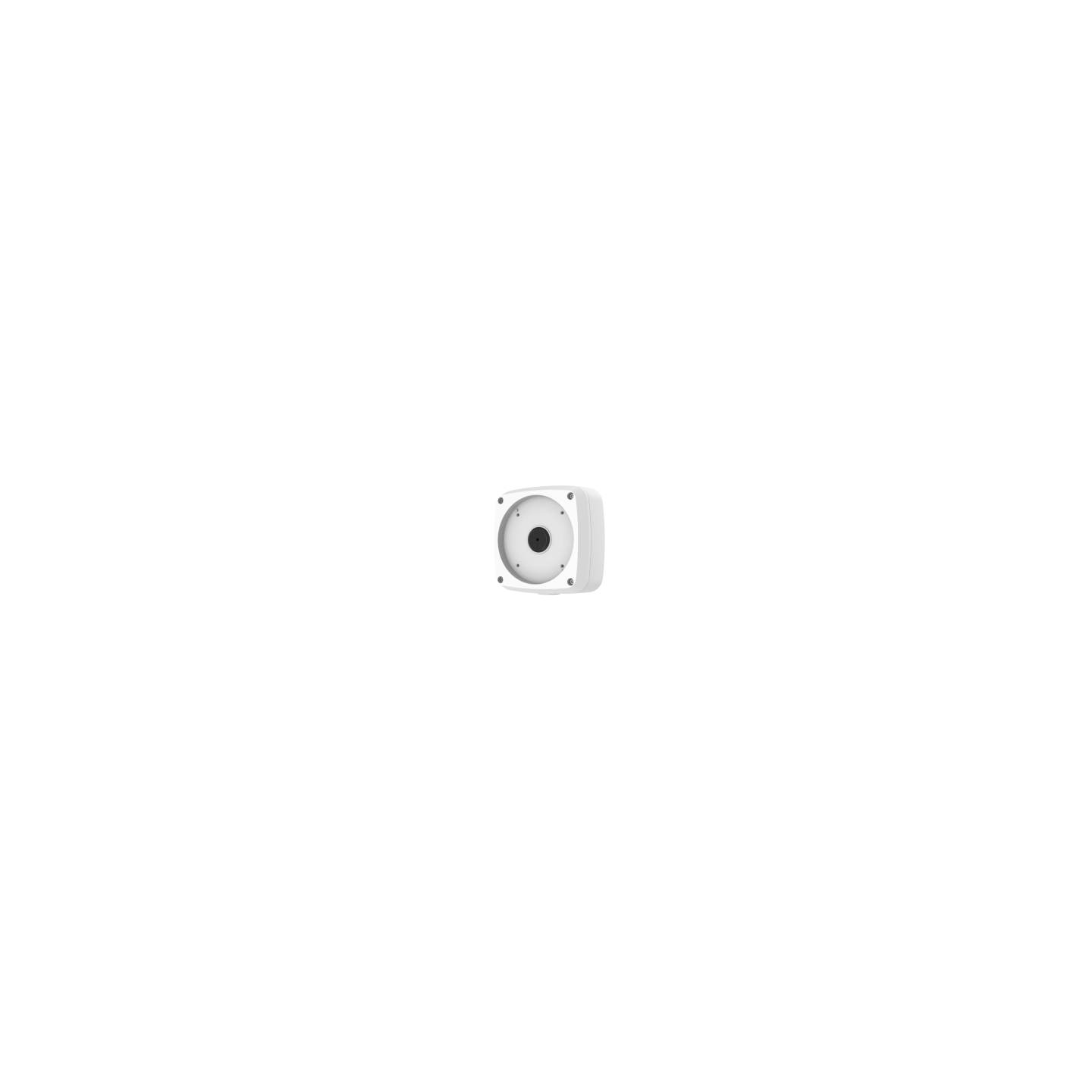

Dahua Junction Box - PFA 124
Aluminum alloy junction box with neat, integrated design; IP66-rated; bottom and side cable outlets for convenient wiring.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Camera Mounts - Weather Rating | IP66+ |
|---|
- Built of aluminum alloy.
- Neat and integrated design.
- IP66 junction box.
- Contains cable outlets on its bottom and sides to make wiring more convenient.
Structure
- Casing Material : Aluminum alloy
- Product Dimensions : 134.0 mm × 133.4 mm × 52.0 mm (5.28" × 5.25" × 2.05") (L × W × H)
- Appearance Color : White
- Net Weight : 0.54 kg (1.19 lb)
- Gross Weight : 0.65 kg (1.43 lb)
- Load Bearing : 3.0 kg (6.61 lb)
- Installation : Junction mount
- Screw Thread Type : G3/4
- Applicable Model : Please see "Camera Accessories Selection"
- Packaging Dimensions : 146.0 mm × 65.0 mm × 147.0 mm (L × W × H)
Environment
- Protection : IP66
- Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity : <90% (RH)
- Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity : 10%–90% (RH)
- Anti-corrosion Level : Basic protection
