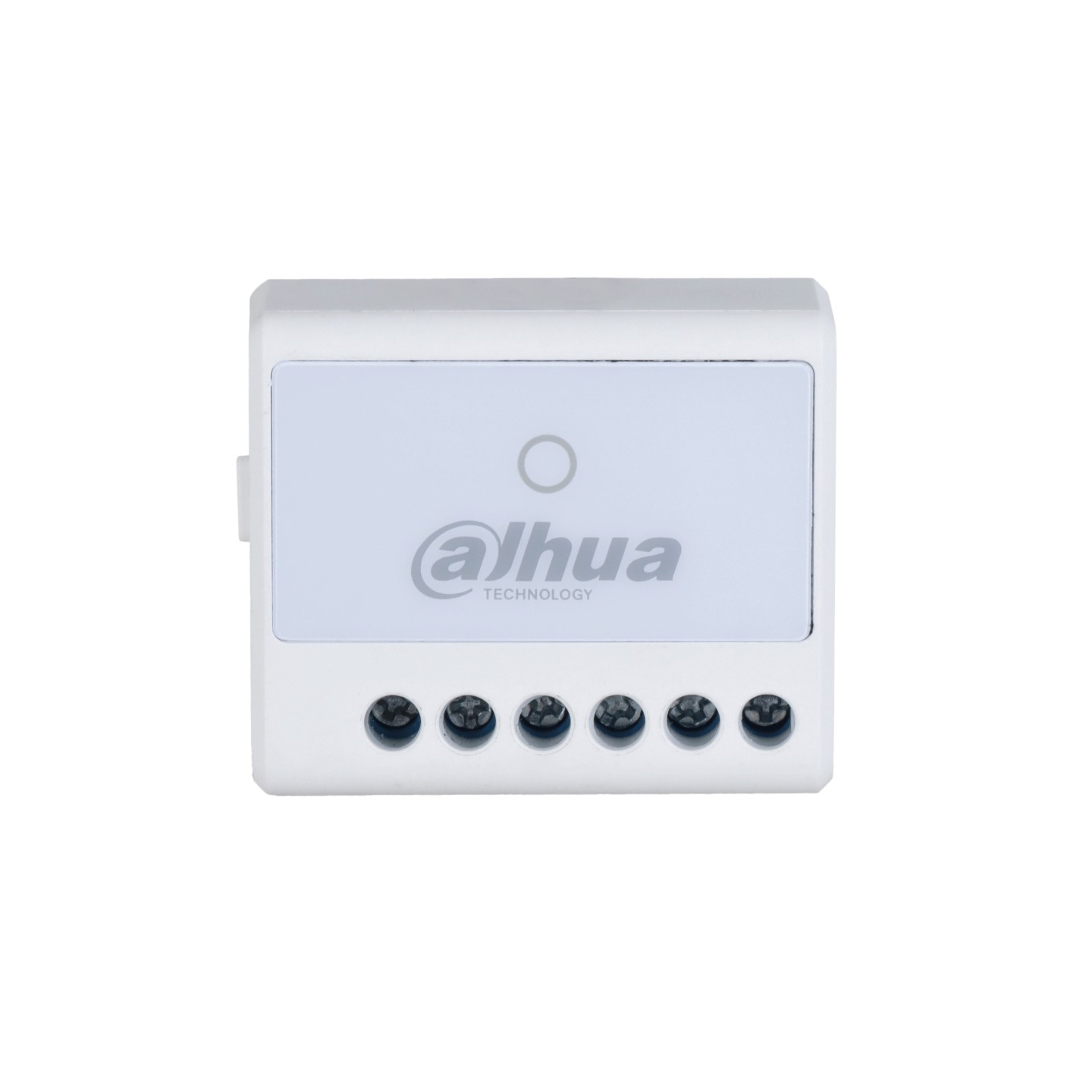

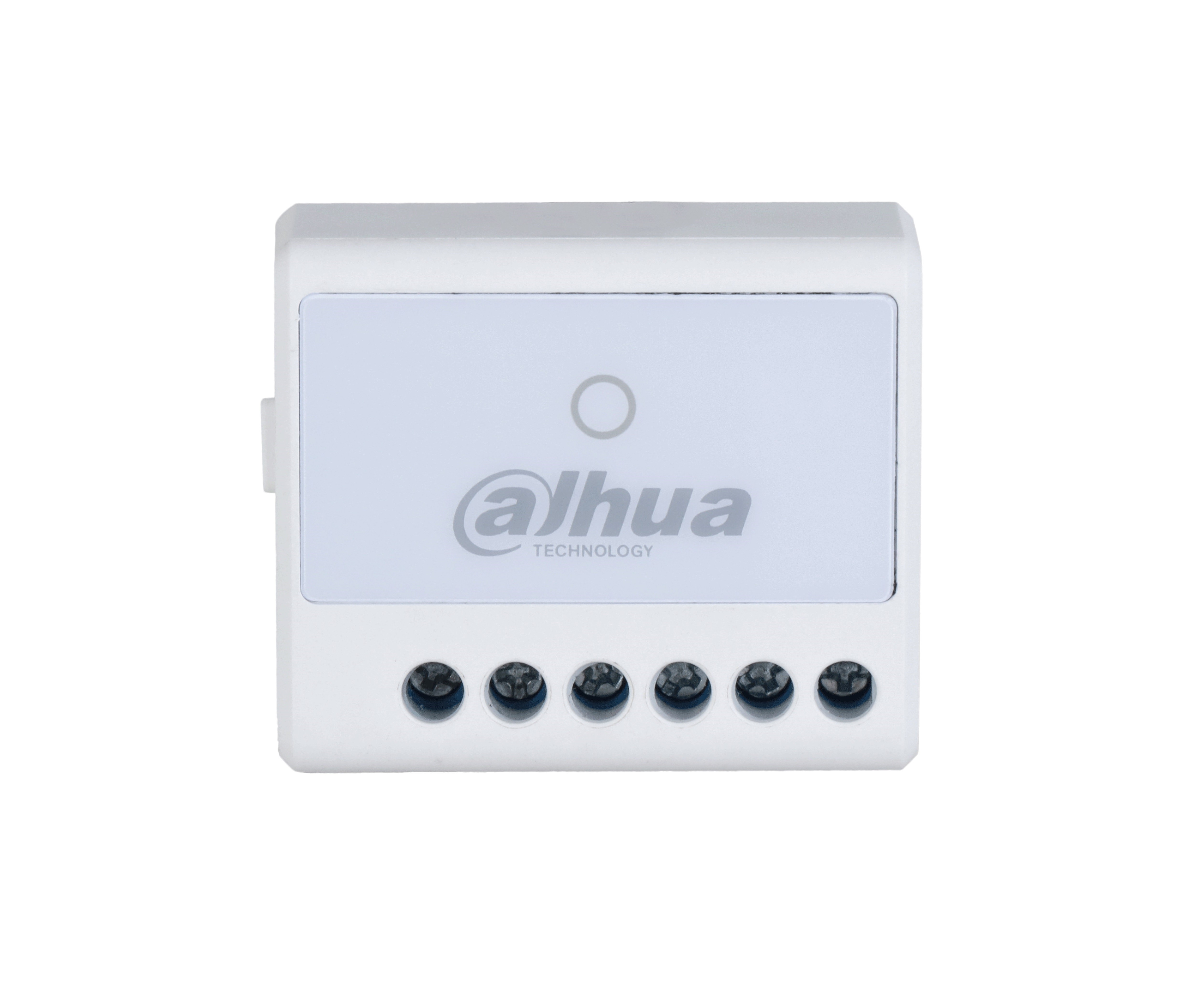

Dahua Alarm Wireless Automation Relay - ARM7011-W2 - (868)
Dahua Alarm Wireless Automation Relay at 868 MHz.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Frequency hopping and two-way communication technology ensure that communication is stable
- Supports jamming detection and communication encryption
- Supports cloud update and automatically restores when cloud update fails
- Overheating protection
- Voltage detection
- 1 channel external tamper input
Port
- Alarm Input : 1 for tamper, NO/NC
- Relay Output : 1, NO/NC (0–36 VDC, Max 5A)
Function
- Indicator Light : 1 for multiple statuses (pairing, communication)
- Button : 1
- Remote Update : Cloud update
Technical
- Test Mode : Yes
Wireless
- Carrier Frequency : 868.0 MHz–868.6 MHz
- Communication Mechanism : Two-way
- Communication Distance : 1200 m in open areas
- Encryption Mode : AES128
- Frequency Hopping : Yes
General
- Power Supply : 7–24 VDC
- Operating Temperature : –10 °C to +55 °C (indoor)
- Operating Humidity : 10%–90% (RH)
- Storage Temperature : –10 °C to +55 °C
- Storage Humidity : 10%–90% (RH)
- Product Dimensions : 39 mm × 33 mm × 19 mm
- Packaging Dimensions : 95 mm × 59.5 mm × 30.5 mm
- Net Weight : 45 g
- Gross Weight : 60 g
- Installation : Wall mount
- Casing Material : PC + ABS
- Certifications : CE
