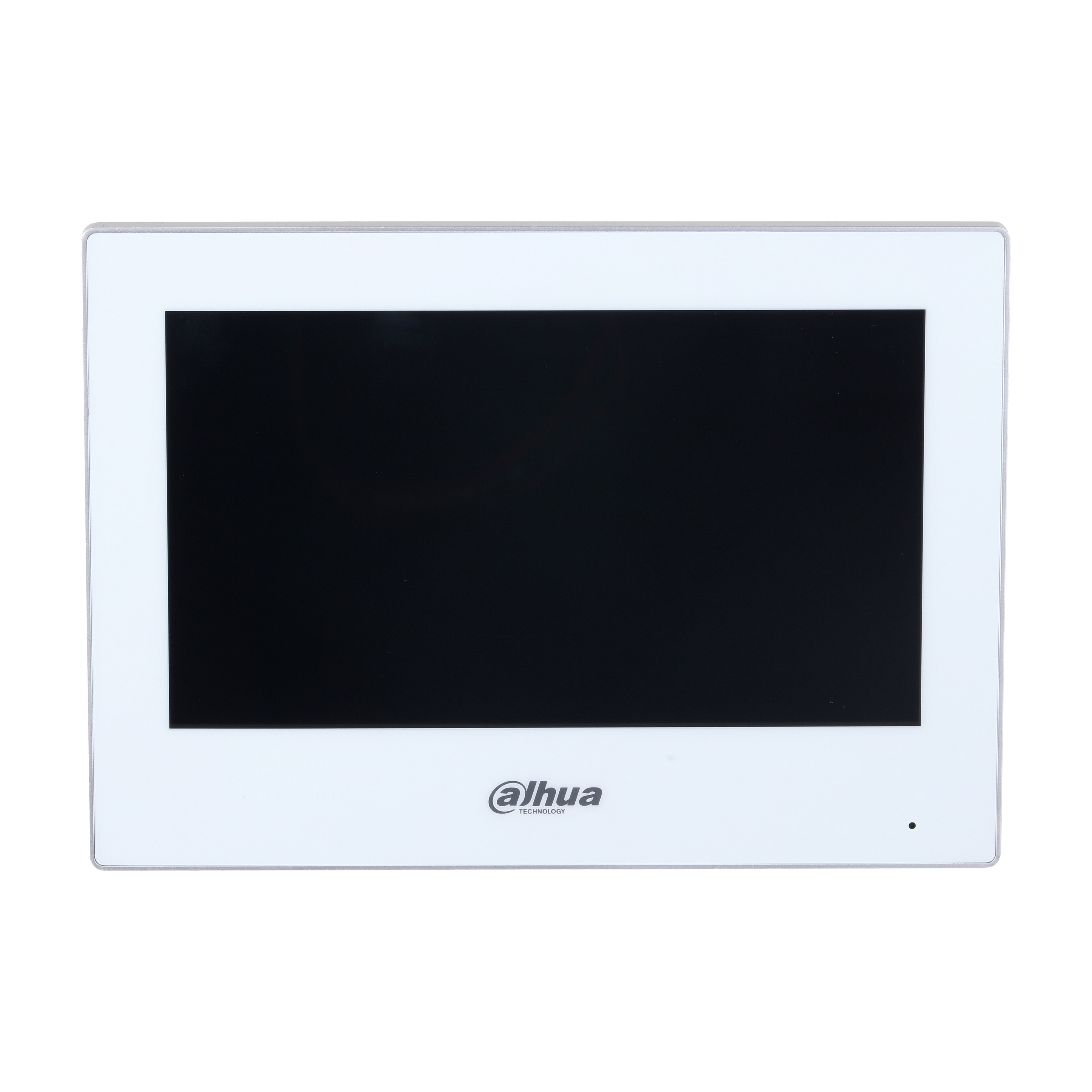

Dahua VD Wi-Fi 4-Wire Doorphone Monitor - VTH2624GW-WP - VD Wi-Fi 4-Wire Doorphone Monitor
7-inch TFT capacitive touch screen, 1024 × 600; Wi-Fi with H.264 video decoding; connects to analog/digital VTOs and VTHs, IPCs; supports group call.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | 12 V DC |
|---|---|
| Intercoms - Display (Indoor) | 7inch |
- 7" TFT capacitive touch screen, 1024 × 600
- Wi-Fi
- H.264 video decoding.Connects to analog and digital VTOs, and analog and digital VTHs
- Connects to IPCs
- Features group call.Supports recording videos and capturing snapshots (SD card is required)
- 6-channel alarm input and 1-channel alarm output
- Supports app management, receiving calls and alarm messages, and monitoring and opening the door
- Standard PoE
- Surface mount
System
- Main Processor : Embedded Processor
- Operating System : Embedded operating system
- Network Protocol : UDP; TCP; FTP; IPv4; DNS; RTSP; SSH; SIP; P2P; RTP
- Interoperability : ONVIF
Basic
- Screen Type : Capacitive Touchscreen
- Display Screen : 7" TFT
- Screen Resolution : 1024 (H) × 600 (V)
- Audio Compression : G.711a; G.711u; PCM
- Audio Input : 1 channel
- Audio Output : Built-in speaker
- Audio Mode : Two-way audio with VTO (half–duplex); Two-way audio with app (full–duplex)
- Audio Enhancement : Echo suppression/digital noise reduction
- Audio Bit Rate : 16 KHz; 16 Bit
Function
- Communication Mode : Full digital; Analog
- Information Release : Receive and view text information released by the management center
- Leave Videos : Yes (SD card needed)
- DND Mode : Do not disturb period can be set; Do not disturb mode can be set
- Number of Extensions : Villa: 9 digital extensions and 2 analog extensions / Apartment: 4 digital extensions and 2 analog extensions
- Wi-Fi : Yes
- Wireless Standard : IEEE802.11b; 802.11g; 802.11n
- Wireless Frequency Range : 2.4 GHz
- Storage ; Micro SD card (up to 64 GB)
Port
- RS-485 : 1
- Alarm Input : 6
- Alarm Output : 1
- Power Output : 1 (12 V, 200 mA)
- Door Bell : Yes (use the alarm input port)
- Network Port : 1 × RJ-45 10/100 Mbps Ethernet port
- 4-wire : 4
Performance
- Casing Material : PC and ABS
General
- Appearance Color : White
- Power Supply : 12 VDC, 1 A / Standard PoE
- Power Adapter : Optional
- Installation : Surface Mount
- Certifications : CE
- Product Dimensions : 189.57 mm × 134.57 mm × 26 mm
- Operating Temperature : –10 °C to +55 °C
- Operating Humidity : 10%–90% (RH)
- Operating Altitude : 0 m–3000 m
- Power Consumption : ≤3.8 W (standby), ≤8.9 W (working)
- Gross Weight : 604 g
- Storage Temperature : 0 °C to 40 °C
- Storage Humidity : 30%–75%
- Anti-corrosion Level : Basic Protection
- Operating Environment : Indoor
| Connectivity | 4-Wire |
| Type | Monitor |
| Display | 7'' |
| Monitor Resolution | 1024*600 |
| Voltage | 12V |
