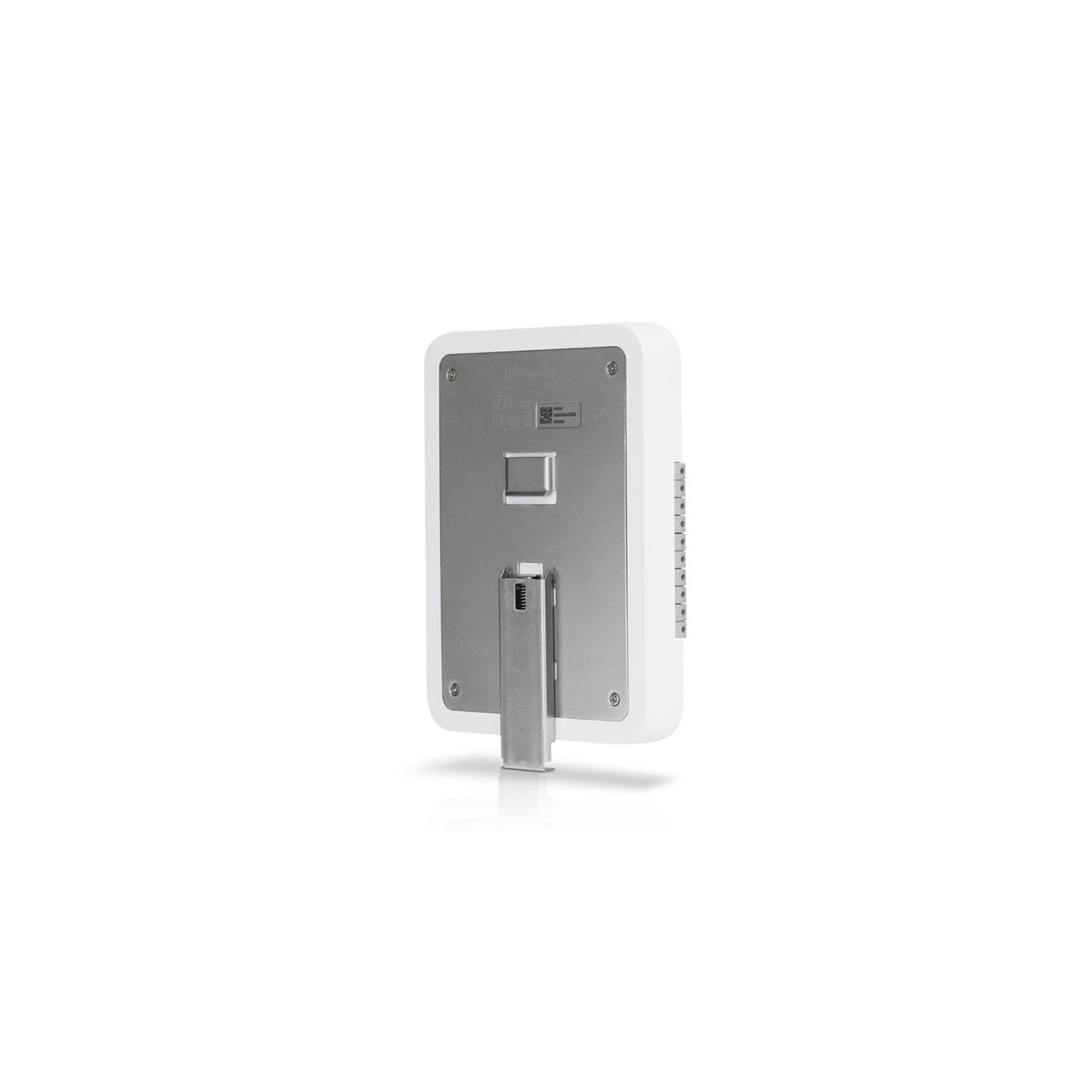

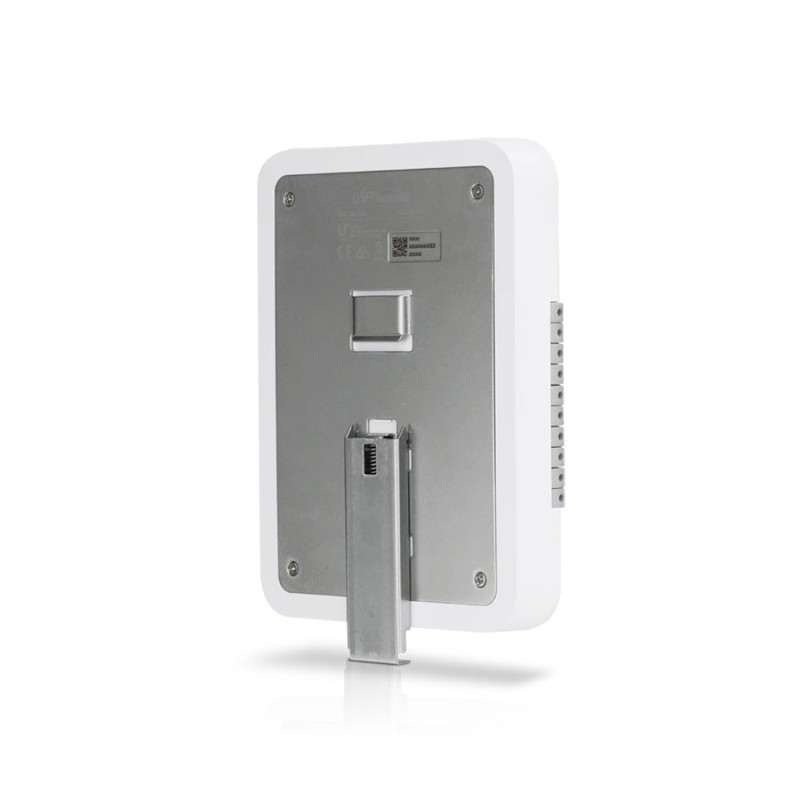

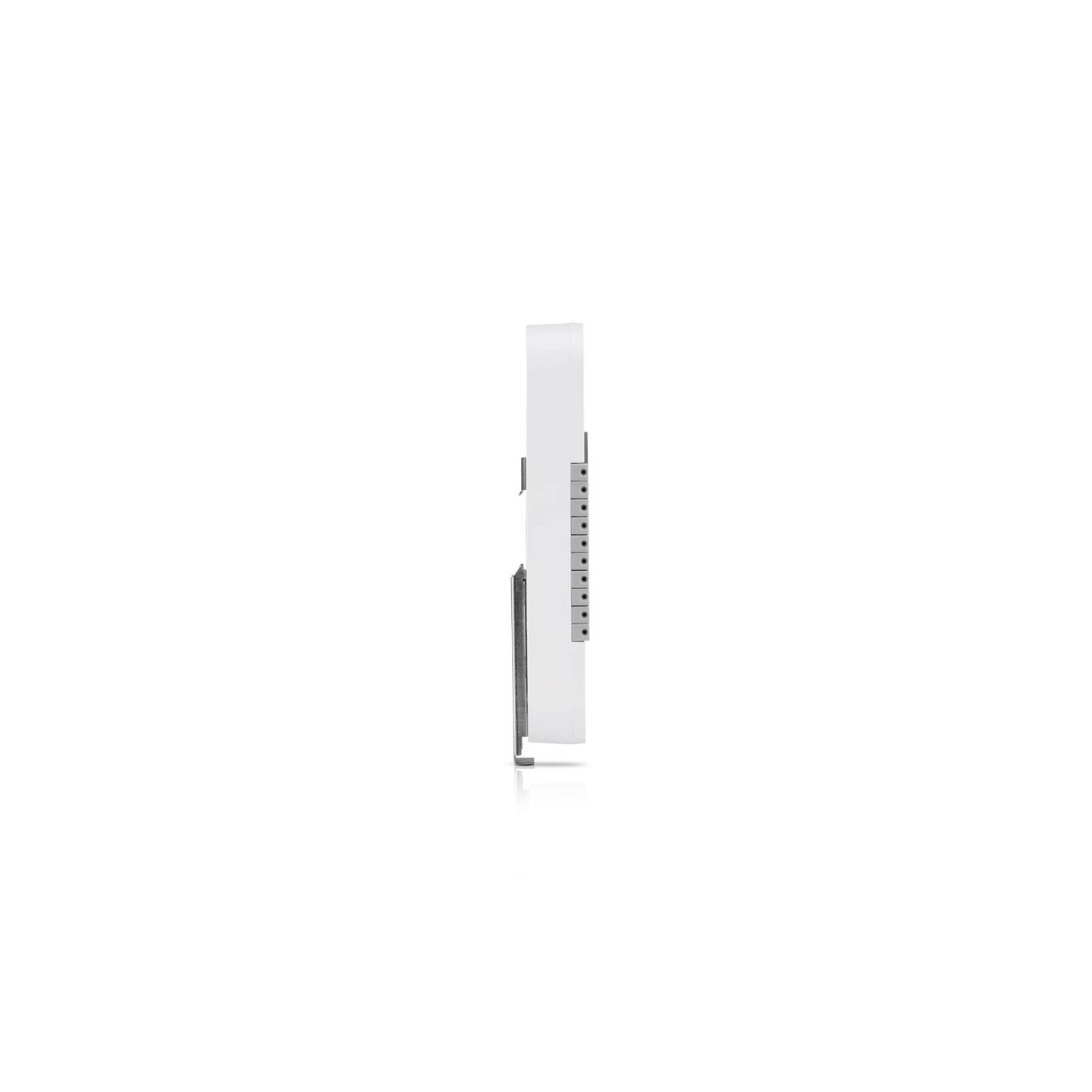

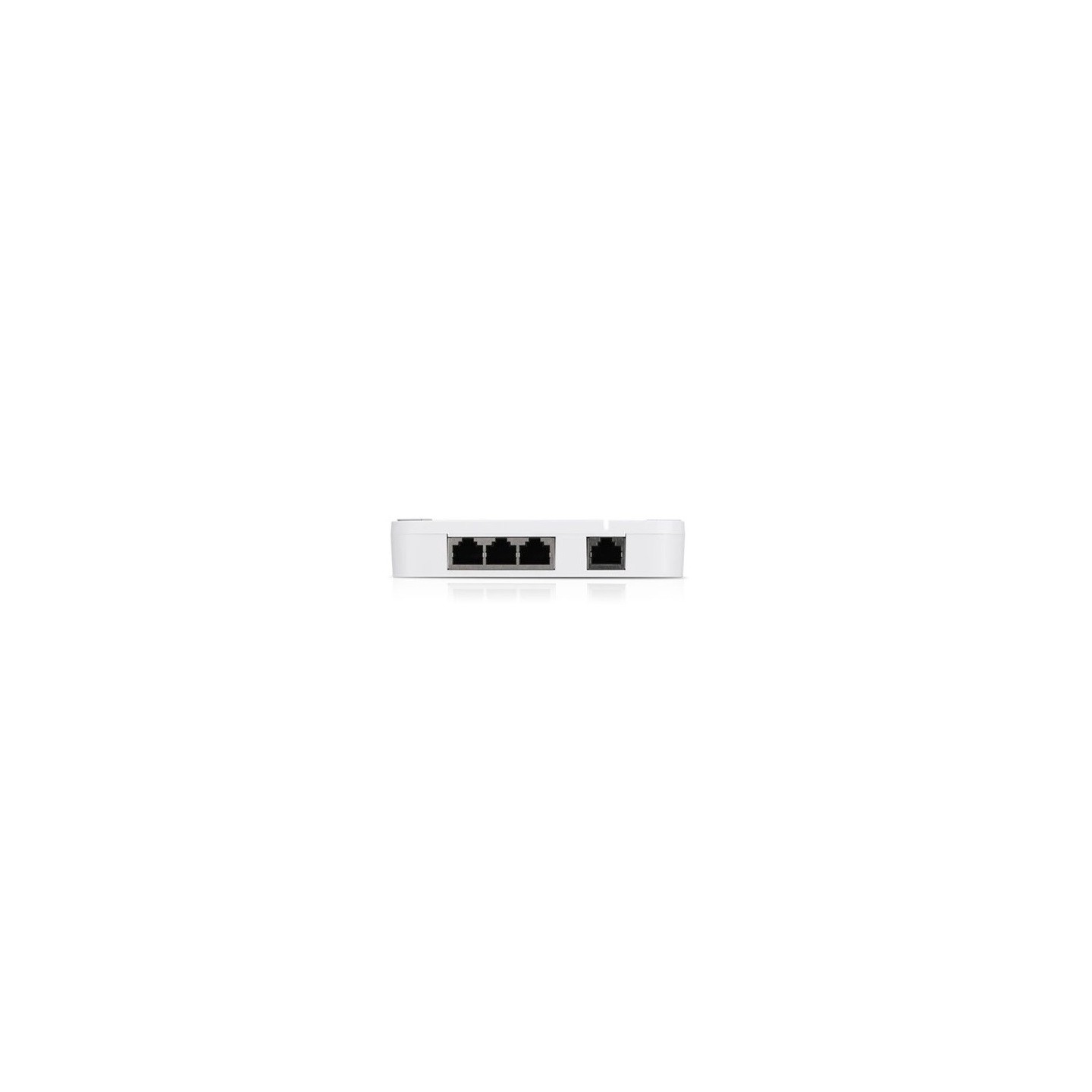

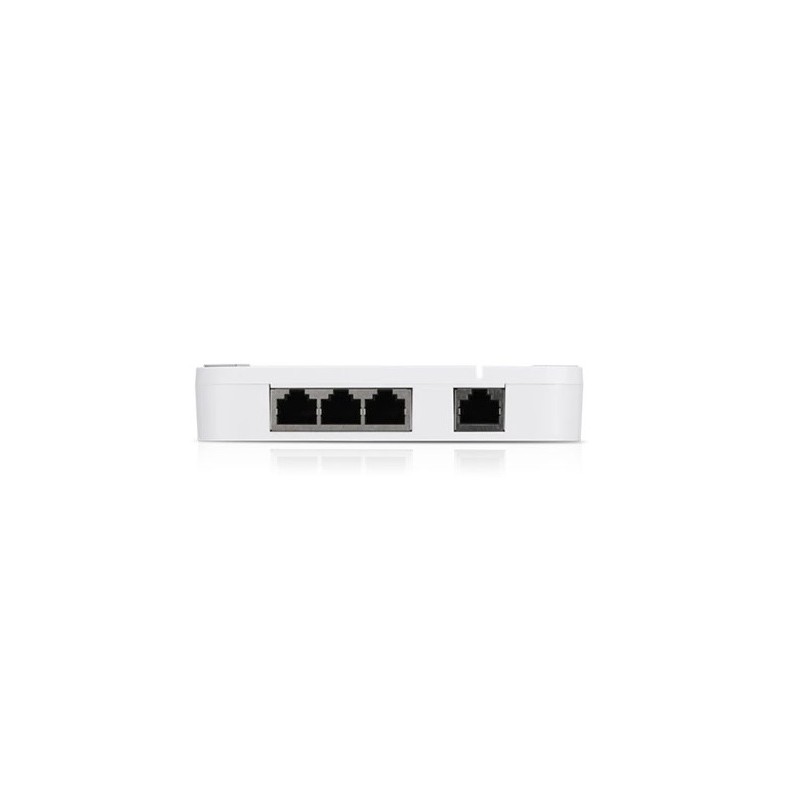

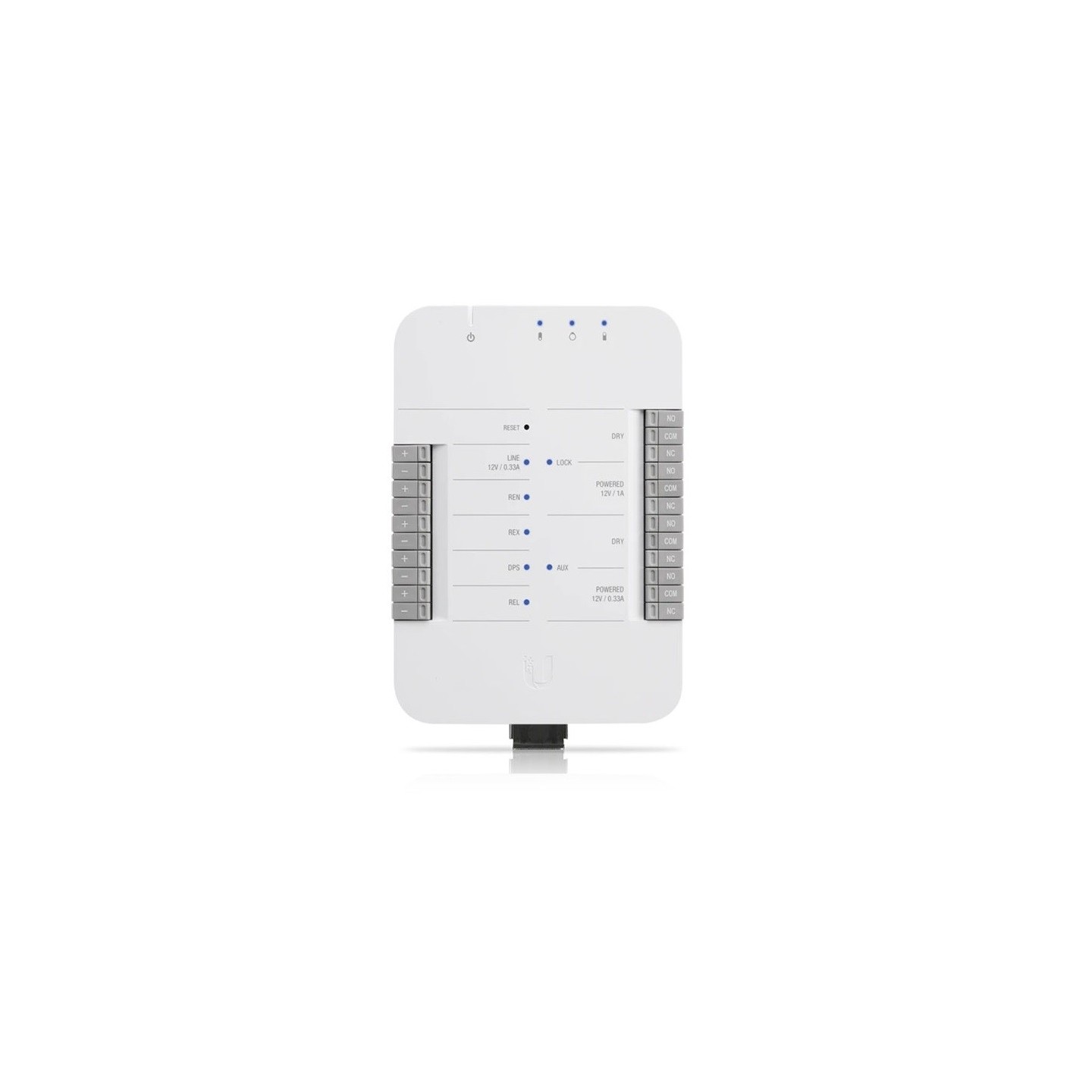

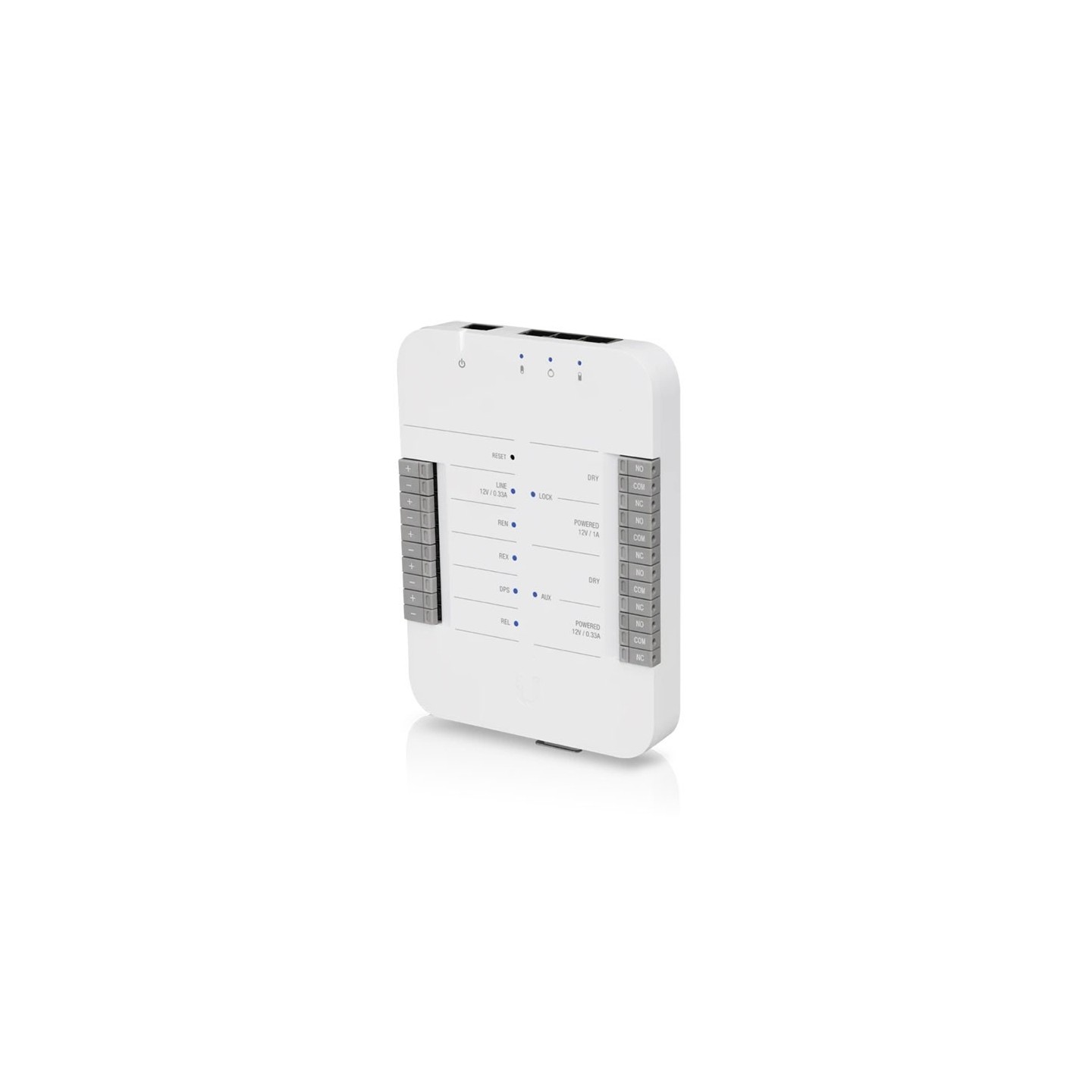

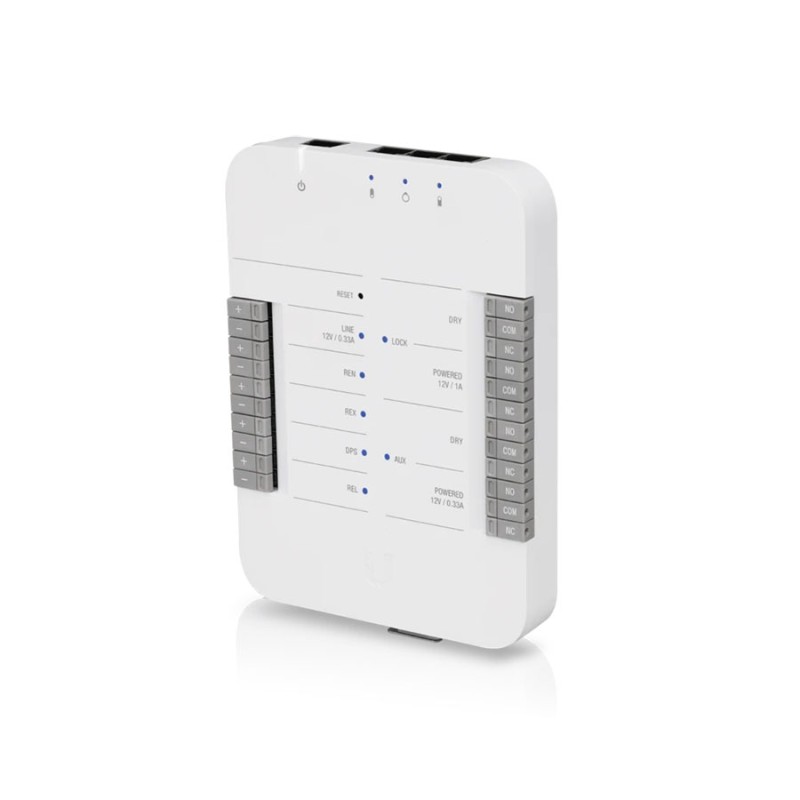

Ubiquiti UniFi Access Control Hub - UA-HUB - Access Control Hub

• The Access Hub is a sophisticated, single-door entry mechanism that also manages connected Access Readers
• The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access application. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface

Features:

• Powered by 802.3bt (PoE++) switch
• Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
• 12V powered and dry relays compatible with most locks
• Four inputs for motion sensors, request-to-exit devices and door position switch
• Managed with UniFi Access Application in UDM-Pro
• DIN-rail mounting

Mechanical

• Dimensions : 190 x 126 x 33 mm
• Weight : 457 g
• Enclosure Characteristics : Plastic Enclosure with Metal Mount Plate
• Mounting Options : DIN Rail

Hardware

• Networking Interface : (4) 1 Gbps Ethernet
• Max. Power Consumption : 40W
• Power Method : 802.3bt PoE
• Input Terminals : REX - Request to Exit / REN - Request to Enter / REL - Remote Release / DPS - Door Position Sensor
• Dry Output Relay
• Lock : Rated 30VDC, up to 1A
• Aux : Rated 30VDC, up to 1A
• Powered Output Relay
• Lock : 12VDC, up to 1A
• Aux : 12VDC, up to 0.33A
• Line : 12VDC, up to 0.33A
• LEDs  : (1) System, (3) PoE Out, (4) Input / (2) Output Relays, (1) 12VDC Out
• Buttons :  Terminal Blocks, Reset
• Operating Temperature :  0 to 40° C
• Operating Humidity : 5 - 90% Noncondensing
• Certifications : CE, FCC, IC
