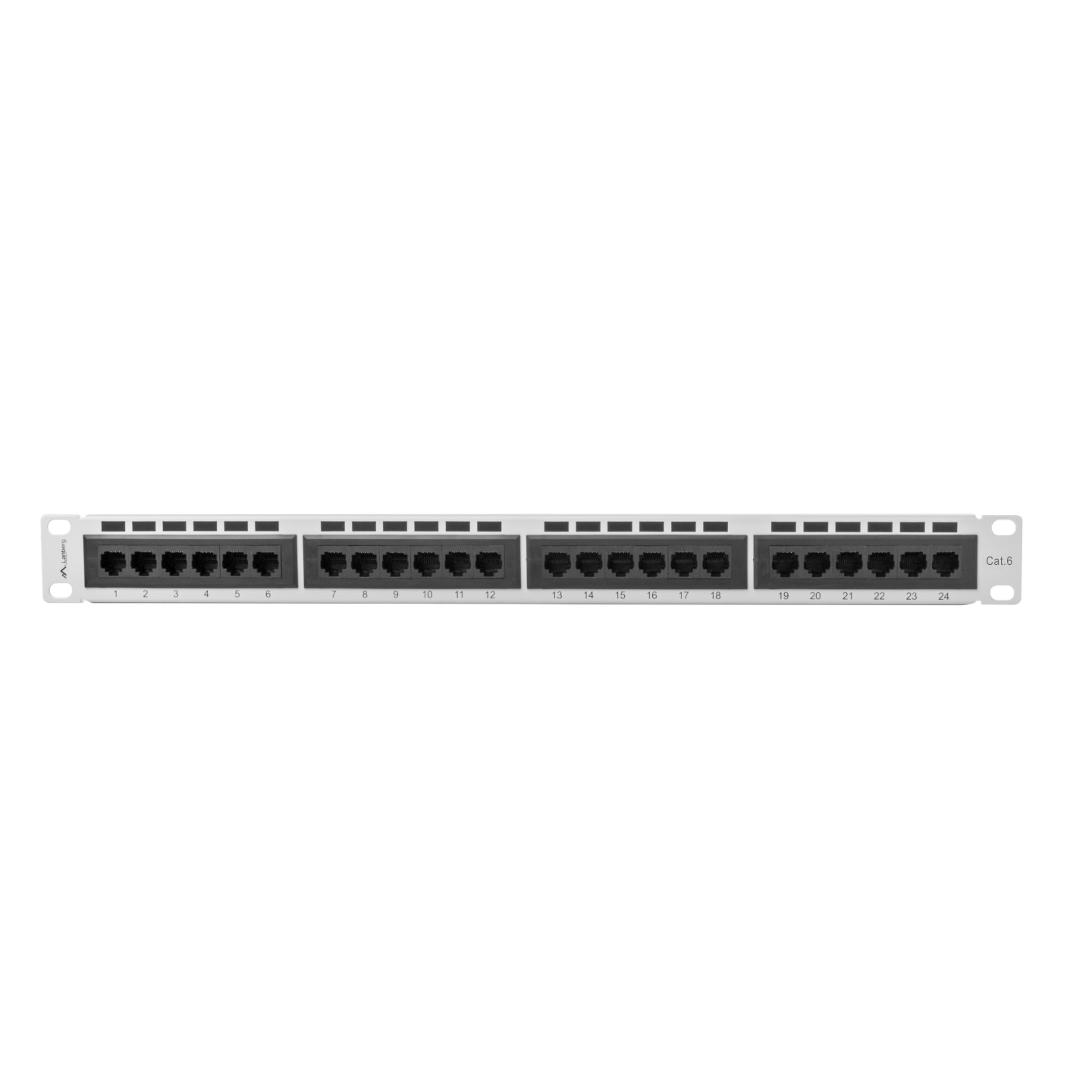

Lanberg Patch Panel - 24-Port 1U 19' CAT6 UTP Grey
Cat6 patch panel, 24 ports in a 1U 19-inch rack form factor, unshielded, grey.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Patch Panels - Ports | 24 |
|---|---|
| Patch Panels - Category | Cat6 |
| Patch Panels - Shielding | Unshielded |
| Patch Panels - Mounting | Rack |
This particular patch panel is designed to use in main and secondary distribution points of fast telecommunications systems.
It is a passive part of structured cabling used for termination and organization of twisted-pair cables within 19" rack cabinets. Patch panels is equipped with 24 unshielded RJ-45 ports category 6.

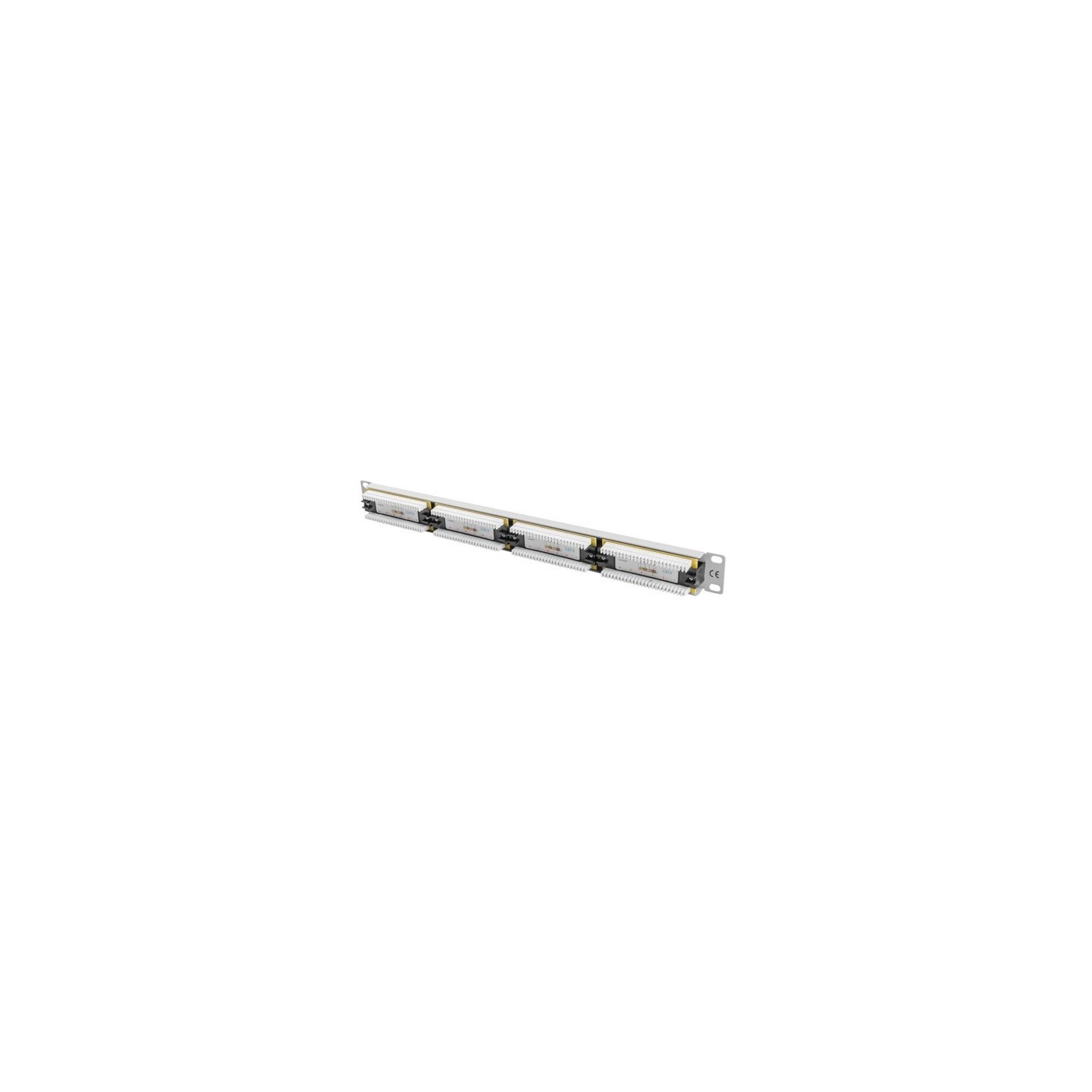

Use of IDC/LSA connectors, provides fast and easy installation. Cable management panel attached to this product, ensures easy assembly.
- 24 unshielded RJ-45 ports category 6.
- Ports identification in the form of numbered fields.
- Designed for 19" rack cabinets.
- Height: 1U.
- Universal IDC/LSA connectors in accordance with T568A/B standards.
- Color: grey RAL7035.
- Number of ports: 24
- Connector type: Equipped
- Size: 19"
- ICT height: 1 U
- ICT category: Cat. 6
- Shielding: No
- Equipped with connectors: Yes
- Fitting type: IDC/LSA
- Material: Metal
- Standard: T568A / T568B
- Ports identification in the form of numbered fields: Yes
- RAL color: RAL7035
- Colour:Gray
- Length: 32.5 mm
- Width: 445 mm
- Height:44.45 mm
- Weight: 0.67 kg
- Required amount of screws: 4
| Type | Cat6 |
| Ports | 24 |
| Mounting | Rack Mounted |
